Camera Motion Identification in the Rough Indexing Paradigm Petra KRMER and Jenny BENOIS-PINEAU LaBRI University Bordeaux I, France {petra.kraemer,jenny.benois}@labri.fr Camera Motion Identification in the Rough Indexing Paradigm

slide-1

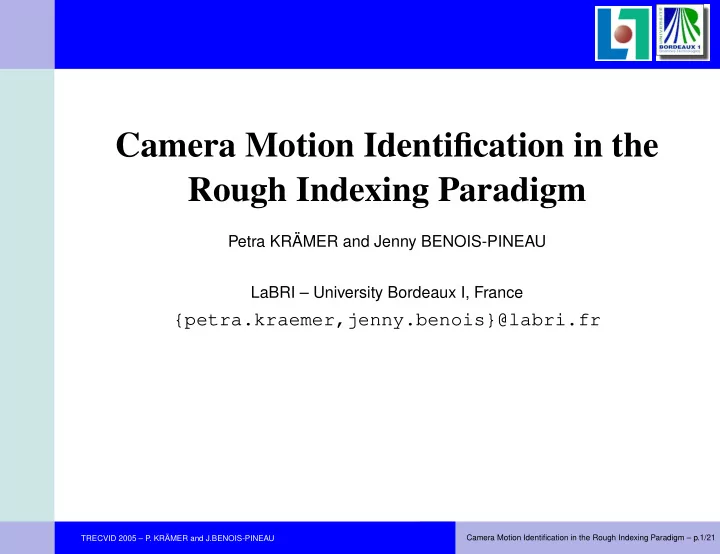

SLIDE 1

TRECVID 2005 – P . KRÄMER and J.BENOIS-PINEAU

Camera Motion Identification in the Rough Indexing Paradigm

Petra KRÄMER and Jenny BENOIS-PINEAU LaBRI – University Bordeaux I, France

{petra.kraemer,jenny.benois}@labri.fr

Camera Motion Identification in the Rough Indexing Paradigm – p.1/21

slide-2
SLIDE 2

TRECVID 2005 – P . KRÄMER and J.BENOIS-PINEAU

Introduction

Task: Given the shot boundary reference Identify the shots in which a certain camera motion (pan, tilt, zoom) is present Rough Indexing Paradigm: Work on a lower spatial and temporal resolution i.e. P-Frames Aim: Reuse motion low-level descriptors from the compressed stream Main challenge in TRECVID 2005: Jitter camera motion due to hand-carried cameras

Camera Motion Identification in the Rough Indexing Paradigm – p.2/21

slide-3
SLIDE 3

TRECVID 2005 – P . KRÄMER and J.BENOIS-PINEAU

Overview

P-Frames 1 Global Motion Estimation 2 Signifi cance Value Computation 3 Motion Segmentation 4 Thresholding 5 Classifi cation Motion feature

ˆ θj sj ¯ sm ¯ ζm

j related to frames, m related to segments of homogeneous motion

Camera Motion Identification in the Rough Indexing Paradigm – p.3/21

slide-4
SLIDE 4

TRECVID 2005 – P . KRÄMER and J.BENOIS-PINEAU

Overview

P-Frames 1 Global Motion Estimation 2 Signifi cance Value Computation 3 Motion Segmentation 4 Thresholding 5 Classifi cation Motion feature

ˆ θj sj ¯ sm ¯ ζm

j related to frames, m related to segments of homogeneous motion

Camera Motion Identification in the Rough Indexing Paradigm – p.3/21

slide-5
SLIDE 5

TRECVID 2005 – P . KRÄMER and J.BENOIS-PINEAU

Global Motion Estimation

P 1 2 3 4 5 Mf ˆ θj sj ¯ sm ¯ ζm

Robust global motion estimator for P-Frames [DBP01]: Estimation of the affi ne 2D motion model:

  • dxi

dyi

  • =
  • a1

a4

  • +
  • a2

a3 a5 a6 xi yi

  • Based on the weighted least squares method:

ˆ θ = (HT WH)−1HT WZ ✛ ✚ ✘ ✙

ˆ θ = (a1, a2, a3, a4, a5, a6)T Z MPEG motion compensation vectors H macroblock centers W weights defi ned by the derivative of the Tukey function

Camera Motion Identification in the Rough Indexing Paradigm – p.4/21

slide-6
SLIDE 6

TRECVID 2005 – P . KRÄMER and J.BENOIS-PINEAU

Global Motion Estimation

P 1 2 3 4 5 Mf ˆ θj sj ¯ sm ¯ ζm

The derivative of the Tukey function:

ψ(r, λr) =

  • r(r2 − λ2

r)2

if |r| < λr

  • therwise

The weights are [OB95]:

wi = ψ(ri) ri ✛ ✚ ✘ ✙

λr threshold ri = zi − ˆ zi residuals zi i-th MPEG motion vector ˆ zi estimation of zi

  • 10
  • 8
  • 6
  • 4
  • 2

2 4 6 8 10

  • 4
  • 3
  • 2
  • 1

1 2 3 4

ψ

Camera Motion Identification in the Rough Indexing Paradigm – p.5/21

slide-7
SLIDE 7

TRECVID 2005 – P . KRÄMER and J.BENOIS-PINEAU

Global Motion Estimation

P 1 2 3 4 5 Mf ˆ θj sj ¯ sm ¯ ζm

a)

  • 150
  • 100
  • 50

50 100 150

  • 200
  • 150
  • 100
  • 50

50 100 150 200 Motion Compensation Vectors (29087)

b)

  • 150
  • 100
  • 50

50 100 150

  • 200
  • 150
  • 100
  • 50

50 100 150 200 Estimated Vectors (29087)

c)

✬ ✫ ✩ ✪

a) P-Frame motion vectors b) Estimated vectors c) Macroblocks: Outliers Dominant estimation support D (wi > 0)

Camera Motion Identification in the Rough Indexing Paradigm – p.6/21

slide-8
SLIDE 8

TRECVID 2005 – P . KRÄMER and J.BENOIS-PINEAU

Global Motion Estimation

P 1 2 3 4 5 Mf ˆ θj sj ¯ sm ¯ ζm

Problem: The global motion parameters are noisy due to jitter motions. The global motion parameters have different meanings. Solution: Signifi cance test of the motion parameters: Thresholding of likelihood values

Camera Motion Identification in the Rough Indexing Paradigm – p.7/21

slide-9
SLIDE 9

TRECVID 2005 – P . KRÄMER and J.BENOIS-PINEAU

Significance Value Computation

P 1 2 3 4 5 Mf ˆ θj sj ¯ sm ¯ ζm

Based on [BGG99]: Change to another basis of elementary motion-subfi elds:

φ = (pan, tilt, zoom, rot, hyp1, hyp2) with zoom = 1

2(a2 + a6)

rot = 1

2(a5 − a3)

hyp1 = 1

2(a2 − a6)

hyp2 = 1

2(a3 + a5)

Consider two hypotheses H0 and H1

H0: the considered component of φ is signifi cant

with ˆ

φ0 as the corresponding motion model H1: the considered component of φ is not signifi cant (= 0)

with ˆ

φ1 as the corresponding motion model

Camera Motion Identification in the Rough Indexing Paradigm – p.8/21

slide-10
SLIDE 10

TRECVID 2005 – P . KRÄMER and J.BENOIS-PINEAU

Significance Value Computation

P 1 2 3 4 5 Mf ˆ θj sj ¯ sm ¯ ζm

Likelihood function associated to each hypothesis:

f(ˆ φl) =

  • i∈D
  • 1

2π

  • det(Σl)

exp

  • −1

2(rT

i Σ−1 l

ri)

  • =

1 (2πσx,lσy,l)||D|| exp (−||D||), l = 0, 1

Assumption:

Σl =

  • σ2

x,l

σ2

y,l

  • ✗

✖ ✔ ✕

Σ covariance matrix σx, σy variances for x and y D dominant estimation support

Camera Motion Identification in the Rough Indexing Paradigm – p.9/21

slide-11
SLIDE 11

TRECVID 2005 – P . KRÄMER and J.BENOIS-PINEAU

Significance Value Computation

P 1 2 3 4 5 Mf ˆ θj sj ¯ sm ¯ ζm

The signifi cance value s is:

s = ln

  • f(ˆ

φ1) f(ˆ φ0)

  • = ||D|| (ln(σx,0σy,0) − ln(σx,1σy,1))

=∗ ||D||

  • ln(σ2

0) − ln(σ2 1)

  • ∗ assuming that σx = σy

Aim: Use s to test the signifi cance Idea: If a motion feature (pan, zoom, tilt) is present in a shot, its corresponding motion parameter is signifi cant during a suffi cient number of frames.

Camera Motion Identification in the Rough Indexing Paradigm – p.10/21

slide-12
SLIDE 12

TRECVID 2005 – P . KRÄMER and J.BENOIS-PINEAU

Significance Value Computation

P 1 2 3 4 5 Mf ˆ θj sj ¯ sm ¯ ζm

Problem: The signifi cance values can be noisy due to jitter motions. The motion models ˆ

θ can be inaccurate.

Solution: Smooth the signifi cance value along the time and take decision on the temporal mean value. –> Segment shots into subshots of homogeneous motion Introduce confi dence measures in order to reject frames with an inaccurate motion model.

Camera Motion Identification in the Rough Indexing Paradigm – p.11/21

slide-13
SLIDE 13

TRECVID 2005 – P . KRÄMER and J.BENOIS-PINEAU

Significance Value Computation

P 1 2 3 4 5 Mf ˆ θj sj ¯ sm ¯ ζm

Two reasons for inaccurate motion models: Failure of the MPEG encoder –> Confi dence measure c

D ≈ ||D||

Failure of the global motion estimation algorithm –> Confi dence measure c

σ ≈ σ2

Reject of the frame if: cD < λD || cσ > λσ

✎ ✍ ☞ ✌ λD

threshold

λσ

threshold

Camera Motion Identification in the Rough Indexing Paradigm – p.12/21

slide-14
SLIDE 14

TRECVID 2005 – P . KRÄMER and J.BENOIS-PINEAU

Motion Segmentation

P 1 2 3 4 5 Mf ˆ θj sj ¯ sm ¯ ζm

Hinkley test to detect changes on the temporal mean value ¯

s(t):

Downward jump:

Uk =

k

  • t=0
  • st − ¯

s + δmin 2

  • (k ≥ 0)

Mk = max

0≤i≤k Ui; detection if Mk − Uk > λH

Upward jump:

Vk =

k

  • t=0
  • st − ¯

s − δmin 2

  • (k ≥ 0)

Nk = min

0≤i≤k Vi; detection if Vk − Nk > λH

✗ ✖ ✔ ✕

¯ s temporal mean value δmin minimal jump magnitude λH predefi ned threshold

Camera Motion Identification in the Rough Indexing Paradigm – p.13/21

slide-15
SLIDE 15

TRECVID 2005 – P . KRÄMER and J.BENOIS-PINEAU

Motion Segmentation

P 1 2 3 4 5 Mf ˆ θj sj ¯ sm ¯ ζm

Principle of the Hinkely test:

s and ¯ s

Down

Mk − Uk

Up

Vk − Nk

Camera Motion Identification in the Rough Indexing Paradigm – p.14/21

slide-16
SLIDE 16

TRECVID 2005 – P . KRÄMER and J.BENOIS-PINEAU

Thresholding

P 1 2 3 4 5 Mf ˆ θj sj ¯ sm ¯ ζm

Selection of the hypothesis:

¯ s(t) = 1 T − t0

t=T

  • t=t0

s(t) H0 < > H1 λs

And relative thresholding to determine the dominant motion:

¯ ζ(t) =

  • ¯

s(t) if ¯ s(t) < α · min{¯ span, ¯ stilt, ¯ szoom, ¯ srot, ¯ shyp1, ¯ shyp2}

  • therwise

✗ ✖ ✔ ✕

T − t0 segment of homogeneous motion λs threshold α constant

Camera Motion Identification in the Rough Indexing Paradigm – p.15/21

slide-17
SLIDE 17

TRECVID 2005 – P . KRÄMER and J.BENOIS-PINEAU

Classification

P 1 2 3 4 5 Mf ˆ θj sj ¯ sm ¯ ζm

The following classifi cation scheme is applied to the thresholded mean signifi cance values ¯

ζ = (¯ ζpan, ¯ ζtilt, ¯ ζzoom, ¯ ζrot, ¯ ζhyp1, ¯ ζhyp2): ¯ ζ motion feature 1 (0, 0, 0, 0, 0, 0) static camera/ no signifi cant motion 2 (¯ ζpan, 0, 0, 0, 0, 0) pan 3 (0, ¯ ζtilt, 0, 0, 0, 0) tilt 4 (¯ ζpan, ¯ ζtilt, ¯ ζzoom, 0, 0, 0) zoom 5

  • thers

complex camera motion

Camera Motion Identification in the Rough Indexing Paradigm – p.16/21

slide-18
SLIDE 18

TRECVID 2005 – P . KRÄMER and J.BENOIS-PINEAU

Classification

P 1 2 3 4 5 Mf ˆ θj sj ¯ sm ¯ ζm

Postprocessing: Join neighbored segments with the same motion feature Reject segments with a duration shorter than tmin frames

tmin t

If a motion feature is still present: The shot is identifi ed to contain the motion feature.

Camera Motion Identification in the Rough Indexing Paradigm – p.17/21

slide-19
SLIDE 19

TRECVID 2005 – P . KRÄMER and J.BENOIS-PINEAU

Results

Results for the shot “shot106_136”: a)

  • 30
  • 25
  • 20
  • 15
  • 10
  • 5

5 10 15 29060 29080 29100 29120 29140 29160 29180 29200 frame number pan static tilt zoom reject reject a1 a2 a3 a4 a5 a6

b)

  • 250
  • 200
  • 150
  • 100
  • 50

50 29060 29080 29100 29120 29140 29160 29180 29200 frame number pan static tilt zoom reject reject pan tilt zoom rot hyp1 hyp2

c)

  • 250
  • 200
  • 150
  • 100
  • 50

50 29060 29080 29100 29120 29140 29160 29180 29200 frame number pan static tilt zoom reject reject pan tilt zoom rot hyp1 hyp2

λs

✓ ✒ ✏ ✑

a) Global motion parameters ˆ θ b) Signifi cance values s c) Online mean values ¯ s

Camera Motion Identification in the Rough Indexing Paradigm – p.18/21

slide-20
SLIDE 20

TRECVID 2005 – P . KRÄMER and J.BENOIS-PINEAU

Results

Precision and recall for all submissions:

0.2 0.4 0.6 0.8 1 0.4 0.5 0.6 0.7 0.8 0.9 1 recall precision U yU D 2R RS Labs RI HU VISION 05LF Marburg A_CAM

✎ ✍ ☞ ✌

RI –> LaBRI Precision 0.912 Recall 0.737

Camera Motion Identification in the Rough Indexing Paradigm – p.19/21

slide-21
SLIDE 21

TRECVID 2005 – P . KRÄMER and J.BENOIS-PINEAU

Conclusion and Perspectives

Conclusion: Proposition of a method based on global motion estimation and signifi cance test. The proposed method can handle moving objects and jitter motions. No decoding of the compressed stream. Performance 3-4 times faster than real time. Since no ground truth available, diffi culties to determine the best parameter set. Future work: Focus mainly on the correction of motion models if the encoder block-matching algorithm fails.

Camera Motion Identification in the Rough Indexing Paradigm – p.20/21

slide-22
SLIDE 22

TRECVID 2005 – P . KRÄMER and J.BENOIS-PINEAU

References

[BGG99] P . Bouthemy, M. Gelgon, and F . Ganansia. A unifi ed approach to shot change detection and camera motion characterization. IEEE Trans. on Circuits and Systems for Video Technology, 9(7):1030–1044, October 1999. [DBP01]

  • M. Durik and J. Benois-Pineau. Robust motion characterisation for video indexing

based on MPEG2 optical flow. In International Workshop on Content-Based Multimedia Indexing, CBMI’01, pages 57–64, 2001. [OB95] J.M. Odobez and P . Bouthemy. Robust multiresolution estimation of parametric motion models. Journal of Visual Communication and Image Representation, 6(4):348–365, 1995.

Camera Motion Identification in the Rough Indexing Paradigm – p.21/21
