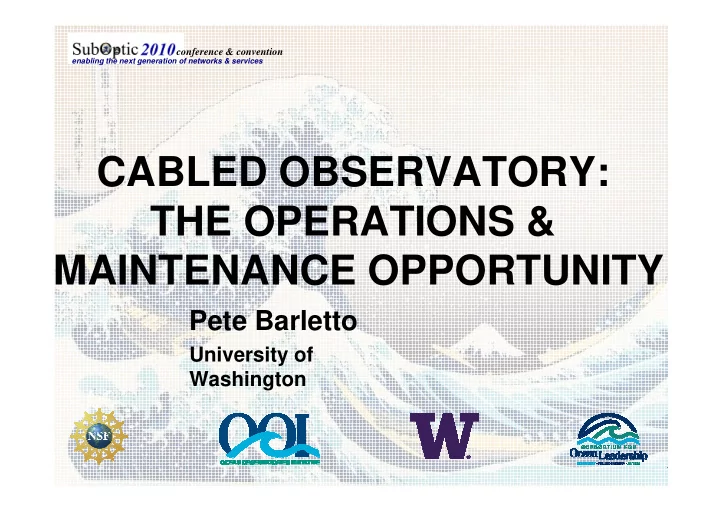

CABLED OBSERVATORY: THE OPERATIONS & MAINTENANCE OPPORTUNITY

1

MAINTENANCE OPPORTUNITY

Pete Barletto

University of Washington

enabling the next generation of networks & services

conference & convention

Presenter Profile

Pete Barletto joined the Regional Scale Nodes program in May 2007 after many years in the submarine cable segment of the telecommunications industry. While working for Tyco Telecommunications, Barletto was responsible for the planning, implementation and operation of a global network. Most and operation of a global network. Most recently, he was Vice President of Network Services and Operations for VSNL and was responsible for Operations and Maintenance planning, worldwide real estate management, collocation service implementation, and strategic studies. Pete Barletto Director & Chief Operations Officer Email: barletto@u.washington.edu Tel: +1 206 221 68 83 Mobile Tel: +1 206 384 56 59

enabling the next generation of networks & services

conference & convention

enabling the next generation of networks & services

conference & convention

Background

• More than 30 years of evolution
• Acoustic & Seismic Networks
• Some on Retired coaxial telecom cables
• More recent

– Lighthouse R&D

3

– Lighthouse R&D – Venus (University of Victoria) – MARS (MBARI) – NEPTUNE Canada

Ocean Observatories Initiative: Regional Scale Nodes

enabling the next generation of networks & services

conference & convention

enabling the next generation of networks & services

conference & convention

Ocean Observatories Initiative

• The Ocean Observatories Initiative (OOI) is a

National Science Foundation (NSF) Program:

–Coastal & Global Scale Nodes (CGSN) –Regional Scale Nodes (RSN)

4

–Regional Scale Nodes (RSN) –Cyber Infrastructure (CI) –Education and Public Engagement (EPE)

enabling the next generation of networks & services

conference & convention

RSN Primary Infrastructure

enabling the next generation of networks & services

conference & convention

enabling the next generation of networks & services

conference & convention

Regional Scale Nodes Primary Infrastructure

• 25 year design life, two cables
• Single Fiber pair equipped with 24 10Gb/s

wavelengths

• Constant voltage – 10,000V

6

• Each Primary Node supplies up to 8KW of

power and redundant 10Gb/s of bandwidth to

• Seven Science ports – 5 @ 375V and GigE and

2 @ 375V and 10Gb/s

enabling the next generation of networks & services

conference & convention

enabling the next generation of networks & services

conference & convention

Regional Scale Nodes Secondary Infrastructure

• Extension cables, junction boxes and Low

Voltage Nodes

• Fiber and Electrical connections

7

• Power at 5v, 12v, and 24v
• Bandwidth variable
• Just over 100 Core Sensors of 30 types

enabling the next generation of networks & services

conference & convention

enabling the next generation of networks & services

conference & convention

Concept of Operations

• RSN Operations processes are based on the

Telecommunications Operations Model (TOM)

• Provides a network to services hierachy
• Connecting the Sensors to the Cyber

8

• Connecting the Sensors to the Cyber

Infrastructure = RSN Service

• Availability of the Primary Infrastructure =

99.5% and less than 2 ship repairs in 25 years.

enabling the next generation of networks & services

conference & convention

enabling the next generation of networks & services

conference & convention

Connecting to the Users

• Diverse group

–Scientists –Teachers

9

–Students –General Public

• Open Data Policy

enabling the next generation of networks & services

conference & convention

enabling the next generation of networks & services

conference & convention

Maintenance Requirements & Strategies

• Primary versus Secondary Infrastructure
• Primary (vs telecom)

–Identical route planning and installation quality –Cable ship, jointing, maintenance processes

10

–Cable ship, jointing, maintenance processes –Lower availability –Maintenance Funding risk

enabling the next generation of networks & services

conference & convention

enabling the next generation of networks & services

conference & convention

Maintenance Requirements & Strategies

• Secondary versus Primary

–UNOLS vessel + ROVs –Higher risk planned –Lower Availability

11

–Lower Availability –Sensor calibration –Sample recovery –Replacement

enabling the next generation of networks & services

conference & convention

enabling the next generation of networks & services

conference & convention

Market Growth

• Current

–Cabled Observatories exist in five countries

• Planning

12

• Planning

–Nine or ten countries planning

• Thousands of Kilometers coming

enabling the next generation of networks & services

conference & convention

enabling the next generation of networks & services

conference & convention

Summary

• There are already a number of Cabled Observatories
• Expectations are for significant global growth
• Cable maintenance needs are compatible

–Reliability vs Cost

13

–Reliability vs Cost

• Clear advantages exist for existing Cable Maintenance

Agreement members as well as Observatory Operators
