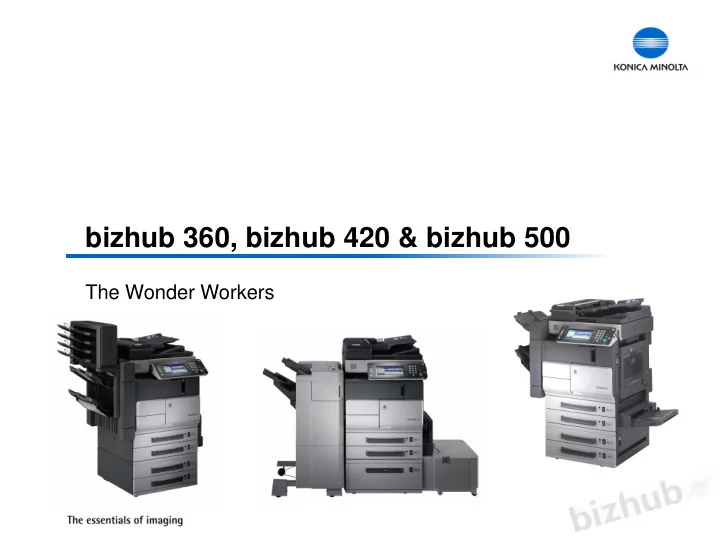

bizhub 360, bizhub 420 & bizhub 500 The Wonder Workers bizhub - - PowerPoint PPT Presentation
bizhub 360, bizhub 420 & bizhub 500 The Wonder Workers bizhub 360, bizhub 420 & bizhub 500 Table of contents Portfolio Product Concept/Specifications Configuration/Options/Consumables Option/Function Matrix
The Wonder Workers
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
Portfolio Product Concept/Specifications Configuration/Options/Consumables Option/Function Matrix Productivity Highlights/Improvements Phase 2 Features & Schedule Competition Sales Support Materials/Documentation PageScope Utilities Certification
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
Ganges 1 / 2 / 3 (new engine)
bizhub 500/bizhub 420/bizhub 360
Successor of 7145 and Di470 Additional MA sales (bizhub 360)
March/April 2006 (Phase 1.8) December 2006 (Phase 2) March 2007 (Phase 3, bizhub 360/420/500)
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
ISO 15408 EAL3* Some options shared with
Optional Fax unit High Image Quality (Polymerised Toner) Scanning standard (eMail/FTP/SMB) Own developed PCL + PostScript controller option Compact „all-in-one‟ MFP (Ethernet, USB, IEEE1284)
* Phase 3: spring 2007
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
Small footprint (embedded finisher) Fast WUT/FCOT High speed scanning (50 – 70 OPM) Scan-to-eMail/SMB (PC)/FTP standard Scan-to-HDD, network TWAIN scan (with optional HDD) Unified GUI/design bizhub OP Ethernet, USB 2.0, IEEE 1284 interfaces standard High standard system memory of 576 MB Multi-access capabilities High max. paper supply of 5,650 sheets
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
Emperon technology (optional PCL5e/6 and PS3) Personal Box function Fax/multi-line fax option LDAP support User authentication Latest generation of polymerised toner
In short: from the outer appearance a bizhub 250/350, with the “inner qualities” of a bizhub 600/750
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
Speed 36 ppm / 42 ppm / 50 ppm (A4) 23 ppm / 23 ppm / 27 ppm (A3) FCOT 3.6 sec. / 3.2 sec. WUT 60 sec. / 30 sec. Scan resolution 600 x 600 dpi Copy resolution 1,200 x 600 dpi* Print resolution 2,400 x 600 dpi* Memory 576 MB system memory, 192 MB of which are image memory (approx. 420 pages) HDD 40 GB (optional)
(*smoothing)
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
Original size
Paper sizes A6 – A3 Paper weights 60 – 105g/m² (from trays) 50 – 210g/m² (bypass) Zoom 25 – 400% in 0.1% increments Special functions separate scan, N-in-1, book copy, cover mode, sheet/chapter/image insertion (30 positions each), image repeat, overlay (with opt. HD), stamp, rotation, image centring, job reservation (1 + 94 jobs)
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
Firmware update ISW/internet ISW* PV average/max. 10,000 pages / 150,000 pages 12,000 pages / 150,000 pages 17,000 pages / 175,000 pages Machine life 1.8 million / 2.25 million (or 5 years) MCBJ more than 10,000 / 15,000 pages MCBF more than 50,000 / 70,000 pages
* Phase 2
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
CPU MPC8245, 400 MHz Memory 576 MB/40 GB hard disc PDL PCL5e/6 and PostScript 3 (both Clone versions) OS Win98/ME/NT4.0/2000/XP/Server2003 Mac OS 9.0 or later and OS X 10.2/10.3/10.4, Linux/Unix utility Fonts 80 Adobe PCL fonts/136 Adobe PS fonts I/F Ethernet 10T/100 BaseTX, USB 2.0, IEEE1284 (all standard) Port 9100 bi-di Status Read-back PDF/TIFF Direct printing (from Phase 2) Tools PageScope Netcare, Print Status Notifier PCL & PS (Phase 2)
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
Speed Super G3 (33.6kbps) Coding MH/MR/MMR/JBIG PC Fax Standard with fax Option Back-up Mem. 32 MB (or 40 GB if hard disc is installed) 2nd line Fax Option (2 x fax kit, 1 x mount and multi-line kit each) Abbr. Dials 1,000 (2,000 with opt. HD) Program Dials 200 (400 with opt. HD) Group Dials 100 Multi-address 600 (max.) Tools PageScope DataAdministrator (Address Book)
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
Resolution 200, 300, 400, 600 dpi Speed 70 OPM (200, 300, 400 dpi), 50 OPM (600 dpi) Methods Scan-to-eMail/FTP/SMB (stnd.) Network TWAIN scan, scan-to-HDD/Box (with opt. HD) File Format PDF / TIFF (single/multi-page) Address Setting LDAP (import/export addresses from PS WebConnection) Abbr. Dials 1,000 (2,000 with opt. HD) Program Dials 200 (400 with opt. HD) Group Dials 100
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
ISO 15408 EAL3 certification (Phase 2 & 3) Volume/Copy track (100/1,000 accounts w/HD - ID, password, volume tracking) User Authentication (via Active Directory or on MFP) Combination of User Authentication + Copy track HDD encryption with optional security chip (Phase 2) Latest information on certified models available at: http://www.ipa.go.jp/security/jisec/jisec_e/certfy_list.html
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
2 x 500 sheet universal trays 576 MB system memory
150 sheet bypass stack-less duplex Ethernet 10baseT/100 BaseTX, USB 2.0, IEEE1284 DF-607 (80 sheet feeder)
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
2 x 500 sheets PC-202 (A5-A3, 60-105g/m²) 2 x 1,250 sheets PC-402 = bizhub 250/350 (A4, 60-105g/m²) Desk local 2,000 sheets LCT LU-201 (A4, 60-105g/m²)
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
Output Tray (100 sheets) OT-501 Job Separator (250 + 100 sheets) JS-502 Floor-type Finisher + Relay Unit FS-511 + RU-502 (3,200 sheets, 50 sheet stapling, 4-hole punching) Embedded Finisher FS-510 (1,200 sheets, 50 sheet stapling) Additional Tray (100 sheets)* OT-601 Mail Bin Trays (4 x 125 sheets)* MT-501 Saddle Kit (for booklets)* SD-502 Punch Unit (4 holes)* PU-501
* FS-510 options
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
Image Controller IC-204 (PCL/PS) Fax Kit FK-502 (Super G3) Mount Kit for Fax MK-708 2nd Line Fax ML-503 Stamp Unit SP-501 40GB HDD HD-505 Security Chip SC-502 (HDD data encryption)
* Phase 2
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
OT-501 is required to install JS-502; or if no finisher is installed FS-510 is required, if MT-501, SD-502, PU-501, OT-601 are to be installed RU-502 is required for installation of FS-511 MK-708 is required for installation of FK-502 2 x FK-502 + MK-708 + ML-503 are required for Dual Line Fax PC-202 or PC-402 is required for installation of LU-201 PC-202, PC-402 or the desk is required for installation of FS-511
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
Drum: 250,000 prints (= 7145) Developer: 225,000 prints (bizhub 360) / 250,000 prints (bizhub 420/500) Toner: 32,200 prints Latest generation of polymerised toner
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
* Phase 2
Function Option IC-204 HD-505 FK-502/ MK-708 ML-503 SC-502 Copy
eMail/FTP/SMB
box/HDD/NW Twain
Yes
(2x FK + 1x MK + 1x ML)
Yes Yes
Yes Yes
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
Box functionality Store copies, scans, prints, faxes in boxes 1,000 boxes available Box naming/password registration Combination of copy, print, scan jobs in one print job; reprinting of stored jobs Printing Secure printing User authentication 100 accounts stnd, 1,000 with HDD Security ISO 15408 HDD password lock; HDD data erasure* Volume Storage of 9,000 pages (copies, scans, prints, faxes)/ 2,000 pages (copies, scans, prints, faxes) while operating One-touch registration (scan/fax) Program 200 stnd/400 with HDD Address book: 1,000 stnd/2,000 with HDD
* Phase 2/3
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
bizhub 360 Mode 1 set 3 sets 5 sets 10 sets 1 -> 1 62.8 83.9 89.9 95.0 1-> 2 54.8 78.8 86.3 93.0 2 -> 1 50.2 75.6 83.7 91.2 2 -> 2 50.1 75.4 80.0 91.2
A4, tray 1, finisher sort mode, DF, 1:1, no rotation
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
bizhub 420 Mode 1 set 3 sets 5 sets 10 sets 1 -> 1 58.1 81.6 88.2 94.1 1-> 2 45.6 71.7 80.8 89.4 2 -> 1 49.5 74.8 83.4 91.2 2 -> 2 46.2 71.9 80.0 89.7
A4, tray 1, finisher sort mode, DF, 1:1, no rotation
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
bizhub 500 Mode 1 set 3 sets 5 sets 10 sets 1 -> 1 55.4 79.3 86.6 93.3 1-> 2 42.7 69.3 78.7 88.2 2 -> 1 42.1 68.9 78.7 88.4 2 -> 2 39.6 66.2 75.0 86.7
A4, tray 1, finisher sort mode, DF, 1:1, no rotation
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
Print Fax Box Scan Copy
Authentication Registration Management Verification Network
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
Stored data can be moved/copied from one Box to another Thumbnail Display of Box Data File transfer to connected PC via TWAIN driver => editing/binding with PageScope Workware Individual saved documents/thumbnails can be viewed with PageScope Box Operator Routing (eMail/FTP/SMB) Network distribution of Box documents is possible Documents that can be sent through the network can be displayed by selecting the route tab Users may distribute, delete, rename, move/copy or proof print each displayed document
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
Multiple documents (print or scan data) stored in a Box can be printed as a single job They are output in order of document selection Max. 10 documents can be selected
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
Competitors offer security systems as part of an optional kit Konica Minolta security measures are incorporated as standard features into the main unit
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
Administrators assign access privileges to individual users or work groups, preventing unauthorized access Access can be restricted by external server authorization software, (Active Directory) or the authentication functions built into the bizhub 420/500 Protection of active jobs job files of other users cannot be seen job files of other users cannot be altered or deleted (unless machine settings are changed) User access can be limited to specific functions (copy, print, scan, fax, box) Group access management is also possible
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
Combined operation User authentication & group management => fine-tuning of access privileges Individuals = different access privileges than their groups, (allowing/restricting activity based on office needs) Account management Activity count limits (for any bizhub 420/500 function) => entire groups or individuals Up to 1,000 separate user/group settings (w/HDD)
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
Box Access Restrictions Box access can be limited (=> passwords) to prevent unauthorized access to confidential information Data Erasure and Encryption Deletion of RAM, HDD cache data after completion of jobs After disposal/destruction of HDD, data is completely overwritten to prevent leakage of confidential data Optional security kit SC-502 for HDD data encryption is available Log Management Recording of all access attempts and user activity (in development) => to trace/detect unauthorized access
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
Secure Print User Box Jobs with ID & password are only printed after input of password at machine (only with opt. HDD) Box Password The document list is only displayed after input of password Passwords (max. 8 characters are set with Box Registration utility) Job Holding & Deletion With Proof Print data can be held to be printed later, then automatically be deleted after output Data deletion is also possible without prior output
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
Queue order Status 1 Printing 2 Waiting 3 Waiting 4 Waiting Queue order Status 4 Printing 1 Printing 2 Waiting 3 Waiting
The job order in the queue can be rearranged at the LCD panel or via PageScope JobSpooler Job priority can be changed while different types of document output are in process (important print jobs can be done in between large copy or print jobs without any loss of data)
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
Feature 360/420/500 7145 Di470 KM unified spec/bizhub design Yes No No CPM 36/42/50 45 47 OPM 70 65 50 FCOT 3.6./3.2 sec. 3.8 sec. 4.0 sec. WUT 30/60 sec. 30 sec. 99 sec. Memory stnd/max. HDD 576 MB 40 GB 64/320 MB 20 GB 32/64 MB
Bypass 210g/m² 130g/m² 160g/m² Paper Input stnd/max. 1,150 5,650 1,050 4,550 1,050 6,550
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
Feature 360/420/500 7145 Di470 Resolution dpi
600 x 600 scan 1200 x 600 copy 2400 x 600 print
600 x 600 600 x 600 Scan-to-eMail/FTP/SMB Standard Standard Option TWAIN Option Standard Option Scan-to-box/HDD Option Option Option PCL/PS printing Option Option Option Fax Option Option NA ISO 15408 Standard yes NA HDD encryption Option NA NA
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
Feature 360/420/500 7145 Di470 Monthly print volume average 10 /12 /17 K 20 K 30 K Monthly print volume max. 150 / 175 K 150 K 85 K Machine Life 1.8 / 2.25 mio 1.8 mio 1.8 mio MCBF 50 / 70 K 50 K 70 K MCBJ 10 / 15 K 10 K 6 K
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
Reduced switch back speed in duplex mode increases feeding reliability Straight paper pass ensures higher MCBJ Constant contact of pick-up roller for reliable feeding even of special papers Use of “hard” urethane for pick-up, feed and separation rollers enhances durability and stable feeding Paper size detection (long & short edge feeding) from cassettes & bypass Paper rollers lift when opening the paper path for easy jam removal Different speed control for normal and thick paper (up to 210g/m²) Improved developer suction with increased PM cycle
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
ISO 15408 EAL3 certification Multi-line fax support (2 x FK-502 + MK-708 + ML-503) PDF/TIFF direct print Print Status Notifier (PCL & PS) HDD encryption with SC-502/job erase/back-up utility Coin Vendor support Font download to HDD (e.g. OCR-B, barcode) Setup Utility for RightFax Fax data auto transfer to PC Total Counter data sent by eMail CS Remote Care via fax modem & firmware update via internet ISW
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
iFax (with optional HDD and IC-204 = full internet fax mode) IP address fax (with optional HDD, IC-204, FK-502) SIP fax (with optional HDD, SIP Adapter, IC-204, FK-502) improved overlay function image overlay: 1st scanned image is stored in volatile memory and “laid over” the following pages store overlay: image is stored on HDD to be retrieved as required Open API/JScribe support JScribe Secure and Mobile Print Solutions JScribe intelligence Server Solution Business Output Cost Analysis Jscribe Enterprise Edition
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
Canon iR3530 (35 ppm) Kyocera Mita 3050 (30 ppm) Panasonic Workio DP3530 (35 ppm) Ricoh Aficio 3035 (35 ppm) Sharp AR-M351U/N (35 ppm) Toshiba eStudio 352 (35 ppm) Xerox Workcentre 232 (32 ppm)
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
Canon iR4570 (45 ppm) HP4345MFP (43 ppm) HP9040 (40 ppm) Kyocera Mita 4035 (40 ppm) Sharp AR-M451 (45 ppm) Toshiba eStudio 450 (42 ppm) Xerox Workcentre 245 (45 ppm) for more details see: Competitive Encounter
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
Canon iR5570 (55 ppm) HP9050 (50 ppm) Ricoh Aficio 2051 (51 ppm) Toshiba eStudio 520 (52 ppm) Xerox Workcentre 255 (55 ppm) for more details see: Competitive Encounter
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
Brochures (2 separate, 8 pages) + 4 page leaflet for bizhub 360 FactFile + Spec Chart for bizhub 360 Flash Launch Guide Product Guide + updated version incl. bizhub 360 Product Configurator Product Photos + photos for bizhub 360 Press Release (2 separate) + add. one for bizhub 360 Competitive Encounter Benchmarking HP4345MFP B/W print files
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
User Manual Copy Operations includes CD with English User Manuals for Box Operations & Network Scan Operations Localised Manuals for Box Operations, Network Scan Operations, Controller Manual for Fax Combined documentation for bizhub 360/420/500 (Phase 3) will be available from launch of bizhub 360 (March 2007)
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
NetCare NDPS Gateway EMS Plug-ins
DataAdministrator Box Operator HDD Backup Utility Font Downloader (Phase 2)
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
FOC chargeable
Plug-in for Web JetAdmin CS Remote Care Print Utility for Unix/Linux PageScope Router PageScope Workware (full version)
Update March 2007 – Annette Petsch
bizhub 360, bizhub 420 & bizhub 500
New Blue Angel Mark (2007) for bizhub 360/420* Energy Star WEEE (Waste of Electric and Electronic Equipment) RoHS (Regulation on the use of hazardous substances)
* bizhub 500 will obtain the new BA in spring 2007
