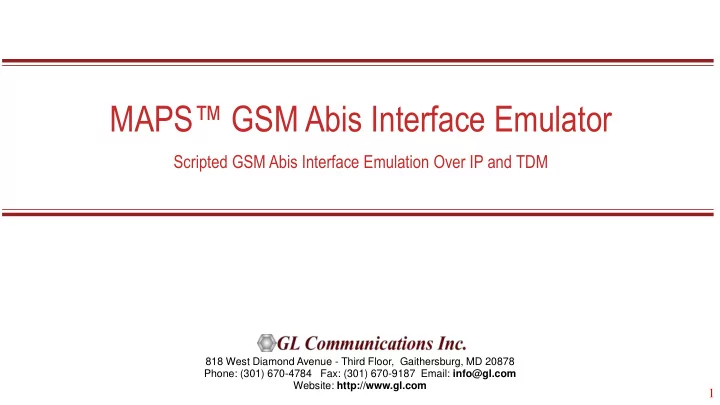

Scripted GSM Abis Interface Emulation Over IP and TDM

MAPS™ GSM Abis Interface Emulator

slide-2
SLIDE 2

2

MAPS™ GSM-Abis

slide-3
SLIDE 3

3

Main Features

  • GSM Abis Interface simulation over IP.
  • Simulate BSC and BTS nodes.
  • Supports transmission and detection of RTP traffic – Auto Traffic digits, file, tones, fax, user-defined traffic,

and IVR.

  • Supported codec types include G.711, G.729, G.726, GSM, AMR, EVRC, SMV, iLBC, SPEEX, G.722, and
  • more. *AMR, EVRC variants requires additional licenses.
  • User-friendly GUI for configuring the TCP Layer.
  • Configure AGCH, ACCH, SDCCH, BCCH and other logical channels.
  • Supports Location Update Call, Mobile Originated Voice Call, Emergency Call, Mobile Originated SMS,

Mobile Terminated Voice Call, and Mobile Terminated SMS procedures.

  • Access to all BTSM Message Parameters like TMSI, IMSI, CIC, MCC, LAC, and others.
  • User controlled access to optional parameters such as timers.
  • Supports Authentication, TMSI Reallocation, Encryption and other optional procedures.
slide-4
SLIDE 4

4

Applications

  • Setup a virtual real-time network simulating 2G-GSM GPRS network elements using ‘MAPS™ 2G

Wireless Lab Suite’

  • Multi-protocol, Multi-interface Simulation
  • Provides fault insertion, and erroneous call flows testing capability
  • Performance testing, Load Testing, Functional testing, Regression testing and Conformance testing of

network elements

  • Ready scripts makes testing procedure simpler, less time consuming and hence time to market

products.

  • Test response of network against protocol message modification, or corruption
  • Inter-operability testing of networks
  • Wrap-around testing (WAT)
  • SMS Testing from within the Wireless Infrastructure using MAPS™
slide-5
SLIDE 5

5

Supported Protocol Standards

Supported Protocols Standard / Specification Used BTSM 3GPP TS 08.58 V8.6.0 MM 3GPP TS 04.08 V7.17.0 CC 3GPP TS 04.08 V7.17.0 RR 3GPP TS 04.18 V8.13.0 SMS 3GPP TS 03.40 V7.5.0 & 3GPP TS 04.11 V7.1.0 GSM 03.38 version 7.2.0 Release 1998

slide-6
SLIDE 6

6

Mobile Originating Call Procedure

slide-7
SLIDE 7

7

MOC Call Generation and Reception

slide-8
SLIDE 8

8

Mobile Terminating Call Procedure

slide-9
SLIDE 9

9

MTC Call Generation and Reception

slide-10
SLIDE 10

10

Location Updating Call Procedure

slide-11
SLIDE 11

11

LUC Call Generation and Reception

slide-12
SLIDE 12

12

SMS Procedure

  • SMS (Short Message Service ) uses signaling

channel as opposed to dedicated channels, hence these messages can be sent/received simultaneously with the voice/data/fax service

  • ver a GSM network.
  • SMS supports national and international

roaming, meaning SMS can be sent to any

  • ther GSM mobile around the world.
  • Each short message can be no longer than

160 characters. These characters can be text

  • r binary Non-Text Short messages.
slide-13
SLIDE 13

13

GSM-Abis IP SMS Procedure

SMS Procedure

Mobile Originating SMS Procedure Mobile Terminating SMS Procedure

slide-14
SLIDE 14

14

GSM-Abis IP Call Generation

Loading Scripts and Profiles Message Sequence Active Calls Call Status Call Events Decode Message

slide-15
SLIDE 15

15

GSM-Abis IP Call Reception

Message Sequence Decode Message Call Results

slide-16
SLIDE 16

16

Testbed Configuration

MAPS Feature

slide-17
SLIDE 17

17

Profile Editor

MAPS Feature

slide-18
SLIDE 18

18

GSM-Abis IP Traffic Profile

MAPS Feature

slide-19
SLIDE 19

19

GSM-Abis Global Configuration

MAPS Feature

slide-20
SLIDE 20

20

GSM-Abis IP Incoming Call Handler Configuration

MAPS Feature

slide-21
SLIDE 21

21

GSM-Abis IP Call Event Log

MAPS Feature

slide-22
SLIDE 22

22

Load Generation

MAPS Feature

Step Fixed Ramp Uniform Saw-tooth Normal

  • Stability/Stress and Performance testing using Load Generation
  • Different types of Load patterns to distribute load
  • User can load multiple patterns for selected script
  • User configurable Test Duration, CPS, Maximum and Minimum Call

Rate etc.

slide-23
SLIDE 23

23

Call Graph Call Statistics

GSM-Abis Call Ratio Statistics

MAPS Feature

slide-24
SLIDE 24

24

Customizations - Call Flow (Scripts)

MAPS Feature

slide-25
SLIDE 25

25

Customizations - Protocol Messages

MAPS Feature

slide-26
SLIDE 26

26

MAPS™ API Architecture

MAPS Feature

  • API wraps our proprietary scripting language in standard languages familiar to the user:

➢

Python

➢

Java

➢

VB Scripts

➢

TCL

  • Clients and Servers support a “Many-to-Many” relationship, making it very easy for users to develop

complex test cases involving multiple signaling protocols.

slide-27
SLIDE 27

27

CLI Support

MAPS Feature

Python Client Sample Script MAPS CLI Server

slide-28
SLIDE 28

28
