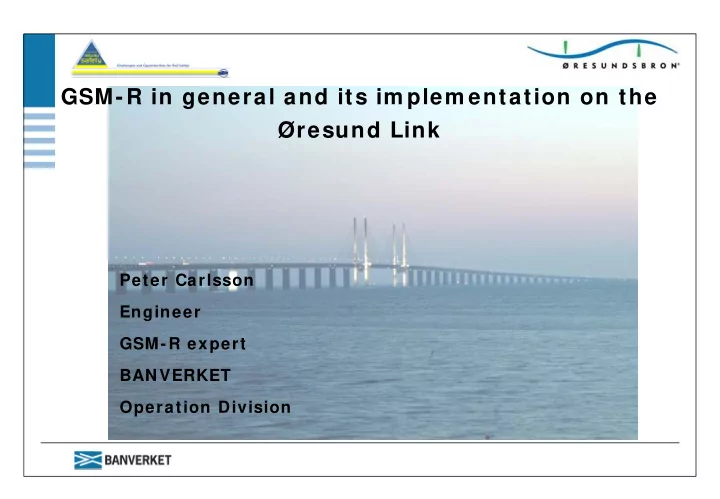

GSM-R in general and its im plem entation on the Øresund Link

Peter Carlsson Engineer GSM-R expert BANVERKET Operation Division

Structure of the presentation

• Background to GSM-R
• W hat’s GSM-R?
• Status of GSM-R in Sw eden
• The im plem entation of GSM-R on the Øresund Link

Background to GSM-R

• EU found in the beginning of the 9 0 ´ ies that there w ere a

lot of technical and adm inistrative obstacles for the developm ent of the europen railw ay traffic

• One area defined for im provem ent w as technical system s

for Control Com m and.

• I n the m ean tim e UI C had started the specification of a new

railw ay radio system = > GSM-R

• I n the high speed directive 9 6 / 4 8 / EC the im plem entation
• f ERTMS ( = ETCS + GSM-R) w as m andated by the EU.

Overall structure of standards

Tw o projects launched to create GSM-R EI RENE ( European I ntegrated Railway radio Enhanced NEtwork)

• Was responsible for development of Functional and System Requirement

Specifications

• Financed by EU and UIC

MORANE ( MObile radio for RAilway Networks in Europe)

• Consortium of railways and suppliers
• Financed by EU, UIC and the suppliers
• Was responsible for the realisation of an EIRENE compliant prototype system

The nam es EI RENE and MORANE

A radio com m unication system tailor-m ade for the railw ays capable of both voice and data ( ETCS) GSM-R is based on the w ell know n and w ide spread GSM technology Railw ay requirem ents have added som e new features on top of the public GSM like:

W hat’s GSM-R?

• Group calls ( e.g. Railw ay em ergency call)
• Broadcast calls
• Use of priority
• Fast call set-up for Railw ay Em ergency Calls
• Functional num bering
• Location depending addressing

GSM phase 2+ with ASCI functions GSM phase 2 Public GSM- network Railway specific services as Functional Numbering and Location Dependent addressing. Separate frequency band. GSM-R network

Structure of GSM-R

YYYYY

Railway emergency call (REC), priority 0

Group Call Register (GCR)

299

AckC

Telephone number (MSISDN): +46 7838 865 5720

21321

01

Functional number:

2

Call Type (CT)

21321

Running Number (RN)

01

Function Code (FC)

Functional addressing

046

International Code (IC)

Location Dependent Addressing (LDA) T1 T2 T3 T4 T5 T6

Train Control System (TCS)

IN-node

Running number (21321), track area (T4) MSISDN (+46 7838 865 5720) Functional number (046 2 21321 01) Telephone number to relevant controller

Status of GSM-R in Sw eden

• Fully operating GSM-R netw ork
• EI RENE com pliant plus GPRS
• Approx 1 2 0 0 BTS covering 1 0 0 0 0 km of track are installed
• I nlandsbanan expected to be finalized 2 0 1 1
• Rolling stock ow ners/ traffic operators are responsible for

installation in the rolling stock

Project organisation

• The im plem entation project, SI R ( Swedish I nternational Radio

for Railways) now finalized

• The internal business unit Banverket ICT (I nformation and

Communication Technology) acts as operator of the network

Redundancy concept

RADIO COVERAGE BTS BTS BTS BSC BSC MSC

BSC-MSC transmission with 1 + 1 protection

BTS BTS BTS

Redundancy concept

RADIO COVERAGE BTS BTS BTS BSC BSC BTS BTS BTS MSC

BSC-MSC transmission with 1 + 1 protection

An exam ple of a early tem porary installation of a GSM-R radio onboard an Øresund Link train

An exam ple of a perm anent installation of a CAB radio onboard an Øresund Link train

Overview of the train radio system s on the Øresund Link

WAB OPB EAB LOC EPB Sweden EBP WBP Drogden tunnel Peberholm Lernacken tunnel WPB Denmark

1 4 5 6

Room

2 3

National border

GSM-R STR/LSR (MSR 3) GSM-R

System border

The im plem entation of GSM-R on the Øresund Link

• This w as the first com m ercial operation of GSM-R in the

w orld and also the first to pass a territorial border

• GSM-R has been used on the Øresund Link since the
• pening July 1 st 2 0 0 0

Thank you for you attention!

Peter Carlsson Engineer GSM-R expert BANVERKET Operation Division
