Ulwimo ULtimate WIreless MObility International Developments within PMR & wireless business communication Koen Mioulet Cologne, 24 oct15 Co-presenters UK Peter Clemons Quixoticity France Thomas Hervieu Agurre Sweden Mats Larsson

slide-1

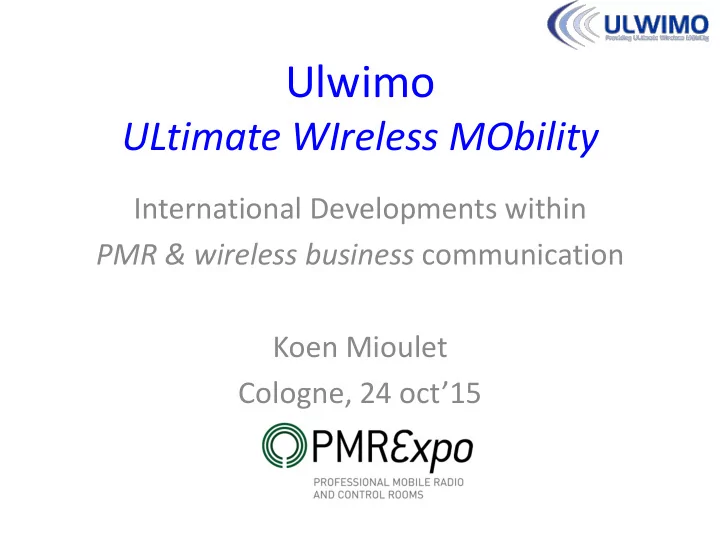

SLIDE 1

Ulwimo

ULtimate WIreless MObility

International Developments within PMR & wireless business communication Koen Mioulet Cologne, 24 oct’15

slide-2
SLIDE 2

Co-presenters

24/11/2015 PMR EXPO | (C)Ulwimo 2

UK Peter Clemons Quixoticity France Thomas Hervieu Agurre Sweden Mats Larsson MicNordic Holland/Belgium Koen Mioulet UlWiMo

slide-3
SLIDE 3

Intro: Tetra usage worldwide

24/11/2015 PMR EXPO | (C)Ulwimo 3

Source: TCCA ‘15 public safety Transportation Utility PAMR Industry Military

  • ther

Total 3.5 M devices

slide-4
SLIDE 4

Key Nationwide TETRA Regional TETRA Nationwide TETRA under construction Project in progress likely to be TETRA Tetrapol No project known

Intro: Digital Public Safety networks(Q1 2013)

24/11/2015 PMR EXPO | (C)Ulwimo 4

slide-5
SLIDE 5

TETRA/Tetrapol/GSM-R mission critical Voice TETRA-1/Tetrapol/GSM-R mission critical Data

Roadmap Timescales

practical implementation of a harmonised European solution Capacity 2005 < 2020 2025/30? < - - - - - - - - TEDS - - - - - - - - - > 2012

24/11/2015 5 PMR EXPO | (C)Ulwimo

:= LTE

slide-6
SLIDE 6

The chase for spectrum

24/11/2015 PMR EXPO | (C)Ulwimo 6

slide-7
SLIDE 7

Overview: Topics across countries

UK France Sweden Holland Public Safety Airwave Outsourcing EE INPT Rakel C2000 (NL) Astrid (B) Other P(A)MR networks Formerly Dolphin Now Entropia Net1: LTE450 Entropia: PAMR Tetra Development, pilots on LTE Pilot PMR LTE @ AdP Probing LTE

  • ptions

Port Rotterdam, railway, airport Indoor regime Co-use with 2/3/4G; techn. free Co-use with 2/3/4G; techn. free Co-use with 2/3/4G Private networks 13 guard band licences ‘Pvt GSM’ ‘Pvt GSM’ Governance ESN 1st full

  • utsource

Agurre; 8 Mhz spectrum in 700 band New spectral plan; ‘horizontal’ allocation

24/11/2015 PMR EXPO | (C)Ulwimo 7

slide-8
SLIDE 8

24/11/2015 PMR EXPO | (C)Ulwimo 8

The propositions:

  • indoor service facilitation
  • spectrum consultancy

ULWIMO : Ultimate Wireless Mobility !

slide-9
SLIDE 9

C2000 public safety Tetra network

24/11/2015 PMR EXPO | (C)Ulwimo 9

NL: C2000

  • Operational since 2006
  • 50.000 users
  • Confined to PPDR ( = ’blue lights’) ,

no other users Belgium: Astrid

  • Astrid also serves other utilities &

governmental services

  • Astrid offers ‘blue light mobile’:
  • Data services
  • MVNO on operators’ networks
slide-10
SLIDE 10

Benelux PAMR: Entropia Tetra

24/11/2015 PMR EXPO | (C)Ulwimo 10

slide-11
SLIDE 11
  • 2. Use of mobiles,

some outdoors but predominantly indoor

slide-12
SLIDE 12
  • 2. Indoor? Example 3rd party projects in NL (1)

Martini

Leids UMC Viňoly 52 degrees

12

Isala

Achmea

Rembrand

Maasstad

Nuon new HQ

UMC Utrecht

Town Hall

24/11/2015 PMR EXPO | (C)Ulwimo

Erasmus MC

Partial Tetra Tetra if public

slide-13
SLIDE 13
  • 2. Example projects NL (2)

GSM, UMTS, LTE All operator’s (4!) + Tetra for pubic safety, + Private trunked radio

13

Maasboulevard Venlo

RAI A’dam

24/11/2015 PMR EXPO | (C)Ulwimo

Usually also Tetra

slide-14
SLIDE 14

utility

  • 2. Ulwimo past projects in NL

insurance World Trade Center Detention center

24/11/2015 14 PMR EXPO | (C)Ulwimo

education World trade center Residential Ministry

slide-15
SLIDE 15

4 Indoor Value chain; Tetra

24/11/2015 PMR EXPO | (C)Ulwimo 15

Network operator Landlord, property developer, facility manager Indoor Mobile user Subscription, “mobile customer”

rental

“tenant” “Enabling mobile in your venue” “Facilitating your traffic” IBW

slide-16
SLIDE 16
  • 3. Legal framework; public safety

24/11/2015 PMR EXPO | (C)Ulwimo 16

Specific indoor coverage for Tetra can be obliged to building owner.

  • Special Coverage Location (NL)
  • 3rd party indoor (B)
  • Objektfunk (D)

Note:

  • Holland: any building
  • Belgium: new buildings
slide-17
SLIDE 17
  • 3. Special case of ‘indoor’:

NL: C2000 ‘Special Coverage Locations’ B: Astrid 3rd party indoor D: ‘Objektfunk’ by BDBOS

  • C2000 = nationwide public safety

Tetra network Netherlands

  • Coverage outdoors,
  • Does not always cover indoors

(neither does GSM)

  • Radio coverage may be required

inside a building:

  • discretion of public safety forces
  • Then in building wireless coverage

to be realised

  • for publicly accessible buildings
  • by landlord !
  • Similar regimes in most countries

24/11/2015 PMR EXPO | (C)Ulwimo 17

slide-18
SLIDE 18
  • 3. When “Special Coverage Location”
  • r “Objektfunk”?

Regimes vary but usually:

  • Typically for publically accessible

large premises

  • Typically obligation managed by

fire brigades or police

  • Typically obligation issued by local

authority or municipality

  • Typically legally under a building

permit or usage permit

24/11/2015 PMR EXPO | (C)Ulwimo 18

slide-19
SLIDE 19
  • p. 19

Typical Tetra indoor (‘ SCL’) :

typical TETRA mast

Cell Enhancer C2000 donor basis- station (Tetra) C2000 antennemast Bedekkingsantenne Donor- antenne

Source: Koning en Hartman

“donor”

24/11/2015 PMR EXPO | (C)Ulwimo

slide-20
SLIDE 20

Indoor regime and public safety

  • Regime in place for  10 yrs
  • Initially passive infra obliged

– Landlord faced with dedicated costs and potentially TWO infrastructures : 1 Tetra, 1 mobile broadband

  • Lately integration with indoor for 2,3,4 G allowed

and technology no longer prescribed

– Tetra indoor benefits from investment in- and maintenance of indoor for mobile networks – Burden on the landlord lowered => more acceptance – Astrid recently same route

24/11/2015 PMR EXPO | (C)Ulwimo 20

slide-21
SLIDE 21

Market accelerator for business mobility : Private GSM (1)

24/11/2015 PMR EXPO | (C)Ulwimo 21

Targeted at indoor corporate wireless communication 1 universal GSM handset

  • r smartphone,

also on company

  • wn GSM network

Positioning: DECT replacement

X

slide-22
SLIDE 22

Private GSM (2)

24/11/2015 PMR EXPO | (C)Ulwimo 22

Dedicated licence free spectrum: DECT | GSM1800 ‘guard’ band Contract between company/landlord and system integrator; no operator involvement Promotes business mobility, like DECT and PMR Accelerator of campus and indoor coverage, integration with PMR infra Much used by hospitals, warehouses, industry plants

slide-23
SLIDE 23

Governance & spectrum policy

  • National spectrum plan 2005 – 2015 under

assessment

  • Sector involved in consultations
  • ‘round tables’ on spectral plan 2016 & beyond
  • Large users of corporate mobility promoting

notion of ‘business critical’ communication

– i.e. Schiphol airport, railway, port of Rotterdam – Corporate LTE with PMR functions; pilot port of Rotterdam – New notion of sector specific (‘vertical’) spectrum allocation:

24/11/2015 PMR EXPO | (C)Ulwimo 23

Mission Critical voice and broad- band

ITS IoT

Busi- ness Critical mobile broad- band

slide-24
SLIDE 24

Thanks !

koen@ulwimo.com (+31 0)6 29571105

24/11/2015 PMR EXPO | (C)Ulwimo 24

slide-25
SLIDE 25

Overview: Topics across countries

UK France Sweden Holland Public Safety Airwave Outsourcing EE INPT Rakel C2000 (NL) Astrid (B) Other P(A)MR networks Formerly Dolphin Now Entropia Net1: LTE450 Entropia: PAMR Tetra Development, pilots on LTE Pilot PMR LTE @ AdP Probing LTE

  • ptions

Port Rotterdam, railway, airport Indoor regime Co-use with 2/3/4G; techn. free Co-use with 2/3/4G; techn. free Co-use with 2/3/4G Private networks 13 guard band licences ‘Pvt GSM’ ‘Pvt GSM’ Governance ESN 1st full

  • utsource

Agurre; 8 Mhz spectrum in 700 band New spectral plan; ‘horizontal’ allocation

24/11/2015 PMR EXPO | (C)Ulwimo 25
