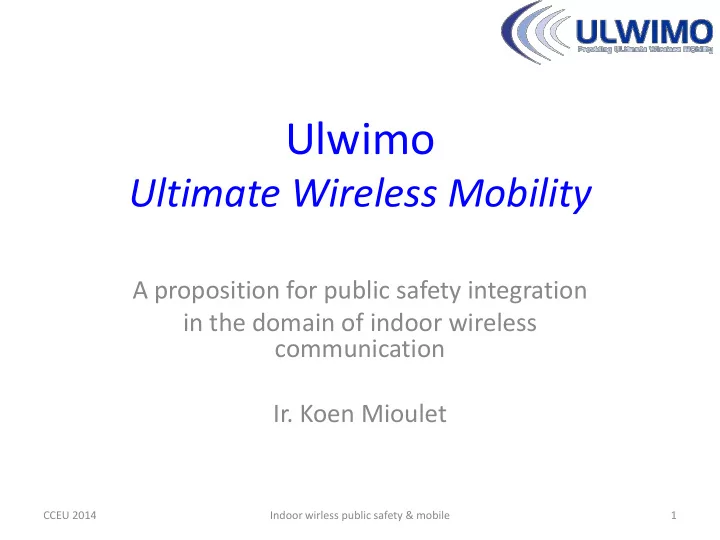

Ulwimo Ultimate Wireless Mobility A proposition for public safety - - PowerPoint PPT Presentation

Ulwimo

Ultimate Wireless Mobility

A proposition for public safety integration in the domain of indoor wireless communication

• Ir. Koen Mioulet

CCEU 2014 1 Indoor wirless public safety & mobile

CCEU 2014 Indoor wirless public safety & mobile 2

The proposition:

• Not just telecom
• Also building management
• Premises facility & service
• Public Safety too!

Overview

• 1. Ulwimo solutions
• problem solving
• the company
• 2. The indoor Wireless Market
• trends and value chain
• multitude of solutions
• 3. Public safety Indoor Wireless
• obligation to cover buildings
• synergies
• 4. Examples of projects

CCEU 2014 3 Indoor wirless public safety & mobile

• 1. Ulwimo solutions
• Ulwimo facilitates

communication with wireless devices,

• Inside buildings (offices,

shopping ,malls, hospitals)

• For landlords, tenants and

visitors

An average meeting……

CCEU 2014 4 Indoor wirless public safety & mobile

• 1. Ulwimo problem solving

Todays communication draws on mobile devices and availability of network any time,

• anywhere. Outside and inside

Work processes and user experiences depend

• n it

Modern buildings are well isolated, thus may have poor inside coverage for GSM, UMTS etc Ulwimo facilitates the seamless use of any mobile device on any networks and any

• perator within premises

Ulwimo does so providing systems that allow this indoor communication

CCEU 2014 5 Indoor wirless public safety & mobile

Overview

• 1. Ulwimo solutions
• problem solving
• the company
• 2. The indoor Wireless Market
• trends and value chain
• multitude of solutions
• 3. Public safety Indoor Wireless
• obligation to cover buildings
• synergies
• 4. Examples of projects

CCEU 2014 6 Indoor wirless public safety & mobile

• 2. Indoor Wireless market

Mobile devices anytime anywhere

7

an average meeting An average employee

CCEU 2014 Indoor wirless public safety & mobile

• 2. Indoor wireless market

Most usage of mobile is within buildings; YOUR buildings

8

Basis = outside usage We most often reside inside Then again we use them inside

CCEU 2014 Indoor wirless public safety & mobile

• 2. Indoor wireless market

Indoor; for whom interesting ?

• Telecom operators:

– Service to end users or churn avoidance

• Real Estate, projectdevelopers:

– Satisfied users & tenants – Upgrade property portfolio – Fulfil public safety obligation

• The user of a building

– ‘Ubiquitous communication’ – Flexworking, dynamic workplaces

9 CCEU 2014 Indoor wirless public safety & mobile

• 2. Indoor wireless markt

Trends mobile communication

• Explosive use of mobiles (tablets,

smartphones etc)

• Essential element in workprocess

and user experience, hence also inside venues (nice to have => need to have)

10

• Buildings are continuously

better insulated (‘labels’)

• Not only thermally 

CCEU 2014 Indoor wirless public safety & mobile

• 2. Statistics Cisco

CCEU 2014 11 Indoor wirless public safety & mobile

Lionshare will be indoor ! Generally estimated: 80%

• f mobile traffic originates

indoor

• 2. Generic concept indoor coverage

OUTDOOR INDOOR

CCEU 2014 Indoor wirless public safety & mobile

with pico- en femto cells

Or repeaters

Repeater or BTS feeding a Distributed Antenne System

12

• 2. Positioning indoor wireless

alternatives:

 nr of users; size of building

Pico Cell, from an

• perator

Repeater of Basis Station met antenne netwerk; by

• perators or

real estate Indoor Repeater, from

• perator(s)
• r real

estate owner

CCEU 2014 13 Indoor wirless public safety & mobile

• 2. General topology

indoor wireless systems

CCEU 2014 14 Indoor wirless public safety & mobile

“active” “passive”

All 2,3,4 G Also Tetra

Overview

• 1. Ulwimo solutions
• problem solving
• the company
• 2. The indoor Wireless Market
• trends and value chain
• multitude of solutions
• 3. Public safety Indoor Wireless
• obligation to cover buildings
• synergies
• 4. Examples of projects

CCEU 2014 15 Indoor wirless public safety & mobile

• 3. Legal framwork; public safety

Spectrum belongs to operators

– Acquired spectrum in a paid auction – Indoor systeem only live with their approval

CCEU 2014 Indoor wirless public safety & mobile 16

Specific indoor coverage for Tetra can be obliged to building owner.

• Special Coverage Location NL
• 3rd party indoor (B)
• Objektfunk (D)

• 3. Public safety case of ‘indoor’:

C2000 ‘Special Coverage Locations’?

• C2000 = nationwide public safety

Tetra network Netherlands

• Network of 400+ masts,
• coverage outdoors,
• Does not always cover indoors

(neither does GSM)

• Then again radio coverage may be

required inside a building:

• discretion of public safety forces
• Then in building wireless coverage

to be realised

• by landlord !

CCEU 2014 Indoor wirless public safety & mobile 17

• 3. When “Special Coverage Location” ?

Regimes vary but usually:

• Typically for publically accessible

premises

• Typically obligation managed by

fire brigades or police

• Typically obligation issued by local

authority or municipality

• Typically legally under a building

permit

CCEU 2014 Indoor wirless public safety & mobile 18

• 3. What are potential SCL’s?

Examples:

• Tunnels (road , rail)
• Parking cellars
• Stadiums; stations
• Shoppingmalls
• Public (..) offices
• Hospitals
• Event halls

CCEU 2014 Indoor wirless public safety & mobile 19

• 3. Synergy indoor public mobile & PPDR

1. Even when 2 separate infrastructures: Integrate labour and disruption of installation, 2. When passive DAS: integration PPDR and public mobile

• n 1 infrastructure inherently

possible 3. When active DAS: integration of PPDR and public mobile when right system selected 4. Subject to national regime

• in Holland full integration possible

CCEU 2014 20 Indoor wirless public safety & mobile

Overview

• 1. Ulwimo solutions
• problem solving
• the company
• 2. The indoor Wireless Market
• trends and value chain
• multitude of solutions
• 3. Public safety Indoor Wireless
• obligation to cover buildings
• synergies
• 4. Examples of projects

CCEU 2014 21 Indoor wirless public safety & mobile

4 Example projects NL (1)

Martini

LUMC 52 degrees Viňoly

22

Isala

Achmea

Rembrand

Maasstad

CCEU 2014 Indoor wirless public safety & mobile

Hospitals: Offices: Most with public safety indoor Limited public safety indoor

• 4. Example projects NL (2)

GSM, UMTS, LTE All operator’s (4!) Tetra for pubic safety, Private trunked radio

23

Maasboulevard Venlo

RAI A’dam

CCEU 2014 Indoor wirless public safety & mobile

Conclusion

• 1. Demand and obligation for PPDR

indoor coverage

• realisation can be tedious and slow
• 2. Rapidly growing demand for indoor

mobile services coverage

• incentive for landlords and operator

to implement indoor

• 3. Opportunities to integrate the 2 to

some or full extent

• 4. Indoor mobile services lower the

threshold for a landlord to realise PPDR coverage

CCEU 2014 24 Indoor wirless public safety & mobile

Happy to consult, realise and integrate: www.ulwimo.com
