BASE Project 5/16/2014 1

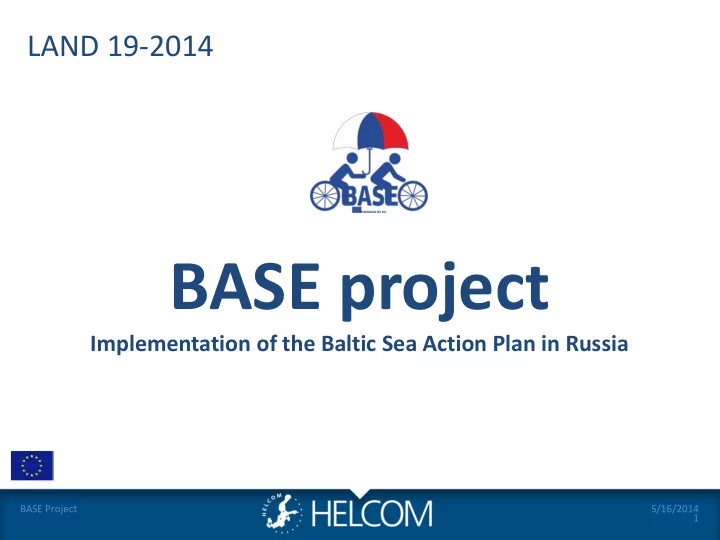

BASE project

Implementation of the Baltic Sea Action Plan in Russia

LAND 19-2014

Monitoring of nutrients in Leningrad Oblast (Neva and its tributaries) and Kaliningrad Oblast (Pregolya and its tributaries, Matrosov Canal, Sheshupe)

BASE Project 5/16/2014 2

Monitoring of nutrients in Neva (1)

Scope of work:

• 4 rounds of sampling in Neva river catchment

from Ladoga to mouth (Flow, Ptot and Ntot content)

• desk studies on quantification of Russian

transboundary loads (Narva, Neman)

Natalia Oblomkova 5/16/2014 3

Monitoring of nutrients in Neva (2)

Implemented by:

Natalia Oblomkova 5/16/2014 4

Sampling + Flow measurement

FSI “North-West Department of Hydrometeorology and Environmental Monitoring” Chemical analysis Laboratory of FSI “North-West Department of Hydrometeorology and Environmental Monitoring” Participated in PLC-6 intercalibration Russian Consultant Participated in the 1st sampling round POYRY Finland Oy

AND

Supporting EU Consultant

Monitoring of nutrients in Neva (3)

• Finished - 1

st, 2 nd, 3 rd, 4 th sampling rounds in

Neva river catchment area, results reported to HELCOM LOAD, PLC, XV Baltic Sea Day…

• Ongoing - Desk studies on quantification of

Russian transboundary loads (Narva, Neman)

• Planned - HS screening in Pregolya River

Natalia Oblomkova 5/16/2014 5

Monitoring of nutrients in Neva (4)

• Main conclusions so far:

–Nutrient load decreases significantly at the borders of the city of St. Petersburg –Input from tributaries is <30% –Significant undefined loads (direct and diffuse)

Natalia Oblomkova 5/16/2014 6

Monitoring of nutrients in Pregolya (1)

Dmitry Domnin & Natalia Oblomkova 5/16/2014 7

• Main conclusions after 3/4 rounds:

– biggest nutrient concentrations were found in Kaliningrad waste channel, Pregolya, Lava, Sheshupe – main sources of nutrient loads are located in the river Lava watershed – around 50% of the nutrient load entering the watershed of the river Lava from Poland is retained by the Pravdinskiy reservoir – on the whole, 19-40 T Ntot and 1,6 – 2,8 T Ptot / d flow from the territory of Kaliningrad to the Curonian and Vistula Lagoons

Dmitry Domnin & Natalia Oblomkova 5/16/2014 8

Monitoring of nutrients in Pregolya (2)

Conclusions (draft final report)

Pathway Share in Ptot load generation, observed in the Neva river mouth % Share in Ntot load generation, observed in the Neva river mouth % Ladoga Lake 76 84 Neva tributaries 10 7 Point and diffuse sources 14 9

BASE Project 5/16/2014 9

Table 1. Nutrient load formation in Neva River catchment area

• Results indicative, sampling frequence < PLC recommendations
• Due to lack of snow during observation period, load may be overestimated by 40-

50%

• Lake Ladoga should be high priority

Recommendations (draft final report) 1/2

• To establish stationary hydrochemical cross-

section in the mouth of the Neva branch Srednya Nevka in order to obtain total nutrient load coming with Neva river;

• To establish stationary hydrological station in

the small Neva river tributary in order to interpolate results for other similar tributaries and regularly evaluate the load from minor tributaries;

BASE Project 5/16/2014 10

• To establish stationary hydrological stations in

the mouths of the regulated rivers (Ohta and Izhora);

• To implement periodic sampling in the BASE

sampling point № 30 with the view to define the reasons for winter nutrients concentrations rapidly increasing.

BASE Project 5/16/2014 11

Recommendations (draft final report) 2/2

Dmitry Domnin & Natalia Oblomkova 5/16/2014 12

Monitoring

Results available on the BASE website http://www.helcom.fi /helcom-at-work/ projects/base/ components/ monitoring and in the HELCOM Map and Data Service

Assessment of nutrient loads and prioritization of measures for scattered settlements in Leningrad and Kaliningrad Oblasts

• an update

BASE Project 5/16/2014 13

Nikolay Matsukov 5/16/2014 14

Nutrients from scattered settlements

• Leningrad and Kaliningrad Oblasts (regions)
• Various methodologies considered, approach

used by NEFCO selected

Approach Comments Calculation of total phosphorus and nitrogen load from scattered settlements is carried out using formula: L = К*N/1000 where L – nutrient load generated (tonnes per year) K.- indicative specific loads of phosphorus and nitrogen per person (kg/person in a year) N- number of inhabitants in scattered settlements Indicative specific load (K): for nitrogen – 6 kg Ntot per person per year for phosphorus – 1,5 kg Ptot per person per year

Nikolay Matsukov 5/16/2014 15

Nutrients from scattered settlements Kaliningrad Oblast

Data collection:

• Number of settlements was defined using

Rostat data

• Data on waste water systems was requested

from the Kaliningrad Ministry of Housing and Fuel and Energy Complex

• Questionnaire and phone interviews
• Material from previous projects
• SKIOVO and NDV

Nikolay Matsukov 5/16/2014 16

Nutrients from scattered settlements Leningrad Oblast

Data collection:

• Number of settlements was defined using

Rostat data

• Results of previous projects
• SKIOVO and NDV

Nikolay Matsukov 5/16/2014 17

Inhabitants in scattered settlements

Permanent: Kaliningrad: 184 000 Leningrad: 377 000 Seasonal (summer houses): Kaliningrad: 123 000 Leningrad: 2 500 000 Factors considered:

• Number of children
• Retention

Nikolay Matsukov 5/16/2014 18

Results

Kaliningrad region Leningrad region

Approach Load input to the Baltic Sea, t/a Ntot. Рtot. NEFCO 362,51 86,91 SNiP 2.04.03-85 94,25 52,86 HARP 538,93 56,88 Approach Load input to the Gulf of Finland, t/a Ntot. Рtot. NEFCO 4584,9 836,6 SNiP 2.04.03-85 1192,1 508,9 HARP 4998,6 377,0

Nikolay Matsukov 5/16/2014 19

Next steps?

• Simple waste water treatment facilities for

scattered settlements – BASE Project producing a report on suitable technologies

BASE Project 5/16/2014 20

www.helcom.fi > HELCOM at work > Projects > BASE > Components
