87th Air Base Wing

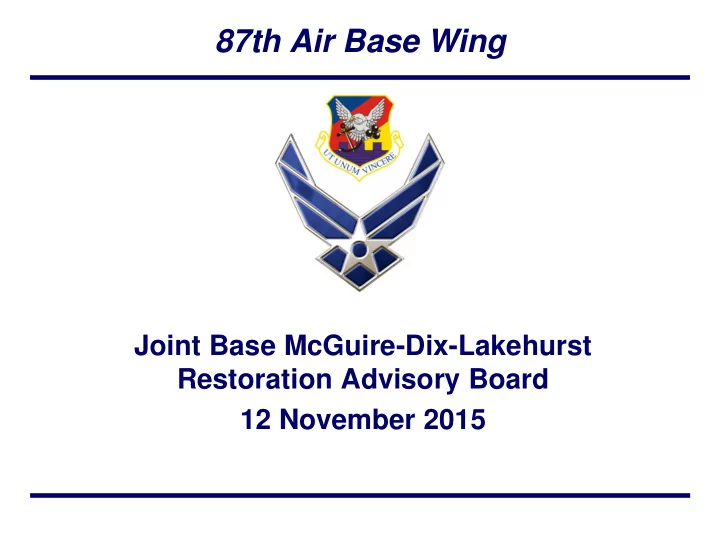

Joint Base McGuire-Dix-Lakehurst Restoration Advisory Board 12 November 2015

87th Air Base Wing

• Mr. Curtis Frye, P.E.

Chief, Environmental Restoration Program AFCEC/CZOE Review of Action Items

3

Action Items

 "Provide assessment of impacts of NJNG pipeline

project on Environmental Restoration Program"

 Mr. Tamn requested a summary of the amounts of

vitamins, supplements, and microbes that were dispersed into the Dix MAG-1 Area under the CB&I contract

4

Action Items

 NJNG pipeline: Assessment of ERP impacts

 A portion of the proposed pipeline layout traverses

a delineated CERCLA site at Lakehurst

• Areas I and J groundwater

 The pipeline would not impact the ERP site

• Pipeline will be placed at or above the water table
• Groundwater contamination in the location of the pipeline

is located in deep wells 40 to 70 feet below the ground surface

• Therefore, pipeline would not penetrate the groundwater

contaminant plume

• Pipeline does not conflict with the approved Record of

Decision for Areas I and J groundwater

5

Action Items

 Dix MAG-1 (Site SS007) TCE plume:  Bioaugmentation system operated by CB&I

through Sep 2015

 One injection period of the Shaw Dechlorinating

Consortium 9 (SDC-9) culture occurred from December 3-14, 2012. During this period a total 498 liters of SDC- 9 were added to the Kirkwood Zone and 212 liters to the Manasquan Zone

 Remedial Action Operations and Maintenance Quarterly

Report and Task Order Summary Report, Oct 2015, provided to Mr. Tamn on 9 November 2015

 Includes table summarizing quantities of injected

amendments

6

Action Items

 Amendments added:  RAB Standard Operating Procedures/Community

Involvement Plan Update

 Discussion to follow

87th Air Base Wing

• Ms. Katrina Harris

Bridge Consulting/ARCADIS Restoration Advisory Board Operating Procedures and Community Involvement Activities Update

8

Community Involvement Plan

 Current Plan dated 2013; CERCLA calls for a

review/update every two years

 Update will include:

• Conducting community interviews
• Intercepts conducted at McGuire and Lakehurst

in Oct

• Most not familiar with environmental

program

• Limited specific concerns
• Interest in being kept informed
• Contacting RAB and other community

members

• Currently updating text of CIP

9

Proposed Environmental Restoration Web Site Wireframe

10

Proposed Environmental Restoration Web Site Wireframe

11

Lakehurst TRC Page

• Overview of Lakehurst TRC
• Agendas
• Minutes (final version)
• Presentations
• Membership List (contact information as

determined by members)

• Email link for more information on meetings or

membership s

Proposed Environmental Restoration Web Site

12

Restoration Advisory Board Page

• Overview of RAB
• Agendas
• Minutes (final version)
• Presentations
• Membership List (contact information as

determined by members)

• Operating Procedures
• Email link for more information on

meetings/membership application or process

Proposed Environmental Restoration Web Site

13

• Proposed changes discussed at

August 2015 meeting

• Draft developed and distributed
• Redline version and comments

distributed tonight RAB Operating Procedures

14

Questions, Comments or Suggestions?

Community Involvement Activities

87th Air Base Wing

• Mr. Tim Llewellyn, Project Manager

ARCADIS

JB MDL PBR CONTRACT BASEWIDE UPDATE

16

“WIN AS ONE”

McGuire Summary

 NPL Sites

• Dispute resolved
• Planning and technical meetings held to scope out the

revised approaches (if needed)

• Groundwater sampling/surface water sampling activities

proceeded since the last RAB

• Field scale pilot tests and sampling planned
• CERCLA documents (RI and FS) moving forward this

winter

 State Led Compliance Sites

• Progress toward final remedies continues

17

McGuire- State Led Petroleum Storage Sites

 Remedial Action Work

Plan for 13 sites approved by NJDEP

 Sites will move forward

to final remedies this winter

 Remedies include:

• AS/SVE systems
• Soil removal actions
• MNA

18

McGuire Update OU2 and OU6

Operable Units 2 and 6, Multiple Sites

• Groundwater sampling completed to further assess

current nature and extent of solvent in groundwater

• Vapor Intrusion sampling completed at SS036 with

planning for addition buildings under way for this heating season

19

McGuire Update Operable Unit 3

Operable Unit 3, Landfill Sites

• FS was the focus of the legal dispute
• FS to be revised based on the resolution

(include Class I-PL standards)

• Scheduled for submittal to Air Force next

month

20

McGuire Update Operable Unit 4

Operable Unit 4, Site ST009 (Bulk Fuel Storage Area)

• Bench scale testing complete to

assess nature of fuel product in subsurface

• Field scale pilot testing of remedial
• ptions planned this winter

21

“WIN AS ONE”

BOMARC Update

 Meetings held with NJDEP to discuss Feasibility Study

(Evaluation of options for final remedy)

BOMARC SITE

22

Dix Update, Sites: TU019a,

TU970, NW044

TU019a (Taxi Stand), TU970 (Building 6045), NW044 (Building 5136):

• Construction of three (3) Air Sparge/Soil Vapor

Extraction (AS/SVE) systems to address petroleum contamination in soils and groundwater completed (awaiting delivery of package systems)

23

Dix Update Site: LF010

LF010, Former Sanitary Landfill

• Fall mowing and semi-annual cap inspection completed

24

Dix Update Site: NW042

NW042, 0900 Area

• Pilot testing to assess remedial
• ptions for pesticides in soils

completed in August

25

Dix Update Site: TU026

TU026, New Egypt Armory (non-PBR site)

• Removal action for 1,800 yards of PCB

contaminated soil –Mobilization November 16, 2015

26

Dix Update

Basewide Sampling Event

• Fall sampling event (groundwater, sediment, and

surface water) at 13 sites completed October/November

• All results will be presented in the 2015 IMMR due

to NJDEP 30 January 2016

27

“WIN AS ONE”

OTHER DIX SITES

 TU968 (UST’s at Bld 5348)

• No Further Action/Unrestricted Use approved at TU968

28

“WIN AS ONE”

Lakehurst Update

Area A,B,C

• Plume Stability Study continues
• Quarterly sampling conducted
• Year 1 Data Report submitted to AF

29

“WIN AS ONE”

Lakehurst Update

Area H Pump-and-Treat remains on- line Annual Sampling at D, I, J/K completed in October/November

30

Questions?

87th Air Base Wing

Joint Base McGuire-Dix-Lakehurst Military Munitions Response Program (MMRP) Sites Update

• Mr. Michael Figura

Project Manager

Joint Base McGuire – Dix – Lakehurst

32

“WIN AS ONE”

JB MDL MMRP

 The MMRP was established in 2002 and follows

the CERCLA process. The program was implemented to address unexploded ordnance, discarded military munitions and munitions components on current and former military installations.

• At McGuire and Lakehurst, the MMRP sites are

managed as NPL sites

• At Dix, the MMRP sites are managed as non-

NPL

33

“WIN AS ONE”

JB MDL MMRP Sites

• Dix Sites:

 Dix Small Arms Range (SR002)  Dix Practice Mortar Range (FR004)

• McGuire Sites:

 Former Skeet Range (TS875)  Former Ordnance Storage Area (XU874)

• Lakehurst Sites:

 Former Submarine Bombing Target (ZZ001)  Mobile Aircraft Launch and Recovery Site (MALRE) (ZZ002)  Lakehurst Proving Grounds (ZZ003)  Small Arms Range (ZZ004)  Trap Range (ZZ005)  Rifle and Pistol Range (ZZ006)

34

“WIN AS ONE”

Dix Small Arms Range and Practice Mortar Range Sites

Small Arms Range

35

“WIN AS ONE”

Dix Small Arms Range (SR002) Eastern and Western Berms

36

“WIN AS ONE”

Dix Small Arms Range Current Effort

EE/CA Field Investigation

• 500 XRF samples locations to delineate excavation footprint
• 10% fixed laboratory lead, antimony, arsenic, copper, and

zinc (50 samples)

• 6 samples for toxicity characteristic leaching procedure

(TCLP) lead and waste characterization parameters (total volatile organic compounds [VOCs], total semi-volatile organic compounds [SVOCs], total metals, polychlorinated biphenyls [PCBs], total petroleum hydrocarbons [TPH], cyanide, sulfide, flashpoint, and corrosivity)

37

“WIN AS ONE”

Dix Small Arms Range Eastern Berm Sampling

38

“WIN AS ONE”

Dix Small Arms Range Western Berm Sampling

39

“WIN AS ONE”

Dix Practice Mortar Range (FR004) Location Map

40

“WIN AS ONE”

Dix Practice Mortar Range Current Effort

 Determine the type, approximate density and distribution of MEC/MC

• DGM transect surveys spaced 150 ft apart and digitally mapped
• Follow-Up Focused Geophysical Surveys – DGM grid surveys (50 ft x 50 ft

anticipated) to evaluate the DGM transect results

• Placed in high, medium, and low anomaly density areas
• Three grids in each density type
• Size and number based on DGM transect results
• Human Receptor Area Surveys – Full coverage DGM surveys around high use

areas where humans may come into contact with MEC

• Accessible and unpaved portions of the military residential property encircling the 8

housing units at Colonial Plaza totaling 1.59 acres

• Infield and outfield of the lighted ball field totaling 0.78 acres
• Intrusive Investigations
• Targets selected from DGM dataset
• Mag and dig surveys in areas inaccessible to DGM (5-ft width)
• MC sampling will be performed if evidence of MEC is observed

41

“WIN AS ONE”

Dix Practice Mortar Range DGM Grid Survey Locations

42

McGuire Skeet Range and Ordnance Storage Area Sites

43

McGuire Skeet Range (TS875) Location Map

44

McGuire Skeet Range Current Effort

 XRF Sampling for Lead

• Type 1: Soils along and outside of the boundaries of known lead-impacted soil

established during the 2012 Final CSE (investigated to delineate vertically and horizontally for lead).

• Type 2: Soils within the boundaries of known lead-impacted soil established during the

2012 Final CSE report, where lead was encountered above 90 mg/kg from 0 to 6 inches below ground surface (bgs) but no sample was collected from 6 to 12 inches bgs (investigated to delineate vertically for lead)

• Type 3: Soils within the boundaries of known lead-impacted soil established during the

2012 Final CSE report, where lead was encountered above 90 mg/kg from 0 to 12 inches bgs, but no sample was collected from 12 to 18 inches bgs (investigated to delineate vertically for lead).

 Lead Analysis

• 10% will be sent of XRF to a fixed-base laboratory for correlation analysis
• PAH samples will be collected from the areas where clay pigeon debris is observed
• Additional samples collected in order to vertically and horizontally delineate area of

contamination

45

McGuire Skeet Range Sampling Locations

46

“WIN AS ONE”

McGuire Ordnance Storage Area (XU874) Location Map

47

“WIN AS ONE”

McGuire Ordnance Storage Area Current Effort

 Determine the type, approximate density, and distribution of

MEC/MC

• DGM transects on 145-foot (ft) spacing (4.6 acres)
• Human Receptor Area Surveys – Full coverage digital geophysical

mapping (DGM) surveys around high use areas where humans may come into contact with MEC

• No work to be performed within hazardous fragmentation distance (HFD;

225 ft) of taxiways, runways or air traffic control tower

• Intrusive Investigations – Investigation of selected anomalies
• Hand digging or mechanically assisted (only hand dig within 1 ft. of

anomaly)

• MC sampling will be performed (soil and sediment from drainage

ditch) if evidence of MEC is observed.

• Biased samples 0-2 inches below identified MEC
• Additional samples from areas where MD is identified as warranted

48

“WIN AS ONE”

McGuire Ordnance Storage Area Transects and Dig Locations

49

“WIN AS ONE”

Lakehurst MMRP Sites

50

“WIN AS ONE”

Lakehurst Submarine Bombing Target (ZZ001) Location Map

51

“WIN AS ONE”

Lakehurst Submarine Bombing Target Current Effort

 Weston Fieldwork

• Began investigation on 20 Aug 2015
• 0.62 acres surveyed and approximately 100 anomalies

investigated

• 22 MK-23 3lb practice bombs with MK-4 signal cartridges

recovered

• Items recovered were detonated on site on 24 Aug 2015
• Two more areas being investigated in Nov 2015
• Will collect soil and groundwater samples

52

“WIN AS ONE”

Lakehurst Submarine Bombing Target Investigation Areas

53

“WIN AS ONE”

Lakehurst Submarine Bombing Target Munitions Found

54

“WIN AS ONE”

Lakehurst Submarine Bombing Target

 Embed video here

55

“WIN AS ONE” Lakehurst Mobile Aircraft Launch and Recovery Equipment (MALRE) Site (ZZ002)

56

“WIN AS ONE”

Lakehurst MALRE Site Current Effort

 Perform geophysical survey across the MRS to locate anomalies

representing suspect anchor system locations where C4 may have been detonated

• Full coverage magnetometry survey to detect subsurface metallic
• bjects like a rod or hook
• Full coverage ground-penetrating radar (GPR) survey to determine if

the anomaly is an anchor system location

• GPR will identify concrete masses below ground surface
• GPR surveys will be performed to identify detonation locations that were

refilled with material or different soil compositions

• If an anomalous area is identified during the GPR survey, a minimum of

three perpendicular profiles will be collected to evaluate and delineate the potential anchor system location three dimensionally

• If anchors are identified, borings will be placed around them and

sampled at depth horizons of 0-1, 4-6, 6-8, and 8-10 ft bgs

57

“WIN AS ONE”

Lakehurst Proving Grounds (ZZ003) Parachute Jump Circle Target Areas

58

“WIN AS ONE”

Lakehurst Proving Grounds Current Effort

 Parsons Fieldwork

• Arrived at site for setup on 3 Aug 2015
• Training and evaluations conducted through mid Sept
• Held table top training exercise for project participants on

25 Aug 2015

• Plan to investigate 776 anomalies out of 2,669 anomalies

identified

• Intrusive investigation began 16 Sept 2015
• Excavated 252 anomalies (32%)
• Recovered 37mm shells that required detonation
• Expect to complete fieldwork in December
• Install wells and sample in January
• Draft RI Report expected in March 2016

59

“WIN AS ONE”

Lakehurst Proving Grounds (ZZ003) Parachute Jump Circle Target Areas

60

“WIN AS ONE”

Lakehurst Proving Grounds Munitions Found

61

“WIN AS ONE”

Lakehurst Small Arms Range (ZZ004) Current Effort

62

“WIN AS ONE”

Lakehurst Trap Range Sampling Locations

63

“WIN AS ONE”

Lakehurst Trap Range Current Effort

 EE/CA Field Investigation

• 140 XRF sample locations to delineate excavation footprint
• 10% fixed laboratory lead, antimony, arsenic, copper, and

zinc (14 samples)

• 10 PAH samples
• 6 samples for TCLP Lead and waste characterization

parameters

• 2 samples for lead particle size analysis

64

“WIN AS ONE”

Lakehurst Rifle, Pistol and Skeet Range (ZZ006) Location Map

65

“WIN AS ONE”

Lakehurst Rifle Range Sample Locations

66

“WIN AS ONE”

Lakehurst Rifle Range Current Effort

 EE/CA Field Investigation

• 123 XRF sample locations to delineate excavation footprint
• 10% fixed laboratory lead and antimony
• Up to 6 samples for TCLP lead
• 1 waste characterization parameter sample
• 2 samples for lead particle size analysis

67

“WIN AS ONE”

Lakehurst Pistol Range Sample Locations

68

“WIN AS ONE”

Lakehurst Pistol Range Current Effort

 EE/CA Field Investigation

• 69 XRF sample locations to delineate excavation footprint
• 10% fixed laboratory lead
• Up to 6 samples for TCLP lead
• 1 waste characterization parameter sample
• 2 samples for lead particle size analysis

69

“WIN AS ONE”

Lakehurst Skeet Range Sample Locations

70

“WIN AS ONE”

Lakehurst Skeet Range Current Effort

 EE/CA Field Investigation

• 155 XRF sample locations to delineate excavation footprint
• 10% fixed laboratory lead, antimony and arsenic
• 60 PAH samples
• Up to 6 samples for TCLP lead
• 1 waste characterization parameter sample
• 2 samples for lead particle size analysis

71

Questions?

Joint Base McGuire-Dix-Lakehurst MMRP Sites

72

WRAP UP

“WIN AS ONE”

 Public Comment Period  Action Items for next RAB  Tentative RAB date: February 4, 2016  Suggested agenda topics

73

PUBLIC COMMENTS
