SLIDE 1
The Earthquake Sensor & Shut Off Valve
Earthquake-Proof Detecting Sensor Earthquake-Proof Shut Off Valve

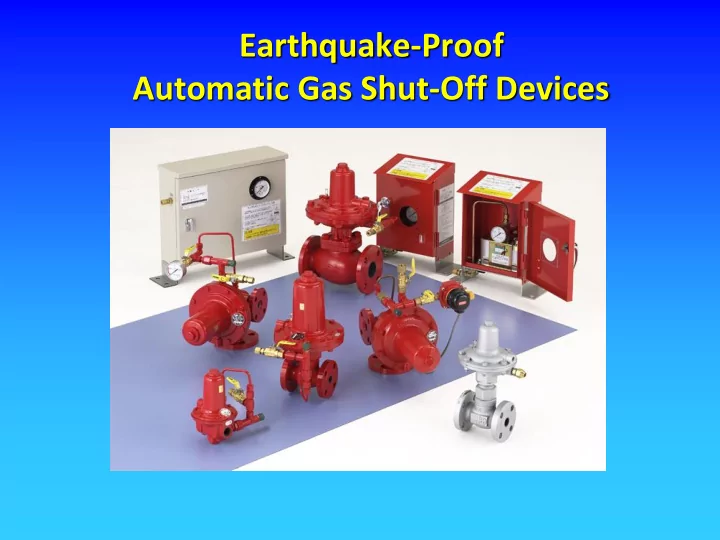

Automatic Gas Shut-Off Devices The Earthquake Sensor & Shut Off - - PowerPoint PPT Presentation
Automatic Gas Shut-Off Devices The Earthquake Sensor & Shut Off - - PowerPoint PPT Presentation
Earthquake-Proof Automatic Gas Shut-Off Devices The Earthquake Sensor & Shut Off Valve Earthquake-Proof Shut Off Valve Earthquake-Proof Detecting Sensor Lineup EQT-25 EQH-25 EQ-25 3 Features When an earthquake occurs, this device
SLIDE 2
SLIDE 3
Lineup
EQ-25 EQT-25 EQH-25
SLIDE 4
3 Features
SLIDE 5
- When an earthquake occurs, this device
shuts off the LP gas supply at the entry point
- f gas line.
SLIDE 6
SHAKING!! Earthquake!!
Cylinder Pressure Flow Middle Pressure Flow No Flow
Shut-off Activated
SLIDE 7
- A combination of two elements with
different operating characteristics provides this sensor with stability.
SLIDE 8
Set Resetting Activated
↔ ↕
SLIDE 9
- This device does not require electricity.
Explosion-proof certification is not necessary.
SLIDE 10
Mechanism Of Shut-Off
OPEN
SLIDE 11
Mechanism Of Shut-Off
OPEN CLOSED GAS SUPPLY STOPPED
SLIDE 12
Earthquake Detecting Sensor
Observation Window Steel Ball Heavy Bob
When Supplying Gas Normally When an Earthquake Occurs Reset Lever (Normal Position) Reset Lever (Activated) Activated Set Resetting
SLIDE 13
21/43
Shut Off Valve Signal
When this GREEN stick shows, the valve is OPEN. The status is normal and gas is flowing.
SLIDE 14
20/43 リセットボタン（２～３秒押す）
Resetting the Earthquake-Proof Shut Off Valve
Signal (Green) Cap (Green) Reset Button (Push for 2 to 3 Sec.) Ball Valve Remove The Cap
SLIDE 15
Earthquake-Proof Shut Off Valve
EQ Series
Working Pressure Range: 0.025～ 0.20MPa (250 mbar ~ 2 bar)
EQH Series
Working Pressure Range: 0.07～ 1.56MPa ( 700 mbar ~ 15.6 bar)
SLIDE 16
Earthquake Detecting Sensor
C2-250B・400B
Working Pressure Range: 0.025～ 0.20MPa (250 mbar ~ 2 bar)
SLIDE 17
14/44
SLIDE 18
Installation Example - Japan
Single-stage Regulator
Model: GL-70-1
Seismic sensor
Model: C2-400B
Second-stage Regulator
Model: GL-70-2
Earthquake-Proof Shut-off Valve
Model: EQT-20
Earthquake-Proof Shut-off Valve
Model: EQH-25
Automatic Changeover First-stage Regulators
Model: AX-160-0
Sensor Impulse Line (Copper Pipe)
SLIDE 19
Earthquake Detecting Sensor
CP-250B・400B
Working Pressure Range: 0.1～0.35MPa (1 bar ~ 3.5 bar)
SLIDE 20
Earthquake-Proof Automatic Gas Shut-Off System
for Liquefied LPG or Tank Supply
“Normally Close” Needle Valve Corporated with Orifice Model: IV-215BE
- To limit the amount of the exhaust gas when
the blow valve operates
- To refill the pressure into the sensor impulse
line Valve “Normally Open” Blow Valve Regulator for Sensor Impulse Line Source
- f Pressure
Manual operation valve for emergency shut-off “Normally Close” Set at 0.3 ~ 0.35 MPa Fusible Valve In case of fire, the metal which seals the hole on the valve head shall be fused blowing the gas off from the impulse line. Air Compressor etc
Sensor Impulse Line
Seismic Sensor for Storage Tank Model: CP-250B or CP-400B
Liquefied Petroleum Gas Storage Tank
Air Actuated Emergency Shut
- ff Valve
Model: BS-20STLB
Tank
Pump for Liquid LPG
Pump Air: 0.3 ~ 0.35 MPa Liquid LPG
Master Valve Master Valve
Outlet Inlet
