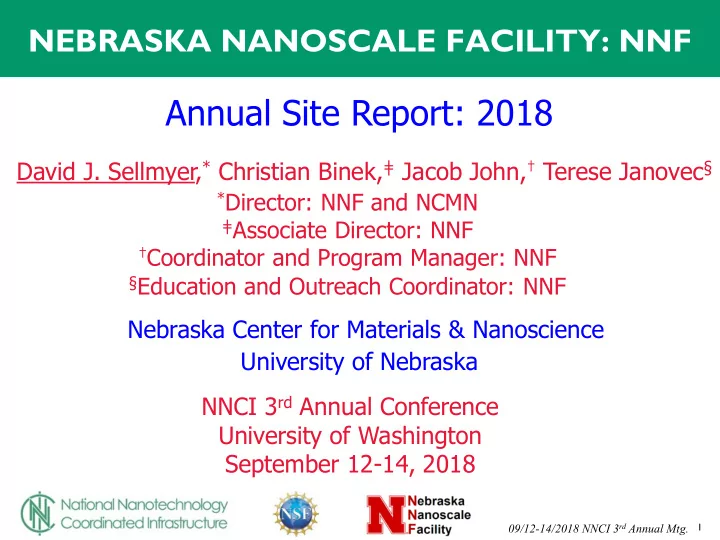

NEBRASKA NANOSCALE FACILITY: NNF Annual Site Report: 2018 David J. Sellmyer, * Christian Binek, Jacob John, Terese Janovec * Director: NNF and NCMN Associate Director: NNF Coordinator and Program Manager: NNF Education and

slide-1
SLIDE 1

1

09/12-14/2018 NNCI 3rd Annual Mtg.

NEBRASKA NANOSCALE FACILITY: NNF

NNCI 3rd Annual Conference University of Washington September 12-14, 2018

Annual Site Report: 2018

Nebraska Center for Materials & Nanoscience University of Nebraska David J. Sellmyer,* Christian Binek,ǂ Jacob John,† Terese Janovec§

*Director: NNF and NCMN ǂAssociate Director: NNF †Coordinator and Program Manager: NNF §Education and Outreach Coordinator: NNF

slide-2
SLIDE 2

2

09/12-14/2018 NNCI 3rd Annual Mtg.

Outline

 Site Overview  Research Focus Areas and Outcomes  User Statistics  New Facility Capabilities  Research Highlights  Education-Outreach Activities  Network Activity  Resource Allocation and New-Equipment Acquisition

slide-3
SLIDE 3

3

09/12-14/2018 NNCI 3rd Annual Mtg.

NNF/NCMN Staff

T echnical Staff: 10; Administrative Staff: 5

slide-4
SLIDE 4

4

09/12-14/2018 NNCI 3rd Annual Mtg.

Surface and Materials Characterization Nanoengineered Materials and Structures Electron Nanoscopy Instrumen- tation Nanofabrication Cleanroom X-Ray Struc- tural Characteri- zation Nanomaterials and Thin Films

Central Facilities

Facility Staff Technical Outreach Staff

NNF Facilities

slide-5
SLIDE 5

5

09/12-14/2018 NNCI 3rd Annual Mtg.

Research Focus Areas

Y

  • ngfeng Lu

(*) indicates approx. number of faculty involved

David Sellmyer

Functional Nanostructures (14) Nanoferroic & Nano- electronic Devices (10) Nanomagnetics (20) MRSEC: P-Spins (20) Complex Nano-hybrid Materials (15) Nano- materials for Energy, Environment (12)

Major Research Groups

Christian Binek Evgeny Tsymbal Michael Nastasi Mathias Schubert

slide-6
SLIDE 6

6

09/12-14/2018 NNCI 3rd Annual Mtg.

  • Nature Photonics (1)
  • Advanced Materials (6)
  • ACS Nano (5)
  • Science Advances (3)
  • J. Am. Chem. Soc. (6)
  • Nano Letters (8)
  • Nature Commun. (6)
  • Chem. Mater

. (2)

  • Phys. Rev. Lett. (3)
  • Adv. Mat. Interfaces (12)
  • Nanoscale (7)
  • J. Mat. Chem. C (2)
  • Acta Mat. (6)
  • MRS Bulletin (4)
  • J. Phys. Chem. C (5)
  • Sci. Rep. (11)
  • Phys. Rev. B (7)
  • Appl. Phys. Lett. (18)

8/15/2018 F ili i

High-Impact Research and Publications

(2017)

slide-7
SLIDE 7

7

09/12-14/2018 NNCI 3rd Annual Mtg.

Faculty Hiring Initiative

 NCMN has been planning for faculty development (~ 2 years)  Talk on “Materials and Nanoscience” given to Board of

Regents (2017)

 NNF External Advisory Board Review (2017) supported our

hiring plan

 Many discussions with vice chancellors, deans,

department chairs and faculty Administration approved a set of 4 cluster hires in “Quantum Materials and Technologies”

[Physics, Materials, Chemistry, Electrical Eng.]

 Please let us know of excellent candidates!

slide-8
SLIDE 8

8

09/12-14/2018 NNCI 3rd Annual Mtg.

NNF: User Statistics

Yearly User Data Comparison Year 1(12 months) Year 2 ( 12months) Year 3 (6 months) Total Users 314 352 235 Internal Users 297 316 203 External Users 17 (5%) 36 (10.2%) 32 (14%) External Academic 8 16 14 External Industry 9 20 18 External Government External Foreign Total Hours 23,446 20,102 12,307 Internal Hours 23,122 19,275 11,189 External Hours 324 (1%) 827 (4.1%) 1,118 (9%) Average Monthly Users 97 120 132 Average External Monthly Users 1 (1%) 7 (6%) 12 (9%) New Users 64 79 78 New External Users 6 (9%) 25 (32%) 27 (35%)

slide-9
SLIDE 9

9

09/12-14/2018 NNCI 3rd Annual Mtg.

NNF: User Data

External User Affiliations All User Disciplines

Other University 44% Small Company 31% Large Company 25% Chemistry 20% Electronics 10% Geology/Earth Sciences 4% Life Sciences 2% Materials 36% Medicine 3% Physics 25%

slide-10
SLIDE 10

10

09/12-14/2018 NNCI 3rd Annual Mtg.

New Capabilities: Metal 3D Printers

Lumex Avance-25 LENS 3D Metal Hybrid System

 Hybrid Systems: Additive and subtractive (machining) capabilities  Capable of printing reactive metals and composites

slide-11
SLIDE 11

11

09/12-14/2018 NNCI 3rd Annual Mtg.

 UHV chamber with base pressure of 10-9 Torr  One 14cm ion source for ion-beam milling  One 4cm ion source for ion-beam sputtering  8 magnetron sputtering guns for

complex thin-film stacks

Intlvac Nanoquest System

Ion-Beam Etching and Sputtering System

Characteristics

Ti nano-pillars fabricated with Ion beam milling

slide-12
SLIDE 12

12

09/12-14/2018 NNCI 3rd Annual Mtg.

Conductivity Map Ferroelectric Domains Magnetic Vortex Magnetic Domains  NSF-MRI  Temperature range: 4-300 K  Magnetic field range: 0-9 T  Multifunctional: AFM, MFM, PFM, ct-AFM Magnetic Nanostructures Surface Topography

Low-T emperature High-Magnetic-Field Scanning Probe Microscope (Attocube)

slide-13
SLIDE 13

13

09/12-14/2018 NNCI 3rd Annual Mtg.

 Sinitskii et al. have shown how to produce graphene nano-ribbons

(GNR) by adding benzene rings, reducing its band gap and enhancing its electrical conductivity.

New Graphene Nano-ribbons Lead to Sensors with Unprecedented Sensitivity

GNR-based gas sensor Effect of lateral extension on band gaps  This approach may be extended to sensing other molecules and photovoltaics.

Sinitskii et al., Nature Commun. (2017)

slide-14
SLIDE 14

14

09/12-14/2018 NNCI 3rd Annual Mtg.

Cui, Sellmyer et al. Acta Mat. (2018), Bull. APS (2017)

New materials, especially earth-abundant ones, are needed for modern power-generation systems and vehicles.

Combined experimental-computational research is leading to advanced metastable materials with potential for high-temperature use:

New High-Energy-Product Nanomaterials

Potential High-Energy Product Materials HfCo7: Fe-Co Nanocomposite

HRTEM Large Energy Product

0.0 0.5 1.0 1.5 5 10

Co3N

(BH)max (kJ/m3)

Zr-Co:Fe-Co H f

  • C
  • :

F e

  • C
  • Zr2Co11

Co3Si L10-FeNi Mn3Ga Mn2Ga

MnAl

MnBi:Bi Fe6Ti2

Ba, µ Ha(T) Js (T)

HfCo7

1.35 Js 112 199 448

thy

slide-15
SLIDE 15

15

09/12-14/2018 NNCI 3rd Annual Mtg.

NNF Nanotech Workshop Traveling Nano Exhibit

Attendees (30) Responses (18)

Strongly agree Agree Disagree Strongly disagree

I understand what work can be done using NNF. 61% 39% I understand how to become a user of NNF. 67% 33% I believe my work would benefit from using NNF. 56% 34% 5% 5% I am interested in using NNF. 50% 45% 5% DIVERSITY EFFORTS Minority Serving Museums Chadron State College 50% Native American Edgerton Explorit Center 15% Hispanic 5% African American Title 1 - After School Programs Dawes Middle School, Park Middle School, Goodrich Middle School NNF Sponsored Programs 2017-18 Programs ms/Ev Events Partici cipants

K-12 S Students 310 310 Nanod

  • days

ys 400 400 Teach cher C r Confere rence ces 300 300 REU S Students/Profs 9 Japanes ese N e NNCI R REU ( (ther ere) 1 Japanes ese N e NNCI R REU ( (her ere) 1 High S School I Interns S Summer Res esea earch 12 12 Preserv rvice T Teach chers rs 13 13 Traveling E Exhibit 52,000 000 Undergrad ad W Wome men Confe ference 110 110 High S Schoo

  • ol W

l Wom

  • men

Confe ference 100 100 Nanotech M Minicourse 20 20 Nanot

  • tech W

Wor

  • rks

kshop 30 30 Total N l NNF 53,306 306 Evaluat ated p programs ams i in b blue

Impact of Education & Outreach Activities

slide-16
SLIDE 16

16

09/12-14/2018 NNCI 3rd Annual Mtg.

Impact of Education & Outreach Activities

Traveling Nanoscience Exhibit

Serving rural populations and growing communities

  • f ethnic minorities
  • 8 museums in

Nebraska

  • Currently in

Waterloo, IA

  • Possible future

visits in South Dakota and Kansas

slide-17
SLIDE 17

17

09/12-14/2018 NNCI 3rd Annual Mtg.

NNCI Cooperative Network Activities

Network-Wide

 NNCI Metrics Committee (David Sellmyer)  NNCI Workforce Development Committee (Terese Janovec, David Sellmyer)

  • Contributed to study of local CC needs/interests

 K-12 Teachers/RET, Students, and Community Outreach Committee (Terese Janovec)  NNCI Working Group Members (J. Hua, S. Valloppilly, L. Yue, J. Li, T. Janovec)  NNCI 2017 Annual Conference (David Sellmyer, Christian Binek, Terese Janovec)  NANODAYS 2018 in Lincoln hosted (Terese Janovec)  RAIN Network (Anand Sarella, Terese Janovec)

Multi-Site

 NNCI NSF RET Proposal (Jeff Shield, S. Ducharme)

  • Six-week summer research experience (ASU, GA Tech, MN, Louisville, NE)

 Lithography Workshop at Stanford (Jiong Hua)

On Behalf of the Network

 NNCI REU student from Japan hosted, Summer 2018 (attended NNCI REU convocation)  NNCI REU students (2) sent to Japan, Summer 2017 & 2018

slide-18
SLIDE 18

18

09/12-14/2018 NNCI 3rd Annual Mtg.

Schemes for Funding New Equipment

 Establish Revolving (Savings) Account

  • Difficult to achieve, but carry-over funds

from operations help in equipment purchases.

 Matching Scheme

  • In requesting contributions from

departments, colleges and vice chancellors, providing the largest amount from NCMN/NNF funds helps significantly in obtaining other contributions.
