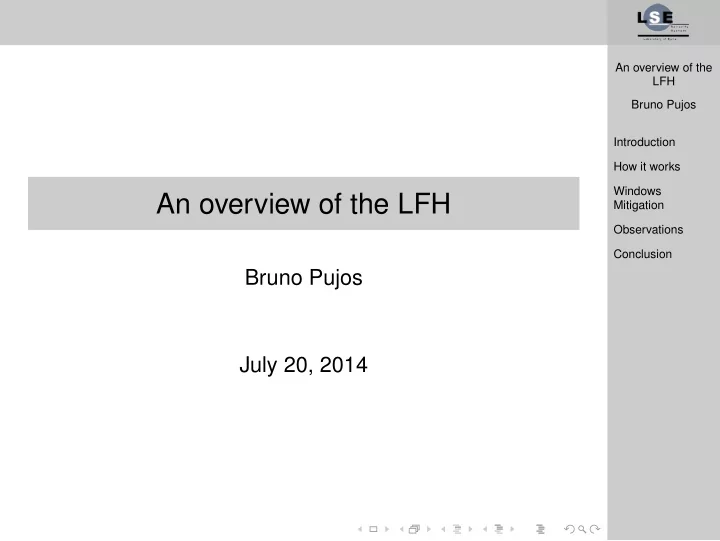

An overview of the LFH Bruno Pujos Introduction How it works Windows Mitigation Observations Conclusion

An overview of the LFH

Bruno Pujos July 20, 2014

slide-2
SLIDE 2

An overview of the LFH Bruno Pujos Introduction How it works Windows Mitigation Observations Conclusion

Plan

1

Introduction

slide-3
SLIDE 3

An overview of the LFH Bruno Pujos Introduction How it works Windows Mitigation Observations Conclusion

The LFH?

  • Low Fragmentation Heap: Front End allocator
  • Userland (sorry, no kernel this time. . . )
  • Windows 8/8.1 32bit
  • Why talk about it?
  • Some details were left out to keep it simple
slide-4
SLIDE 4

An overview of the LFH Bruno Pujos Introduction How it works Windows Mitigation Observations Conclusion

General Memory Management

slide-5
SLIDE 5

An overview of the LFH Bruno Pujos Introduction How it works Windows Mitigation Observations Conclusion

A little bit of history

  • LFH released with Windows XP (2001) but not

enabled by default

  • The Look-Aside-List was another Front End allocator

at that time

  • Since Vista, no more LAL, and LFH is enabled by

default

slide-6
SLIDE 6

An overview of the LFH Bruno Pujos Introduction How it works Windows Mitigation Observations Conclusion

Plan

1

Introduction

2

How it works Structures Allocation Free

3

Windows Mitigation

4

Observations

5

Conclusion

slide-7
SLIDE 7

An overview of the LFH Bruno Pujos Introduction How it works

Structures Allocation Free

Windows Mitigation Observations Conclusion

Plan

2

How it works Structures Allocation Free

slide-8
SLIDE 8

An overview of the LFH Bruno Pujos Introduction How it works

Structures Allocation Free

Windows Mitigation Observations Conclusion

Plan

2

How it works Structures Allocation Free

slide-9
SLIDE 9

An overview of the LFH Bruno Pujos Introduction How it works

Structures Allocation Free

Windows Mitigation Observations Conclusion

General Overview

slide-10
SLIDE 10

An overview of the LFH Bruno Pujos Introduction How it works

Structures Allocation Free

Windows Mitigation Observations Conclusion

General Overview

slide-11
SLIDE 11

An overview of the LFH Bruno Pujos Introduction How it works

Structures Allocation Free

Windows Mitigation Observations Conclusion

_HEAP & _LFH_HEAP

slide-12
SLIDE 12

An overview of the LFH Bruno Pujos Introduction How it works

Structures Allocation Free

Windows Mitigation Observations Conclusion

General Overview

slide-13
SLIDE 13

An overview of the LFH Bruno Pujos Introduction How it works

Structures Allocation Free

Windows Mitigation Observations Conclusion

_HEAP_BUCKET

slide-14
SLIDE 14

An overview of the LFH Bruno Pujos Introduction How it works

Structures Allocation Free

Windows Mitigation Observations Conclusion

General Overview

slide-15
SLIDE 15

An overview of the LFH Bruno Pujos Introduction How it works

Structures Allocation Free

Windows Mitigation Observations Conclusion

_HEAP_LOCAL_SEGMENT_INFO

slide-16
SLIDE 16

An overview of the LFH Bruno Pujos Introduction How it works

Structures Allocation Free

Windows Mitigation Observations Conclusion

General Overview

slide-17
SLIDE 17

An overview of the LFH Bruno Pujos Introduction How it works

Structures Allocation Free

Windows Mitigation Observations Conclusion

Subsegment & UserBlocks

slide-18
SLIDE 18

An overview of the LFH Bruno Pujos Introduction How it works

Structures Allocation Free

Windows Mitigation Observations Conclusion

Plan

2

How it works Structures Allocation Free

slide-19
SLIDE 19

An overview of the LFH Bruno Pujos Introduction How it works

Structures Allocation Free

Windows Mitigation Observations Conclusion

Allocation Workflow

slide-20
SLIDE 20

An overview of the LFH Bruno Pujos Introduction How it works

Structures Allocation Free

Windows Mitigation Observations Conclusion

LFH activation & Back-end

  • RtlpAllocateHeap(_HEAP *Heap, int Flags, int Size,

unsigned int RoundedSize, _LIST_ENTRY *ListHint, int *RetCode)

  • HEAP_NO_SERIALIZE
  • Heap->CompatibilityFlags & 0x20000000: activation
  • f the LFH needed
  • RtlpPerformHeapMaintenance(_HEAP *Heap)
slide-21
SLIDE 21

An overview of the LFH Bruno Pujos Introduction How it works

Structures Allocation Free

Windows Mitigation Observations Conclusion

LFH activation & Back-end

Allocation of size < 0x4000

  • if the LFH is not activated: set the CompatibilityFlags
  • if the LFH is not activated for this size:
  • add 0x21 in the Heap->FrontEndHeapUsageData[]
  • if 0x10 consecutive allocations or

Heap->FrontEndHeapUsageData[] > 0xff00: activate for the next allocation of the same size

Activation for a given size

  • set Heap->FrontEndHeapUsageData[] to the

BucketIndex

  • set Heap->FrontEndHeapStatusBitmap[] to 1

(activated)

slide-22
SLIDE 22

An overview of the LFH Bruno Pujos Introduction How it works

Structures Allocation Free

Windows Mitigation Observations Conclusion

Allocation Workflow

slide-23
SLIDE 23

An overview of the LFH Bruno Pujos Introduction How it works

Structures Allocation Free

Windows Mitigation Observations Conclusion

LFH Allocation

  • size <= 0x4000
  • HEAP_NO_SERIALIZE
  • Heap->FrontEndHeapStatusBitmap == 1
  • RtlpLowFragHeapAllocFromContext(_LFH_HEAP

*LFH, unsigned short BucketIndex, int Size, char Flags)

slide-24
SLIDE 24

An overview of the LFH Bruno Pujos Introduction How it works

Structures Allocation Free

Windows Mitigation Observations Conclusion

LFH Allocation Workflow

slide-25
SLIDE 25

An overview of the LFH Bruno Pujos Introduction How it works

Structures Allocation Free

Windows Mitigation Observations Conclusion

LFH Initialisation

slide-26
SLIDE 26

An overview of the LFH Bruno Pujos Introduction How it works

Structures Allocation Free

Windows Mitigation Observations Conclusion

LFH Initialisation

slide-27
SLIDE 27

An overview of the LFH Bruno Pujos Introduction How it works

Structures Allocation Free

Windows Mitigation Observations Conclusion

LFH Initialisation

slide-28
SLIDE 28

An overview of the LFH Bruno Pujos Introduction How it works

Structures Allocation Free

Windows Mitigation Observations Conclusion

LFH Initialisation

slide-29
SLIDE 29

An overview of the LFH Bruno Pujos Introduction How it works

Structures Allocation Free

Windows Mitigation Observations Conclusion

LFH Randomization

slide-30
SLIDE 30

An overview of the LFH Bruno Pujos Introduction How it works

Structures Allocation Free

Windows Mitigation Observations Conclusion

LFH Randomization

slide-31
SLIDE 31

An overview of the LFH Bruno Pujos Introduction How it works

Structures Allocation Free

Windows Mitigation Observations Conclusion

LFH Randomization

  • RtlpLowFragHeapRandomData
  • LowFragHeapDataSlot (in the TEB)
slide-32
SLIDE 32

An overview of the LFH Bruno Pujos Introduction How it works

Structures Allocation Free

Windows Mitigation Observations Conclusion

LFH Allocation

slide-33
SLIDE 33

An overview of the LFH Bruno Pujos Introduction How it works

Structures Allocation Free

Windows Mitigation Observations Conclusion

LFH Allocation

slide-34
SLIDE 34

An overview of the LFH Bruno Pujos Introduction How it works

Structures Allocation Free

Windows Mitigation Observations Conclusion

LFH Cache

slide-35
SLIDE 35

An overview of the LFH Bruno Pujos Introduction How it works

Structures Allocation Free

Windows Mitigation Observations Conclusion

LFH Cache

  • Check the cache
  • Try to allocate UserBlocks and/or Subsegment
  • Fail if RtlAllocateHeap fails
  • Update RtlpLowFragHeapRandomData in

Subsegment allocation

slide-36
SLIDE 36

An overview of the LFH Bruno Pujos Introduction How it works

Structures Allocation Free

Windows Mitigation Observations Conclusion

LFH Cache

slide-37
SLIDE 37

An overview of the LFH Bruno Pujos Introduction How it works

Structures Allocation Free

Windows Mitigation Observations Conclusion

LFH Allocation Workflow

slide-38
SLIDE 38

An overview of the LFH Bruno Pujos Introduction How it works

Structures Allocation Free

Windows Mitigation Observations Conclusion

Plan

2

How it works Structures Allocation Free

slide-39
SLIDE 39

An overview of the LFH Bruno Pujos Introduction How it works

Structures Allocation Free

Windows Mitigation Observations Conclusion

Free Workflow

slide-40
SLIDE 40

An overview of the LFH Bruno Pujos Introduction How it works

Structures Allocation Free

Windows Mitigation Observations Conclusion

Free Back-end

  • RtlpFreeHeap(_HEAP *Heap, int Flags,

_HEAP_ENTRY *Header, void *Chunk)

  • Decrement the counter in

Heap->FrontEndHeapUsageData[]

slide-41
SLIDE 41

An overview of the LFH Bruno Pujos Introduction How it works

Structures Allocation Free

Windows Mitigation Observations Conclusion

Free Workflow

slide-42
SLIDE 42

An overview of the LFH Bruno Pujos Introduction How it works

Structures Allocation Free

Windows Mitigation Observations Conclusion

LFH Free

  • No longer handled by RtlpLowFragHeapFree
  • Same algorithm idea in Windows 8 and 8.1
  • Header->UnusedBytes & 0x80
  • Always returns true
slide-43
SLIDE 43

An overview of the LFH Bruno Pujos Introduction How it works

Structures Allocation Free

Windows Mitigation Observations Conclusion

LFH Free Workflow

slide-44
SLIDE 44

An overview of the LFH Bruno Pujos Introduction How it works

Structures Allocation Free

Windows Mitigation Observations Conclusion

LFH Free Initialisation

slide-45
SLIDE 45

An overview of the LFH Bruno Pujos Introduction How it works

Structures Allocation Free

Windows Mitigation Observations Conclusion

LFH Free Initialisation

slide-46
SLIDE 46

An overview of the LFH Bruno Pujos Introduction How it works

Structures Allocation Free

Windows Mitigation Observations Conclusion

LFH Free Mark

slide-47
SLIDE 47

An overview of the LFH Bruno Pujos Introduction How it works

Structures Allocation Free

Windows Mitigation Observations Conclusion

LFH Free Mark

slide-48
SLIDE 48

An overview of the LFH Bruno Pujos Introduction How it works

Structures Allocation Free

Windows Mitigation Observations Conclusion

LFH Free Fail

slide-49
SLIDE 49

An overview of the LFH Bruno Pujos Introduction How it works

Structures Allocation Free

Windows Mitigation Observations Conclusion

LFH Free Check UserBlocks

slide-50
SLIDE 50

An overview of the LFH Bruno Pujos Introduction How it works Windows Mitigation Observations Conclusion

Plan

3

Windows Mitigation

slide-51
SLIDE 51

An overview of the LFH Bruno Pujos Introduction How it works Windows Mitigation Observations Conclusion

Attackers goal

  • The goal is always to control eip
  • For a ”generic” heap exploitation:
  • Arbitrary write
  • Trigger a free
  • . . .
slide-52
SLIDE 52

An overview of the LFH Bruno Pujos Introduction How it works Windows Mitigation Observations Conclusion

Safe Linking/Unlinking

  • Moore 2005, but also in Linux malloc. . .
  • The idea is to corrupt a double-linked list (stored in

metadata)

  • Could allow arbitrary 4-write
  • Check introduced in Windows XP SP2, and

generalized since then

slide-53
SLIDE 53

An overview of the LFH Bruno Pujos Introduction How it works Windows Mitigation Observations Conclusion

Arbitrary Free

  • Ben Hawkes 2008
  • Before Windows 8:

i f ( Header−>UnusedBytes == 0x5 ) Header −= 8 ∗ Header−>SegmentOffset ;

  • Overwrite of a _HEAP_ENTRY would allow a

semi-arbitrary free

  • Windows 8 introduces a check
slide-54
SLIDE 54

An overview of the LFH Bruno Pujos Introduction How it works Windows Mitigation Observations Conclusion

Ben Hawkes

  • LFH overflow: structures have changed
  • FrontEndHeapUsageData
  • _RTL_BITMAP
  • Off-by-one: encoded and changes the structure
  • Heap Overflows: no more free of the heap
slide-55
SLIDE 55

An overview of the LFH Bruno Pujos Introduction How it works Windows Mitigation Observations Conclusion

FreeEntryOffset Overwrite

  • Chris Valasek 2010
  • Before Windows 8, a free chunk would contain a

NextOffset field of a free chunk in the first 2 bytes after the _HEAP_ENTRY

  • Overwrite it so that a chunk will be allocated and

allow a semi-controlled allocation (the next one)

  • Rewrite data of another chunk :)
  • NextOffset doesn’t exist in Windows 8, use

_HEAP_USERDATA_HEADER to locate free chunks

slide-56
SLIDE 56

An overview of the LFH Bruno Pujos Introduction How it works Windows Mitigation Observations Conclusion

LFH GuardPages

  • Since Windows 8
  • Created during a UserBlocks allocation
  • Protection against sequential overflow
  • Protection to prevent UserBlocks overwrite
  • PAGE_NOACCESS
  • Possible to avoid triggering them by doing few

allocations

slide-57
SLIDE 57

An overview of the LFH Bruno Pujos Introduction How it works Windows Mitigation Observations Conclusion

Fast fail

  • HeapEnableTerminationOnCorruption
  • Fast fail is an interrupt (int 0x29) which halts the

execution of the process

slide-58
SLIDE 58

An overview of the LFH Bruno Pujos Introduction How it works Windows Mitigation Observations Conclusion

Non-deterministic virtual allocation

  • For a request of a certain size

(> VirtualMemoryThreshold), use NtAllocateVirtualMemory

  • Before Windows 8: predictable memory layouts.
  • Since Windows 8: the virtual allocation start at a

random offset within the whole virtual chunk.

slide-59
SLIDE 59

An overview of the LFH Bruno Pujos Introduction How it works Windows Mitigation Observations Conclusion

Non-deterministic allocation

  • Already covered
slide-60
SLIDE 60

An overview of the LFH Bruno Pujos Introduction How it works Windows Mitigation Observations Conclusion

_HEAP_USERDATA_HEADER Overwrite

  • In Windows 8, the BlockStride and the

FirstAllocationOffset are not encoded

  • Header when allocating:

Header = (_HEAP_ENTRY) UserBlocks + UserBlocks−> F i r s t A l l o c a t i o n O f f s e t + ( NewHint ∗ UserBlocks−>BlockStride ) ;

  • If we overwrite FirstAllocationOffset and/or

BlockStride, a semi-arbitrary address is returned by the LFH

  • Since Windows 8.1, FirstAllocationOffset and

BlockStride are encoded: EncodedOffsets ˆ UserBlocks ˆ LFH ˆ RtlpLFHKey

slide-61
SLIDE 61

An overview of the LFH Bruno Pujos Introduction How it works Windows Mitigation Observations Conclusion

Plan

4

Observations

slide-62
SLIDE 62

An overview of the LFH Bruno Pujos Introduction How it works Windows Mitigation Observations Conclusion

Determinism

  • Non-deterministic allocations break a lot of things
  • How to be determinist again?
  • RtlpLowFragHeapRandomData are random but fix
  • LowFragHeapDataSlot is a counter with a modulo

0x100

  • Just allocate and free a 0x100 chunk to have the

same value again from RtlpLowFragHeapRandomData

  • Need to avoid subsegment allocation
  • Need to be able to allocate and free the specific size

we want

slide-63
SLIDE 63

An overview of the LFH Bruno Pujos Introduction How it works Windows Mitigation Observations Conclusion

Determinism

  • Not only useful for use-after-free, but also for
  • verflow
  • Allocate the vulnerable chunk
  • Allocate and Free for 0x100 times
  • Allocate the chunk to overflow
  • Trigger the overflow
  • Work only if we are sure that the chunk next to the

vulnerable one is free (and we are lucky enough not to allocate the last chunk. . . )

slide-64
SLIDE 64

An overview of the LFH Bruno Pujos Introduction How it works Windows Mitigation Observations Conclusion

Bitmap Flipping 2.0

  • Valasek & Mandt 2012
  • When a free is made, the offset of the byte to clear in

the bitmap is determined by Header->Previous

  • If we can overwrite the Heap->Previous it could to go
  • ut of the bitmap and set one bit to 0
  • Problem: we need to overwrite the subsegment

encoded with a good value

  • Should still work if it can be triggered
slide-65
SLIDE 65

An overview of the LFH Bruno Pujos Introduction How it works Windows Mitigation Observations Conclusion

Plan

5

Conclusion

slide-66
SLIDE 66

An overview of the LFH Bruno Pujos Introduction How it works Windows Mitigation Observations Conclusion

Conclusion

”Application specific attacks are the future” Ben Hawkes 2008

slide-67
SLIDE 67

An overview of the LFH Bruno Pujos Introduction How it works Windows Mitigation Observations Conclusion

Link

  • http://illmatics.com/Windows%208

%20Heap%20Internals.pdf

  • http://illmatics.com/Understanding_the_LFH.pdf
  • https://media.blackhat.com/eu-13/briefings/Liu/bh-

eu-13-liu-advanced-heap-WP .pdf

  • https://www.lateralsecurity.com/downloads/hawkes_

ruxcon-nov-2008.pdf

  • http://sebug.net/paper/Meeting-

Documents/hitbsecconf2012ams/D2T2%20- %20Steven%20Seeley%20- %20Ghost%20In%20the%20Windows%20 7%20Allocator.pdf

  • http://www.blackhat.com/presentations/bh-usa-

09/MCDONALD/BHUSA09-McDonald- WindowsHeap-PAPER.pdf

  • ntdll.dll 6.3.9600.17031 (Windows 8.1)
  • ntdll.dll 6.2.9200.16384 (Windows 8)
