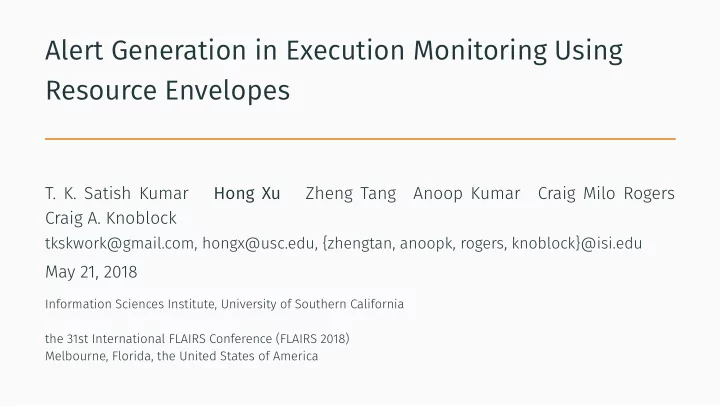

Alert Generation in Execution Monitoring Using Resource Envelopes

  • T. K. Satish Kumar

Hong Xu Zheng Tang Anoop Kumar Craig Milo Rogers Craig A. Knoblock

tkskwork@gmail.com, hongx@usc.edu, {zhengtan, anoopk, rogers, knoblock}@isi.edu

May 21, 2018

Information Sciences Institute, University of Southern California the 31st International FLAIRS Conference (FLAIRS 2018) Melbourne, Florida, the United States of America

slide-2
SLIDE 2

Executive Summary

Execution monitoring is an important aspect of AI. We apply the idea of resource envelope to alert generation in execution monitoring. We study three applications in details.

Kumar et al. (Information Sciences Institute, USC) Alert Generation in Execution Monitoring Using Resource Envelopes 1 / 15

slide-3
SLIDE 3

Agenda

Alert Generation in Execution Monitoring Simple Temporal Network with Resources (STNR) and Resource Envelope Applying Resource Envelopes for Alert Generation in Execution Monitoring Conclusion

Kumar et al. (Information Sciences Institute, USC) Alert Generation in Execution Monitoring Using Resource Envelopes 2 / 15

slide-4
SLIDE 4

Agenda

Alert Generation in Execution Monitoring Simple Temporal Network with Resources (STNR) and Resource Envelope Applying Resource Envelopes for Alert Generation in Execution Monitoring Conclusion

slide-5
SLIDE 5

Alert Generation in Execution Monitoring

For a given execution plan, adaptation are often required in response to a changing environment. Alerts for such adaption are important.

Ships need to adapt their routes in response to unexpected

  • hurricane. (Image: (Skillet n.d.))

A team needs to adapt its plan in response to unexpected illness of its members. (Image: (U.S.

Department of Defense Current Photos 2013)) Kumar et al. (Information Sciences Institute, USC) Alert Generation in Execution Monitoring Using Resource Envelopes 3 / 15

slide-6
SLIDE 6

Potential Future Resource Depletion as Alerts

  • One important type of alert relates to potential future resource

depletion.

  • Examples include depletion of fuel in transportation applications,

labor hours in human resource management applications, supplies in manufacturing applications, and so on.

  • We apply the idea of resource envelope to generate this type of alert

under the framework of Simple Temporal Network with Resources (STNR), a temporal reasoning framework.

Kumar et al. (Information Sciences Institute, USC) Alert Generation in Execution Monitoring Using Resource Envelopes 4 / 15

slide-7
SLIDE 7

Agenda

Alert Generation in Execution Monitoring Simple Temporal Network with Resources (STNR) and Resource Envelope Applying Resource Envelopes for Alert Generation in Execution Monitoring Conclusion

slide-8
SLIDE 8

Simple Temporal Network (STN)

  • A graphical representation of a collection of simple temporal

constraints between the execution times of various events.

  • First proposed in (Dechter et al. 1991).
  • Formally, it is defjned on a directed graph G = X, E, where
  • X is a set of events, and
  • each edge eij = (Xi, Xj) ∈ E represents a simple temporal constraint

LB(eij) ≤ Xj − Xi ≤ UB(eij).

Kumar et al. (Information Sciences Institute, USC) Alert Generation in Execution Monitoring Using Resource Envelopes 5 / 15

slide-9
SLIDE 9

Simple Temporal Network with Resources (STNR)

Each event in an STN is also associated with a resource level. A resource level is positive/negative if this event produces/consumes resources. Example: X0 : 0 X1 : 50 X2 : −50 X3 : 250 X4 : −150

[5,10] [5,8] [10,10] [2,4] [5,10]

Kumar et al. (Information Sciences Institute, USC) Alert Generation in Execution Monitoring Using Resource Envelopes 6 / 15

slide-10
SLIDE 10

Resource Envelope

The largest and smallest possible total resource levels at each time instant (Kumar 2003). Can be computed using a maxfmow procedure.

X0 : 0 X1 : 50 X2 : −50 X3 : 250 X4 : −150

[ 5 , 1 ] [5,8] [10,10] [2,4] [ 5 , 1 ]

5 10 15 20 25 30

Time Instant

50 100 150 200 250 300

Resource Level

Upper Resource Envelope Lower Resource Envelope

Kumar et al. (Information Sciences Institute, USC) Alert Generation in Execution Monitoring Using Resource Envelopes 7 / 15

slide-11
SLIDE 11

Agenda

Alert Generation in Execution Monitoring Simple Temporal Network with Resources (STNR) and Resource Envelope Applying Resource Envelopes for Alert Generation in Execution Monitoring Conclusion

slide-12
SLIDE 12

Resource Envelopes for Alert Generation

Basic Principle: If the minimum resource level is too low at some time instants, an alert should be generated. Example: If resource level below 110 is dangerous at time instant 17, an alert will be generated.

5 10 15 20 25 30

Time Instant

50 100 150 200 250 300

Resource Level

Upper Resource Envelope Lower Resource Envelope

Kumar et al. (Information Sciences Institute, USC) Alert Generation in Execution Monitoring Using Resource Envelopes 8 / 15

slide-13
SLIDE 13

Smart Home

X0 (0,0) Heater starts (-400,0) Heater ends (400,300) Washer starts (-500,-70) Washer ends (500, 0) Dryer starts (-600, 0) Dryer ends (600, 0) Refrigerator starts (-100,0) Refrigerator ends (100,0) Refrigerator starts (-100,0) Refrigerator ends (100,0) Rice Cooker starts (-100,-3) Rice Cooker ends (100,0) Dishwasher starts (-1200,-100) Dishwasher ends (1200,0) Xf (0,0)

[0,+∞] [30,35] [5,30] [45,50] [0,+∞] [0,0] [0,+∞] [0,40] [0,+∞] [0,+∞] [20,30] [1020,1080] [0,+∞] [50,70] [0,+∞] [0,240] [ , ] [ , + ∞ ] [40,45] [ , + ∞ ] [ , + ∞ ] [0,+∞]

200 400 600 800 1000 1200 1400 Time Instant (elapsed time since 12:00am in minutes) 2000 1750 1500 1250 1000 750 500 250 Resource Level (electrical power in watts) Upper Resource Envelope Lower Resource Envelope Electrical Power Limit

Kumar et al. (Information Sciences Institute, USC) Alert Generation in Execution Monitoring Using Resource Envelopes 9 / 15

slide-14
SLIDE 14

Smart Home

X0 (0,0) Heater starts (-400,0) Heater ends (400,300) Washer starts (-500,-70) Washer ends (500, 0) Dryer starts (-600, 0) Dryer ends (600, 0) Refrigerator starts (-100,0) Refrigerator ends (100,0) Refrigerator starts (-100,0) Refrigerator ends (100,0) Rice Cooker starts (-100,-3) Rice Cooker ends (100,0) Dishwasher starts (-1200,-100) Dishwasher ends (1200,0) Xf (0,0)

[0,+∞] [30,35] [5,30] [45,50] [0,+∞] [0,0] [0,+∞] [0,40] [0,+∞] [0,+∞] [20,30] [1020,1080] [0,+∞] [50,70] [0,+∞] [0,240] [ , ] [ , + ∞ ] [40,45] [ , + ∞ ] [ , + ∞ ] [0,+∞] [ , + ∞ ]

200 400 600 800 1000 1200 1400 Time Instant (elapsed time since 12:00am in minutes) 2000 1750 1500 1250 1000 750 500 250 Resource Level (electrical power in watts) Upper Resource Envelope Lower Resource Envelope Electrical Power Limit

Kumar et al. (Information Sciences Institute, USC) Alert Generation in Execution Monitoring Using Resource Envelopes 10 / 15

slide-15
SLIDE 15

Food Delivery

r1 c1 c2 c3 c6 c5 c4 r2

2 4 6 8 10 12 14 16 Time Instant (elapsed time since being en route) 1 2 3 4 5 6 Resource Level (amount of menu items in car) Upper Resource Envelope Lower Resource Envelope Kumar et al. (Information Sciences Institute, USC) Alert Generation in Execution Monitoring Using Resource Envelopes 11 / 15

slide-16
SLIDE 16

Food Delivery

r1 c1 c2 c3 c6 c5 c4 r2

2 4 6 8 10 12 14 16 Time Instant (elapsed time since being en route) 1 2 3 4 5 6 7 Resource Level (amount of menu items in car) Upper Resource Envelope Lower Resource Envelope Kumar et al. (Information Sciences Institute, USC) Alert Generation in Execution Monitoring Using Resource Envelopes 12 / 15

slide-17
SLIDE 17

Service Management (System Boot)

  • During system boot, services are being started.
  • Traditionally, a service cannot start before all its dependencies have

started.

  • A modern system service management system, such as systemd, can

start a service and its dependencies at the same time.

  • For example, the web service depends on the database management

system (DBMS). The web service

  • begins starting up without the DBMS (A1 begins),
  • then gets interrupted when it needs to connect to the DBMS (A1 ends),
  • continues starting up once the DBMS is ready (A2 begins), and
  • fjnishes starting up (A2 ends).

Kumar et al. (Information Sciences Institute, USC) Alert Generation in Execution Monitoring Using Resource Envelopes 13 / 15

slide-18
SLIDE 18

Service Management (System Boot)

X0 : 2 A1 begins : -1 A1 ends : 1 A2 begins : -1 A2 ends : 1 B1 begins : -1 B1 ends : 1 B2 begins : -1 B2 ends : 1 C begins : -1 C ends : 1 Xf

[ , + ∞ ] [ , + ∞ ] [0,+∞] [15,15] [0,10] [20,20] [0,10] [40,40] [0,+∞] [0,+∞] [10,10] [15,15] [ , + ∞ ] [ , + ∞ ]

Resource: CPU cores

10 20 30 40 50 60 Time Instant (elapsed time during system boot) 1.0 0.5 0.0 0.5 1.0 1.5 2.0 Resource Level (number of CPU cores) Upper Resource Envelope Lower Resource Envelope

Kumar et al. (Information Sciences Institute, USC) Alert Generation in Execution Monitoring Using Resource Envelopes 14 / 15

slide-19
SLIDE 19

Agenda

Alert Generation in Execution Monitoring Simple Temporal Network with Resources (STNR) and Resource Envelope Applying Resource Envelopes for Alert Generation in Execution Monitoring Conclusion

slide-20
SLIDE 20

Conclusion

  • Generating alerts for resource depletion in execution monitoring is

important.

  • We apply the idea of resource envelope to generate this type of alert

under the framework of Simple Temporal Network with Resources (STNR).

  • We demonstrate on three application domains: smart home, food

delivery, and service management.

  • (Future work) Make use of more features in resource envelopes.

Kumar et al. (Information Sciences Institute, USC) Alert Generation in Execution Monitoring Using Resource Envelopes 15 / 15

slide-21
SLIDE 21

References I

  • R. Dechter, I. Meiri, and J. Pearl. “Temporal constraint networks”. In: Artifjcial Intelligence 49.1–3 (1991),
  • pp. 61–95. doi: http://dx.doi.org/10.1016/0004-3702(91)90006-6.
  • T. K. S. Kumar. “Incremental Computation of Resource-Envelopes in Producer-Consumer Models”. In: the

International Conference on Principles and Practice of Constraint Programming. 2003, pp. 664–678.

  • S. D. Skillet. Clipper Ship HURRICANE in the English Channel. url:

https://commons.wikimedia.org/wiki/File:S._D._Skillet_- _Clipper_Ship_HURRICANE_in_the_English_Channel.jpg. U.S. Department of Defense Current Photos. Jan. 2013. url: https://commons.wikimedia.org/wiki/File:130105-A-GX635-442_(8364697465).jpg.
