Agricultural Wastewater Conveyance and Structures Using Polypropylene Presented by: Tom LaRue, PE Regional Engineer ASCE St. George, UT September 14, 2017 INNOVATION The Project 14,000 ft of 42 Pipe in Salinas, CA

slide-1
SLIDE 1

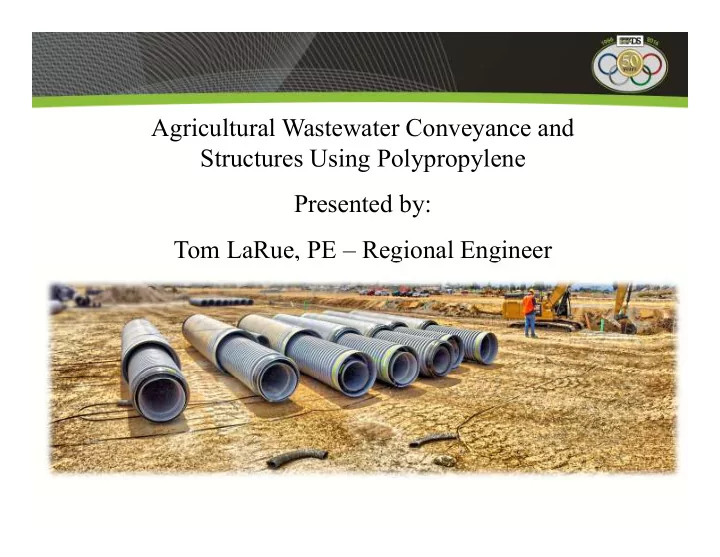

Agricultural Wastewater Conveyance and Structures Using Polypropylene Presented by: Tom LaRue, PE – Regional Engineer ASCE St. George, UT – September 14, 2017

slide-2
SLIDE 2

INNOVATION

slide-3
SLIDE 3

The Project

– 14,000 ft of 42” Pipe in Salinas, CA – Surrounding area is farmland – Much of the flow originates at an Industrial Site

slide-4
SLIDE 4

2018 E. Coli Outbreak

slide-5
SLIDE 5

Challenges

  • Industrial Wastewater
  • Corrosive cleaning agents
  • Suspended Solids
  • Under Roadway
  • Joints
  • Shallow Slope
  • Bends
  • Maholes
  • Service Life
slide-6
SLIDE 6

Solution

slide-7
SLIDE 7

Industrial Wastewater

Challenge 1

slide-8
SLIDE 8

Challenge 1 – Industrial Wastewater

  • Corrosive cleaning agents
  • Chlorine
  • Suspended Solids

“Severe hydrogen sulfide corrosion may reduce the 50 to 100-year life expectancy of infrastructure to less than ten years”

According to an EPA Study…

slide-9
SLIDE 9

Challenge 1 – Industrial Wastewater

– Inert to chemical cleaning agents – Inert to chlorine – Inert to “hot” soils – Inert to hydrogen sulfide gas @ 140°

7 14

14

pH Range

1.5

slide-10
SLIDE 10

Challenge 1 – Industrial Wastewater

Advanced Resin Technology

  • Impact modified copolymer PP material

provides unique balance between PE & PVC

– Inert to chemicals – Abrasion Resistance

  • Evolution of pipe stems from Europe
  • PP pipe used since the 1970’s
  • Debuted in the US in 2009
slide-11
SLIDE 11

Challenge 1 – Industrial Wastewater

pH = 4 D = 24"

% invert loss Quartz slurry in pipe with capped ends attached to rocker and rotated for 400,000 cycles

Abrasion Resistance

slide-12
SLIDE 12

Under Roadway

Challenge 2

slide-13
SLIDE 13

Challenge 2 – Under Roadway

  • Designed per AASHTO LRFD Bridge Design

Specification: Section 12

  • Load & Resistance Factor Design vs. Iowa Eq.

(multiple factors) vs. (single safety factor)

  • 3rd Party Testing
slide-14
SLIDE 14

Dual-Wall PP Pipe

12” – 30” per ASTM F2736 12” – 60” per ASTM F2881

Challenge 2 – Under Roadway

slide-15
SLIDE 15

Triple-Wall PP Pipe

30” – 60” per ASTM F2764

Challenge 2 – Under Roadway

slide-16
SLIDE 16

Challenge 2 – Under Roadway

Increased Stiffness

  • Reduces Circumferential Deflection
  • Increases Longitudinal Beam Strength

– Easier to handle & install – Easier to backfill under the haunch area – Reduces sags / misalignment in line & grade

slide-17
SLIDE 17

Challenge 2 – Under Roadway

slide-18
SLIDE 18

Challenge 2 – Under Roadway

slide-19
SLIDE 19

Challenge 2 – Under Roadway

slide-20
SLIDE 20

Joints

Challenge 3

slide-21
SLIDE 21

Challenge 3 - Joints

  • Extended Bell

– Provides larger sealing area

  • Double Gaskets on Spigot

– Shipped on pipe & shrink wrapped for protection – Lowers risk for leaks due to construction errors and joint offsets

  • In-Line Bell & Spigot Design

– No need to excavate for bell holes

ASTM F477 Gasket

slide-22
SLIDE 22

Challenge 3 - Joints

Lab Testing

  • Tested to 15 psi, which exceeds 10.8 psi

test required by ASTM D3212

  • Vacuum test in per ASTM F2764

Post-Installation Field Testing

  • 3.5 psi air pressure test in accordance

with ASTM F1417

slide-23
SLIDE 23

Challenge 3 - Joints

Correct Interior Joint Assembly Home Mark on Pipe

slide-24
SLIDE 24

Challenge 3 - Joints

  • Extrusion process is

seamless & monolithic

  • Standard 20-ft lay-

lengths

  • Less Joints!
slide-25
SLIDE 25

Shallow Slope

Challenge 4

slide-26
SLIDE 26

Challenge 4 – Shallow Slope

S = 0.00061

slide-27
SLIDE 27

Oversized Bell

Challenge 4 – Shallow Slope

Inline Bell

slide-28
SLIDE 28

Challenge 4 – Shallow Slope

Manning’s n = 0.012

slide-29
SLIDE 29

Bends

Challenge 5

slide-30
SLIDE 30

Challenge 5 – Bends

slide-31
SLIDE 31

Challenge 5 – Bends

slide-32
SLIDE 32

Challenge 5 – Bends

slide-33
SLIDE 33

Challenge 5 - Bends

slide-34
SLIDE 34

Manholes

Challenge 6

slide-35
SLIDE 35

Challenge 6 – Manholes

slide-36
SLIDE 36

Service Life

Challenge 7

slide-37
SLIDE 37

Challenge 7 – Service Life INNOVATION

slide-38
SLIDE 38

Challenge 7 – Service Life

Florida Department of Transportation

slide-39
SLIDE 39

Summary

Challenges

  • 1. Industrial Wastewater
  • Corrosive cleaning agents
  • Suspended Solids
  • 2. Under Roadway
  • 3. Joints
  • 4. Shallow Slope
  • 5. Bends
  • 6. Maholes
  • 7. Service Life

Solutions

  • 1. Polypropylene material with

Impact Modified Copolymer

  • 2. Pipe Stiffness
  • 3. Double gasket joint
  • 4. Inline Bell, smooth liner
  • 5. Custom bends
  • 6. Custom risers
  • 7. 100 years
slide-40
SLIDE 40

Thank you!

Questions and Discussion
