The Truth About Parking Structure Maintenance How to Protect Your Investment Presented By: Innovative Engineering Inc. SCOTT L. WEILAND PE Thursday February 20, 2020 Learning Objectives Parking Structures Structure Types Cost

slide-1
SLIDE 1

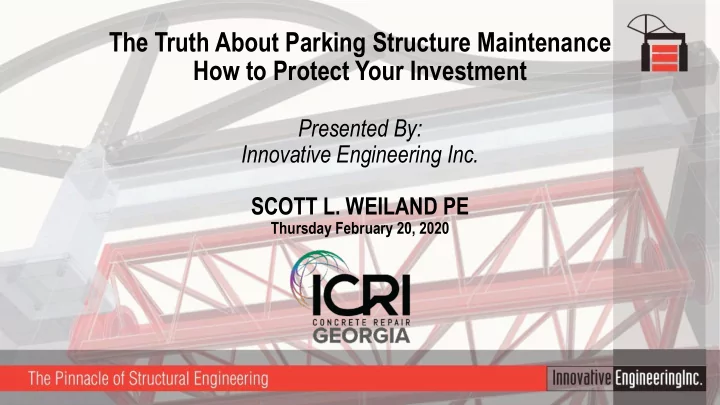

The Truth About Parking Structure Maintenance How to Protect Your Investment

Presented By: Innovative Engineering Inc. SCOTT L. WEILAND PE

Thursday February 20, 2020

slide-2
SLIDE 2

Parking Structure Maintenance

Learning Objectives

  • Parking Structures
  • Structure Types
  • Cost Comparison
  • Lifecycle Costs
  • Conditions Facing Parking Structures
  • Common Deficiencies
  • Importance of Routine Maintenance & Timely Restoration
slide-3
SLIDE 3

Parking Structure Maintenance

Innovative Engineering, Inc.

  • Scott L. Weiland PE
  • BSCE University of Michigan
  • Graduate Studies:
  • San Jose State University
  • Georgia Institute of Technology
  • PE in 20 States + PR & Guam
  • Parking Consultants Council
  • 39 Years in Design and Construction
  • BOMA Georgia Insight magazine
  • Parking Structure Maintenance Part 1 & 2
  • Falling Building Façade Closes Atlanta Streets
  • National Parking Association Parking Magazine
  • Parking Structure Maintenance
  • Parking Today
  • Why is it Raining in my Parking Structure?
slide-4
SLIDE 4

Parking Structure Maintenance

Innovative Engineering, Inc.

  • Trey Thomas PE
  • BSCET, Southern Polytechnic State University
  • 16 Years in Design and Restoration Engineering
  • Co-author of Parking Structure & Forensic articles
  • Certified in Mold, Lead & Asbestos Surveying
  • OSHA Competent Person for Boom & Scissor Lifts
  • SPRAT Level 2 Rope Access Technician
  • FAA Part 107 Remote Pilot Certificate
  • FAA Part 107 Daylight Waiver
  • Level I Certified Thermographer
  • Expert estimator (within 5% of actual)
slide-5
SLIDE 5

Parking Structure Maintenance

Structural Systems

Cast-in-Place Concrete Precast Concrete Structural Steel

slide-6
SLIDE 6

Parking Structure Maintenance

Other Systems (generally not recommended)

Mild Reinforced Concrete Prone to Cracking Composite Metal Deck on Steel Deck Traps Moisture Bar Joists w/Metal Deck Prone to Cracking Hollow Core Slabs on Steel/Conc. Prone to Water Intrusion Filigree Slab Soffits on Steel Prone to Cracking Keystone Joist & Beam Soffits Florida, Steel Connections, Cracks

slide-7
SLIDE 7

Parking Structure Maintenance

Cast-in-Place

  • Advantages
  • Flexible Geometry
  • Monolithic, Fewer Joints
  • Reduced Maintenance Costs
  • Longer Life Expectancy
  • Higher Durability
  • Disadvantages
  • Higher Initial Investment
  • Longer Schedule
  • More Labor Intensive
  • Difficult Quality Control
  • Weather Dependent
slide-8
SLIDE 8

Parking Structure Maintenance

Precast Concrete - Advantages

  • Advantages
  • Lower Initial Investment than CIP
  • Fabricated in Controlled Plant

Environment

  • Not Weather Dependent
  • Accelerated Construction Schedule
slide-9
SLIDE 9

Parking Structure Maintenance

Precast Concrete - Disadvantages

  • Disadvantages
  • May be no local plant
  • Geometry not Flexible
  • Lower Perceived Ceiling heights
  • Shearwalls (Closed In)
  • More Joints
  • Prone to Thermal Expansion &

Contraction Damage

  • Corrosion of Steel Embedments
  • Higher Maintenance Costs
slide-10
SLIDE 10

Parking Structure Maintenance

Structural Steel

  • Advantages
  • Lower Initial Cost than Precast
  • Accelerated Construction Schedule
  • Fabricated in Controlled Environment
  • No Shearwalls (Open)
  • Disadvantages
  • Corrosion Issues
  • Higher Maintenance Costs
  • Not Suitable for Fire Protection
slide-11
SLIDE 11

Parking Structure Maintenance

Typical Annual Life Cycle Costs/Space

$550 $467 $333 $165 $250 $450

$0 $200 $400 $600 $800 $1,000 CIP Precast Steel Cost/Space Maintenance Initial

slide-12
SLIDE 12

Parking Structure Maintenance

Parking Structures

  • Not Bullet Proof
  • No Protective Skin
  • Deterioration Starts Immediately
  • Subjected To:
  • Moisture (Rain, Snow, Ice, Deicing

Salts)

  • CO2 Carbonation
  • Extreme Thermal Expansion &

Contraction

  • Dynamic Vehicle Loads
slide-13
SLIDE 13

Parking Structure Maintenance

Structure Degradation

slide-14
SLIDE 14

Parking Structure Maintenance

Irving Texas, O'Conner Ridge Blvd. Collapse

slide-15
SLIDE 15

Parking Structure Maintenance

Irving Texas, O'Conner Ridge Blvd. Collapse

  • What we know
  • Old Parking Structure
  • Expansive Soils in TX
  • Exterior Columns Leaning
  • Cracks Sealed with Sealant
  • No OSHA Report
  • Demolished
slide-16
SLIDE 16

Parking Structure Maintenance

Irving Texas, O'Conner Ridge Blvd. Collapse

  • Typical Precast Double Tee

Joist Seat

slide-17
SLIDE 17

Parking Structure Maintenance

Common Deficiencies

  • Number 1 Enemy

WATER

slide-18
SLIDE 18

Parking Structure Maintenance

Common Deficiency: Corrosion

A: Spall B: Crack C: Corner Spall D:Delamination

slide-19
SLIDE 19

Parking Structure Maintenance

Common Deficiency: Spall & Delamination

Spall Delamination Section Loss

slide-20
SLIDE 20

Parking Structure Maintenance

Common Deficiency: Exterior Spalls

Spall Over Sidewalk Spall Size

slide-21
SLIDE 21

Parking Structure Maintenance

Common Deficiency: Ponding

Ponding Supplemental Drain

slide-22
SLIDE 22

Parking Structure Maintenance

Common Deficiency: Failed Joints

  • Why is it Raining in my Parking

Structure?

slide-23
SLIDE 23

Parking Structure Maintenance

Common Deficiency: This is Why

Sealant Failure Cracks Expansion Joint Failure

slide-24
SLIDE 24

Parking Structure Maintenance

Common Deficiency: Failed Joint Sealant

Drainage & Joint Plan

  • Precast
  • All orthogonal lines are sealant Joints
  • Diagonal lines are slope lines
  • Cast-In-Place Slab
  • Expansion joint in middle
  • Joint sealant at perimeter and at stair

towers

slide-25
SLIDE 25

Parking Structure Maintenance

Common Deficiency: Cracks to be Sealed

.013” < Cracks < .035” Cracks that Leak < .035”

slide-26
SLIDE 26

Parking Structure Maintenance

Common Deficiency: Epoxy Injection

Cracks > .035” Inflatable Injection Port

Photos by Engineered Restorations Inc.

slide-27
SLIDE 27

Parking Structure Maintenance

Common Deficiency: Corrosion

A: Spall B: Crack C: Corner Spall D:Delamination

slide-28
SLIDE 28

Parking Structure Maintenance

Common Deficiency: Sounding

slide-29
SLIDE 29

Parking Structure Maintenance

Chloride Ion Testing

Chloride Ion Concentration Dust at Various Depths

slide-30
SLIDE 30

Parking Structure Maintenance

Carbonation Testing

Depth of Carbonation Coring Slab

slide-31
SLIDE 31

Parking Structure Maintenance

Common Deficiency: Last Resort

Traffic Bearing Membrane

slide-32
SLIDE 32

Parking Structure Maintenance

Common Deficiency: Better Option

  • Silane Sealer
  • Water Retardant
  • Breathable
  • Fills Pores of Dense Concrete
  • Minimizes penetration of

water and chemicals

  • Reapply 5 to 10 years
slide-33
SLIDE 33

Parking Structure Maintenance

Common Deficiency: Failed Spall Repair

Improper Surface Preparation

slide-34
SLIDE 34

Parking Structure Maintenance

Common Deficiency: Overloaded – Fire Truck

Broken Precast Spandrel Beam

slide-35
SLIDE 35

Parking Structure Maintenance

Common Deficiency: Curbs & Wheel Stops

Broken Wheel Stop Broken Curb

slide-36
SLIDE 36

Parking Structure Maintenance

Precast Shear Transfer Repair

slide-37
SLIDE 37

Parking Structure Maintenance

Precast Shear Transfer Repair

Precast Double Tees Shear Transfer Repair

slide-38
SLIDE 38

Parking Structure Maintenance

Structural Steel Corrosion

  • Steel Protection &

Corrosion Issues

  • Steel Deck Traps Moisture,

Hides Degradation.

slide-39
SLIDE 39

Parking Structure Maintenance

Precast Haunch Connection Failure

4 Months Later Precast Beam Haunch

slide-40
SLIDE 40

Parking Structure Maintenance

Precast Haunch Connection Repair

Applying Epoxy Bonding Agent Shoring to Remove Load

Photo by Engineered Restorations Inc.

slide-41
SLIDE 41

Parking Structure Maintenance

Precast Haunch Connection Finished Repair

Good as New

slide-42
SLIDE 42

Parking Structure Maintenance

Maintenance Cost Curve

slide-43
SLIDE 43

Parking Structure Maintenance

Maintenance Cost Curve

slide-44
SLIDE 44

Parking Structure Maintenance

Maintenance Cost Curve

slide-45
SLIDE 45

Parking Structure Maintenance

Maintenance Cost Curve

slide-46
SLIDE 46

Parking Structure Maintenance

Reactive Maintenance

Now Demolished

slide-47
SLIDE 47

Parking Structure Maintenance

Learning Objectives

  • Parking Structures
  • Structure Types
  • Cost Comparison
  • Lifecycle Costs
  • Conditions Facing Parking Structures
  • Common Deficiencies
  • Importance of Routine Maintenance & Timely Restoration
slide-48
SLIDE 48

Parking Structure Maintenance

Questions?

Scott L. Weiland PE

Innovative Engineering Inc. 3380 Trickum Road

  • Bldg. 500, Suite 100

Woodstock, Georgia 30188 sweiland@ieiusa.com 770-517-5507 Ext. 202
