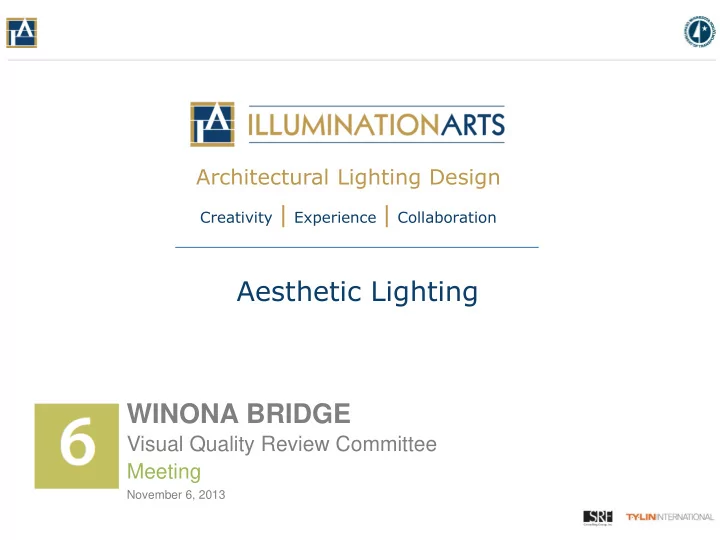

WINONA BRIDGE

Visual Quality Review Committee Meeting

November 6, 2013

Aesthetic Lighting

Considerations and Discussion

• Historic Context and Cultural Resources
• Physical and Environmental Context
• What kind of nighttime image does the community want to convey?
• Who is the “audience” for the bridge? From where can the bridge be seen?
• Are there wildlife or environmental concerns?
• Are there vandalism concerns? Safety concerns, whether real or

perceived?

• How visible should the bridges be at night?
• How much ambient light is in this area?

Aesthetic Lighting for the Highway 43 Winona Bridge

Aesthetic Lighting for the Highway 43 Winona Bridge

What I heard at the last meeting

• Lighting should be subtle
• The two bridges should “act as one”
• Historic bridge is iconic
• Light Pollution is a concern
• Light the piers, preferably in a way that reveals them in a unique or

unexpected manner

• White light
• Washes of light
• Lots of river traffic during the summer
• Trying to be more of a tourist destination, for arts and river recreation

Considerations and Discussion

• Note bridge adjacencies
• Note above deck structure and view from new bridge
• Note that many piers are over land in areas where we want

pedestrians and bicyclists to feel welcome.

Aesthetic Lighting for the Highway 43 Winona Bridge

What we’re going to look at today

• Lighting Scenarios that show combinations of structure and pier lighting

for both bridges.

Aesthetic Lighting for the Highway 43 Winona Bridge

Box Girder Bridge

• Continuous or Partial Wash of Fascia
• Uplighting of Underside of Box

Girder

• Pier Lighting
• White Light

Aesthetic Lighting for the Highway 43 Winona Bridge

Truss Bridge

• Graze Lighting of Outside or Inside

Truss Members

• Floodlighting of Structure Interior
• White Light

Truss Bridges – Aesthetic Lighting Options

Waibaidu Bridge Shelby Street Bridge

Box Girder Bridges – Aesthetic Lighting Options

Cypress Avenue Bridge Washington Missouri River Bridge

Box Girder Bridges – Aesthetic Lighting Options

Miami Bridge Lafayette Bridge

Aesthetic Lighting Concept A

NEW BRIDGE:

• WASH OF LIGHT ON FASCIA OF NEW

BRIDGE FADES FROM “BRIGHT” TO “DIM” FROM MAIN SPAN PIERS TO CENTER OF SPAN.

• WASH OF LIGHT ON OUTSIDE AND

INSIDE FACES OF MAIN SPANS PIERS.

• WASH OF LIGHT ON OUTSIDE FACES

OF ALL WINONA PIERS TRUSS BRIDGE:

• WASH OF LIGHT FROM TOPS OF

ANGLED MEMBERS DOWN ROADWAY-FACING SIDES OF “VERTICAL” ANGLED MEMBERS.

• WASH OF LIGHT ACROSS VERTICAL

FACES OF HORIZONTAL MEMBERS AT TOP OF TRUSS STRUCTURE.

• WASH OF LIGHT ON OUTSIDE FACES

OF MAIN SPAN AND WINONA PIERS.

Aesthetic Lighting Concept A

NEW BRIDGE:

• WASH OF LIGHT ON FASCIA OF NEW

BRIDGE FADES FROM “BRIGHT” TO “DIM” FROM MAIN SPAN PIERS TO CENTER OF SPAN.

• WASH OF LIGHT ON OUTSIDE AND

INSIDE FACES OF MAIN SPANS PIERS.

• WASH OF LIGHT ON OUTSIDE FACES

OF ALL WINONA PIERS TRUSS BRIDGE:

• WASH OF LIGHT FROM TOPS OF

ANGLED MEMBERS DOWN ROADWAY-FACING SIDES OF “VERTICAL” ANGLED MEMBERS.

• WASH OF LIGHT ACROSS VERTICAL

FACES OF HORIZONTAL MEMBERS AT TOP OF TRUSS STRUCTURE.

• WASH OF LIGHT ON OUTSIDE FACES

OF MAIN SPAN AND WINONA PIERS.

Aesthetic Lighting Concept A

NEW BRIDGE:

• WASH OF LIGHT ON FASCIA OF NEW

BRIDGE FADES FROM “BRIGHT” TO “DIM” FROM MAIN SPAN PIERS TO CENTER OF SPAN.

• WASH OF LIGHT ON INSIDE AND

OUTSIDE FACES OF MAIN SPAN PIERS.

• WASH OF LIGHT ON OUTSIDE FACES

OF ALL WINONA PIERS TRUSS BRIDGE:

• WASH OF LIGHT FROM TOPS OF

ANGLED MEMBERS DOWN ROADWAY-FACING SIDES OF “VERTICAL” ANGLED MEMBERS.

• WASH OF LIGHT ACROSS VERTICAL

FACES OF HORIZONTAL MEMBERS AT TOP OF TRUSS STRUCTURE.

• WASH OF LIGHT ON OUTSIDE FACES

OF MAIN SPAN AND WINONA PIERS.

Aesthetic Lighting Concept B

NEW BRIDGE:

• WASH OF LIGHT ON UNDERSIDE OF

HAUNCHED GIRDERS FADES FROM “BRIGHT” TO “DIM” FROM MAIN SPAN PIERS TO CENTER OF SPAN.

• WASH OF LIGHT ON INSIDE FACES OF

MAIN SPAN PIERS AND ON INSIDE AND OUTSIDE EDGES OF ALL WINONA PIERS TRUSS BRIDGE:

• WASH OF LIGHT FROM TOPS OF

ANGLED MEMBERS DOWN NORTH AND SOUTH FACING SIDES OF “VERTICAL” ANGLED MEMBERS.

• WASH OF LIGHT ON INSIDE AND

OUTSIDE EDGES OF MAIN SPAN AND ALL WINONA PIERS

Aesthetic Lighting Concept B

NEW BRIDGE:

• WASH OF LIGHT ON UNDERSIDE OF

HAUNCHED GIRDERS FADES FROM “BRIGHT” TO “DIM” FROM MAIN SPAN PIERS TO CENTER OF SPAN.

• WASH OF LIGHT ON INSIDE FACES OF

MAIN SPAN PIERS AND ON INSIDE AND OUTSIDE EDGES OF ALL WINONA PIERS TRUSS BRIDGE:

• WASH OF LIGHT FROM TOPS OF

ANGLED MEMBERS DOWN NORTH AND SOUTH FACING SIDES OF “VERTICAL” ANGLED MEMBERS.

• WASH OF LIGHT ON INSIDE AND

OUTSIDE EDGES OF MAIN SPAN AND ALL WINONA PIERS

Aesthetic Lighting Concept B

TRUSS BRIDGE:

• WASH OF LIGHT FROM TOPS OF

ANGLED MEMBERS DOWN NORTH AND SOUTH FACING SIDES OF “VERTICAL” ANGLED MEMBERS.

Concept B

• Truss Bridge: Graze Lighting from Top of

Truss Members along North and South Facing sides of Angled/Vertical Members

• New Bridge: Faded Wash on Underside
• f Haunched Box Girder
• Piers: Lighting on Inside and Outside

Edges

• White Light

Aesthetic Lighting for the Highway 43 Winona Bridge

Concept A

• Truss Bridge: Graze Lighting from Top of

Truss Members along Inside Face of Angled/Vertical Members and Across North and South Facing sides of Horizontal Members

• New Bridge: Faded Fascia Wash
• Piers: Lighting on Outside Faces
• White Light
