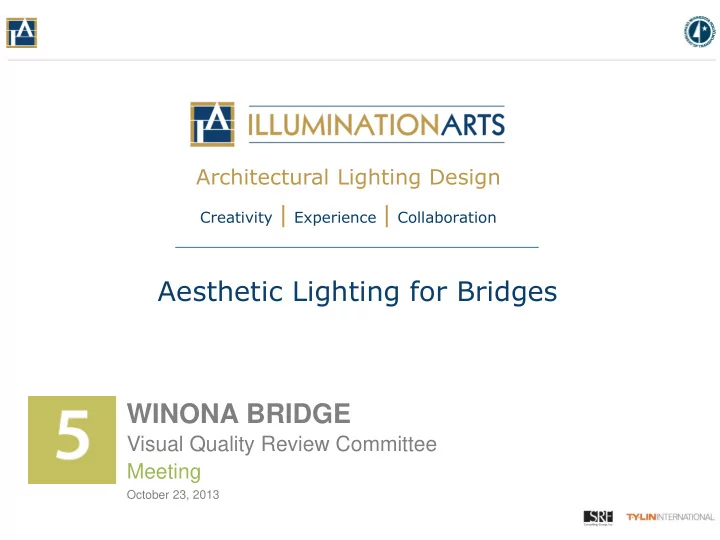

Architectural Lighting Design Creativity | Experience | Collaboration Aesthetic Lighting for Bridges WINONA BRIDGE Visual Quality Review Committee Meeting October 23, 2013 ILLUMINATION ARTS Aesthetic Lighting Design Aesthetic Lighting


slide-1
SLIDE 1

Architectural Lighting Design

Creativity | Experience | Collaboration

WINONA BRIDGE

Visual Quality Review Committee Meeting

October 23, 2013

Aesthetic Lighting for Bridges

slide-2
SLIDE 2

ILLUMINATION ARTS – Aesthetic Lighting Design

  • Aesthetic Lighting of more than two dozen signature structures
  • Award-winning Christopher S. Bond Bridge
  • Award-winning Biloxi Bay Bridge
  • Bridges in urban and rural environments
  • Currently working on bridge projects in ten states
slide-3
SLIDE 3
  • Lowry Avenue Bridge – with SRF and TY Lin
  • St. Croix River Crossing
  • Lafayette Bridge
  • Hastings Bridge

ILLUMINATION ARTS – Projects in Minnesota

slide-4
SLIDE 4

Aesthetic Lighting for the Highway 43 Winona Bridge

What the VQRC wants us to achieve

  • The beauty of the river and the surrounding environment are

paramount.

  • The historic bridge takes visual precedence
  • Together the bridges create a new Community Icon that focuses
  • n the historic structure
slide-5
SLIDE 5

Considerations and Discussion

  • Historic Context and Cultural Resources
  • Physical and Environmental Context
  • What kind of nighttime image does the community want to convey?
  • Who is the “audience” for the bridge? From where can the bridge be seen?
  • Are there wildlife or environmental concerns?
  • Are there vandalism concerns? Safety concerns, whether real or

perceived?

  • How visible should the bridges be at night?
  • How much ambient light is in this area?

Aesthetic Lighting for the Highway 43 Winona Bridge

slide-6
SLIDE 6

Considerations and Discussion

  • Note bridge adjacencies
  • Note above deck structure and view from new bridge
  • Note that many piers are over land in areas where we want

pedestrians and bicyclists to feel welcome.

Aesthetic Lighting for the Highway 43 Winona Bridge

slide-7
SLIDE 7

What we’re going to look at today

  • How you can alter visual focus through lighting of a structure
  • Other Historic Bridges with aesthetic lighting
  • Other Girder Bridges with aesthetic lighting
  • Pedestrian Path Lighting

Aesthetic Lighting for the Highway 43 Winona Bridge

slide-8
SLIDE 8

Changing Visual Focus at Night

Biloxi Bay Bridge

slide-9
SLIDE 9

Changing Visual Focus at Night

New I-35W Bridge

slide-10
SLIDE 10

Changing Visual Focus at Night

Duluth Bridge

slide-11
SLIDE 11

Changing Visual Focus at Night

Shelby Street Bridge

slide-12
SLIDE 12

Truss Bridges – Aesthetic Lighting Options

Waibaidu Bridge Shelby Street Bridge

slide-13
SLIDE 13

Truss Bridges – Aesthetic Lighting Options

Sydney Harbor Bridge Langevin Bridge

slide-14
SLIDE 14

Truss Bridges – Aesthetic Lighting Options

Natchez Vidalia Bridge

slide-15
SLIDE 15

Truss Bridges – Aesthetic Lighting Options

Tobin Memorial Bridge Tappan Zee Bridge

slide-16
SLIDE 16

Truss Bridge Lighting Options

  • Graze Lighting of Outside or Inside Truss Members
  • Floodlighting of Structure Interior
  • Necklace Lighting at Deck
  • Necklace Lighting along Top Member
  • Lighting within Truss Members
  • Colored, Color-changing or White Light

Truss Bridges – Aesthetic Lighting Options

slide-17
SLIDE 17

Box Girder Bridges – Aesthetic Lighting Options

London Bridge Cypress Avenue Bridge

slide-18
SLIDE 18

Box Girder Bridges – Aesthetic Lighting Options

Four bears Bridge Miami Bridge

slide-19
SLIDE 19

Box Girder Bridges – Aesthetic Lighting Options

Hassan II Bridge

slide-20
SLIDE 20

Box Girder Bridges – Aesthetic Lighting Options

New I-35W Bridge

slide-21
SLIDE 21

Box Girder Bridges – Aesthetic Lighting Options

Washington Missouri River Bridge Lafayette Bridge

slide-22
SLIDE 22

Box Girder Bridges – Aesthetic Lighting Options

Saadiyat Bridge Biloxi Bay Bridge

slide-23
SLIDE 23

Box Girder Bridge Lighting Options

  • Continuous or Partial Wash of Fascia
  • Necklace Lighting along Fascia
  • Uplighting of Underside of Box Girder
  • Pier Lighting
  • Colored, Color-changing or White Light

Box Girder Bridges – Aesthetic Lighting Options

slide-24
SLIDE 24

Box Girder Bridge

  • Continuous or Partial Wash of Fascia
  • Necklace Lighting along Fascia
  • Uplighting of Underside of Box

Girder

  • Pier Lighting
  • Colored, Color-changing or White

Light

Aesthetic Lighting for the Highway 43 Winona Bridge

Truss Bridge

  • Graze Lighting of Outside or Inside

Truss Members

  • Floodlighting of Structure Interior
  • Necklace Lighting at Deck
  • Necklace Lighting along Top Member
  • Lighting within Truss Members
  • Colored, Color-changing or White Light
slide-25
SLIDE 25

Pedestrian Path Lighting Options

slide-26
SLIDE 26

Pedestrian Path Lighting Options

slide-27
SLIDE 27

Pedestrian Path Lighting Options

  • Roadway Lighting also Covers Path
  • Handrail Mounted
  • Handrail Post Mounted
  • Steplights in Concrete Barrier

Pedestrian Path Lighting Options

slide-28
SLIDE 28

Blending the Old and the New

Shelby Street and Gateway Bridges

slide-29
SLIDE 29

Architectural Lighting Design

Creativity | Experience | Collaboration

WINONA BRIDGE

Visual Quality Review Committee Meeting

October 23, 2013

Aesthetic Lighting for Bridges
