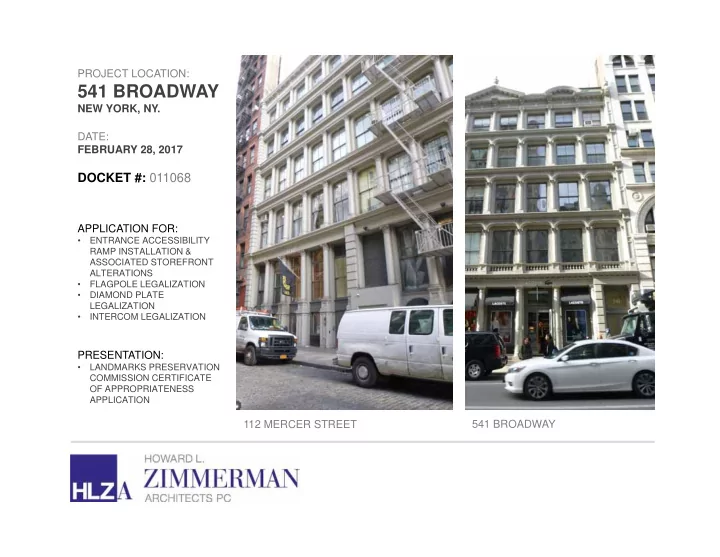

SLIDE 1 PROJECT LOCATION:
541 BROADWAY
NEW YORK, NY. PRESENTATION:
COMMISSION CERTIFICATE OF APPROPRIATENESS APPLICATION
APPLICATION FOR:
RAMP INSTALLATION & ASSOCIATED STOREFRONT ALTERATIONS
- FLAGPOLE LEGALIZATION
- DIAMOND PLATE
LEGALIZATION
DATE: FEBRUARY 28, 2017
DOCKET #: 011068
112 MERCER STREET 541 BROADWAY
SLIDE 2
541 BROADWAY
PROJECT HISTORY
CONTEXT – LOCATION
541 BROADWAY
SLIDE 3 541 BROADWAY
PROJECT HISTORY
CONTEXT – HISTORIC PHOTOS
1910 - Courtesy Cathy Weis Projects
http://www.cathyweis.org/weisacres/about/
1982 – Courtesy City Museum of New York
http://collections.mcny.org/Collection/[537-541,-543-and-545-Broadway.]- 24UAKVGZUQN.
SLIDE 4
CONTEXT – PRESENT DAY 541 BROADWAY
WEST SIDE OF BROADWAY – LOOKING NORTH FROM SPRING STREET WEST SIDE OF BROADWAY – LOOKING SOUTH FROM PRINCE STREET
SLIDE 5
541 BROADWAY
PROJECT HISTORY 2017 – AFTER 2013 RESTORATION WORK
CONTEXT – FAÇADE RESTORATION
SLIDE 6
541 BROADWAY
PROJECT HISTORY EXTENSIVE RESTORATION THROUGOUT BUILDING IN 2013
CONTEXT – 2013 RENOVATIONS
SLIDE 7
541 BROADWAY
ENTRANCE RAMP INSTALLATION
EXISTING CONDITIONS – BROADWAY FACADE
STOREFRONT FOR PROPOSED ADA RAMP LOCATION
SLIDE 8
541 BROADWAY
ENTRANCE RAMP INSTALLATION
APPROXIMATE FOOTPRINT OF RAMP
SLIDE 9
541 BROADWAY
ENTRANCE RAMP INSTALLATION
PLANS
SLIDE 10
541 BROADWAY
ENTRANCE RAMP INSTALLATION
PLANS - ENLARGED
SLIDE 11
541 BROADWAY
ENTRANCE RAMP INSTALLATION
BUILDING SECTION – BROADWAY FACADE
BUILDING SECTION SHOWING MECHANICAL ROOM AND VAULT AREA UNDER BROADWAY FAÇADE AND RETAIL ENTRY EXISTING FLOOR SLAB MECHANICAL & HVAC ROOM EXISTING SIDEWALK VAULT STRUCTURAL EDGE OF BUILDING EXISTING RETAIL ENTRY AREA MECHANICAL ROOM
SLIDE 12
ELEVATIONS – BROADWAY FACADE 541 BROADWAY
ENTRANCE RAMP INSTALLATION
SLIDE 13
541 BROADWAY
ENTRANCE RAMP INSTALLATION
ELEVATIONS – BROADWAY FAÇADE DETAIL
SLIDE 14
541 BROADWAY
ENTRANCE RAMP INSTALLATION
MATERIALS & COLORS
NEW TUBULAR STEEL HANDRAIL TO BE SIMILAR TO STYLE SHOWN IN PHOTOGRAPH AND PAINTED TO MATCH EXISTING STOREFRONT. 50 WOOSTER ST. – EXAMPLE OF STEEL HANDRAIL STYLE SIMILAR TO PROPOSED NEW DIAMOND PLATE TO BE UNIFISHED STEEL TO MATCH EXISTING. 541 BROADWAY – EXISTING CONDITIONS
SLIDE 15
50 HOWARD ST. 49 MERCER ST. 35 MERCER ST.
541 BROADWAY
ENTRANCE RAMP INSTALLATION
SOHO CAST IRON HISTORIC DISTRICT RAMP PRECEDENTS
45 CROSBY ST.
SLIDE 16
541 BROADWAY
DIAMOND PLATE LEGALIZATION
CONTEXT: SIDEWALK VAULT - BROADWAY
STREET VIEW: SIDEWALK VAULT AND VAULT LIGHT STEPS AFTER COLLAPSE IN JULY 2001 NOTE DAMAGED LIGHTS AND STEPS VAULT VIEW: INTERIOR OF SIDEWALK VAULT AFTER COLLAPSE IN JULY 2001 – NOTE REMAINING DAMAGED LIGHTS
SLIDE 17
541 BROADWAY
DIAMOND PLATE LEGALIZATION
CONTEXT: SIDEWALK VAULT - BROADWAY
STREET VIEW: SIDEWALK VAULT – AFTER REPAIRS DIAMOND PLATE VAULT VIEW: SIDEWALK VAULT INTERIOR AFTER REPAIRS STREET VIEW: DIAMOND PLATE STEPS
SLIDE 18
Current streetscape photos CONTEXT – SIDEWALK CONDITIONS 541 BROADWAY
DIAMOND PLATE LEGALIZATION 541 BROADWAY – LOOKING SOUTH 541 BROADWAY – LOOKING NORTH
SLIDE 19 SIDEWALK MATERIALS DIAGRAM 541 BROADWAY
DIAMOND PLATE LEGALIZATION
DIAMOND PLATE GRANITE VAULT LIGHTS 541 BROADWAY CONCRETE PAVEMENT
SLIDE 20 541 BROADWAY
INTERCOM LEGALIZATION
EXISTING FAÇADE – 112 MERCER STREET
MERCER STREET ENTRY AS SEEN FROM CORNER OF MERCER & SPRING STREETS (111 FT FROM CORNER)
NOTE: NO ACCESS TO 541 RETAIL STORE VIA 112 MERCER ST. ENTRY
SLIDE 21
541 BROADWAY
INTERCOM LEGALIZATION
PROPOSED RELOCATION
112 MERCER STREET ENTRANCE INTERCOM AS CURRENTLY INSTALLED PROPOSED RELOCATION AND PAINTING OF INTERCOM
SLIDE 22
541 BROADWAY
DIAMOND PLATE LEGALIZATION
CONTEXT: SIDEWALK VAULT - MERCER
112 MERCER STREET ENTRANCE – DIAMOND PLATE ON SIDEWALK VAULT UNDER 112 MERCER STREET ENTRY SIDEWALK – NO SIGN OF VAULT LIGHTS – AREA USED AS MECHANICAL ROOM
SLIDE 23
541 BROADWAY
FLAGPOLE LEGALIZATION
FLAGPOLE - MERCER
112 MERCER STREET ENTRANCE FLAG AS CURRENTLY INSTALLED LOOKING NORTH FLAGPOLE MOUNTING LOOKING SOUTH
SLIDE 24
541 BROADWAY
FLAGPOLE LEGALIZATION
MERCER STREET FLAGPOLE PRECEDENTS
115 MERCER STREET 125 MERCER STREET
