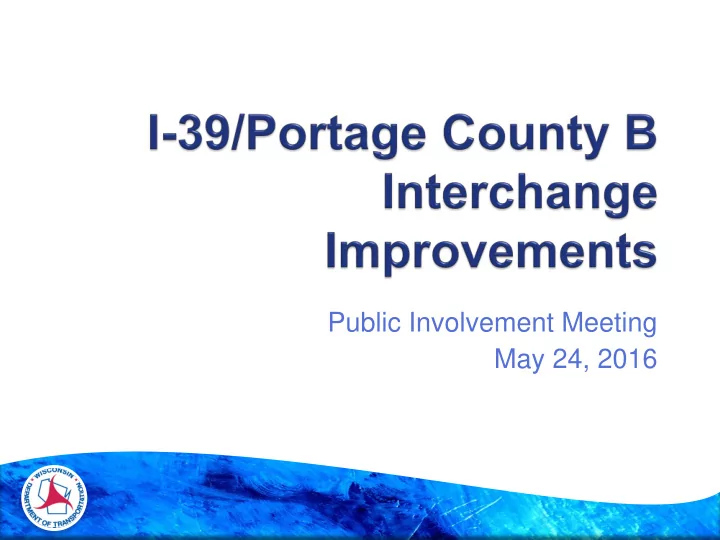

Public Involvement Meeting May 24, 2016

 Explain project purpose and need  Review interchange alternatives  Identify preferred alternative  Discuss next steps in the project

development process

2

The purpose of the project is to address:

 Safety  Operational quality (delay and backups)  Bike/pedestrian accommodations

3

Specific needs identified include …

4

5

State trail too close to RR On-ramp acceleration not long enough Bridge clearance over County B deficient Crash history at NB merge Peak hour backups on ramp Bridge columns too close to County B travel lanes under bridges Lack of bike or pedestrian facilities Off-ramp deceleration not long enough

6

7

Diamond Interchange with Traffic Signals Diamond Interchange with Roundabouts Interchange with Northbound Entrance Loop Diverging Diamond Interchange

8

9

10

 DDI Video Tutorial

https://www.youtube.com/watch?v=1pMopeJp1Uk

This video shows an animation of a proposed DDI for another WisDOT project on WIS 11 at I-39 in Janesville Wisconsin.  WisDOT DDI Information

http://wisconsindot.gov/Pages/safety/safety- eng/inter-design/ddi.aspx 11

12

Why selected?

 Best operational quality for the primary

movements (yellow arrows shown on figure).

 Most favorable comments during the fall

2015 public outreach.

 Requires least additional right-of-way

(8.4 acres)

 Most reserve capacity for high-traffic

conditions.

 Provides desirable trade-off between cost,

property impact, and operational quality.

Estimated cost including real estate:

$28-29 Million

13

Drainage to Lake Pacawa

 Investigating drainage

techniques to minimize impacts along County B

 Storm sewer water put into

pond north of Lake Pacawa

 Pond then discharges cleaned

water into pipe to Lake Pacawa

 Temporary construction

impacts to Worzella Pines Park Storm water pond location Worzella Pines Park Lake Pacawa

14

POND

 Summer 2016

Complete environmental document

 2017

Additional public outreach

 2018 - 2019

Real estate acquisition

 Early 2020

Complete design

 2021

Construction currently scheduled to begin

 The project is currently scheduled for construction in 2021. After work

begins, the reconstruction is expected to take approximately two years.

15
