SLIDE 1 12'-9" TO CEILING 12'-4" TO CEILING DN 16R DN DN UP UP TO MEZZ. EXIST. RESTROOM MEZZANINE ABOVE RESTROOM OFFICE 3R UP 3R UP 3R UP 11'-4" TO CEILING 13R DN NO WORK UP EXIST. STAIR NO WORK EXIST. STAIR NO WORK NEW MAIL BOX LOCATION. CONFIRM TOTAL #OF TENANT NEW ENTRY DOOR NEW TENANT DOOR NEW WINDOW NEW COUNTER

SITE DATA

BD. - BOARD

ABBREVIATIONS

ARCH. - ARCHITECTURAL
ACOUS. - ACOUSTICAL

A.F.F. - ABOVE FINISH FLOOR A.F.S. - ABOVE FINISH SLAB

BLDG. - BUILDING
ALUM. - ALUMINUM
CL. - CLOSET
CER. - CERAMIC
DET. OR DTL. - DETAIL

D.F. - DRINKING FOUNTAIN

DEPT. - DEPARTMENT
CONT. - CONTINUOUS
CONSTR. - CONSTRUCTION
CONC. - CONCRETE
DIM. - DIMENSION
DIA. - DIAMETER
COL. - COLUMN
CAB. - CABINET
BLK. - BLOCK
EA. - EACH
DR. - DOOR
EQ. - EQUAL
ELEC. - ELECTRICAL

E.W.C. - ELECTRIC WATER COOLER

EXT. - EXTERIOR
EXP. - EXPANSION
EXG. - EXISTING
ELEV. - ELEVATION

E.J. - EXPANSION JOINT

DWG. - DRAWING
FL. - FLOOR
FIN. - FINISH
HT. - HEIGHT
GR. -GRADE
GL. - GLASS
GA. - GAUGE

H.M. - HOLLOW METAL

GALV. - GALVANIZED
FT. - FOOT OR FEET
FLUOR. - FLUORESCENT
GYP. - GYPSUM
FP. - FIREPROOF

F.D. - FLOOR DRAIN

KIT. - KITCHEN
JT. - JOINT
LT. - LIGHT
MFR. - MANUFACTURER
MET. OR MTL. - METAL
MEMB. - MEMBRANE
MECH. - MECHANICAL
MAX. - MAXIMUM
LAV. - LAVATORY
LAM. - LAMINATE
JAN. - JANITOR
INT. - INTERIOR

M.O. - MASONRY OPENING

REINF. - REINFORCED
PLYWD. - PLYWOOD
P. LAM. - PLASTIC LAMINATE

N.I.C. - NOT IN CONTRACT

PTN. - PARTITION
PTD. - PAINTED
OPNG. - OPENING

O.C. - ON CENTER

MTD. - MOUNTED
MISC. - MISCELLANEOUS
MIN. - MINIMUM
INSUL. - INSULATION
DN. - DOWN
RM. - ROOM
SIM. - SIMILAR
SHT. - SHEET
STL. - STEEL
SPEC. - SPECIFICATION
SUSP. - SUSPENDED
ST. STL. - STAINLESS STEEL
STOR. - STORAGE
STD. - STANDARD
SCHD. - SCHEDULE

R.O. - ROUGH OPENING

SECT. - SECTION
TH. - THICK
WD. - WOOD
WP. - WATERPROOF.

W.C. - WATER CLOSET

VEST. - VESTIBULE

U.O.N. - UNLESS OTHERWISE NOTED T.O.STL. - TOP OF STEEL

VERT. - VERTICAL
TYP. - TYPICAL
TEL. - TELEPHONE

T.O.S. - TOP OF SLAB

REQ. - REQUIRED

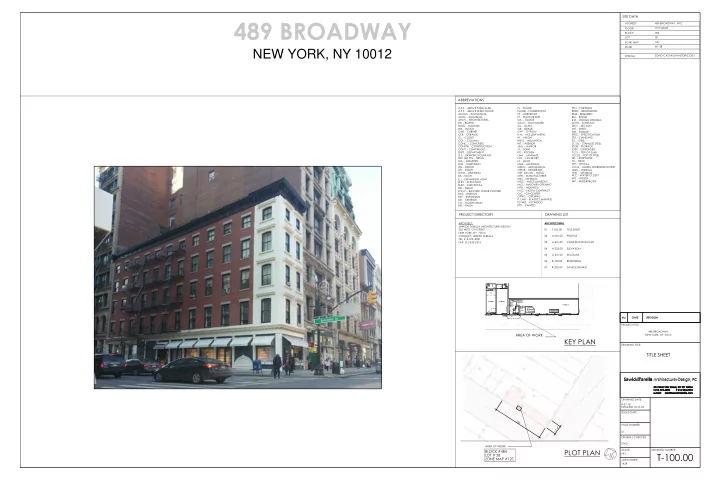

ARCHITECTURAL 01 T-100.00 TITLE SHEET 02 A-001.00 PHOTOS 03 A-201.00 CONSTRUCTION PLAN 04 A-202.00 ELEVATION 05 A-301.00 SECTIONS 06 R-100.00 RENDERING 07 R-200.00 SAMPLE BOARD

489 BROADWAY

NEW YORK, NY 10012

489 BROADWAY, NYC FLOOR LOT BLOCK ZONE MAP ADDRESS 1ST FLOOR 28 484 12C ZONE M1-5B ARCHITECT: SAWICKI TARELLA ARCHITECTURE+DESIGN 303 WEST 13TH STREET NEW YORK, NY 10014 CONTACT: JOSEPH TARELLA TEL: 212-473-4000 FAX: 212-533-2313

TITLE SHEET

8-27-18 01 STAD NTS

T-100.00

PLOT PLAN

AREA OF WORK

LOT # 28 BLOCK #484 ZONE MAP #12C

SPECIAL SOHO-CAST IRON HISTORIC DIST. DRAWING NUMBER: 1428 SCALE: JOB NUMBER: DRAWN / CHECKED: PAGE NUMBER: ISSUED DATE: DRAWING DATE: DRAWING TITLE: PROJECT TITLE: No. DATE REVISION No. DATE REVISION 489 BROADWAY NEW YORK, NY 10012 100' 17'-4"

AREA OF WORK

KEY PLAN

DRAWING LIST PROJECT DIRECTORY

UPDATED 10-10-18

SLIDE 2

PHOTOS

8-27-18 02 STAD AS NOTED

A-001.00

DRAWING NUMBER: 1428 SCALE: JOB NUMBER: DRAWN / CHECKED: PAGE NUMBER: ISSUED DATE: DRAWING DATE: DRAWING TITLE: PROJECT TITLE: No. DATE REVISION No. DATE REVISION 489 BROADWAY NEW YORK, NY 10012

PHOTO - CORNER OF BROADWAY AND BROOME

NTS

2 PHOTO - CORNER OF BROADWAY AND BROOME (1905)

NTS

1 PHOTO - NORTH SIDE OF BROOME STREET

NTS

3 PHOTO - SOUTH SIDE OF BROOME STEET

NTS

4

UPDATED 10-10-18

SLIDE 3

DRAWING NUMBER: 1428 SCALE: JOB NUMBER: DRAWN / CHECKED: PAGE NUMBER: ISSUED DATE: DRAWING DATE: DRAWING TITLE: PROJECT TITLE: No. DATE REVISION No. DATE REVISION 489 BROADWAY NEW YORK, NY 10012

RENDERING

8-27-18 06 STAD AS NOTED

R-100.00

PROPOSED ELEVATION

NTS

2

EXIST. CONDITION

NTS

1

SLIDE 4

RELOCATE EXIST. INTERCOM & MGMT. SIGN. RELOCATE EXIST. FRESH AIR INTAKE & FIRE ALARM GONG BELL. REMOVE EXIST. BRICK WALL INFILL. REMOVE MAIN ENTRY DOOR, TRANSOM &

GLAZING. GC TO PREPARE OPENING TO ACCEPT

NEW DOOR , FRAME & HARDWARE. UP REMOVE EXIST. WALLS FOR NEW

OPENINGS. SEE ELEVS. FOR EXACT

REMOVE EXIST. ENTRY DOOR, FRAME & HARDWARE.

EXIST. STAIR

NO WORK

UP DN

EXIST. RESTROOM

NO WORK

EXIST. STAIR

NO WORK RELOCATE EXIST. MAILBOX COMPARTMENTS. 3

12'-9" TO CEILING 12'-4" TO CEILING DN 16R DN DN UP UP TO MEZZ. EXIST. RESTROOM MEZZANINE ABOVE RESTROOM OFFICE 3R UP 3R UP 3R UP 11'-4" TO CEILING 13R DN NO WORK UP EXIST. STAIR NO WORK EXIST. STAIR NO WORK NEW MAIL BOX LOCATION. CONFIRM TOTAL #OF TENANT NEW ENTRY DOOR NEW TENANT DOOR NEW WINDOW NEW COUNTER 4

4 DN UP

EXIST. RESTROOM

NO WORK

UP

EXIST. STAIR

NO WORK

EXIST. STAIR

NO WORK NEW MAIL BOX LOCATION. CONFIRM TOTAL #OF TENANTS NEW ENTRY DOOR NEW TENANT DOOR NEW WINDOW NEW COUNTER NEW WINDOW NEW MAIN ENTRY DOOR, INFILL AND TRANSOM AREA. PAINT TO MATCH EXISTING. GC TO COORD. RELOCATE EXIST. INTERCOM & MGMT. SIGN OVER NEW PAINTED PANEL. NEW CONT. WAINSCOT PANEL TO MATCH ADJACENT WINDOW BAYS PROFILE & COLOR. NEW OPERABLE GLASS CASE OVER PAINTED MDF BOARD ON STUD FRAME WALL. (COLOR: SW 6251 OUTERSPACE) TURN EXIST. BRACKET UPSIDE DOWN. C L

MENU LOREM IPSUM DOLOR SIT ADIPIS CING ELIT. ETIAM , NON FE RMENTUM ODIO. AENEA N FINIBUS EROS CONSEQ

UAT. FUSCE ENIM

FUCIBUS NON, RHONCUS A METUS ET CONSECTETUR. PELLEN TESQUE DIGNISSIM VESTIB ULUM TINCIDUNT. EFFICI TUR ID NUNC UT, DIAM MAURIS ALIQUET EUISMOD AENEAN IN DOLOR PACERAT PRAESENT VIVERRA DONEC SIT AMET ULTR ICIES DIAM. ARCU VEL EFFICITUR . NUNC DAPIBUS EFFICI TUR ID NUNC UT, DIAM MAURIS ALIQUET EUISMOD AENEAN IN DOLOR PACERAT PRAESENT VIVERRA DONEC SIT AMET ULTR ICIES DIAM. ARCU VEL EFFICITUR . NUNC DAPIBUS LOREM IPSUM DOLOR SIT ADIPIS CING ELIT. ETIAM , NON FE RMENTUM ODIO. AENEA N FINIBUS EROS CONSEQ

UAT. FUSCE ENIM

FUCIBUS NON, RHONCUS A METUS ET CONSECTETUR. PELLEN TESQUE DIGNISSIM VESTIB ULUM TINCIDUNT.

SIGN

MENU

489 SIGN

NEW FABRIC AWNING TO MATCH ADJACENT TENANT AWNING PROFILE, TYP. NEW SPANDREL GLASS BEHIND AWNINGS, TO MATCH ADJACENT TENANT PROFILE AND FINISH.

ALIGN

NEW MENU BOARDS ATTACHED TO PAINTED WALL. DRAWING NUMBER: 1428 SCALE: JOB NUMBER: DRAWN / CHECKED: PAGE NUMBER: ISSUED DATE: DRAWING DATE: DRAWING TITLE: PROJECT TITLE: No. DATE REVISION No. DATE REVISION 489 BROADWAY NEW YORK, NY 10012

REMOVALS PLAN

1/2" = 1'-0"

1

NORTH

PROPOSED PLAN - NEW TENANT BUILD-OUT

1/2" = 1'-0"

2

NORTH

NEW TENANT BUILD-OUT REMOVALS&PROPOSED PLAN/ELEVS.

8-27-18 03 STAD AS NOTED

A-201.00

PROPOSED ELEVATION

1/2" = 1'-0"

4 ELEVATION - REMOVALS

1/2" = 1'-0"

3

+/-14'-111 2"VIF AREA OF WORK +/-14'-111 2"VIF AREA OF WORK

AREA OF WORK

EXIST. TO REMAIN.
EXIST. TO REMAIN.

UPDATED 10-10-18

SLIDE 5 12'-9" TO CEILING 12'-4" TO CEILING DN 16R DN DN UP UP TO MEZZ. EXIST. RESTROOM MEZZANINE ABOVE RESTROOM OFFICE 3R UP 3R UP 3R UP 11'-4" TO CEILING 13R DN NO WORK UP EXIST. STAIR NO WORK EXIST. STAIR NO WORK NEW MAIL BOX LOCATION. CONFIRM TOTAL #OF TENANT NEW ENTRY DOOR NEW TENANT DOOR NEW WINDOW NEW COUNTER 4 A/C A/C A/C A/C A/C A/C A/C A/C A/C A/C A/C A/C

T.O. FINISHED FLOOR 0'-0" B.O. EXTERIOR +/-15'-2" (VIF) B.O. BORDER +/-12'-5 1/2" (VIF)

SIGN

T.O. DOOR 8'-0"

C L MENU LOREM IPSUM DOLOR SIT ADIPIS CING ELIT. ETIAM , NON FE RMENTUM ODIO. AENEA N FINIBUS EROS CONSEQ

UAT. FUSCE ENIM

FUCIBUS NON, RHONCUS A METUS ET CONSECTETUR. PELLEN TESQUE DIGNISSIM VESTIB ULUM TINCIDUNT. EFFICI TUR ID NUNC UT, DIAM MAURIS ALIQUET EUISMOD AENEAN IN DOLOR PACERAT PRAESENT VIVERRA DONEC SIT AMET ULTR ICIES DIAM. ARCU VEL EFFICITUR . NUNC DAPIBUS EFFICI TUR ID NUNC UT, DIAM MAURIS ALIQUET EUISMOD AENEAN IN DOLOR PACERAT PRAESENT VIVERRA DONEC SIT AMET ULTR ICIES DIAM. ARCU VEL EFFICITUR . NUNC DAPIBUS LOREM IPSUM DOLOR SIT ADIPIS CING ELIT. ETIAM , NON FE RMENTUM ODIO. AENEA N FINIBUS EROS CONSEQ

UAT. FUSCE ENIM

FUCIBUS NON, RHONCUS A METUS ET CONSECTETUR. PELLEN TESQUE DIGNISSIM VESTIB ULUM TINCIDUNT.

SIGN

MENU

489 SIGN

442

DRAWING NUMBER: 1428 SCALE: JOB NUMBER: DRAWN / CHECKED: PAGE NUMBER: ISSUED DATE: DRAWING DATE: DRAWING TITLE: PROJECT TITLE: No. DATE REVISION No. DATE REVISION 489 BROADWAY NEW YORK, NY 10012

ELEVATION

8-27-18 04 STAD AS NOTED

A-202.00

BROOME ST. ELEVATION

1/4" = 1'-0"

1

AREA OF WORK

SLIDE 6

NEW FABRIC AWNING TO MATCH ADJACENT TENANTS PROFILE & FINISH. NEW CASEMENT WINDOW TO MATCH ADJACENT TENANT'S FINISH. SEE ELEV. FOR FURTHER INFO. NEW WAINSCOT PANEL TO MATCH ADJACENT TENANT WINDOW BAYS. REFER TO ELEV. FOR EXACT. NEW WINDOW PROFILE & FINISH TO MATCH

EXIST. ADJACENT WINDOW BAYS.

SEE ELEV. FOR DETAILS. GC TO COORD. NEW SPANDREL GLASS TO MATCH ADJACENT TENANTS PROFILE & FINISH. EXISTING STEPS TO REMAIN RELOCATE EXISTING BRACKET FOR REQUIRED CLEARANCE. GC TO VERIFY

EXIST. CONDITION AND COORDINATE

FOR MINIMAL MOVE AS POSSIBLE. REMOVE EXIST. ENTRY DOOR , FRAME, ASSOCIATED HARDWARE & GLASS TRANSOM. REFER TO LATEST ELEVATION FOR EXACT. EXISTING CAST-IRON STOREFRONT PIERS TO REMAIN. RELOCATE EXISTING MAILBOX COMPARTMENT NEW STAINLESS STEEL DOOR HANDLE, CENTERED @ 38"H AFF EXISTING SIDEWALK & STEPS TO REMAIN.

TO NEW TENANT SPACE

NEW WOODEN ENTRY DOOR, WITH CLEAR GLASS INSERT. FINISH TO MATCH STOREFRONT COLOR. NEW FABRIC AWNING TO MATCH ADJACENT TENANTS PROFILE & FINISH. NEW SPANDREL GLASS TO MATCH ADJACENT TENANTS PROFILE & FINISH. DRAWING NUMBER: 1428 SCALE: JOB NUMBER: DRAWN / CHECKED: PAGE NUMBER: ISSUED DATE: DRAWING DATE: DRAWING TITLE: PROJECT TITLE: No. DATE REVISION No. DATE REVISION 489 BROADWAY NEW YORK, NY 10012

SECTIONS - REMOVALS&PROPOSED

8-27-18 05 STAD AS NOTED

A-301.00

SECTION @ NEW WINDOW

1" = 1'-0"

3 SECTION @ ENTRY

1" = 1'-0"

2 SECTION - REMOVALS

1" = 1'-0"

1 TYPICAL WINDOW FRAME & MOLDING

6" = 1'-0"

4

MATCH EXISTING PROFILE. UPDATED 10-10-18

SLIDE 7

DRAWING NUMBER: 1428 SCALE: JOB NUMBER: DRAWN / CHECKED: PAGE NUMBER: ISSUED DATE: DRAWING DATE: DRAWING TITLE: PROJECT TITLE: No. DATE REVISION No. DATE REVISION 489 BROADWAY NEW YORK, NY 10012

COLOR/SAMPLE BOARD

8-27-18 07 STAD AS NOTED

R-200.00

REPOSITION EXIST. FRESH AIR INTAKE. SEE ELEV. FOR

EXACT. GC TO COORD.

RELOCATE EXIST. FIRE ALARM GONG BELL. SEE ELEV. FOR EXACT. GC TO COORD.

EXIST. TO REMAIN.

PAINT COLOR:
