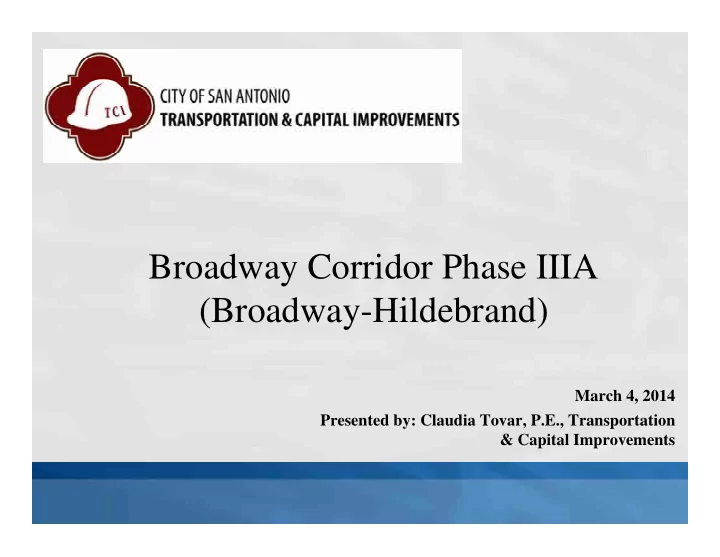

Broadway Corridor Phase IIIA (Broadway-Hildebrand)

March 4, 2014 Presented by: Claudia Tovar, P.E., Transportation & Capital Improvements

slide-2
SLIDE 2

2

Introductions

  • Transportation & Capital Improvements Department (TCI)
  • Mike Frisbie, P.E., Director/City Engineer
  • Razi Hosseini, P.E., Assistant Director
  • City of San Antonio Project Management Team
  • Ruben Guerrero, P.E., Assistant City Engineer
  • Arnold Ramirez, P.E., Project Manager
  • Claudia Tovar, P.E., Project Engineer
  • John Donnelly, Capital Project Officer
  • Design Consultant: Freese & Nichols, Inc.
  • Construction Contractor: Texas Sterling Construction
slide-3
SLIDE 3

3

Agenda

  • Project Scope
  • Phasing Status Update
  • Challenges
  • Schedule Update
  • Communication Plan
slide-4
SLIDE 4

4

Project Scope

Drainage Improvements to convey the 100 year storm event to be completed in multiple phases of construction:

  • Roadway Improvements
  • SAWS water and sewer upgrades
  • CPS gas upgrades
  • Under ground conversion of overhead utilities within the

Broadway/Hildebrand Intersection

  • Water quality enhancements
  • San Antonio River Outfall enhancements
  • Miraflores Park Restoration
slide-5
SLIDE 5

5 Existing flooding

Broadway at Burr

slide-6
SLIDE 6

6

Completed Phases

  • Phase 1-11:
  • Underground utilities
  • Partial Phase 12:
  • Underground utilities
  • Street Reconstruction
  • Phase 16:
  • Underground utilities
  • Street Reconstruction
slide-7
SLIDE 7

7

Completed Phases

Underground Conversion Installation

slide-8
SLIDE 8

8

Hildebrand Street Reconstruction

Southside Hildebrand between Broadway and SA River

slide-9
SLIDE 9

9

Phases in Construction

  • Partial Phase 12
  • Utilities: Water, Sewer
  • Drainage/Water Quality Enhancements
  • Street Reconstruction
  • Partial Phase 13
  • Utilities: Sewer
  • Street Reconstruction
  • Partial Phase 19
  • Utilities: Water, Sewer
  • Drainage
  • Street Reconstruction
slide-10
SLIDE 10

10

Phases 12 Construction

Roadway, Water, and Sanitary Sewer line Completed

slide-11
SLIDE 11

11

Continuation of Phase 12 Construction

Water Line Installation

slide-12
SLIDE 12

12

Phases 13 Construction

Upcoming Phase Current Phase

slide-13
SLIDE 13

13

Phases 19 Construction

Sanitary Sewer Installation Current Phase Upcoming Phase

slide-14
SLIDE 14

14

Upcoming Phases

  • Phase 14:
  • Utilities: Sewer
  • Street reconstruction
  • Phase 17 (Weekend Closures):
  • Drainage
  • Street reconstruction
  • Phase 18:
  • Utilities: Water/Sewer
  • Drainage/Water quality enhancements
  • Street reconstruction
  • Partial Phase 19:
  • Hildebrand intersection
  • North side of Hildebrand east of Broadway
  • Phase 20: Final asphalt layer, pavement markings, signage, cleanup
slide-15
SLIDE 15

15

Phase 14 Construction

Roadway/Sanitary Sewer line construction

slide-16
SLIDE 16

16

Phase 17 Construction

Drainage/Roadway Construction (intersection)

slide-17
SLIDE 17

17

Continuation of Phase 17 Construction

Drainage/Roadway @ intersection

slide-18
SLIDE 18

18

Phase 18 Construction

Roadway/Utility on Hildebrand

slide-19
SLIDE 19

19

Phase 19 Construction

Roadway construction on Hildebrand Current Phase Upcoming Phase

slide-20
SLIDE 20

20

Phase 20 Construction

Traffic signals, curbs & median site plan

slide-21
SLIDE 21

21

Challenges

  • Rain Events
  • Placement of Utilities in limited working area
  • Unforeseen Utilities
  • Soil Conditions
  • Maintaining Access to Business Owners
  • Additional Signage
  • Additional use of off duty Police Officers
slide-22
SLIDE 22

22

Unstable Soil Conditions

slide-23
SLIDE 23

23

Communication Plan

  • Signage will be utilized to

communicate with motorists

  • Includes electronic signage
  • Specialized signs placed at business

driveways within the project area to assist in directing traffic

  • E-mail blasts for project-specific

stakeholders and interested parties will be provided weekly, with unexpected happenings reported daily

  • Continue use of Broadway-Hildebrand

project website

  • TCI Capital Project Officer (CPO) and

/or project inspector will continue face- to-face contact with area businesses weekly or more often as needed

slide-24
SLIDE 24

24

  • Construction Start: January 2013
  • Estimated Completion Date: July 2014
  • Contractor is required to work a 6 day work week from sunrise

to sundown

Project Schedule

slide-25
SLIDE 25

25

  • Ruben Guerrero, TCI Assistant City Engineer

(210) 207-7887

  • Arnold Ramirez, P.E., TCI Project Manager

(210) 207- 6309

  • Claudia Tovar, P.E., TCI Project Engineer

(210) 207-8398

  • John Donnelly, TCI Capital Project Officer

(210) 207-4019 City of San Antonio web-sites :

  • www.sanantonio.gov/publicworks
  • www.sanantonio.gov/cims

Broadway – Hildebrand website: www.sanantonio.gov/CIMS/Projects/BroadwayHildebrand/aspx

Questions?
