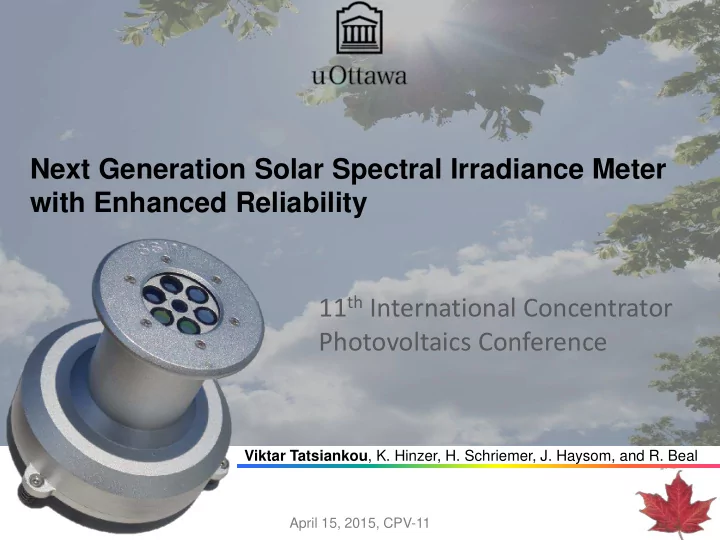

SLIDE 1
Next Generation Solar Spectral Irradiance Meter with Enhanced Reliability
Viktar Tatsiankou, K. Hinzer, H. Schriemer, J. Haysom, and R. Beal
April 15, 2015, CPV-11
Acknowledgements
Viktar Tatsiankou April 15, 2015 2
11 th International Concentrator Photovoltaics Conference Viktar - - PowerPoint PPT Presentation
11 th International Concentrator Photovoltaics Conference Viktar - - PowerPoint PPT Presentation
Next Generation Solar Spectral Irradiance Meter with Enhanced Reliability 11 th International Concentrator Photovoltaics Conference Viktar Tatsiankou , K. Hinzer, H. Schriemer, J. Haysom, and R. Beal April 15, 2015, CPV-11 Acknowledgements April
SLIDE 2
SLIDE 3
CPV industry ultimately desires the DNI and the solar spectrum
Introduction
Viktar Tatsiankou April 15, 2015 3
+
DNI Spectrum Spectroradiometer Pyrheliometer
$80k
Can we do better?
SLIDE 4
Provides spectral DNI ~10x cheaper than a spectroradiometer
Solar Spectral Irradiance Meter
Viktar Tatsiankou 4 April 15, 2015
108 mm 124 mm
- spectral DNI in 6 bands
- temperature and pressure
- spectral DNI, AOD, ozone and
water vapour absorptions
- 280-4000 nm spectral range
- compact and rugged
- RS-485 communication with
a PC or a datalogger
Measures Models Features
SLIDE 5
First prototype deployed in 2013
History of SSIM
Viktar Tatsiankou 5 April 15, 2015
2013 2015 2014
[1] V. Tatsiankou, K. Hinzer, A. Muron et. al., "Solar resource assessment with a solar spectral irradiance meter," in 10th International Conference on Concentrator Photovoltaic Systems: CPV-10, 2014, pp. 313-316.
Problem:
Bandpass filter degradation and moisture ingress Rugged bandpass filters and custom aluminum enclosure
Solution:
SLIDE 6
SSIM Deployments
Viktar Tatsiankou April 15, 2015
Ottawa
6
SLIDE 7
SSIM GUI Software
Viktar Tatsiankou April 15, 2015 8
SSIM software reconstructs the solar spectrum
SLIDE 8
Exploded View
Viktar Tatsiankou April 15, 2015 9
SLIDE 9
- Two SSIMs tested and calibrated
at NREL with Keith Emery in November 2014.
- NREL world-class instruments:
– Spectroradiometer – Pyrheliometer, and – Absolute cavity radiometer (ACR).
SSIM Calibration – NREL
Viktar Tatsiankou April 15, 2015 10
NREL outdoor test facility
SLIDE 10
SSIM Calibration – NREL
Viktar Tatsiankou April 15, 2015
SSIMs SN102 and SN103 calibrated against NREL PGS100 spectroradiometer in 6 spectral channels during one hour on a sunny day
11
SLIDE 11
SSIM Calibration – NREL
Viktar Tatsiankou April 15, 2015
Integrated SSIM spectra provide highly accurate DNI compared to NREL absolute cavity radiometer (ACR)
12
SLIDE 12
SSIM in Ottawa
Viktar Tatsiankou April 15, 2015
1 2 4 3 5
1. The latest version of the SSIM 2. Calibrated SSIM 3. 1st new generation SSIM SN101 4. Eppley pyrheliometer 5. ASD spectroradiometer
- n sun since Sept. 27, 2014
13
SLIDE 13
SSIM Performance – Ottawa
Viktar Tatsiankou April 15, 2015
Good spectral agreement with the ASD spectroradiometer
March 31, 2015 at 11:00 September 28, 2014 at 17:30
14
SLIDE 14
SSIM Performance – Ottawa
Viktar Tatsiankou April 15, 2015
Daily spectral difference remains largely within ±5%
15
SLIDE 15
SSIM Performance – Ottawa
Viktar Tatsiankou April 15, 2015
Integrated SSIM spectra provides accurate DNI data, even on cloudy days March 31, 2015 September 28, 2014
16
SLIDE 16
SSIM Performance – Ottawa
Viktar Tatsiankou April 15, 2015 17
SLIDE 17
SSIM Performance – Ottawa
Viktar Tatsiankou April 15, 2015
Cumulative energy density of SSIM and Eppley pyrheliometer agree to < 0.5% over 6 months
17
SLIDE 18
Conclusion
Viktar Tatsiankou April 15, 2015
- Daily spectral difference is largely
within ±5% as compared to ASD spectroradiometer
- Cumulative energy density is <0.5%
as compared to Eppley pyrheliometer
- No degradation for over 6 months
SSIM is a cost-effective, accurate and reliable alternative to a pyrheliometer and a spectroradiometer
18
