1. Practical Application Scenario: Cell Cycle & Kinetochore 2. From Hash Life to Particle Based Simulation 3. Chemical Organization Theory Jan Huwald Peter Dittrich Bio Systems Analysis Group Institute of Computer Science,

slide-1
SLIDE 1

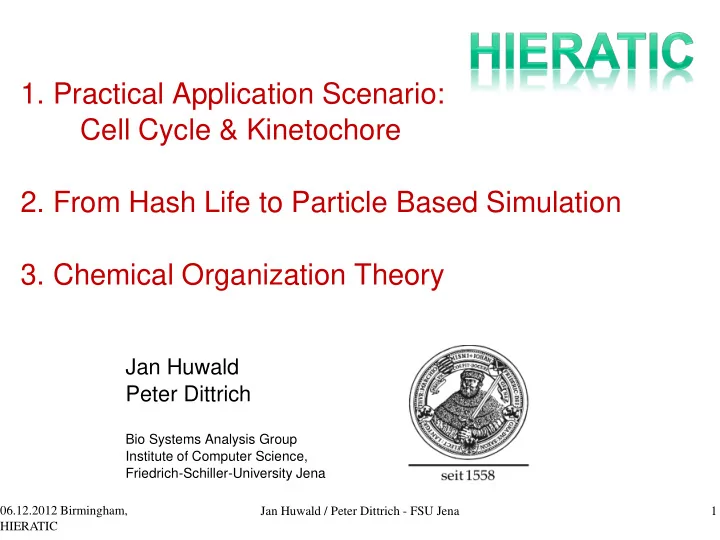

  • 1. Practical Application Scenario:

Cell Cycle & Kinetochore

  • 2. From Hash Life to Particle Based Simulation
  • 3. Chemical Organization Theory

Jan Huwald Peter Dittrich

Bio Systems Analysis Group Institute of Computer Science, Friedrich-Schiller-University Jena

06.12.2012 Birmingham, HIERATIC Jan Huwald / Peter Dittrich - FSU Jena 1

slide-2
SLIDE 2

2

slide-3
SLIDE 3

Practical Application Scenario: Study of Kinetochor Organization and Mitotic Control

3 Jan Huwald / Peter Dittrich - FSU Jena 06.12.2012 Birmingham, HIERATIC

slide-4
SLIDE 4
  • http://nobelprize.org/nobel_prizes/medicine/laureates/2001/illpres/introduction.html
  • B. Ibrahim Diekmann S, Schmitt E, Dittrich P (2008) In-Silico Modeling of the Mitotic Spindle Assembly Checkpoint. PLoS ONE 3(2): e1555. doi:10.1371/journal.pone.0001555
  • B. Ibrahim et al. / Biophysical Chemistry 134 (2008) 93–100
  • B. Ibrahim et al. / BioSystems 95 (2009) 35–50

06.12.2012 Birmingham, HIERATIC 4 Jan Huwald / Peter Dittrich - FSU Jena

slide-5
SLIDE 5

Wait until all kinetochores are correctly attached

http://library.thinkquest.org/C004535/mitosis .html

WAIT!

06.12.2012 Birmingham, HIERATIC 5 Jan Huwald / Peter Dittrich - FSU Jena

slide-6
SLIDE 6

Wait until all kinetochores are correctly attached

http://library.thinkquest.org/C004535/mitosis .html

GO!

06.12.2012 Birmingham, HIERATIC 6 Jan Huwald / Peter Dittrich - FSU Jena

slide-7
SLIDE 7

Wait until all kinetochores are correctly attached

http://library.thinkquest.org/C004535/mitosis .html

GO!

06.12.2012 Birmingham, HIERATIC 7 Jan Huwald / Peter Dittrich - FSU Jena

slide-8
SLIDE 8

Systems Biology of Mitosis

  • http://nobelprize.org/nobel_prizes/medicine/laureates/2001/illpres/introduction.html
  • M. Lohel, B. Ibrahim, S. Diekmann, P. Dittrich (2009), The Role of Localization in the Operation of the Mitotic Spindle

Assembly Checkpoint, Cell Cycle, 8(16):2650 - 2660, 2009

  • B. Ibrahim Diekmann S, Schmitt E, Dittrich P (2008) In-Silico Modeling of the Mitotic Spindle Assembly Checkpoint. PLoS

ONE 3(2): e1555. doi:10.1371/journal.pone.0001555

  • B. Ibrahim et al. / Biophysical Chemistry 134 (2008) 93–100
  • B. Ibrahim et al. / BioSystems 95 (2009) 35–50

06.12.2012 Birmingham, HIERATIC 8 Jan Huwald / Peter Dittrich - FSU Jena

slide-9
SLIDE 9

9

slide-10
SLIDE 10

The Human Kinetochor

10 Jan Huwald / Peter Dittrich - FSU Jena 06.12.2012 Birmingham, HIERATIC

slide-11
SLIDE 11

The Human Kinetochore

11

Cell during mitosis

Jan Huwald / Peter Dittrich - FSU Jena 06.12.2012 Birmingham, HIERATIC

slide-12
SLIDE 12

The Human Kinetochore

12 Jan Huwald / Peter Dittrich - FSU Jena 06.12.2012 Birmingham, HIERATIC

slide-13
SLIDE 13

in vivo, in situ

cell cycle dependent

in vitro

cell cycle dependent

FRAP FRET FCS/FCCS RICS EM/AFM Y2H, M2H Pull-down Western blots in prepation: MassSpec

dynamics neighbourhood structure interaction interaction protein amounts protein modification dynamics dynamics

Experiments performed by the Diekmann Group (FLI Jena)

13 Jan Huwald / Peter Dittrich - FSU Jena 06.12.2012 Birmingham, HIERATIC

slide-14
SLIDE 14

Proximities derived from wet experiments (FRET)

06.12.2012 Birmingham, HIERATIC Jan Huwald / Peter Dittrich - FSU Jena 14

See: paper: D. Hellwig, S. Emmerth, T: Ulbricht, V: Döring, C. Hoischen, R. Martin, C. P. Samora, A. D. McAinsh, C. W. Carroll, A. F. Straight, P. Meraldi, S. Dekmann, Dynamic binding of CENP- N to the kinetochore through the cell cycle, J. Cell. Sci., 2011, 15;124, pp 3871-83. paper: L. Prendergast, C. v. Vuuren, A. Kaczmarczyk, V. Doering, D. Hellwig, N. uinn, C. Hoischen, S. Diekmann, K. F. Sullivan, Pre-mitotic assembly of CENPs -T and -W switches centromeric chromatin to a mitotic state, PLoS Biology, 2011; 9(6):e1001082, 2011. paper: A. Eskat, W. Deng, A. Hofmeister, S. Rudolphi, S. Emmerth, D. Hellwig,T. Ulbricht, V. Döring, J. M. Bancroft, A. D. McAinsh, M. C.Cardoso, P. Meraldi, C. Hoischen, H. Leonhardt, S. Diekmann, Step-Wise Assembly, Maturation and Dynamic Behavior of the Human CENP-P/O/R/Q/U Kinetochore Sub-Complex, PLoS ONE 7(9): e44717, 2012. paper: S. Dambacher, W Deng, Mahn,, D. Sadic, J.J. Fröhlich, A. Nuber, C. Hoischen, S. Diekmann, Heinrich Leonhardt and Gunnar Schotta, CENP-C facilitates the recruitment of M18BP1 to centromeric chromatin, Nucleus 3:1, 101–110; 2012. paper: M. Bui, E. K. Dimitriadis, C. Hoischen, E. An, D. Quénet, S. Giebe A. Nita-Lazar, S. Diekmann, Y. Dalal, Cell-Cycle-Dependent Structural Transitions in the Human CENP-A Nucleosome In Vivo, Cell 150, 317–326, 2012.

slide-15
SLIDE 15

3-D Rule-Based Model

  • 1. Set of reaction rules like
  • 2. Geometry information:
  • size of a molecule
  • angle of bond

15 Jan Huwald / Peter Dittrich - FSU Jena 06.12.2012 Birmingham, HIERATIC

slide-16
SLIDE 16

Rule-Based Modeling in Space

06.12.2012 Birmingham, HIERATIC Jan Huwald / Peter Dittrich - FSU Jena 16

slide-17
SLIDE 17

06.12.2012 Birmingham, HIERATIC Jan Huwald / Peter Dittrich - FSU Jena 17 # use the 'kill' modification to delete bonds (used by the next four rules) A(a!1).Pa(a!1~kill) -> A(a) + Pa(a~kill) Pa(a~kill) -> Pa(a~n) B(a!1).Pb(a!1~kill) -> B(a) + Pb(a~kill) Pb(a~kill) -> Pb(a~n) # transform the bonds A(a!2,x!1).B(x!1,a!4).Pa(a!2~n,x!3).Pb(x!3,a!4)

  • > A(a!2,x!1).B(x!1,a!4).Pa(a!2~kill,x!3).Pb(x!3,a!4)

A(a,x!1).B(x!1,a!2).Pb(a!2,x!3).Pa(x!3,a) + A(a,x!1).B(x!1,a)

  • > A(a,x!1).B(x!1,a!2).Pb(a!2,x!3).Pa(x!3,a!4).A(a!4,x!5).B(x!5,a)

A(x!1).B(x!1,a!2).Pb(a!2~n,x!3).Pa(x!3,a!4).A(a!4,x!5).B(x!5)

  • > A(x!1).B(x!1,a!2).Pb(a!2~kill,x!3).Pa(x!3,a!4).A(a!4,x!5).B(x!5)

A(a!+,x!1).B(x!1,a) + Pa(a!+,x!3).Pb(x!3,a)

  • > A(a!+,x!1).B(x!1,a!2).Pa(a!+,x!3).Pb(x!3,a!2)

# attach new motor-proteins to the filaments A(a,x!1).B(x!1,a,o!+) + Pa(a,x!3).Pb(x!3,a)

  • > A(a!2,x!1).B(x!1,a,o!+).Pa(a!2,x!3).Pb(x!3,a)

# release motor-proteins Fin(o!1).B(a!2,o!1).Pa(a,x!3).Pb(x!3,a!2)

  • > Fin(o!1).B(a,o!1) + Pa(a,x!3).Pb(x!3,a)

Example of an infinite reaction network

  • G. Grünert, B. Ibrahim, T. Lenser, M. Lohel, T. Hinze, P. Dittrich, BMC Bioinformatics, 11:307,

2010

slide-18
SLIDE 18

Interactions derived from wet experiments (FRET)

06.12.2012 Birmingham, HIERATIC Jan Huwald / Peter Dittrich - FSU Jena 18

See: paper: D. Hellwig, S. Emmerth, T: Ulbricht, V: Döring, C. Hoischen, R. Martin, C. P. Samora, A. D. McAinsh, C. W. Carroll, A. F. Straight, P. Meraldi, S. Dekmann, Dynamic binding of CENP- N to the kinetochore through the cell cycle, J. Cell. Sci., 2011, 15;124, pp 3871-83. paper: L. Prendergast, C. v. Vuuren, A. Kaczmarczyk, V. Doering, D. Hellwig, N. uinn, C. Hoischen, S. Diekmann, K. F. Sullivan, Pre-mitotic assembly of CENPs -T and -W switches centromeric chromatin to a mitotic state, PLoS Biology, 2011; 9(6):e1001082, 2011. paper: A. Eskat, W. Deng, A. Hofmeister, S. Rudolphi, S. Emmerth, D. Hellwig,T. Ulbricht, V. Döring, J. M. Bancroft, A. D. McAinsh, M. C.Cardoso, P. Meraldi, C. Hoischen, H. Leonhardt, S. Diekmann, Step-Wise Assembly, Maturation and Dynamic Behavior of the Human CENP-P/O/R/Q/U Kinetochore Sub-Complex, PLoS ONE 7(9): e44717, 2012. paper: S. Dambacher, W Deng, Mahn,, D. Sadic, J.J. Fröhlich, A. Nuber, C. Hoischen, S. Diekmann, Heinrich Leonhardt and Gunnar Schotta, CENP-C facilitates the recruitment of M18BP1 to centromeric chromatin, Nucleus 3:1, 101–110; 2012. paper: M. Bui, E. K. Dimitriadis, C. Hoischen, E. An, D. Quénet, S. Giebe A. Nita-Lazar, S. Diekmann, Y. Dalal, Cell-Cycle-Dependent Structural Transitions in the Human CENP-A Nucleosome In Vivo, Cell 150, 317–326, 2012.

slide-19
SLIDE 19

3-D Rule-Based Model

19 Jan Huwald / Peter Dittrich - FSU Jena 06.12.2012 Birmingham, HIERATIC

slide-20
SLIDE 20

What we can learn …

  • Bridge can form
  • Kinetochore has

different structures

  • Bridge depends on

nucleosome distances and molecule concentration

06.12.2012 Birmingham, HIERATIC Jan Huwald / Peter Dittrich - FSU Jena 20

Source: R. Henze et al.

slide-21
SLIDE 21

Clustering 600 Simulations

06.12.2012 Birmingham, HIERATIC Jan Huwald / Peter Dittrich - FSU Jena 21

Source: R. Henze et al.

slide-22
SLIDE 22

M-Phase Full Kinetochore (Inner and Outer Kinetochore)

06.12.2012 Birmingham, HIERATIC Jan Huwald / Peter Dittrich - FSU Jena 22

Source: R. Henze et al.

slide-23
SLIDE 23

3-D Rule-Based Model

23 Jan Huwald / Peter Dittrich - FSU Jena 06.12.2012 Birmingham, HIERATIC

Source: R. Henze et al.

slide-24
SLIDE 24

06.12.2012 Birmingham, HIERATIC Jan Huwald / Peter Dittrich - FSU Jena 24 # use the 'kill' modification to delete bonds (used by the next four rules) A(a!1).Pa(a!1~kill) -> A(a) + Pa(a~kill) Pa(a~kill) -> Pa(a~n) B(a!1).Pb(a!1~kill) -> B(a) + Pb(a~kill) Pb(a~kill) -> Pb(a~n) # transform the bonds A(a!2,x!1).B(x!1,a!4).Pa(a!2~n,x!3).Pb(x!3,a!4)

  • > A(a!2,x!1).B(x!1,a!4).Pa(a!2~kill,x!3).Pb(x!3,a!4)

A(a,x!1).B(x!1,a!2).Pb(a!2,x!3).Pa(x!3,a) + A(a,x!1).B(x!1,a)

  • > A(a,x!1).B(x!1,a!2).Pb(a!2,x!3).Pa(x!3,a!4).A(a!4,x!5).B(x!5,a)

A(x!1).B(x!1,a!2).Pb(a!2~n,x!3).Pa(x!3,a!4).A(a!4,x!5).B(x!5)

  • > A(x!1).B(x!1,a!2).Pb(a!2~kill,x!3).Pa(x!3,a!4).A(a!4,x!5).B(x!5)

A(a!+,x!1).B(x!1,a) + Pa(a!+,x!3).Pb(x!3,a)

  • > A(a!+,x!1).B(x!1,a!2).Pa(a!+,x!3).Pb(x!3,a!2)

# attach new motor-proteins to the filaments A(a,x!1).B(x!1,a,o!+) + Pa(a,x!3).Pb(x!3,a)

  • > A(a!2,x!1).B(x!1,a,o!+).Pa(a!2,x!3).Pb(x!3,a)

# release motor-proteins Fin(o!1).B(a!2,o!1).Pa(a,x!3).Pb(x!3,a!2)

  • > Fin(o!1).B(a,o!1) + Pa(a,x!3).Pb(x!3,a)

Example of an infinite reaction network

  • G. Grünert, B. Ibrahim, T. Lenser, M. Lohel, T. Hinze, P. Dittrich, BMC Bioinformatics, 11:307,

2010

slide-25
SLIDE 25

25

slide-26
SLIDE 26

From Hash Life to Particle Based Simulation

26 06.12.2012 Birmingham, HIERATIC Jan Huwald / Peter Dittrich - FSU Jena

slide-27
SLIDE 27

Chemical Organization Theory

27 Jan Huwald / Peter Dittrich - FSU Jena 06.12.2012 Birmingham, HIERATIC

slide-28
SLIDE 28

06.12.2012 Birmingham, HIERATIC Jan Huwald / Peter Dittrich - FSU Jena 28

Starting Point

<M, R> : reaction network M : set of (molecular) species Example: M = { a, b, c, d, e} R : set of reaction rules Example: R = { a + b  2 b,  a, a , … }

d c a b e

2 2

slide-29
SLIDE 29

06.12.2012 Birmingham, HIERATIC Jan Huwald / Peter Dittrich - FSU Jena 29

„Chemical Organization“

Organization := a set of molecular species that is (algebraically) closed and self-maintaining

Reaction inside the organization produce only species of that

  • rganization.

Within a self-maintaining set, all species consumed by a reaction can be produced by a reaction within the self-maintzaining set while no species concentration in the set decreases.

[Speroni di Fenizio/Dittrich (2005/7, Bull. Math. Biol. 2007) inspired by Fontana, Buss, Rössler, Eigen, Kauffman, Maturana, Varela, Uribe]

slide-30
SLIDE 30

06.12.2012 Birmingham, HIERATIC Jan Huwald / Peter Dittrich - FSU Jena 30

„Chemical Organization“

Organization := a set of molecular species that is (algebraically) closed and self-maintaining

In a self-maintaining set, it is possible to run all reactions at a strictily positive rate and no molecular species decreases.

[Speroni di Fenizio/Dittrich (2005/7, Bull. Math. Biol. 2007) inspired by Fontana, Buss, Rössler, Eigen, Kauffman, Maturana, Varela, Uribe]

slide-31
SLIDE 31

06.12.2012 Birmingham, HIERATIC Jan Huwald / Peter Dittrich - FSU Jena 31

Example 1

d c a b e

  • > a

2

a + b -> 2 b

2

a + c -> 2 c b -> d c -> d b + c -> e

a -> b -> c -> d -> e ->

slide-32
SLIDE 32

06.12.2012 Birmingham, HIERATIC Jan Huwald / Peter Dittrich - FSU Jena 32

Example 1

d c a b e

2 2

Organization {a, b, d}

slide-33
SLIDE 33

06.12.2012 Birmingham, HIERATIC Jan Huwald / Peter Dittrich - FSU Jena 33

Checking for Closure

d c a b e

2 2

Organization {a, b, d}

slide-34
SLIDE 34

06.12.2012 Birmingham, HIERATIC Jan Huwald / Peter Dittrich - FSU Jena 34

Checking for Self-Maintenance

d c a b e

2 2

Organization {a, b, d}

slide-35
SLIDE 35

06.12.2012 Birmingham, HIERATIC Jan Huwald / Peter Dittrich - FSU Jena 35

Checking for Self-Maintenance

d c a b e

2 2

Organization {a, b, d}

  • 1. Find flux vector
  • utside of org. = 0
slide-36
SLIDE 36

06.12.2012 Birmingham, HIERATIC Jan Huwald / Peter Dittrich - FSU Jena 36

Checking for Self-Maintenance

d c a b e

2 2

Organization {a, b, d}

  • 1. Find flux vector
  • utside of org. = 0

inside of org. > 0 1 1 1 10 9 8

slide-37
SLIDE 37

06.12.2012 Birmingham, HIERATIC Jan Huwald / Peter Dittrich - FSU Jena 37

Checking for Self-Maintenance

d c a b e

2 2

Organization {a, b, d}

  • 1. Find flux vector
  • utside of org. = 0

inside of org. > 0 1 1 1 10 9 8

  • 2. Check production rates
  • utside of org. = 0 (closure)
slide-38
SLIDE 38

06.12.2012 Birmingham, HIERATIC Jan Huwald / Peter Dittrich - FSU Jena 38

Checking for Self-Maintenance

d c a b e

2 2

Organization {a, b, d}

  • 1. Find flux vector
  • utside of org. = 0

inside of org. > 0 1 1 1 10 9 8

  • 2. Check production rates
  • utside of org. = 0 (closure)

7

inside of org. 0 (self-maint.)

slide-39
SLIDE 39

06.12.2012 Birmingham, HIERATIC Jan Huwald / Peter Dittrich - FSU Jena 39

All Organizations

d c a b e

2 2

All Organizations

slide-40
SLIDE 40

06.12.2012 Birmingham, HIERATIC Jan Huwald / Peter Dittrich - FSU Jena 40

All Organizations

d c a b e

2 2

All Organizationen a

a

slide-41
SLIDE 41

06.12.2012 Birmingham, HIERATIC Jan Huwald / Peter Dittrich - FSU Jena 41

All Organizations

All Organizations

d c a b e

2 2

a b d a

slide-42
SLIDE 42

06.12.2012 Birmingham, HIERATIC Jan Huwald / Peter Dittrich - FSU Jena 42

All Organizations

All Organizations a b d

d c a b e

2 2

a c d a

slide-43
SLIDE 43

06.12.2012 Birmingham, HIERATIC Jan Huwald / Peter Dittrich - FSU Jena 43

All Organizations

a b d a c d

d c a b e

2 2

a b c d e a Hasse diagram of

  • rganizations
slide-44
SLIDE 44

06.12.2012 Birmingham, HIERATIC Jan Huwald / Peter Dittrich - FSU Jena 44

„Overlapping Hierachy“

a b d a c d

d c a b e

2 2

a b c d e a Hasse diagram of

  • rganizations
slide-45
SLIDE 45

06.12.2012 Birmingham, HIERATIC Jan Huwald / Peter Dittrich - FSU Jena 45

„Overlapping Hierachy“

a b d a c d

d c a b e

2 2

a b c d e a Hasse diagram of

  • rganizations
slide-46
SLIDE 46

06.12.2012 Birmingham, HIERATIC Jan Huwald / Peter Dittrich - FSU Jena 46

Theorem: Fixed points are instances of

  • rganizations

a b d a c d a b c d e a

) (x x f  

                 ] [ ] [ ] [ ] [ ] [ e d c b a x

) ( x f 

                 11 7 4 x

differential equation fixed point / (stationary solution)

Hasse diagram of

  • rganizations

{ a, b, d } a b d

Dittrich/Speroni d.F., Bull. Math. Biol., 2007

slide-47
SLIDE 47

06.12.2012 Birmingham, HIERATIC Jan Huwald / Peter Dittrich - FSU Jena 47

Limit Set Theorem

[S. Peter, P. Dittrich, Adv. Compl. Sys. 14(1): 77-96, 2011]

slide-48
SLIDE 48

Transient Dynamics

Movement in state space Now: movement in the „space“ of organizations.

06.12.2012 Birmingham, HIERATIC Jan Huwald / Peter Dittrich - FSU Jena 48

slide-49
SLIDE 49

06.12.2012 Birmingham, HIERATIC Jan Huwald / Peter Dittrich - FSU Jena 49

Upward and Downward Movement in the “Space” of Organization

slide-50
SLIDE 50

50

slide-51
SLIDE 51

06.12.2012 Birmingham, HIERATIC Jan Huwald / Peter Dittrich - FSU Jena 51 # use the 'kill' modification to delete bonds (used by the next four rules) A(a!1).Pa(a!1~kill) -> A(a) + Pa(a~kill) Pa(a~kill) -> Pa(a~n) B(a!1).Pb(a!1~kill) -> B(a) + Pb(a~kill) Pb(a~kill) -> Pb(a~n) # transform the bonds A(a!2,x!1).B(x!1,a!4).Pa(a!2~n,x!3).Pb(x!3,a!4)

  • > A(a!2,x!1).B(x!1,a!4).Pa(a!2~kill,x!3).Pb(x!3,a!4)

A(a,x!1).B(x!1,a!2).Pb(a!2,x!3).Pa(x!3,a) + A(a,x!1).B(x!1,a)

  • > A(a,x!1).B(x!1,a!2).Pb(a!2,x!3).Pa(x!3,a!4).A(a!4,x!5).B(x!5,a)

A(x!1).B(x!1,a!2).Pb(a!2~n,x!3).Pa(x!3,a!4).A(a!4,x!5).B(x!5)

  • > A(x!1).B(x!1,a!2).Pb(a!2~kill,x!3).Pa(x!3,a!4).A(a!4,x!5).B(x!5)

A(a!+,x!1).B(x!1,a) + Pa(a!+,x!3).Pb(x!3,a)

  • > A(a!+,x!1).B(x!1,a!2).Pa(a!+,x!3).Pb(x!3,a!2)

# attach new motor-proteins to the filaments A(a,x!1).B(x!1,a,o!+) + Pa(a,x!3).Pb(x!3,a)

  • > A(a!2,x!1).B(x!1,a,o!+).Pa(a!2,x!3).Pb(x!3,a)

# release motor-proteins Fin(o!1).B(a!2,o!1).Pa(a,x!3).Pb(x!3,a!2)

  • > Fin(o!1).B(a,o!1) + Pa(a,x!3).Pb(x!3,a)

Organizations in rule-based (spatial) systems?

  • G. Grünert, B. Ibrahim, T. Lenser, M. Lohel, T. Hinze, P. Dittrich, BMC Bioinformatics, 11:307,

2010

slide-52
SLIDE 52

52

slide-53
SLIDE 53

Our role in HIERATIC

53 Jan Huwald / Peter Dittrich - FSU Jena 06.12.2012 Birmingham, HIERATIC

slide-54
SLIDE 54

Role in HIERATIC

Responsible for: WP4 and WP7

D4.1) Multi-scale simulation library featuring spatial compartmentalisation and fast/slow time dynamics.: [month 12] D4.2) Integration of coarse-graining algorithms.: [month 24] D4.3) Implementation of algorithms to factor out less significant aspects of the system: [month 30] Take algorithms from WP3 and implement it (in MASON).

06.12.2012 Birmingham, HIERATIC Jan Huwald / Peter Dittrich - FSU Jena 54

slide-55
SLIDE 55

55

slide-56
SLIDE 56

WP7 Multi-scale biochemical reactions demonstrator

  • 1. Implement Artificial Chemistry simulation tool for biochemical reaction modelling with first version of

multi-scale simulation library.

  • 2. Compare theoretical analysis applied to biochemical reaction networks and empirical results with existing

Chemical Organisation Theory.

  • 3. Implement efficient multi-scale simulation tool for cell cycle control systems, making use of hierarchical

decomposition algorithms. This WP will be led by Jena, contributing to the development of the software library and theoretical analysis of reaction networks in terms of Chemical Organisation Theory. They will be assisted by USFD who bring expertise in network models of biochemical processes in and between cells. Person-Months per Participant

D7.1) Artificial Chemistry simulation library.: [month 24] D7.2) Efficient Cell Cycle control simulation library.: [month 36]

06.12.2012 Birmingham, HIERATIC Jan Huwald / Peter Dittrich - FSU Jena 56

slide-57
SLIDE 57

Whereas linear coarse-graining maps can be directly interpreted as a change of variables, non-linear coarse-grainings identify points in the original space as equivalent if they map onto the same connected level set of the new space. Finding a way to operationalise this representation is an important step on the way to finding constructions of nonlinear coarse- grainings.

06.12.2012 Birmingham, HIERATIC Jan Huwald / Peter Dittrich - FSU Jena 57

slide-58
SLIDE 58

06.12.2012 Birmingham, HIERATIC Jan Huwald / Peter Dittrich - FSU Jena 58

slide-59
SLIDE 59

06.12.2012 Birmingham, HIERATIC Jan Huwald / Peter Dittrich - FSU Jena 59

slide-60
SLIDE 60

06.12.2012 Birmingham, HIERATIC Jan Huwald / Peter Dittrich - FSU Jena 60

slide-61
SLIDE 61

06.12.2012 Birmingham, HIERATIC Jan Huwald / Peter Dittrich - FSU Jena 61

slide-62
SLIDE 62

Stochastic coarse graining

06.12.2012 Birmingham, HIERATIC Jan Huwald / Peter Dittrich - FSU Jena 62
