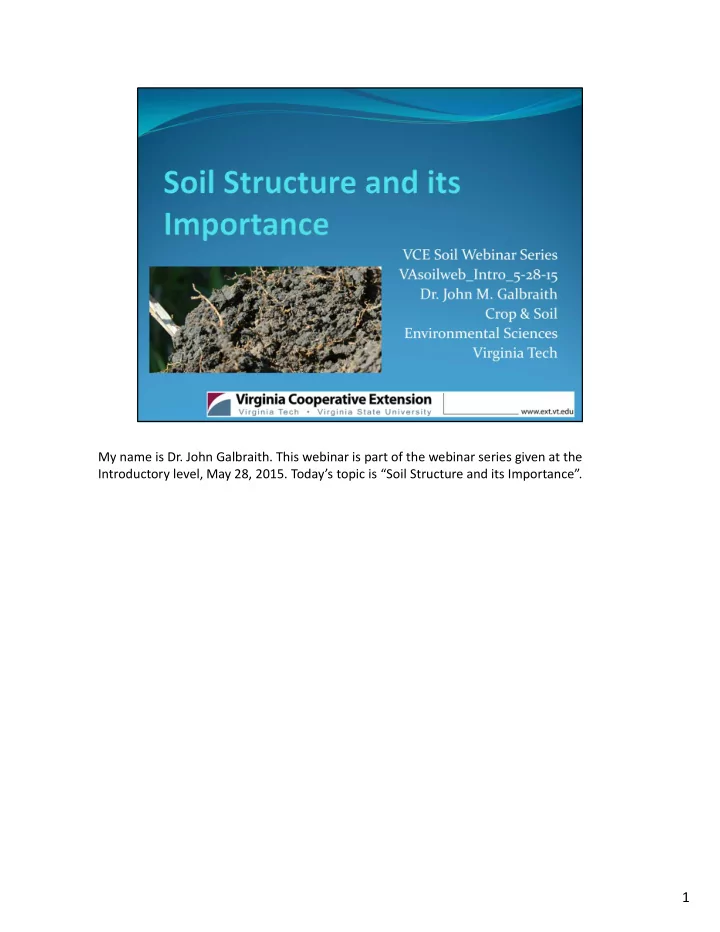

My name is Dr. John Galbraith. This webinar is part of the webinar series given at the Introductory level, May 28, 2015. Todays topic is Soil Structure and its Importance. 1 This webinar explains soil structure and its importance.
SLIDE 2
SLIDE 3
List of topics.
3
SLIDE 4
Learning objectives of this webinar.
4
SLIDE 5
This picture of a thick crust impeding seedling emergence illustrates the importance of good structure, water stable aggregates.
5
SLIDE 6
The most common occurrence of different shapes.
6
SLIDE 7
7
SLIDE 8
8
SLIDE 9
Columnar only occurs where the sodium is relatively high in abundance. It is a dense, root‐ limiting structure.
9
SLIDE 10
Wedges are formed when the slip surfaces intersect. (shrink‐swell clays)
10
SLIDE 11
Naturally platy structure forms from ice lens compaction. Thick platy forms from compaction by vehicles and tools.
11
SLIDE 12
Most structure is compound – it breaks into smaller units.
12
SLIDE 13
Without soil structure, we have clods in coherent textures, and single sand grains in sandy
- textures. Desiccated and divergent structure forms are unusual but do exist. Crusts form in
two ways. Rock structure is really thin layering from recent or ancient deposition or mineral separation.
13
SLIDE 14
Notice the tool marks in the compacted mine soil, because there were no soil aggregates to dig out.
14
SLIDE 15
This dredged material or pond‐bottom sediment cracks into polygons when drying. Divergent masses have irregular and unpredictable shapes do to shearing.
15
SLIDE 16
The crust at top is from bare farmed soil and raindrops melting unstable aggregates. Silty soils are the worst. The biotic crust stabilizes the soil from erosion but may indicate excess nutrient application and ponding.
16
SLIDE 17
Thin layering fro dredge flooding – left; and from weathered bedrock layering ‐ right.
17
SLIDE 18
18
SLIDE 19
This is how sand grains stay together and do not always stay as loose grains. Note the role
- f OM (humus). The more clay, the more micropores inside the aggregates, macropores on
the outsides and open pores (higher total porosity than pure sands).
19
SLIDE 20
Wetting and drying, freezing and thawing, and shrinking and swelling are all associated with structure formation. They all form macropores.
20
SLIDE 21
Humus binds sand grains together and holds clays together. Microbes exude gels and enzymes, roots slough off cells and exude enzymes and hormones. Earthworms exude gels from their skin and excrete small, stable aggregates.
21
SLIDE 22
Give it a grade just like a test!
22
SLIDE 23
23
SLIDE 24
The size is complex but the smaller the units, the greater surface area for water and gas exchange and root growth.
24
SLIDE 25
Great reference, get one for free.
25
SLIDE 26
Shapes reviewed earlier.
26
SLIDE 27
Put it all together. Grade, size, shape
27
SLIDE 28
Texture triangle for reference.
28
SLIDE 29
Sandy soil have little if any structure, clays have abundant structure if not compacted. Sandy textures have lower water holding capacity and organic matter and support fewer microbes, earthworms, insects, and roots, so have weaker structure.
29
SLIDE 30
Compaction makes a difference.
30
SLIDE 31
31
SLIDE 32
Organic matter laid down in layers, form plates.
32
SLIDE 33
Compaction from humans and their tools and practices form plates or crusts (surface plates).
33
SLIDE 34
See the root distribution.
34
SLIDE 35
This soil looks like it has good structure. Good structure = good health.
35
