The Qt and KDE Frameworks: An Overview Kevin Ottens Kevin Ottens - - PowerPoint PPT Presentation

Outline Introduction Overview Develop with Qt Develop with KDE The Qt and KDE Frameworks: An Overview Kevin Ottens Kevin Ottens The Qt and KDE Frameworks:An Overview 1/83 Outline Introduction Overview Develop with Qt Develop with


slide-1

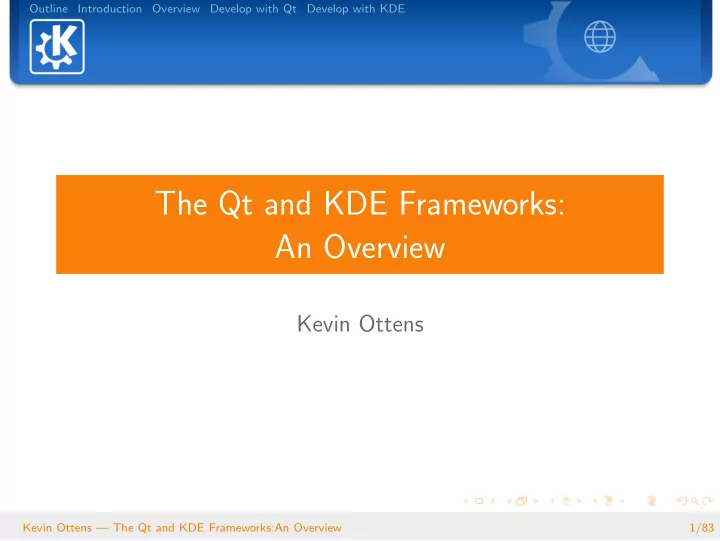

SLIDE 1

Outline Introduction Overview Develop with Qt Develop with KDE

The Qt and KDE Frameworks: An Overview

Kevin Ottens

Kevin Ottens — The Qt and KDE Frameworks:An Overview 1/83

slide-2
SLIDE 2

Outline Introduction Overview Develop with Qt Develop with KDE

Outline

1 Introduction 2 Overview 3 Develop with Qt 4 Develop with KDE

Kevin Ottens — The Qt and KDE Frameworks:An Overview 2/83

slide-3
SLIDE 3

Outline Introduction Overview Develop with Qt Develop with KDE

Outline

1 Introduction 2 Overview 3 Develop with Qt 4 Develop with KDE

Kevin Ottens — The Qt and KDE Frameworks:An Overview 3/83

slide-4
SLIDE 4

Outline Introduction Overview Develop with Qt Develop with KDE

Prerequisites and Goals

Knowledge is a brick wall built line after line

C++ Use of object oriented concepts Templates (at least a bit, but nothing hardcore) *nix To know what is a shell Recall the overall structure of a typical Unix based desktop Goals Give an overview of what can be done with Qt and KDE Give clues on how to go further Eventually give you the will to contribute

Kevin Ottens — The Qt and KDE Frameworks:An Overview 4/83

slide-5
SLIDE 5

Outline Introduction Overview Develop with Qt Develop with KDE

History (1/4)

Since our past experiences determine what we are

Trolltech 1994: Trolltech creation in Oslo, Norway 1996: First Qt selling! (ESA) 1999: Qt2, offices in Australia 2000: Qt/Embedded, offices in the US 2000: Qt/X11 available under the GPL! 2001: Sharp uses Qtopia in its products 2001: Qt3! 2002: Teambuilder is released 2003: Qt/Mac available under the GPL! 2004: Qtopia Phone Edition is released 2005: Qt4!! offices in China

Kevin Ottens — The Qt and KDE Frameworks:An Overview 5/83

slide-6
SLIDE 6

Outline Introduction Overview Develop with Qt Develop with KDE

History (2/4)

Since our past experiences determine what we are

KDE: Warmup 14 October 1996: Matthias Ettrich announce on Usernet the ”Kool Desktop Environment” Willing to use Qt which already had a lot of potential November 1996: kdelibs-0.0.1.tar.gz Just before Christmas: kwm, kpanel et kfm... February 1997: creation of the KDE-FreeQt Foundation KDE: First steps in the media May 1997: Linux-Kongress presentation August 1997: First paper in a german journal 28 August 1997: First developers meeting

Kevin Ottens — The Qt and KDE Frameworks:An Overview 6/83

slide-7
SLIDE 7

Outline Introduction Overview Develop with Qt Develop with KDE

History (3/4)

Since our past experiences determine what we are

KDE: First versions 12 July 1998: KDE 1.0 (after a few betas) Availability of OpenParts (CORBA based), and of KMail Other versions (1.1, 1.1.1, 1.1.2) Second developers meeting

Move away from CORBA, creation of KParts Matthias et Preston Brown get drunk and think they can write an ORB in one night... ... the result is DCOP!

23 October 2000: KDE 2 (Konqueror, KParts, KIO, KOffice, DCOP) Konqueror is the first web browser to fully support the CSS2 specification

Kevin Ottens — The Qt and KDE Frameworks:An Overview 7/83

slide-8
SLIDE 8

Outline Introduction Overview Develop with Qt Develop with KDE

History (4/4)

Since our past experiences determine what we are

KDE: Fame and success 2001: talks about KDE in all the FOSS conferences 2 awards at the LinuxWorldExpo, 3 awards from the Linux Journal 25 February 2002: Third developers meeting 3 April 2002: KDE 3.0 22 August 2003: Kastle (Czeck Republic) 3 February 2004: KDE 3.2 21 August 2004: aKademy (Germany) 26 August 2005: aKademy (Spain) 29 November 2005: KDE 3.5 14 October 2006: KDE has ten years

Kevin Ottens — The Qt and KDE Frameworks:An Overview 8/83

slide-9
SLIDE 9

Outline Introduction Overview Develop with Qt Develop with KDE

Outline

1 Introduction 2 Overview 3 Develop with Qt 4 Develop with KDE

Kevin Ottens — The Qt and KDE Frameworks:An Overview 9/83

slide-10
SLIDE 10

Outline Introduction Overview Develop with Qt Develop with KDE

Unix Desktop Software Stack

Like an onion, to find the heart you have to remove the layers

Hardware Kernel X−Window Toolkit Applications Base Desktop

In our case... Base Desktop == KWin, Plasma, etc. Applications == Konqueror, KMail, Konversation, etc. Toolkit == Qt, kdelibs X-Window == XFree86 ou X.org Kernel == Linux, *BSD... Hardware == anything that can run a X server

KDE applications work under Windows or Mac OS X Kevin Ottens — The Qt and KDE Frameworks:An Overview 10/83

slide-11
SLIDE 11

Outline Introduction Overview Develop with Qt Develop with KDE

Qt, an overview

Far away everything looks simpler

From the authors ”Qt is a comprehensive C++ application development framework [...]” ”Code Less. Create More.” (Trolltech’s slogan) What Qt offers Slightly ”modified” C++ Tools and a multi-plateform API to...

... develop graphical user interfaces ... make multi-threaded applications ... implement network and inter-process communication ... access databases, or process XML ... interact with OpenGL ... and much more!

Kevin Ottens — The Qt and KDE Frameworks:An Overview 11/83

slide-12
SLIDE 12

Outline Introduction Overview Develop with Qt Develop with KDE

KDE, an overview

Hm, it looks huge... even from far away

From the authors ”KDE is a powerful Free Software graphical desktop environment for Linux and Unix workstations[...]” What KDE offers A desktop environment Loads of applications A development framework

network transparency component based architectures interacting with the hardware multimedia (audio, vid´ eo, streaming...) natural language processing and much more!

Kevin Ottens — The Qt and KDE Frameworks:An Overview 12/83

slide-13
SLIDE 13

Outline Introduction Overview Develop with Qt Develop with KDE

Outline

1 Introduction 2 Overview 3 Develop with Qt 4 Develop with KDE

Kevin Ottens — The Qt and KDE Frameworks:An Overview 13/83

slide-14
SLIDE 14

Outline Introduction Overview Develop with Qt Develop with KDE

Outline

3 Develop with Qt

Key concepts and tools Complex Widgets IPC with D-Bus Canvas, animations Automated tests

Kevin Ottens — The Qt and KDE Frameworks:An Overview 14/83

slide-15
SLIDE 15

Outline Introduction Overview Develop with Qt Develop with KDE

QObject

The mother of all thing... or almost

Features Parent/child relationship, useful for

Memory management Widgets layout

Signals and slots Introspection Properties system Drawback Difficulties for multiple inheritance

Kevin Ottens — The Qt and KDE Frameworks:An Overview 15/83

slide-16
SLIDE 16

Outline Introduction Overview Develop with Qt Develop with KDE

Signals and Slots (1/4)

Morse is overrated

Metaphore An object ”emits” a signal to signify something potentially interesting for the outside One or more objects receive the signal thanks to a method having a compatible signature Primitives connect() / disconnect() emit Advantages Loose coupling Easy event based programming

Kevin Ottens — The Qt and KDE Frameworks:An Overview 16/83

slide-17
SLIDE 17

Outline Introduction Overview Develop with Qt Develop with KDE

Signals and Slots (2/4)

Morse is overrated

Beacon #include <QtCore/QObject> #include <QtCore/QPoint> class Beacon : public QObject { Q_OBJECT signals: void beamOfLight(QPoint pos, int degree); };

Kevin Ottens — The Qt and KDE Frameworks:An Overview 17/83

slide-18
SLIDE 18

Outline Introduction Overview Develop with Qt Develop with KDE

Signals and Slots (3/4)

Morse is overrated

Boat #include <QtCore/QObject> #include <QtCore/QPoint> class Boat : public QObject { Q_OBJECT public slots: void lightSpotted(QPoint pos, int degree); };

Kevin Ottens — The Qt and KDE Frameworks:An Overview 18/83

slide-19
SLIDE 19

Outline Introduction Overview Develop with Qt Develop with KDE

Signals and Slots (4/4)

Morse is overrated

Connecting Beacon *lighthouse; Boat *tanker; [...] connect(lighthouse, SIGNAL(beamOfLight(QPoint, int)), tanker, SLOT(lightSpotted(QPoint, int)));

Kevin Ottens — The Qt and KDE Frameworks:An Overview 19/83

slide-20
SLIDE 20

Outline Introduction Overview Develop with Qt Develop with KDE

Implicit sharing

What is your is mine... almost

”Copy on write” Usable by value

  • perator=() only duplicate a pointer

Duplicate data on writing Reentrant operation

Kevin Ottens — The Qt and KDE Frameworks:An Overview 20/83

slide-21
SLIDE 21

Outline Introduction Overview Develop with Qt Develop with KDE

Implicit sharing

What is your is mine... almost

”Copy on write” Usable by value

  • perator=() only duplicate a pointer

Duplicate data on writing Reentrant operation

QString s1 = "foo"; "foo" s1

Kevin Ottens — The Qt and KDE Frameworks:An Overview 20/83

slide-22
SLIDE 22

Outline Introduction Overview Develop with Qt Develop with KDE

Implicit sharing

What is your is mine... almost

”Copy on write” Usable by value

  • perator=() only duplicate a pointer

Duplicate data on writing Reentrant operation

QString s2 = s1; "foo s1 s2

Kevin Ottens — The Qt and KDE Frameworks:An Overview 20/83

slide-23
SLIDE 23

Outline Introduction Overview Develop with Qt Develop with KDE

Implicit sharing

What is your is mine... almost

”Copy on write” Usable by value

  • perator=() only duplicate a pointer

Duplicate data on writing Reentrant operation

s1.append("/bar"); "foo" s1 s2 "foo"

Kevin Ottens — The Qt and KDE Frameworks:An Overview 20/83

slide-24
SLIDE 24

Outline Introduction Overview Develop with Qt Develop with KDE

Implicit sharing

What is your is mine... almost

”Copy on write” Usable by value

  • perator=() only duplicate a pointer

Duplicate data on writing Reentrant operation

s1.append("/bar"); "foo/bar" s1 s2 "foo"

Kevin Ottens — The Qt and KDE Frameworks:An Overview 20/83

slide-25
SLIDE 25

Outline Introduction Overview Develop with Qt Develop with KDE

Implicit sharing

What is your is mine... almost

”Copy on write” Usable by value

  • perator=() only duplicate a pointer

Duplicate data on writing Reentrant operation

s1.append("/bar"); "foo/bar" s1 s2 "foo"

Kevin Ottens — The Qt and KDE Frameworks:An Overview 20/83

slide-26
SLIDE 26

Outline Introduction Overview Develop with Qt Develop with KDE

Implicit sharing

What is your is mine... almost

”Copy on write” Usable by value

  • perator=() only duplicate a pointer

Duplicate data on writing Reentrant operation Covered classes Images, polygons, strings, url, variants, collections...

Kevin Ottens — The Qt and KDE Frameworks:An Overview 20/83

slide-27
SLIDE 27

Outline Introduction Overview Develop with Qt Develop with KDE

Implicit sharing

What is your is mine... almost

”Copy on write” Usable by value

  • perator=() only duplicate a pointer

Duplicate data on writing Reentrant operation (About collections) Everything necessary: QList, QMap, QSet, QMultiMap... Three available iteration styles:

STL iterators Java iterators foreach()

Kevin Ottens — The Qt and KDE Frameworks:An Overview 20/83

slide-28
SLIDE 28

Outline Introduction Overview Develop with Qt Develop with KDE

Graphical User Interface

Ooooh, beautiful!

Available bricks ”Regular” widgets (QPushButton, QCheckBox, QLineEdit...) ”Complex” widgets (QTextEdit, QTreeView...) OpenGL display QGraphicsView canvas Short demonstrations? Borrowed and adapted from Qt examples texture: display an OpenGL object (243 lines of C++) widgets: showcase of a few Qt widgets with styling support (237 lines of C++)

Kevin Ottens — The Qt and KDE Frameworks:An Overview 21/83

slide-29
SLIDE 29

Outline Introduction Overview Develop with Qt Develop with KDE

Qt Designer (1/2)

Draw to win

Facts Writing GUI code by hand is boring Resulting code is generally heavy to maintain designer + uic Designer: GUI graphical editor Result: ”.ui” files uic: generate C++ classes from ”.ui” files Way to work We keep only the ”.ui” files Classes generated only during the build Push to apply MVC

Kevin Ottens — The Qt and KDE Frameworks:An Overview 22/83

slide-30
SLIDE 30

Outline Introduction Overview Develop with Qt Develop with KDE

Qt Designer (2/2)

Draw to win

MVC with Designer

myview.ui :MyModel :MyControl :QWidget :MyView

MyView is generated by uic from myview.ui MyModel is a domain class to display or edit MyControl listen to MyModel and MyView widgets signals Inheriting from QWidget allow to use the control part like a build block in a more complex GUI

Kevin Ottens — The Qt and KDE Frameworks:An Overview 23/83

slide-31
SLIDE 31

Outline Introduction Overview Develop with Qt Develop with KDE

Qt Designer (2/2)

Draw to win

MVC with Designer

myview.ui :MyModel :MyControl :QWidget :MyView

MyView is generated by uic from myview.ui MyModel is a domain class to display or edit MyControl listen to MyModel and MyView widgets signals Inheriting from QWidget allow to use the control part like a build block in a more complex GUI

Kevin Ottens — The Qt and KDE Frameworks:An Overview 23/83

slide-32
SLIDE 32

Outline Introduction Overview Develop with Qt Develop with KDE

QMake (1/2)

Building is my passion... hmmmm, in fact not

Facilitate portability Describing application building rules Generate Makefile or Visual Studio files Possibility to add specific rules for a given platform Important variables TEMPLATE: project type (app, lib, subdirs) HEADERS, SOURCES and FORMS: files used for building TARGET: name of the built product CONFIG: building options (debug, multi-thread...)

Kevin Ottens — The Qt and KDE Frameworks:An Overview 24/83

slide-33
SLIDE 33

Outline Introduction Overview Develop with Qt Develop with KDE

QMake (2/2)

Building is my passion... hmmmm, in fact not

A short example TEMPLATE = app TARGET = seashore_simulator CONFIG += qt warn_on release HEADERS = beacon.h boat.h SOURCES = main.cpp beacon.cpp boat.cpp FORMS = seashoreview.ui

Kevin Ottens — The Qt and KDE Frameworks:An Overview 25/83

slide-34
SLIDE 34

Outline Introduction Overview Develop with Qt Develop with KDE

Outline

3 Develop with Qt

Key concepts and tools Complex Widgets IPC with D-Bus Canvas, animations Automated tests

Kevin Ottens — The Qt and KDE Frameworks:An Overview 26/83

slide-35
SLIDE 35

Outline Introduction Overview Develop with Qt Develop with KDE

Interview (1/3)

Model/View finally usable

About MVC Architecture Pattern Easy to understand... generally difficult to practice Useful for complex widgets or dialogs Interview Specifics MVC architecture in place for complex widgets ”Generic” models interface (table/list/tree) Objects communication through signals and slots

Kevin Ottens — The Qt and KDE Frameworks:An Overview 27/83

slide-36
SLIDE 36

Outline Introduction Overview Develop with Qt Develop with KDE

Interview (2/3)

Model/View finally usable

Data View Model Delegate

Model/View/Delegate The model interfaces the data source with the other components The view asks to the model the data to be displayed The delegate does the rendering with the view, and during an editing it indicates the modifications to the model All the references to data are passed thanks to QModelIndex

Kevin Ottens — The Qt and KDE Frameworks:An Overview 28/83

slide-37
SLIDE 37

Outline Introduction Overview Develop with Qt Develop with KDE

Interview (3/3)

Model/View finally usable

Available classes QAbstractItemModel: Base interface for models QAbstractListModel: List oriented models QAbstractTableModel: Table oriented models QListView: List view QTableView: Table view QTreeView: Tree view QAbstractProxyModel: Filtering models interface Short demonstration

Kevin Ottens — The Qt and KDE Frameworks:An Overview 29/83

slide-38
SLIDE 38

Outline Introduction Overview Develop with Qt Develop with KDE

And also...

In short!

Scribe: rich text management QTextDocument: read-only text content

Hierarchical structure QTextBlock, QTextFrame, QTextTable, QTextList

QTextCursor allows to manipulate the text using the cursor metaphor QTextEdit: text edit widget Mainwindow: flexibility in the main window QMainWindow: Main window with a menu bar QToolBar: Tool bars on window borders QDockWidget: Movable and detachable panels tied to the window Short demonstration

Kevin Ottens — The Qt and KDE Frameworks:An Overview 30/83

slide-39
SLIDE 39

Outline Introduction Overview Develop with Qt Develop with KDE

Outline

3 Develop with Qt

Key concepts and tools Complex Widgets IPC with D-Bus Canvas, animations Automated tests

Kevin Ottens — The Qt and KDE Frameworks:An Overview 31/83

slide-40
SLIDE 40

Outline Introduction Overview Develop with Qt Develop with KDE

Overview

D-Bus WTH?

D-Bus: Desktop Bus Grandson of DCOP: Desktop COmmunication Protocol Remote Procedure Call Keeps some concepts of Qt Model Each application using D-Bus is a service The services communicate through a bus

Session bus, attached to a user session System bus, unique for the system

Each service exposes a hierarchy of objects Objects expose interfaces (methods+signals)

Kevin Ottens — The Qt and KDE Frameworks:An Overview 32/83

slide-41
SLIDE 41

Outline Introduction Overview Develop with Qt Develop with KDE

A few tools

Play with your desktop

qdbusviewer: graphical tool Useful for developers and power users List services, available objects and interfaces Allows to call methods qdbus: command line tool Same features than qdbusviewer Ease shell scripts writing to control applications

Kevin Ottens — The Qt and KDE Frameworks:An Overview 33/83

slide-42
SLIDE 42

Outline Introduction Overview Develop with Qt Develop with KDE

Make a D-Bus call (1/2)

Wow! Complicated...

Method call using QDBusMessage #include <QtDBus/QDBusConnection> #include <QtDBus/QDBusMessage> [...] QDBusConnection bus = QDBusConnection::sessionBus(); QDBusMessage msg = QDBusMessage::createMethodCall( "org.kde.application", "/path/to/object", "org.kde.Interface", "method"); msg << 2 << "foo" << 0.5; // =>

Kevin Ottens — The Qt and KDE Frameworks:An Overview 34/83

slide-43
SLIDE 43

Outline Introduction Overview Develop with Qt Develop with KDE

Make a D-Bus call (2/2)

Wow! Complicated...

Method call using QDBusMessage // => QDBusMessage reply = bus.call(msg); QList<QVariant> args = reply.arguments(); if (reply.type()==QDBusMessage::ReplyMessage && args.size()==1 && args.at(0).canConvert(QVariant::StringList)) { QStringList result = args.at(0).toStringList(); [...] }

Kevin Ottens — The Qt and KDE Frameworks:An Overview 35/83

slide-44
SLIDE 44

Outline Introduction Overview Develop with Qt Develop with KDE

QDBusInterface

... Oh! Feels better already

Method call using QDBusInterface #include <QtDBus/QDBusConnection> #include <QtDBus/QDBusInterface> [...] QDBusInterface interface("org.kde.application", "/path/to/object", "org.kde.Interface"); QDBusReply<QStringList> = interface.call("method", 2, "foo", 0.5); if (reply.isValid()) { QStringList result = reply; [...] }

Kevin Ottens — The Qt and KDE Frameworks:An Overview 36/83

slide-45
SLIDE 45

Outline Introduction Overview Develop with Qt Develop with KDE

Expose an object on the bus

Expose yourself to the world!

Use of QDBusConnection::registerObject() class Example : public QObject { Q_OBJECT [...] public slots: Q_SCRIPTABLE QStringList method(int, QString); Q_SCRIPTABLE Q_NOREPLY void asyncMethod(); }; [...] Example *ex = new Example; QDBusConnection c = QDBusConnection::sessionBus(), c.registerObject("/path/object", ex, QDBusConnection::ExportScriptableSlots);

Kevin Ottens — The Qt and KDE Frameworks:An Overview 37/83

slide-46
SLIDE 46

Outline Introduction Overview Develop with Qt Develop with KDE

Define a D-Bus interface (1/2)

Expose yourself to the world!

XML Specification <node> <interface name="org.kde.Dummy"> <method name="method"> <arg name="arg1" type="i" direction="in"/> <arg name="arg2" type="s" direction="in"/> <arg name="ret" type="as" direction="out"/> </method> <method name="asyncMethod"> <annotation name="org.freedesktop.DBus.Method.NoReply" value="true"/> </method> [...]

Kevin Ottens — The Qt and KDE Frameworks:An Overview 38/83

slide-47
SLIDE 47

Outline Introduction Overview Develop with Qt Develop with KDE

Define a D-Bus interface (2/2)

Expose yourself to the world!

Code generation qdbusxml2cpp -a ... : generate a QtDBus adapter qdbusxml2cpp -p ... : generate a QtDBus interface Adapter use #include "dummy_adaptor.h" [...] Dummy::Dummy() : QObject() { new DummyAdaptor(this); QDBusConnection c = QDBusConnection::sessionBus(); c.registerObject("/path/object", this); }

Kevin Ottens — The Qt and KDE Frameworks:An Overview 39/83

slide-48
SLIDE 48

Outline Introduction Overview Develop with Qt Develop with KDE

Define a D-Bus interface (2/2)

Expose yourself to the world!

Code generation qdbusxml2cpp -a ... : generate a QtDBus adapter qdbusxml2cpp -p ... : generate a QtDBus interface Interface use #include "dummy_interface.h" [...]

  • rg::kde::Dummy *iface = new org::kde::Dummy(

"org.kde.service", "/path/to/object", QDBusConnection::sessionBus(), this); QStringList list = iface->method(2, "foo");

Kevin Ottens — The Qt and KDE Frameworks:An Overview 39/83

slide-49
SLIDE 49

Outline Introduction Overview Develop with Qt Develop with KDE

Outline

3 Develop with Qt

Key concepts and tools Complex Widgets IPC with D-Bus Canvas, animations Automated tests

Kevin Ottens — The Qt and KDE Frameworks:An Overview 40/83

slide-50
SLIDE 50

Outline Introduction Overview Develop with Qt Develop with KDE

Arthur (1/2)

Draw me a round table!

Architecture QPainter: take care of the drawing operations (drawLine(), drawRect(), etc.) QPaintDevice: object on which you can draw thanks to a QPainter

QWidget QPixmap, QImage, QPicture QPrinter

QPaintEngine: interface used by QPainter to effectively paint

Provided by a QPaintDevice Several backends available (raster, OpenGL, PostScript, CoreGraphics, X11 with XRender)

Kevin Ottens — The Qt and KDE Frameworks:An Overview 41/83

slide-51
SLIDE 51

Outline Introduction Overview Develop with Qt Develop with KDE

Arthur (2/2)

Draw me a round table!

Noticeable points Double buffering on widgets Advanced drawing operations

Brushes QGradient and sons (linear, radial, conical) Alpha channel support in QColor Anti-aliasing: painter.setRenderHint(QPainter::Antialiasing)

Tiny SVG 1.2 support since Qt 4.1

QSvgWidget: display able to render a SVG QSvgRendered: allors to render an SVG on any QPaintDevice

Short demonstration: pathstroke and svgviewer

Kevin Ottens — The Qt and KDE Frameworks:An Overview 42/83

slide-52
SLIDE 52

Outline Introduction Overview Develop with Qt Develop with KDE

QGraphicsView

Model/View split for the canvas

Model QGraphicsScene

Allows to manage the objects in the scene Distributes events to objects and manage their state

QGraphicsItem, displayable objects

Texts, lines, polygons, pixmaps, SVGs, etc. Collision detection Drag’n’Drop, keyboard and mouse events, etc.

View Several views on the same scene Each view can have different render options, or different transformations Demo ”40 000 Chips”

Kevin Ottens — The Qt and KDE Frameworks:An Overview 43/83

slide-53
SLIDE 53

Outline Introduction Overview Develop with Qt Develop with KDE

QTimeLine

QTimer under steroids

Easy animations Control the animation evolution

Indicates the current frame Indicates the animation progress

Pausing is possible Reverse mode, loops The cherry of the cake Automatic framerate control Several progress curves Short demo (95 lines)

Kevin Ottens — The Qt and KDE Frameworks:An Overview 44/83

slide-54
SLIDE 54

Outline Introduction Overview Develop with Qt Develop with KDE

Outline

3 Develop with Qt

Key concepts and tools Complex Widgets IPC with D-Bus Canvas, animations Automated tests

Kevin Ottens — The Qt and KDE Frameworks:An Overview 45/83

slide-55
SLIDE 55

Outline Introduction Overview Develop with Qt Develop with KDE

Unit tests (Qt 4.1)

I love tests, oh yes!

QTestLib Unit tests framework adapted to Qt Data oriented tests Basic features for GUI testing Available tools QTEST MAIN(): Create the main for the test application QVERIFY(): Verify a condition QCOMPARE(): Verify equality of two values QSignalSpy: Introspection on signals

Kevin Ottens — The Qt and KDE Frameworks:An Overview 46/83

slide-56
SLIDE 56

Outline Introduction Overview Develop with Qt Develop with KDE

Typical test class

Tests! Tests! Tests!

class TestFoo : public QObject { Q_OBJECT private slots: void initTestCase(); void testSomeStuff(); void testWayMoreStuff(); void testWayMoreStuff_data(); void testFooSignal(); };

Kevin Ottens — The Qt and KDE Frameworks:An Overview 47/83

slide-57
SLIDE 57

Outline Introduction Overview Develop with Qt Develop with KDE

Typical test class

Tests! Tests! Tests!

QTEST_MAIN(TestFoo) void TestFoo::testSomeStuff() { FiboGen fg; QVERIFY(fg.isValid()); QCOMPARE(fg.compute(0), 0); QCOMPARE(fg.compute(1), 1); QCOMPARE(fg.compute(2), 1); QCOMPARE(fg.compute(3), 2); QCOMPARE(fg.compute(4), 3); QCOMPARE(fg.compute(5), 5); [...]

Kevin Ottens — The Qt and KDE Frameworks:An Overview 47/83

slide-58
SLIDE 58

Outline Introduction Overview Develop with Qt Develop with KDE

Typical test class

Tests! Tests! Tests!

void TestFoo::testWayMoreStuff_data() { QTest::addColumn<QString>("server"); QTest::addColumn<int>("port"); QTest::addColumn<QString>("path"); QTest::addColumn<long>("value"); QTest::newRow("Nominal case") << "service.foo.com" << 123 << "/random/path" << 200; QTest::newRow("Broken path") << "service.foo.com" << 123 << "/bad/path" << 100; [...]

Kevin Ottens — The Qt and KDE Frameworks:An Overview 47/83

slide-59
SLIDE 59

Outline Introduction Overview Develop with Qt Develop with KDE

Typical test class

Tests! Tests! Tests!

void TestFoo::testWayMoreStuff() { QFETCH(QString, server); QFETCH(int, port); QFETCH(QString, path); QFETCH(long, value); Protocol p; p.connect(server, port); QString reply = p.query(path); QCOMPARE(reply.toLong(), value); }

Kevin Ottens — The Qt and KDE Frameworks:An Overview 47/83

slide-60
SLIDE 60

Outline Introduction Overview Develop with Qt Develop with KDE

Use of QSignalSpy

Beware! I’m watching you...

void TestFoo::testFooSignal() { QPoint pos(10, 20); Beacon *b = new Beacon(pos); QSignalSpy spy(b, SIGNAL(beam(QPoint, int))); beacon.rotate(15); // emits (10,20), 15 beacon.rotate(20); // emits (10,20), 35 QCOMPARE(spy.count(), 2); QCOMPARE(spy.at(0).at(0).toPoint(), pos); QCOMPARE(spy.at(0).at(1).toInt(), 15); QCOMPARE(spy.at(1).at(0).toPoint(), pos); QCOMPARE(spy.at(1).at(1).toInt(), 35); }

Kevin Ottens — The Qt and KDE Frameworks:An Overview 48/83

slide-61
SLIDE 61

Outline Introduction Overview Develop with Qt Develop with KDE

Outline

1 Introduction 2 Overview 3 Develop with Qt 4 Develop with KDE

Kevin Ottens — The Qt and KDE Frameworks:An Overview 49/83

slide-62
SLIDE 62

Outline Introduction Overview Develop with Qt Develop with KDE

Outline

4 Develop with KDE

Build system: CMake kdecore & kdeui KParts KIO Phonon Solid Plasma

Kevin Ottens — The Qt and KDE Frameworks:An Overview 50/83

slide-63
SLIDE 63

Outline Introduction Overview Develop with Qt Develop with KDE

Features

Die autohell! Die!!

Summary Generate files for the native build system

GNU Make KDevelop XCode Visual Studio

Separation between source and build directories Why use CMake? Build files easy to write Portability Faster builds (no libtool)

Kevin Ottens — The Qt and KDE Frameworks:An Overview 51/83

slide-64
SLIDE 64

Outline Introduction Overview Develop with Qt Develop with KDE

Example

Do your best with what I give you

CMakeLists.txt project(myproject) find_package(KDE4 REQUIRED) include (KDE4Defaults) include_directories(${KDE4_INCLUDES}) add_subdirectory(lib) set(projectSources main.cpp someclass.cpp) kde4_add_ui_files(projectSources view.ui) kde4_add_kcfg_files(projectSources settings.kcfgc) kde4_add_executable(myproject projectSources) target_link_libraries(myproject ${KDE4_KIO_LIBS} mylib)

Kevin Ottens — The Qt and KDE Frameworks:An Overview 52/83

slide-65
SLIDE 65

Outline Introduction Overview Develop with Qt Develop with KDE

Utilisation

The toad becoming charming prince... or the other way around

Preparing directories We assume the sources are in project-src mkdir project-build; cd project-build Launching cmake cmake ../project-src Giving options is possible

cmake -DCMAKE INSTALL PREFIX=/opt/kde4 ../project-src cmake -DKDE4 BUILD TESTS=ON ../project-src ...

Get back to the good old habits make && make install

Kevin Ottens — The Qt and KDE Frameworks:An Overview 53/83

slide-66
SLIDE 66

Outline Introduction Overview Develop with Qt Develop with KDE

Outline

4 Develop with KDE

Build system: CMake kdecore & kdeui KParts KIO Phonon Solid Plasma

Kevin Ottens — The Qt and KDE Frameworks:An Overview 54/83

slide-67
SLIDE 67

Outline Introduction Overview Develop with Qt Develop with KDE

Convenience classes and methods

No need to make our lives uselessly complicated...

Visual integration KStandardGuiItem: functions creating standard actions (print(), saveAs()...) KIcon: icons loaded by name respecting the current theme, with cache System KApplication: session management, standard menus, D-Bus registering, etc. KProcess: system() under steroids KStandardDirs: find the ressources of the application on disk

Kevin Ottens — The Qt and KDE Frameworks:An Overview 55/83

slide-68
SLIDE 68

Outline Introduction Overview Develop with Qt Develop with KDE

i18n

  • Eighteen letters between i and n. - Hmm... ”internationalisation”!

KLocale allows to... translate (i18n()) know the local currency use the right decimal separator correctly format dates KBabel Base tool for translators Indicates the progress of the translation Allows to query dictionaries Spell checking integrated

Kevin Ottens — The Qt and KDE Frameworks:An Overview 56/83

slide-69
SLIDE 69

Outline Introduction Overview Develop with Qt Develop with KDE

Manage application settings

And now I check this one, disable this...

Configuration system: KConfig Default backend format similar to ”.ini” files (grouped key/value sets) Takes care of the user language System configuration handled To go further KConfigXT

XML description of the application settings Automatic code generation (singleton)

Kiosk

Locking of settings in the system configuration Users profile management

Kevin Ottens — The Qt and KDE Frameworks:An Overview 57/83

slide-70
SLIDE 70

Outline Introduction Overview Develop with Qt Develop with KDE

Standard dialogs

Heteroclite monologues

KConfigDialog Manage the whole dialog life cycle

Memory freeing Buttons activation state (defaults, ok, apply, cancel)

Works with KConfigXT and Designer KFileDialog (kio/kfile) User KIO: network transparency File previews Short demonstration KConfigXT, KConfigDialog, KFileDialog

Kevin Ottens — The Qt and KDE Frameworks:An Overview 58/83

slide-71
SLIDE 71

Outline Introduction Overview Develop with Qt Develop with KDE

Outline

4 Develop with KDE

Build system: CMake kdecore & kdeui KParts KIO Phonon Solid Plasma

Kevin Ottens — The Qt and KDE Frameworks:An Overview 59/83

slide-72
SLIDE 72

Outline Introduction Overview Develop with Qt Develop with KDE

Overview

Let’s explode our system in parts!

Graphical components system kdelibs has the needed facilities for component based architectures KParts is a family of those components ”A widget with the associated feature, available as actions” (David Faure TM) Types of KParts available ReadOnlyPart: file display ReadWritePart: file editor BrowserExtension: browser logic integration Component development is not covered here...

Kevin Ottens — The Qt and KDE Frameworks:An Overview 60/83

slide-73
SLIDE 73

Outline Introduction Overview Develop with Qt Develop with KDE

Loading a component

It has to be useful...

Loading ”by hand” KPluginLoader: load a library dynamically while application is running KPluginFactory: create components available in a library KServiceTypeTrader and KMimeTypeTrader: query the system to know the libraries avaible for a given set of constraints ”Intelligent” loading KMimeTypeTrader::createInstanceFromQuery() KServiceTypeTrader::createInstanceFromQuery()

Kevin Ottens — The Qt and KDE Frameworks:An Overview 61/83

slide-74
SLIDE 74

Outline Introduction Overview Develop with Qt Develop with KDE

Example of usage

Woot! A web browser!

Demonstration D-Bus+KParts Code presented by George Staikos during the first OSDW (http://www.osdw.org) Slightly modified For 99 lines of code, we get

A working web browser... D-Bus driven

With 66 more lines (written for this talk), we get

A minimalist browser interface... Able to control all the browsers of a sessions

Kevin Ottens — The Qt and KDE Frameworks:An Overview 62/83

slide-75
SLIDE 75

Outline Introduction Overview Develop with Qt Develop with KDE

Outline

4 Develop with KDE

Build system: CMake kdecore & kdeui KParts KIO Phonon Solid Plasma

Kevin Ottens — The Qt and KDE Frameworks:An Overview 63/83

slide-76
SLIDE 76

Outline Introduction Overview Develop with Qt Develop with KDE

Overview

Lovin’ ubiquity...

Implement protocols (slaves) Regular network protocols (pop3://, smtp://, etc.) Network filesystems (ftp://, webdav://, etc.) Virtual filesystems (system://, trash://, etc.) Deal with protocols and files MIME types system (KMimeType) Obtain information about a protocol (KProtocolInfo) Use a protocol (send/receive data, create directories, etc.)

Kevin Ottens — The Qt and KDE Frameworks:An Overview 64/83

slide-77
SLIDE 77

Outline Introduction Overview Develop with Qt Develop with KDE

Synchronous Use

Go fetch it! I’m waiting here.

KIO::NetAccess download(): fetch the data of an URL in a temporary file removeTempFile() upload(): symmetric of download() and also mkdir(), move(), etc. Example QString tmpFile; if(KIO::NetAccess::download(u, tmpFile, window)){ loadFile(tmpFile); KIO::NetAccess::removeTempFile(tmpFile); }

Kevin Ottens — The Qt and KDE Frameworks:An Overview 65/83

slide-78
SLIDE 78

Outline Introduction Overview Develop with Qt Develop with KDE

Asynchronous User

Hey! I’ve more to do than waiting...

KIO::Job Create a job instance with a KIO method (KIO::stat(), etc.) Connect the interesting signals of the job

result() being the minimum required to know that the job is finished

No need to keep a pointer on the job or to deallocate it, it deletes itself automatically after result() is emitted Short demonstration (88 lines)

Kevin Ottens — The Qt and KDE Frameworks:An Overview 66/83

slide-79
SLIDE 79

Outline Introduction Overview Develop with Qt Develop with KDE

Create your ioslave

Work! You lazy!

KIO::SlaveBase Inherit the class Overload the supported methods

Each method maps to a possible operation (copy(), get(), etc.) They’re all ”void” methods, and you need to give the results back to the calling job For this we use specific methods (data(), error(), finished(), etc.)

Provide a ”.protocol” file

Describes the implemented protocol Information available through KProtocolInfo

Short demonstration (107 lines)

Kevin Ottens — The Qt and KDE Frameworks:An Overview 67/83

slide-80
SLIDE 80

Outline Introduction Overview Develop with Qt Develop with KDE

Outline

4 Develop with KDE

Build system: CMake kdecore & kdeui KParts KIO Phonon Solid Plasma

Kevin Ottens — The Qt and KDE Frameworks:An Overview 68/83

slide-81
SLIDE 81

Outline Introduction Overview Develop with Qt Develop with KDE

Phonon

An environment which pump up the volume!

Identity Leader: Matthias Kretz Goal: Strengthen the multimedia abilities of KDE Technical details High-level API designed by collecting use cases Backends, allowing to support as many multimedia frameworks as needed

Xine, GStreamer, NetworkMultiMedia (NMM) DirectX QuickTime

Unit tests, and validation tests for backends

Kevin Ottens — The Qt and KDE Frameworks:An Overview 69/83

slide-82
SLIDE 82

Outline Introduction Overview Develop with Qt Develop with KDE

Playback

Like Madonna...

Sources and their management MediaSource: multimedia source (audio, video) coming from a file, an URL, a disc, etc. MediaObject: control the stream from a source, queue management Paths MediaNode: node of a pipeline

MediaObject: it’s also a MediaNode AudioOutput: audio output (soundcard, network, etc.) VideoWidget: video display

Path: connects two nodes, effects injection Demo, ”phonon-player” (53 lines)

Kevin Ottens — The Qt and KDE Frameworks:An Overview 70/83

slide-83
SLIDE 83

Outline Introduction Overview Develop with Qt Develop with KDE

Complementary tools

We all want our life to be easier

Widgets VolumeSlider: control the volume of an AudioOutput SeekSlider: control the progress of a MediaObject EffectWidget: effect configuration Utilities VolumeFaderEffect: dynamic setting of the volume (fade to silence, cross-fading...) VideoPlayer: basic video player

Kevin Ottens — The Qt and KDE Frameworks:An Overview 71/83

slide-84
SLIDE 84

Outline Introduction Overview Develop with Qt Develop with KDE

Outline

4 Develop with KDE

Build system: CMake kdecore & kdeui KParts KIO Phonon Solid Plasma

Kevin Ottens — The Qt and KDE Frameworks:An Overview 72/83

slide-85
SLIDE 85

Outline Introduction Overview Develop with Qt Develop with KDE

Solid

A robust environment

Identity Leader: hmm... yeah ok... I’m guilty Goal: Improve interaction between hardware and desktop applications Technical details Architecture with backends ”Fake backend” for unit tests writing Several domains

Hardware discovery Network management Power management

High level API: make developers life easier

Kevin Ottens — The Qt and KDE Frameworks:An Overview 73/83

slide-86
SLIDE 86

Outline Introduction Overview Develop with Qt Develop with KDE

Hardware discovery (1/2)

What’s good in there?

Principles The system has Devices, each one having a unique identifier Devices are organized in a hierarchy Each Device has interfaces of different types The set of DeviceInterfaces from a Device describes what the device can do Notifications Solid::DeviceNotifier::deviceAdded(QString) Solid::DeviceNotifier::deviceRemoved(QString)

Kevin Ottens — The Qt and KDE Frameworks:An Overview 74/83

slide-87
SLIDE 87

Outline Introduction Overview Develop with Qt Develop with KDE

Hardware discovery (2/2)

What’s good in there?

Find devices Solid::Device::allDevices() Solid::Device::devicesFromType() Solid::Device::devicesFromQuery() QList<Solid::Device> all = Solid::Device::allDevices();

Kevin Ottens — The Qt and KDE Frameworks:An Overview 75/83

slide-88
SLIDE 88

Outline Introduction Overview Develop with Qt Develop with KDE

Hardware discovery (2/2)

What’s good in there?

Find devices Solid::Device::allDevices() Solid::Device::devicesFromType() Solid::Device::devicesFromQuery() QList<Solid::Device> processors = Solid::Device::listFromType( Solid::DeviceInterface::Processor);

Kevin Ottens — The Qt and KDE Frameworks:An Overview 75/83

slide-89
SLIDE 89

Outline Introduction Overview Develop with Qt Develop with KDE

Hardware discovery (2/2)

What’s good in there?

Find devices Solid::Device::allDevices() Solid::Device::devicesFromType() Solid::Device::devicesFromQuery() QList<Solid::Device> usbDrives = Solid::Device::listFromQuery( "StorageDrive.bus == ’Usb’");

Kevin Ottens — The Qt and KDE Frameworks:An Overview 75/83

slide-90
SLIDE 90

Outline Introduction Overview Develop with Qt Develop with KDE

Hardware discovery (2/2)

What’s good in there?

Find devices Solid::Device::allDevices() Solid::Device::devicesFromType() Solid::Device::devicesFromQuery() Manipulate devices Solid::Device::is<T>() Solid::Device::as<T>() Solid::Device dev = ... if (dev.is<Solid::Processor>()) { ...

Kevin Ottens — The Qt and KDE Frameworks:An Overview 75/83

slide-91
SLIDE 91

Outline Introduction Overview Develop with Qt Develop with KDE

Hardware discovery (2/2)

What’s good in there?

Find devices Solid::Device::allDevices() Solid::Device::devicesFromType() Solid::Device::devicesFromQuery() Manipulate devices Solid::Device::is<T>() Solid::Device::as<T>() Solid::Device dev = ... if (dev.is<Solid::Camera>()) { QVariant handle = dev.as<Solid::Camera>()->driverHandle(); ...

Kevin Ottens — The Qt and KDE Frameworks:An Overview 75/83

slide-92
SLIDE 92

Outline Introduction Overview Develop with Qt Develop with KDE

Hardware discovery (2/2)

What’s good in there?

Find devices Solid::Device::allDevices() Solid::Device::devicesFromType() Solid::Device::devicesFromQuery() Manipulate devices Solid::Device::is<T>() Solid::Device::as<T>() Demo, ”storage-plug” (94 lines)

Kevin Ottens — The Qt and KDE Frameworks:An Overview 75/83

slide-93
SLIDE 93

Outline Introduction Overview Develop with Qt Develop with KDE

Network and Energy

Tree and Exhaustion

Solid::Networking status() / statusChanged() shouldConnect() / shouldDisconnect() Solid::Powermanagement appShouldConserveResources() requestSleep() begin/stopSuppressSleep()

Kevin Ottens — The Qt and KDE Frameworks:An Overview 76/83

slide-94
SLIDE 94

Outline Introduction Overview Develop with Qt Develop with KDE

Network and Energy

Tree and Exhaustion

Solid::Networking status() / statusChanged() shouldConnect() / shouldDisconnect() Solid::Powermanagement appShouldConserveResources() requestSleep() begin/stopSuppressSleep()

Kevin Ottens — The Qt and KDE Frameworks:An Overview 76/83

slide-95
SLIDE 95

Outline Introduction Overview Develop with Qt Develop with KDE

Network and Energy

Tree and Exhaustion

Solid::Networking status() / statusChanged() shouldConnect() / shouldDisconnect() Solid::Powermanagement appShouldConserveResources() requestSleep() begin/stopSuppressSleep()

Kevin Ottens — The Qt and KDE Frameworks:An Overview 76/83

slide-96
SLIDE 96

Outline Introduction Overview Develop with Qt Develop with KDE

Network and Energy

Tree and Exhaustion

Solid::Networking status() / statusChanged() shouldConnect() / shouldDisconnect() Solid::Powermanagement appShouldConserveResources() requestSleep() begin/stopSuppressSleep()

Kevin Ottens — The Qt and KDE Frameworks:An Overview 76/83

slide-97
SLIDE 97

Outline Introduction Overview Develop with Qt Develop with KDE

Network and Energy

Tree and Exhaustion

Solid::Networking status() / statusChanged() shouldConnect() / shouldDisconnect() Solid::Powermanagement appShouldConserveResources() requestSleep() begin/stopSuppressSleep()

Kevin Ottens — The Qt and KDE Frameworks:An Overview 76/83

slide-98
SLIDE 98

Outline Introduction Overview Develop with Qt Develop with KDE

Outline

4 Develop with KDE

Build system: CMake kdecore & kdeui KParts KIO Phonon Solid Plasma

Kevin Ottens — The Qt and KDE Frameworks:An Overview 77/83

slide-99
SLIDE 99

Outline Introduction Overview Develop with Qt Develop with KDE

Plasma

An environment adapted to your needs

Identity Leader: Aaron Seigo Goal: Make the desktop elegant, and improve the human/computer interactions Technical details Kicker + KDesktop + SuperKaramba = Plasma ”Plasma Engine” proposing a set of services ”Plasmoids” writable using different languages

C++ and ECMAScript supported out of the box potentially Ruby, Python and Java on demand

One ”plasmoid”, two forms

Kevin Ottens — The Qt and KDE Frameworks:An Overview 78/83

slide-100
SLIDE 100

Outline Introduction Overview Develop with Qt Develop with KDE

And now?

Kevin Ottens — The Qt and KDE Frameworks:An Overview 79/83

slide-101
SLIDE 101

Outline Introduction Overview Develop with Qt Develop with KDE

A few hints on contributing to KDE

We want you !

Why? Build a network Improve your skills Obtain the best out of the project How?

Write code Make donations Use your artistical talents Write documentation Translate! Evangelize Help other users Ask for it... use it

Kevin Ottens — The Qt and KDE Frameworks:An Overview 80/83

slide-102
SLIDE 102

Outline Introduction Overview Develop with Qt Develop with KDE

Websites (Qt)

For geeks attached to their keyboard

Trolltech http://www.trolltech.com Trolltech’s Online Reference Documentation http://doc.trolltech.com QtCentre: The Ultimate Qt Community site http://www.qtcentre.org Trolltech Labs http://labs.trolltech.com

Kevin Ottens — The Qt and KDE Frameworks:An Overview 81/83

slide-103
SLIDE 103

Outline Introduction Overview Develop with Qt Develop with KDE

Websites (KDE)

For geeks attached to their keyboard

KDE http://www.kde.org KDE Techbase http://techbase.kde.org KDE.News a.k.a ”the Dot” http://dot.kde.org KDE-Apps: Applications for your KDE desktop http://www.kde-apps.org Planet KDE http://planetkde.org

Kevin Ottens — The Qt and KDE Frameworks:An Overview 82/83

slide-104
SLIDE 104

Outline Introduction Overview Develop with Qt Develop with KDE

Questions?

Kevin Ottens

ervin@kde.org

Kevin Ottens — The Qt and KDE Frameworks:An Overview 83/83
