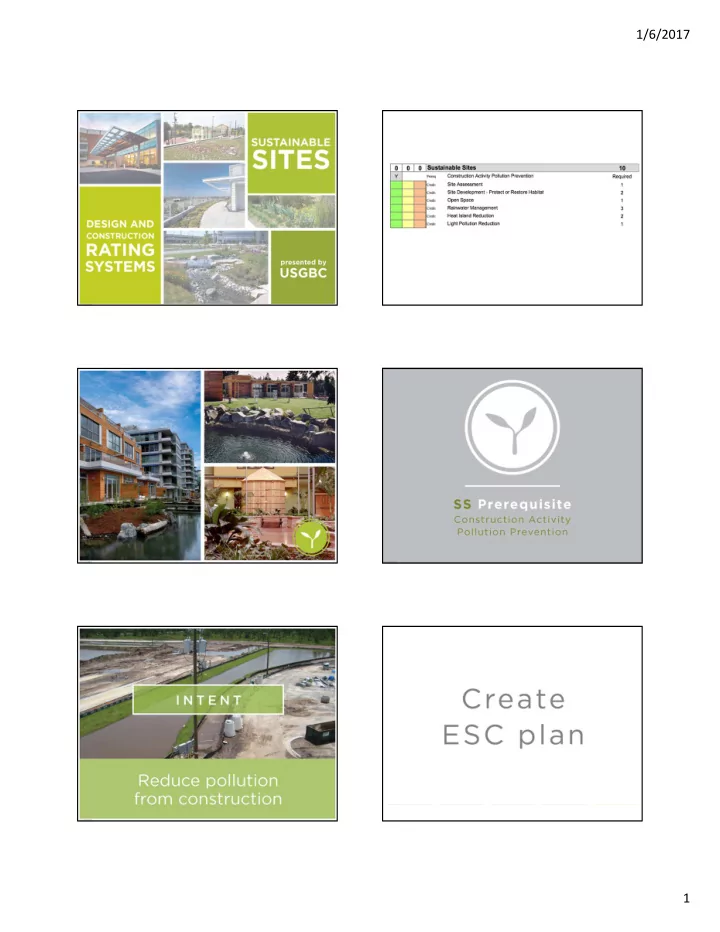

1/6/2017 1 1/6/2017 2 1/6/2017 SS PREREQ CONSTRUCTION ACTIVITY POLLUTION PREVENTION o Sites disturbing 1 acre or more: EPA (MoDNR) require a SWPPP & NPDES General Construction Permit. o Sites that disturb less than 1 acre: To meet
SLIDE 2
SLIDE 3
1/6/2017 3
SS PREREQ
CONSTRUCTION ACTIVITY POLLUTION PREVENTION
- Sites disturbing 1 acre or more: EPA (MoDNR) require
a SWPPP & NPDES General Construction Permit.
- Sites that disturb less than 1 acre: To meet LEED, must
develop a SWPPP for sites but do not need to get an NPDES permit.
- StormWater Pollution Prevention Plans
- National Pollutant Discharge Elimination System
SLIDE 4
1/6/2017 4
Site Assessment should address:
- Topography
- Hydrogeology
- Climate
- Vegetation
- Soils
- Human use
- Human health effects
SLIDE 5
1/6/2017 5
SLIDE 6
1/6/2017 6
SLIDE 7
1/6/2017 7
May exclude vegetated landscape areas constructed to accommodate rainwater infiltration
SLIDE 8
1/6/2017 8
Land Trust Requirements
- Within the same EPA Level III
ecoregion or the project’s state
- Accredited by the Land Trust
Alliance
- Calculated based on total site area
SLIDE 9
1/6/2017 9
Open Space Requirements
- Paving/turf area with physical site elements
that accommodate social activities
- Turf/paving that encourage physical activity
- Garden with year-round visual interest
- Garden for community or food production
- Habitat that meets requirements of SS credit
Site Development and includes elements of human interaction
- Wetland or natural ponds <1:4 Slopes
SLIDE 10
1/6/2017 10
SS CREDIT 3 SITE DEV – OPEN SPACE
OPEN SPACE CAN BE… …pedestrian paving or turf with elements that accommodate social activities.
SS CREDIT 3 SITE DEV – OPEN SPACE
OPEN SPACE CAN BE… …pedestrian paving or turf with elements that accommodate social activities.
SS CREDIT 3 SITE DEV – OPEN SPACE
OPEN SPACE CAN BE… …paving or turf with site elements that encourage physical activity.
SS CREDIT 3 SITE DEV – OPEN SPACE
OPEN SPACE CAN BE… …a garden with diversity and year-round interest.
SS CREDIT 3 SITE DEV – OPEN SPACE
OPEN SPACE CAN BE…
…garden space dedicated to community gardens or urban food production.
SS CREDIT 3 SITE DEV – OPEN SPACE
OPEN SPACE CAN BE… …preserved or created habitat, including wetlands and ponds with 1:4 vegetated side slopes.
SLIDE 11
1/6/2017 11
SS CREDIT 3 SITE DEV – OPEN SPACE
OPEN SPACE CAN BE… …preserved or created habitat, including wetlands and ponds with 1:4 vegetated side slopes.
SS CREDIT 3 SITE DEV – OPEN SPACE
OPEN SPACE CAN’T BE… NO!
SLIDE 12
1/6/2017 12
SLIDE 13
1/6/2017 13
SLIDE 14
1/6/2017 14
SLIDE 15
1/6/2017 15
Roof Measures
Use three-year aged SRI value from Table 1 (if not available then use Initial SRI)
ROOF MEASURES
SS CREDIT 5 HEAT ISLAND REDUCTION
<2:12 SRI 82/64* >2:12 SRI 39/32*
* 3-year aged SRi/initial SRi
SS CREDIT 5 HEAT ISLAND REDUCTION
SOLAR REFLECTANCE (SR) The fraction of solar energy (light) that is reflected by a surface on a scale of 0 to 1. THERMAL EMITTANCE (TE) Ability of a material to shed infrared radiation (heat). Values between 0 and 100% SOLAR REFLECTANCE INDEX (SRI) A measure of a constructed surface’s ability to stay cool in the sun - High SR and TE. How to get values…
- SR and TE values from the CRRC-1 www.coolroofs.com
- ASTM E 1980 gives SRI calculations, and there’s an app
for that too!
- Manufacturer’s are making products to meet the LEED
requirements, and publishing data.
SLIDE 16
1/6/2017 16
Nonroof Measures
- Shade calculated within 10 years of planting
- Use thee-year aged Solar Reflectance SR value
- f 0.28.
- If aged value not available then use SR of 0.33
at installation.
SS CREDIT 5 HEAT ISLAND REDUCTION
NON-ROOF …in 10 years solar or wind 50% open SR 0.28/0.33* Wisteria et al. SR 0.28/0.33*
* 3-year aged SR/initial SR
SLIDE 17
1/6/2017 17
SLIDE 18
1/6/2017 18
SS CREDIT 6 LIGHT POLLUTION REDUCTION
www.maproomblog.com
SS CREDIT 6 LIGHT POLLUTION REDUCTION
iusustain.wordpress.com
SS CREDIT 6 LIGHT POLLUTION REDUCTION
UPLIGHT Light directed towards sky created artificial sky glow BACKLIGHT Light onto adjacent sites by directing light in the opposite direction of the area needing to be lighted. GLARE Caused by direct views of lamps.
iusustain.wordpress.com LEED credit library
SLIDE 19
1/6/2017 19
SLIDE 20
1/6/2017 20
SLIDE 21
1/6/2017 21
Photo by Michael Lyon
SLIDE 22
1/6/2017 22
SLIDE 23
1/6/2017 23
Photo courtesy of Women and Infants Hospital
