Yale, Beinecke Osborn MS fa1 Some Results and Comparisons from Multispectral Imaging Barbara A. Shailor Yale University Osborn fa1, f. 140r Osborn fa1, f. 6r Spectral Annotation { "originalImage" : "ellesmere_1r.exr",

slide-1
SLIDE 1

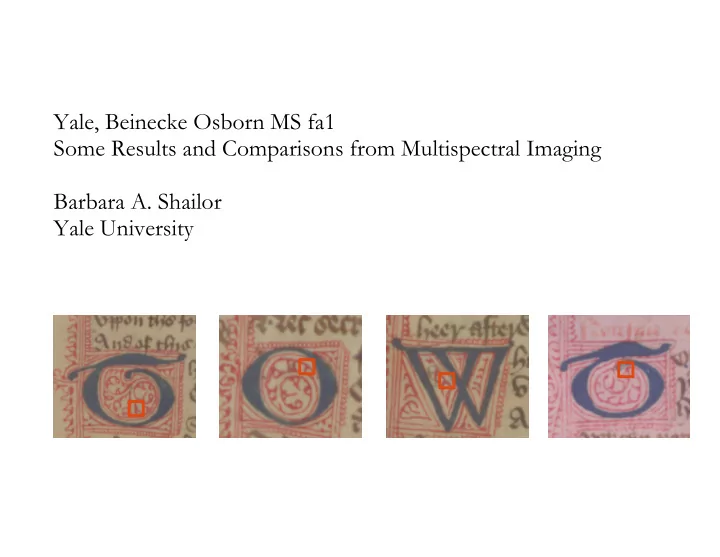

Yale, Beinecke Osborn MS fa1 Some Results and Comparisons from Multispectral Imaging Barbara A. Shailor Yale University

slide-2
SLIDE 2

Osborn fa1, f. 140r

slide-3
SLIDE 3

Osborn fa1, f. 6r

slide-4
SLIDE 4
slide-5
SLIDE 5
slide-6
SLIDE 6

Spectral Annotation

{ "originalImage" : "ellesmere_1r.exr", "spectralImage" : "ellesmere_1r_692_2859_norm.png", "sampleLocation" : { "x":692, "y":2859, }, "samples" : { "wavelength" : "nm", "reflectance" : "", "normalized" : true, "values" : { "370" : 0.10791, "417" : 0.127197, "475" : 0.134155, "525" : 0.0910645, "585" : 0.245117, "628" : 0.397705, "675" : 0.507324, "755" : 0.652344 } }, "creatingApplication" : { "name" : "Hyper3D", "version" : ".....", }, "comment" : "Orange in illuminated W", }

slide-7
SLIDE 7

Blue flourished - Similar spectra

YaleGower - 1r YaleGower - 13r > A flat signal in violet/cyan channels, and a flat part from green to red

slide-8
SLIDE 8

Yale Gower Rubrication vs Flourishing

> Same red between rubrication and flourishing

slide-9
SLIDE 9

Gower – Trinity R.3.2

  • Tri. R.3.2 – 6r
slide-10
SLIDE 10

Gower – Trinity R.3.2

  • Tri. R.3.2 – 10r
slide-11
SLIDE 11

Gower – Trinity R.3.2

  • Tri. R.3.2 – 53r
slide-12
SLIDE 12

Yale Gower

Yale Gower – 7v

slide-13
SLIDE 13

Gower – Trinity R.3.2 Red 1-line flourished initial

  • Tri. R.3.2 – 10r

> Same red

  • Tri. R.3.2 – 6r
  • Tri. R.3.2 – 53r
slide-14
SLIDE 14

Gower – Trinity R.3.2 1-line initial flourishing

  • Tri. R.3.2 – 10r

> Same “color”

  • Tri. R.3.2 – 6r
slide-15
SLIDE 15

Gower – Trinity R.3.2 Red 3-line blue flourished initial

  • Tri. R.3.2 – 10r

> Same red

  • Tri. R.3.2 – 6r
  • Tri. R.3.2 – 53r

Yale Gower – 7v

slide-16
SLIDE 16

Gower – Trinity R.3.2 Blue 3-line blue flourished initial

  • Tri. R.3.2 – 10r

> Same red between 6r and 10r > 10r and 53r are very similar – 53r has a little bit less “violet” and “cyan” > Yale Gower has different spectra

  • Tri. R.3.2 – 6r
  • Tri. R.3.2 – 53r

Yale Gower – 7v

slide-17
SLIDE 17

Gower – Trinity R.3.2 Flourishing in gold initials

Trinity R.3.2 – 3r Trinity R.3.2 – 9r > 3r vs 9r → less intensity from cyan to orange → bigger difference between red and infra-red signals

slide-18
SLIDE 18

Flourishing: purple? lavender? grey/blue?

Elle 1r Elle 63r Elle 151v Elle 153r

slide-19
SLIDE 19

Gower – Trinity R.3.2 Ink

Trinity R.3.2 – 3r Trinity R.3.2 – 9r > Very similar inks

slide-20
SLIDE 20

Gower – Trinity R.3.2

  • Tri. R.3.2 – 34v
  • Tri. R.3.2 – 34v

> Same ink

  • Tri. R.3.2 – 34v
slide-21
SLIDE 21

Gower – Trinity R.3.2

  • Tri. R.3.2 – 37v
  • Tri. R.3.2 – 37v

> Same ink > A little bit more red in the right spectra

  • Tri. R.3.2 – 37v
