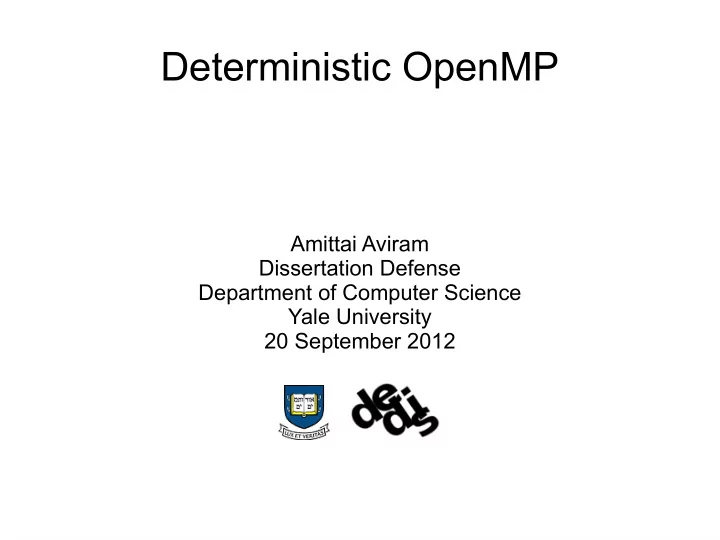

Deterministic OpenMP

Amittai Aviram Dissertation Defense Department of Computer Science Yale University 20 September 2012

slide-2

SLIDE 2

20 September 2012 Amittai Aviram | Yale University CS 2

Committee

Bryan Ford, Yale University, Advisor
Zhong Shao, Yale University
Ramakrishna Gummadi, Yale University
Emery Berger, University of Massachusetts-

Amherst

slide-3

SLIDE 3

20 September 2012 Amittai Aviram | Yale University CS 3

The Big Picture

OpenMP is a well-established annotation

language to parallelize source code

Deterministic OpenMP (DOMP) is our new

version of OpenMP

– Guarantees the same results for the same input – Enforces a deterministic programming model – Catches concurrency bugs –

slide-4

SLIDE 4

20 September 2012 Amittai Aviram | Yale University CS 4

Unordered Memory Accesses

?

y == 0 y == 2

? ?

x = 1 x ==1 x == 2 x = 2 x = 2 y = x x == 2 x == 1 x == 2 lock x++ unlock x = 0 lock x*=2 unlock x = 0

slide-5

SLIDE 5

20 September 2012 Amittai Aviram | Yale University CS 5

A lock(x) x := x + 2 unlock(x) B lock(x) x := x * 3 unlock(x) Accesses remained unordered But I got the right answer on 1,000,000 test runs ... HEISENBUG That's 'cause B happened to go first — until now!

slide-6

SLIDE 6

20 September 2012 Amittai Aviram | Yale University CS 6

Determinism

program : input → (output, behavior)
Results are as if memory accesses are always
rdered
Bugs are always reproducible
Reproduce computations exactly
Byzantine fault tolerance
Accountability systems
Addressing timing channel attacks

slide-7

SLIDE 7

20 September 2012 Amittai Aviram | Yale University CS 7

Two Approaches

Run any parallel program deterministically, even a racy

ne.

Impose a deterministic schedule on the program.

slide-8

SLIDE 8

20 September 2012 Amittai Aviram | Yale University CS 8

Two Approaches

Run any parallel program deterministically, even a racy

ne.

Impose a deterministic schedule on the program. Run only deterministic programs. Enforce a deterministic programming model.

slide-9

SLIDE 9

20 September 2012 Amittai Aviram | Yale University CS 9

Two Approaches

Run any parallel program deterministically, even a racy

ne.

Impose a deterministic schedule on the program. Run only deterministic programs. Enforce a deterministic programming model. Potentially useful but can be problematic

slide-10

SLIDE 10

20 September 2012 Amittai Aviram | Yale University CS 10

Two Approaches

Run any parallel program deterministically, even a racy

ne.

Impose a deterministic schedule on the program. Run only deterministic programs. Enforce a deterministic programming model. Determinator OS (OSDI '10) Potentially useful but can be problematic

slide-11

SLIDE 11

20 September 2012 Amittai Aviram | Yale University CS 11

Two Approaches

Run any parallel program deterministically, even a racy

ne.

Impose a deterministic schedule on the program. Run only deterministic programs. Enforce a deterministic programming model. DOMP Determinator OS (OSDI '10) Potentially useful but can be problematic

slide-12

SLIDE 12

20 September 2012 Amittai Aviram | Yale University CS 12

DOMP Semantics

Based on familiar OpenMP API
Excludes nondeterministic OpenMP constructs

(critical, atomic, flush)

Extends OpenMP: generalized reduction

construct

Implements a strict deterministic programming

model

slide-13

SLIDE 13

20 September 2012 Amittai Aviram | Yale University CS 13

But can programmers really use a deterministic programming model?

slide-14

SLIDE 14

20 September 2012 Amittai Aviram | Yale University CS 14

Our Analysis

Analyzed standard parallel benchmarks
Counted instances of synchronization

constructs

Deterministic (fork, join, barrier)
Nondeterministic (mutex locks, condition variables,

etc.)

Classified nondeterministic instances by use

(idiom)

slide-15

SLIDE 15

20 September 2012 Amittai Aviram | Yale University CS 15

We found …

Programmers usually (74%) use nondeterministic primitives to build deterministic higher-level idioms for which the language lacks direct expression.

Work Sharing Idioms 8.44% Reduction Idioms 35.71% Pipeline Idioms 10.06% Task Queue Idioms 11.04% Legacy 9.09% Nondeterministic 25.65%

slide-16

SLIDE 16

20 September 2012 Amittai Aviram | Yale University CS 16

Making Determinism Accessible

OpenMP API
User library for Linux
Replacement for GCC's OpenMP support

library (libgomp)

Often a drop-in replacement for libgomp

slide-17

SLIDE 17

20 September 2012 Amittai Aviram | Yale University CS 17

Making Determinism Accessible

OpenMP API
User library for Linux
Replacement for GCC's OpenMP support

library (libgomp)

Often a drop-in replacement for libgomp

OUR GOAL

slide-18

SLIDE 18

20 September 2012 Amittai Aviram | Yale University CS 18

Outline

The Big Picture √
Background
Analysis
Design and Semantics
Implementation
Evaluation
Conclusion

slide-19

SLIDE 19

20 September 2012 Amittai Aviram | Yale University CS 19

Outline

The Big Picture √
Background
Analysis
Design and Semantics
Implementation
Evaluation
Conclusion

slide-20

SLIDE 20

20 September 2012 Amittai Aviram | Yale University CS 20

Single-Assignment Languages

Dataflow languages
Parallel Haskell
Concurrency Collections (CnC)

slide-21

SLIDE 21

20 September 2012 Amittai Aviram | Yale University CS 21

Single-Assignment Languages

Dataflow languages
Parallel Haskell
Concurrency Collections (CnC)

No data races

slide-22

SLIDE 22

20 September 2012 Amittai Aviram | Yale University CS 22

Single-Assignment Languages

Dataflow languages
Data Parallel Haskell
Concurrency Collections (CnC)

No data races Deterministic

slide-23

SLIDE 23

20 September 2012 Amittai Aviram | Yale University CS 23

Single-Assignment Languages

Dataflow languages
Data Parallel Haskell
Concurrency Collections (CnC)

No data races Deterministic UNFAMILIAR

slide-24

SLIDE 24

20 September 2012 Amittai Aviram | Yale University CS 24

Single-Assignment Languages

Dataflow languages
Data Parallel Haskell
Concurrency Collections (CnC)

No data races Deterministic UNFAMILIAR Rewrite legacy code

slide-25

SLIDE 25

20 September 2012 Amittai Aviram | Yale University CS 25

Deterministic Imperative Languages

SHIM
Message passing
Deterministic Parallel Java (DPJ)
Programmer annotates data with effect classes

slide-26

SLIDE 26

20 September 2012 Amittai Aviram | Yale University CS 26

Deterministic Imperative Languages

SHIM
Message passing
Deterministic Parallel Java (DPJ)
Programmer annotates data with effect classes

slide-27

SLIDE 27

20 September 2012 Amittai Aviram | Yale University CS 27

Record-and-Replay Systems

Instant Replay (1987)
Recap (1988)
DejaVu (1998)
ReVirt (2002)
Many others

slide-28

SLIDE 28

20 September 2012 Amittai Aviram | Yale University CS 28

Record-and-Replay Systems

Instant Replay (1987)
Recap (1988)
DejaVu (1998)
ReVirt (2002)
Many others

SLOW

slide-29

SLIDE 29

20 September 2012 Amittai Aviram | Yale University CS 29

Record-and-Replay Systems

Instant Replay (1987)
Recap (1988)
DejaVu (1998)
ReVirt (2002)
Many others

SLOW

OR -

Require special hardware

$$$

slide-30

SLIDE 30

20 September 2012 Amittai Aviram | Yale University CS 30

Deterministic Schedulers

DMP
CoreDet
Grace
Dthreads
Kendo
Orders lock acquisitions only
Racy programs remain nondeterministic
Tern
Memoizes and re-uses schedules

slide-31

SLIDE 31

20 September 2012 Amittai Aviram | Yale University CS 31

Dedeterministic Scheduling

Thread A Thread B non-conflicting accesses conflicting accesses conflicting accesses non-conflicting accesses ... parallel sequential parallel

slide-32

SLIDE 32

20 September 2012 Amittai Aviram | Yale University CS 32

Schedule Dependency

x = 42; // Thread A: { if (input_is_typical) do_a_lot(); x++; } // Thread B: { do_a_little(); x++; }

slide-33

SLIDE 33

20 September 2012 Amittai Aviram | Yale University CS 33

Schedule Dependency

x = 42; // Thread A: { if (input_is_typical) do_a_lot(); x++; } // Thread B: { do_a_little(); x++; } Thread A t1 ← input_is_typical jump_zero t1 L1 call do_a_lot ... ... ... ... ret L1: t1 ← x add t1 1 x ← t1

...

Thread B call do_a_little ret t2 ← x add t2 1 x ← t2 parallel

Q n Qn+1

parallel

Qn+2 Qn+1

parallel

slide-34

SLIDE 34

20 September 2012 Amittai Aviram | Yale University CS 34

Schedule Dependency

x = 42; // Thread A: { if (input_is_typical) do_a_lot(); x++; } // Thread B: { do_a_little(); x++; } Thread A t1 ← input_is_typical jump_zero t1 L1 call do_a_lot ret L1: t1 ← x add t1 1 x ← t1 Thread B call do_a_little ret t2 ← x add t2 1 x ← t2 parallel

Q n Qn+1

parallel

Qn+2 Qn+1

serial

slide-35

SLIDE 35

20 September 2012 Amittai Aviram | Yale University CS 35

Determinator OS

slide-36

SLIDE 36

20 September 2012 Amittai Aviram | Yale University CS 36

Determinator OS

Deterministic programming model Limited API Unconventional OS

slide-37

SLIDE 37

20 September 2012 Amittai Aviram | Yale University CS 37

Deterministic OpenMP (DOMP)

Familiar, expressive OpenMP API
Includes almost all constructs
Excludes nondeterministic constructs
atomic, critical, flush
Extends OpenMP with generalized reduction
Enforces deterministic parallel programming model

(like Determinator)

User library for Linux
Works with GCC

slide-38

SLIDE 38

20 September 2012 Amittai Aviram | Yale University CS 38

Outline

The Big Picture √
Background √
Analysis
Design and Semantics
Implementation
Evaluation
Conclusion

slide-39

SLIDE 39

20 September 2012 Amittai Aviram | Yale University CS 39

Outline

The Big Picture √
Background √
Analysis
Design and Semantics
Implementation
Evaluation
Conclusion

slide-40

SLIDE 40

20 September 2012 Amittai Aviram | Yale University CS 40

How easily could real programs conform to DOMP's deterministic programming model?

slide-41

SLIDE 41

20 September 2012 Amittai Aviram | Yale University CS 41

Method

Used three parallel benchmark suites
SPLASH2, NPB-OMP, PARSEC
Total 35 benchmarks
Hand-counted instances of synchronization

constructs

Recorded instances of deterministic constructs
Classified and recorded instances of

nondeterminstic constructs by their use

slide-42

SLIDE 42

20 September 2012 Amittai Aviram | Yale University CS 42

Deterministic Constructs

Fork/join
Barrier
OpenMP work sharing constructs
Loop
Master
(Sections)
(Task)

slide-43

SLIDE 43

20 September 2012 Amittai Aviram | Yale University CS 43

Nondeterministic Constructs

Mutex lock/unlock
Condition variable wait/broadcast
(Semaphore wait/post)
OpenMP critical
OpenMP atomic
(OpenMP flush)

slide-44

SLIDE 44

20 September 2012 Amittai Aviram | Yale University CS 44

Use in Idioms

long ProcessId; /* Get unique ProcessId */ LOCK(Global->CountLock); ProcessId = Global->current_id++; UNLOCK(Global->CountLock); barnes (SPLASH2) Work sharing

slide-45

SLIDE 45

20 September 2012 Amittai Aviram | Yale University CS 45

Idioms

Work sharing
Reduction
Pipeline
Task queue
Legacy
Obsolete: Making I/O or heap allocation thread safe
Nondeterministic
Load balancing, random simulated interaction …

slide-46

SLIDE 46

20 September 2012 Amittai Aviram | Yale University CS 46

Work Sharing

LOOP

.. .

n iterations Thread Thread 1 Thread 2 Thread t 0...n/t-1 n/t...2n/t-1 2n/t...3n/t-1 (t-1)n/t...n-1 Task A Thread Task B Thread 1 Task C Thread 2 Task D Thread 3 “Data Parallelism”

cf. OpenMP LOOP work

sharing construct “Task Parallelism”

cf. OpenMP sections and

task work sharing constructs

slide-47

SLIDE 47

20 September 2012 Amittai Aviram | Yale University CS 47

Reduction

v0 v1 v2 v3 v4 v5 v6 v7 X (((((((((X * V0) * V1) * V2) * V3) * V4) * V5) * V6) * V7)

*

slide-48

SLIDE 48

20 September 2012 Amittai Aviram | Yale University CS 48

Reduction

v0 v1 v2 v3 v4 v5 v6 v7 X (((((((((X * V0) * V1) * V2) * V3) * V4) * V5) * V6) * V7)

*

Pthreads (low-level threading) has no reduction construct. OpenMP's reduction construct allows only scalar types and simple operations.

slide-49

SLIDE 49

20 September 2012 Amittai Aviram | Yale University CS 49

Pipeline

slide-50

SLIDE 50

20 September 2012 Amittai Aviram | Yale University CS 50

Pipeline

slide-51

SLIDE 51

20 September 2012 Amittai Aviram | Yale University CS 51

Task Queue

slide-52

SLIDE 52

20 September 2012 Amittai Aviram | Yale University CS 52

Idioms

Work sharing
Reduction
Pipeline
Task queue
Legacy
Obsolete: Making I/O or heap allocation thread safe
Nondeterministic
Load balancing, random simulated interaction …

DETERMINISTIC IDIOMS

slide-53

SLIDE 53

20 September 2012 Amittai Aviram | Yale University CS 53

SPLASH2

cean

water-spatial radix TOTAL fork/join 1 2 1 3 1 5 1 1 1 1 2 1 20 7% barrier 6 13 40 5 1 15 9 9 4 7 10 7 126 46% work sharing

0%

reduction

0%

work sharing 2 1 1 2 5 5 1 1 1 1 2 1 23 8% reduction 1 1 3 5

7

4

21

8% pipeline

3
2

5 2% task queue

7
2
9

3% legacy 1 15

6

1

1

4

28 10%

2 8

23

2 6

2
43 16%

barnes fmm radiosity raytrace volrend water-nsquared cholesky fft lu Deterministic Constructs Deterministic Idioms nondeterministic

slide-54

SLIDE 54

20 September 2012 Amittai Aviram | Yale University CS 54

NPB-OMP

BT CG DC EP FT IS LU MG SP UA TOTAL fork/join 12 7 1 3 8 7 12 11 13 60 134 25% barrier

8
1

4

13

2% work sharing 37 20

1

8 11 71 16 38 78 280 52% reduction

6
1

1

3

2

4

17 3% work sharing

0%

reduction 2

1

1

1

2

2

80 89 17% pipeline

5
5

1% task queue

0%

legacy

0%
0%

538

Deterministic Constructs Deterministic Idioms nondeterministic

slide-55

SLIDE 55

20 September 2012 Amittai Aviram | Yale University CS 55

PARSEC

ferret x264 TOTAL fork/join 2 5 2 1 13 7 1 3 1 2 1 5 5 48 23% barrier

14
3
1
34 52 25%

work sharing 2 5

21
28 14%

reduction

0%

work sharing

2
1
3

1% reduction

7
7

3% pipeline

17

4 21 10% task queue

14

9

2
25 12%

legacy

0%
15
6
21 10%

blackscholes bodytrack facesim fluidanimate freqmine raytrace swaptions vips canneal dedup streamcluster Deterministic Constructs Deterministic Idioms nondeterministic

slide-56

SLIDE 56

20 September 2012 Amittai Aviram | Yale University CS 56

Aggregate

Fork/Join 17.87% Barrier 14.79% Work Sharing Constructs 32.77% Reduction Constructs 1.81% Work Sharing Idioms 2.77% Reduction Idioms 11.70% Pipeline Idioms 3.30% Task Queue Idioms 3.62% Legacy 2.98% Nondeterministic 8.40%

slide-57

SLIDE 57

20 September 2012 Amittai Aviram | Yale University CS 57

OpenMP Benchmarks

All NPB-OMP plus PARSEC blackscholes, bodytrack, and freqmine.

Fork/Join 25.21% Barrier 2.21% Work Sharing 52.47% Simple Reductions 2.90% Reduction Idioms 16.35% Pipeline Idioms 0.85%

slide-58

SLIDE 58

20 September 2012 Amittai Aviram | Yale University CS 58

Nondeterministic Synchronization

Work Sharing Idioms 8.44% Reduction Idioms 35.71% Pipeline Idioms 10.06% Task Queue Idioms 11.04% Legacy 9.09% Nondeterministic 25.65%

slide-59

SLIDE 59

20 September 2012 Amittai Aviram | Yale University CS 59

Conclusions

Deterministic parallel programming model

compatible with many programs

Reductions can help increase the number

slide-60

SLIDE 60

20 September 2012 Amittai Aviram | Yale University CS 60

Outline

The Big Picture √
Background √
Analysis √
Design and Semantics
Implementation
Evaluation
Conclusion

slide-61

SLIDE 61

20 September 2012 Amittai Aviram | Yale University CS 61

Outline

The Big Picture √
Background √
Analysis √
Design and Semantics
Extended Reduction
Implementation
Evaluation
Conclusion

slide-62

SLIDE 62

20 September 2012 Amittai Aviram | Yale University CS 62

Foundations

Workspace consistency
Memory consistency model
Naturally deterministic synchronization
Working Copies Determinism
Programming model
Based on workspace consistency

slide-63

SLIDE 63

20 September 2012 Amittai Aviram | Yale University CS 63

“Parallel Swap” Example

x := 42 y := 33 (x,y) := (y,x) y := 33 barrier x := y y := x x := 42 Thread 0 Thread 1 x = y = 33 x = y = 42

slide-64

SLIDE 64

20 September 2012 Amittai Aviram | Yale University CS 64

Memory Consistency Model Communication Events

Acquire
Acquires access to a location in shared memory
Involves a read
Release
Enables access to a location in shared memory for
ther threads
Involves a write

slide-65

SLIDE 65

20 September 2012 Amittai Aviram | Yale University CS 65

Workspace Consistency

Pair each release with a determinate acquire
Delay visibility of updates until the next

synchronization event

WoDet '11

slide-66

SLIDE 66

20 September 2012 Amittai Aviram | Yale University CS 66

WC “Parallel Swap”

rel(1,1) rel(0,1) (0,0) (1,0) acq(1,0) acq(0,0) (0,1) (1,1) Thread 0 Thread 1

BARRIER

slide-67

SLIDE 67

20 September 2012 Amittai Aviram | Yale University CS 67

WC Fork/Join

rel(1,0) rel(2,0) rel(3,0) acq(0,0) acq(0,1) acq(0,2) acq(1,1) acq(2,1) acq(3,1) rel(0,3) rel(0,4) rel(0,5) (0,0) (0,1) (0,2) (0,3) (0,5) (0,4) (1,0) (1,1) (2,0) (2,1) (2,0) (3,0) (3,1) Thread 1 Thread 2 Thread 3 start start start exit exit exit compute compute compute compute Thread 0

FORK JOIN

slide-68

SLIDE 68

20 September 2012 Amittai Aviram | Yale University CS 68

WC Barrier

` (0,3) (0,5) (0,4) (1,1) (2,1) (3,1)

JOIN

(0,0) (0,1) (0,2) (1,0) (2,0) (2,0) (3,0)

FORK

Thread 0 acq(1,1) acq(2,1) acq(3,1) rel(1,0) rel(2,0) rel(3,0) Thread 1 rel(0,3)

BARRIER

acq(0,0) rel(0,4) acq(0,1) Thread 2 rel(0,5) acq(0,2) Thread 3

slide-69

SLIDE 69

20 September 2012 Amittai Aviram | Yale University CS 69

Kahn Process Network

Master Worker A Worker B Results R e s u l t s Tasks Tasks while (true) { send(new_task(), out_1); send(next_task(), out_2); result = wait(in_1); store(result); result = wait(in_2); store(result); }

ut1
ut2

in1 in2 in in

ut
ut

while(true) { task = receive(in); result = process(task); send(result, out); }

slide-70

SLIDE 70

20 September 2012 Amittai Aviram | Yale University CS 70

Nondeterministic Network

(For Contrast)

Master Worker A Worker B Tasks Tasks while(true) { result = receive(in); store(result); send(new_task(), out); } while(true) { task = receive(in); result = process(task); send(result, out); } mute x locks common channels

ut

in Results Results Tasks Results

ut
ut

in in

slide-71

SLIDE 71

20 September 2012 Amittai Aviram | Yale University CS 71

Working Copies Determinism

Shared memory Thread A Thread B A's writes B reads “old” values Join: merge changes Conflicting writes → ERROR! Fork: copy state B's writes

slide-72

SLIDE 72

20 September 2012 Amittai Aviram | Yale University CS 72

parent thread working copy

slide-73

SLIDE 73

20 September 2012 Amittai Aviram | Yale University CS 73

parent thread working copy FORK

slide-74

SLIDE 74

20 September 2012 Amittai Aviram | Yale University CS 74

FORK parent thread working copy working copy working copy working copy reference copy hide copy copy copy

slide-75

SLIDE 75

20 September 2012 Amittai Aviram | Yale University CS 75

FORK parent thread master thread 1 thread n-1 working copy working copy working copy working copy reference copy hide ... copy copy copy

slide-76

SLIDE 76

20 September 2012 Amittai Aviram | Yale University CS 76

FORK parent thread master thread 1 thread n-1 working copy working copy working copy working copy reference copy hide ... copy copy copy

slide-77

SLIDE 77

20 September 2012 Amittai Aviram | Yale University CS 77

FORK parent thread master thread 1 thread n-1 working copy working copy working copy working copy reference copy hide ... copy copy copy JOIN

slide-78

SLIDE 78

20 September 2012 Amittai Aviram | Yale University CS 78

FORK parent thread master thread 1 thread n-1 working copy working copy working copy working copy reference copy hide ... copy copy copy JOIN merge merge merge

slide-79

SLIDE 79

20 September 2012 Amittai Aviram | Yale University CS 79

FORK parent thread master thread 1 thread n-1 working copy working copy working copy working copy reference copy hide ... copy copy copy JOIN working copy merge merge merge release

slide-80

SLIDE 80

20 September 2012 Amittai Aviram | Yale University CS 80

FORK parent thread master thread 1 thread n-1 working copy working copy working copy working copy reference copy hide ... copy copy copy parent thread JOIN working copy merge merge merge release

slide-81

SLIDE 81

20 September 2012 Amittai Aviram | Yale University CS 81

DOMP API

Supports most OpenMP constructs
Parallel blocks
Work sharing
Simple (scalar-type) reductions
Excludes OpenMP's few nondeterministic

constructs

atomic, critical, flush
Extends OpenMP with a generalized reduction

slide-82

SLIDE 82

20 September 2012 Amittai Aviram | Yale University CS 82

Example

// Multiply an n x m matrix A by an m x p matrix B // to get an n x p matrix C. void matrixMultiply(int n, int m, int p, double ** A, double ** B, double ** C) { for (int i = 0; i < n; i++) for (int j = 0; j < p; j++) { C[i][j] = 0.0; for (int k = 0; k < m; k++) C[i][j] += A[i][k] * B[k][j]; } } SEQUENTIAL

slide-83

SLIDE 83

20 September 2012 Amittai Aviram | Yale University CS 83

Example

// Multiply an n x m matrix A by an m x p matrix B // to get an n x p matrix C. void matrixMultiply(int n, int m, int p, double ** A, double ** B, double ** C) { #pragma omp parallel for for (int i = 0; i < n; i++) for (int j = 0; j < p; j++) { C[i][j] = 0.0; for (int k = 0; k < m; k++) C[i][j] += A[i][k] * B[k][j]; } } Creates new threads, distributes work Joins threads to parent OpenMP

slide-84

SLIDE 84

20 September 2012 Amittai Aviram | Yale University CS 84

Example

// Multiply an n x m matrix A by an m x p matrix B // to get an n x p matrix C. void matrixMultiply(int n, int m, int p, double ** A, double ** B, double ** C) { #pragma omp parallel for for (int i = 0; i < n; i++) for (int j = 0; j < p; j++) { C[i][j] = 0.0; for (int k = 0; k < m; k++) C[i][j] += A[i][k] * B[k][j]; } } Creates new threads, distributes work + copies of shared state Merges copies

f shared vars into

parent's state and joins threads to parent DOMP

slide-85

SLIDE 85

20 September 2012 Amittai Aviram | Yale University CS 85

Extended Reduction

OpenMP's reduction is limited
Scalar types (no pointers!)
Arithmetic, logical, or bitwise operations
Benchmark programmers used

nondeterministic synchronization to compensate

slide-86

SLIDE 86

20 September 2012 Amittai Aviram | Yale University CS 86

Typical Workaround

do 155 i = 0, nq - 1 !$omp atomic q(i) = q(i) + qq(i) 155 continue In NPB-OMP EP (vector sum):

slide-87

SLIDE 87

20 September 2012 Amittai Aviram | Yale University CS 87

Typical Workaround

do 155 i = 0, nq - 1 !$omp atomic q(i) = q(i) + qq(i) 155 continue In NPB-OMP EP (vector sum): Nondeterministic programming model Unpredictable evaluation order

slide-88

SLIDE 88

20 September 2012 Amittai Aviram | Yale University CS 88

DOMP Reduction API

Binary operation op
Arbitrary, user-defined
Associative but not necessarily commutative
Identity object idty
Defined in contiguous memory
Reduction variable object var
Also defined in contiguous memory
Size in bytes of idty and var

slide-89

SLIDE 89

20 September 2012 Amittai Aviram | Yale University CS 89

DOMP Reduction API

Binary operation op
Associative but not necessarily commutative
Identity object idty
Defined in contiguous memory
Reduction variable object var
Also defined in contiguous memory
Size in bytes of idty and var

void domp_xreduction(void*(*op)(void*,void*), void** var, void* idty, size t size);

slide-90

SLIDE 90

20 September 2012 Amittai Aviram | Yale University CS 90

Why the Identity Object?

DOMP preserves OpenMP's guaranteed

sequential-parallel equivalence semantics

Each thread runs op on the rhs and idty
At merge time, each merging thread (“up-

buddy”) runs op on its own and the other thread's (the “down-buddy's”) version if var

The master thread runs op on the original var

and the cumulative var from merges.

slide-91

SLIDE 91

20 September 2012 Amittai Aviram | Yale University CS 91

DOMP Replacement

do 155 i = 0, nq - 1 !$omp atomic q(i) = q(i) + qq(i) 155 continue In NPB-OMP EP (vector sum): call xreduction_add(q_ptr, nq)

void xreduction_add_(void ** input, int * nq_val) {

nq = *nq_val; init_idty(); domp_xreduction(&add_, input, (void *)idty, nq * sizeof(double)); }

slide-92

SLIDE 92

20 September 2012 Amittai Aviram | Yale University CS 92

Desirable Future Extensions

Pipeline
Task Queue or Task Object

slide-93

SLIDE 93

20 September 2012 Amittai Aviram | Yale University CS 93

Desirable Future Extensions

Pipeline
Task Queue or Task Object

#pragma omp sections pipeline { while (more_work()) { #pragma omp section { do_step_a(); } #pragma omp section { do_step_b(); } /* ... */ #pragma omp section { do_step_n(); } } }

slide-94

SLIDE 94

20 September 2012 Amittai Aviram | Yale University CS 94

Outline

The Big Picture √
Background √
Analysis √
Design and Semantics √
Implementation
Evaluation
Conclusion

slide-95

SLIDE 95

20 September 2012 Amittai Aviram | Yale University CS 95

Outline

The Big Picture √
Background √
Analysis √
Design and Semantics √
Implementation
Evaluation
Conclusion

slide-96

SLIDE 96

20 September 2012 Amittai Aviram | Yale University CS 96

Stats

8 files in libgomp
~ 5600 LOC
Changes in gcc/omp-low.c and *.def files
To support deterministic simple reductions

slide-97

SLIDE 97

20 September 2012 Amittai Aviram | Yale University CS 97

Naive Merge Loop

for each data segment seg in (stack, heap, bss) for each byte b in seg writer = WRITER_NONE for each thread t if (seg[t][b]] ≠ reference_copy[b]) if (writer ≠ WRITER_NONE) race condition exception() writer = t seg[MASTER][b] = seg[writer][b]

slide-98

SLIDE 98

20 September 2012 Amittai Aviram | Yale University CS 98

Improvements

Copy on write (page granularity)
Merge or copy pages only as needed
Parallel merge (binary tree)
Thread pool

slide-99

SLIDE 99

20 September 2012 Amittai Aviram | Yale University CS 99

Binary Tree Merge

slide-100

SLIDE 100

20 September 2012 Amittai Aviram | Yale University CS 100

Binary Tree Merge

slide-101

SLIDE 101

20 September 2012 Amittai Aviram | Yale University CS 101

Limitations

Problem of granularity
False positive/false negative tradeoff
Scaling constraints and space inefficiency
Global bookkeeping data structures
Globally visible heaps (mapped files)
No nested parallelism

slide-102

SLIDE 102

20 September 2012 Amittai Aviram | Yale University CS 102

Outline

The Big Picture √
Background √
Analysis √
Design and Semantics √
Implementation √
Evaluation
Conclusion

slide-103

SLIDE 103

20 September 2012 Amittai Aviram | Yale University CS 103

Outline

The Big Picture √
Background √
Analysis √
Design and Semantics √
Implementation √
Evaluation
Conclusion

slide-104

SLIDE 104

20 September 2012 Amittai Aviram | Yale University CS 104

Performance

slide-105

SLIDE 105

20 September 2012 Amittai Aviram | Yale University CS 105

Speedup

slide-106

SLIDE 106

20 September 2012 Amittai Aviram | Yale University CS 106

Why Is IS So Bad?

Benchmark Max Pages Total Pages MatMult 24578 24578 Mandelbrot 1 1 BT 4 1911 DC 2 3 EP 3 4 IS 34778 90100 blackscholes 9768 9768 swaptions 677 677 FFT 5 5 LU-cont 7 7 LU-non-cont 7 7

slide-107

SLIDE 107

20 September 2012 Amittai Aviram | Yale University CS 107

Converting Nondeterministic Code

Total Module % MatMult 109 Mandelbrot 105 BT 3589 16 30 1 DC 2809 3 48 2 EP 228 16 30 20 IS 634 blackscholes 359 swaptions 1780 FFT 1504 LU-cont 2484 LU-non-cont 1890 DOMP Changes

slide-108

SLIDE 108

20 September 2012 Amittai Aviram | Yale University CS 108

Outline

The Big Picture √
Background √
Analysis √
Design and Semantics √
Implementation √
Evaluation √
Conclusion

slide-109

SLIDE 109

20 September 2012 Amittai Aviram | Yale University CS 109

Outline

The Big Picture √
Background √
Analysis √
Design and Semantics √
Implementation √
Evaluation √
Conclusion

slide-110

SLIDE 110

20 September 2012 Amittai Aviram | Yale University CS 110

Future Work

More flexible design for changing the size of the

thread pool at runtime

Pipeline construct
Task queue construct
Nested parallelism

slide-111

SLIDE 111

20 September 2012 Amittai Aviram | Yale University CS 111

In Conclusion …

Our analysis of benchmarks suggests that an

accessible support framework for a deterministic parallel programming model may have wide applicability.

Our experiments with DOMP suggest that such

accessible deterministic parallel programming can be efficient and easy to use for many programs.

slide-112

SLIDE 112

20 September 2012 Amittai Aviram | Yale University CS 112

Thank You

Bryan Ford
Ramakrishna Gummadi
Zhong Shao
Emery Berger
DeDiS Lab members
Family and friends
NSF Grant No. CNS-1017206.
