SLIDE 1

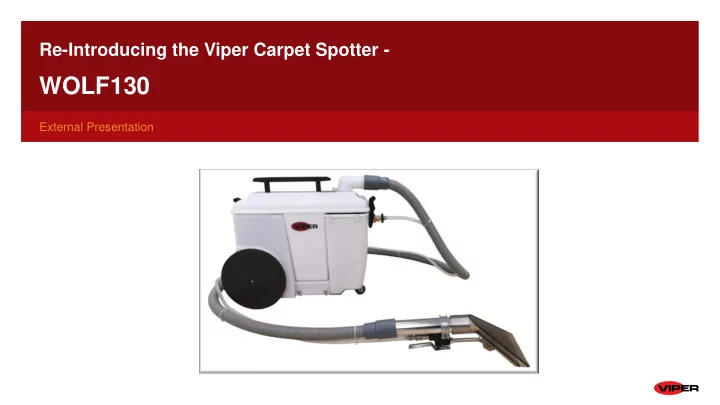

Re-Introducing the Viper Carpet Spotter -
WOLF130
External Presentation
2
WOLF130 External Presentation Launch Overview 2 Differences - - PowerPoint PPT Presentation
WOLF130 External Presentation Launch Overview 2 Differences - - PowerPoint PPT Presentation
Re-Introducing the Viper Carpet Spotter - WOLF130 External Presentation Launch Overview 2 Differences between New & Original Wolf Spotter Specification New Version WOLF130 Old Version Wolf Carpet Spotter Carpet Spotter Vacuum and
SLIDE 2
SLIDE 3
Differences between New & Original Wolf Spotter
Specification New Version WOLF130 Old Version Wolf Carpet Spotter Carpet Spotter
Vacuum and solution hose
10 foot length 8 foot length
Hand tool
4" stainless steel with plexiglas hand tool 3.5" plastic hand tool
Blue mesh drawstring bag for hose & tool storage
Standard n/a
Wheels and handle
Colored gloss black Colored red
Certification
CSA and CUSA safety certified Only Canadian model safety certified
SLIDE 4
4
➢ Clear hand tool for better view of soil/solution pickup and removal ➢ 10’ vacuum/solution hoses, with 4” rugged hand tool ➢ Removable recovery tank for easy empty and refill ➢ Built-in wheels for easy transport and storage ➢ Blue mesh, drawstring bag for storage of hoses and tools
Value Proposition
Engineered to deliver reliable spot cleaning through simple operation, convenient features and a durable design.
SLIDE 5
Key Benefits
Allows for fast and easy clean up of spills on carpet or rugs: Simple operation means very little operator training: Easy to transport to the location of the spill: Storage of the machine does not require a large space:
Key Features
The 4 inch hand tool makes quick work of removing spills or stain, and the clear Plexiglas nozzle make it easy to see the soil being removed. The powerful 2-stage vacuum motor, with 85 inches of waterlift, insure the carpet or rug is nearly dry after the spot is removed. The removeable recovery tank makes emptying simple and convenient. One switch controls the vacuum motor and pump power. The vacuum runs continuously, with the switch on, while the pump only operates when the spray trigger is pulled. The recovery tank is made of translucent white polyetylene, which makes it easy to see the level of dirty water. The WOLF130 is also equipped with a float mechanism inside the recovery tank to prevent dirty water from entering the vacuum. With (2) large 8 inch rear wheels and the center mounted front caster, the WOLF130 can be pulled to the spill location, or it can be carried using the built-in
- handle. Even with it’s 1 gallon capacity solution tank full, the weight of the machine
remains low. The small size (23.3 x 15.4 x 19.3 inches) make storage of the WOLF130
- convenient. The standard blue mesh, drawstring bag makes storing the hoses and
hand tool a breeze, while allowing them to stay dry, and odor free.
Key Product Features & Benefits
SLIDE 6
Technical Specifications
SLIDE 7
7
Machine Packages, Optional Accessories & Warranty
Model No. Optional Accessory Description
WAND 8 8 inch single spray tip floor wand VV67703A 15 foot vacuum hose for Wand 8 VV67704A 15 foot solution hose for Wand 8
Model No. Product Description
50000591 WOLF130 1-gal portable spotting extractor, 10' vac. (55940038) & 10'
- sol. (55940039) hoses, 4" hand tool
(VV81314), blue mesh storage bag (VVR150-12)
