SLIDE 1

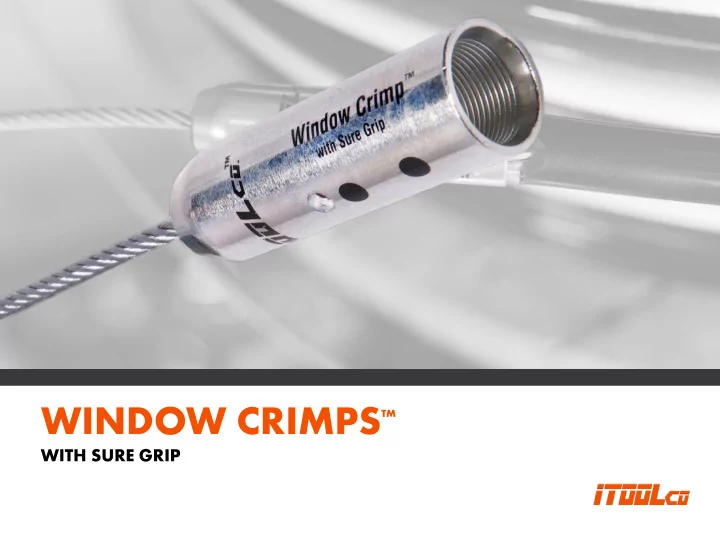

WINDOW CRIMPS™
WITH SURE GRIP
WINDOW CRIMPS
™ WITH SURE GRIP
FASTER Install in only three quick steps. SAFER Stronger connections are more secure. SMARTER Eliminate the guesswork
- f installing pulling heads.
WINDOW CRIMPS WITH SURE GRIP FASTER Install in only three quick - - PowerPoint PPT Presentation
WINDOW CRIMPS WITH SURE GRIP FASTER Install in only three quick - - PowerPoint PPT Presentation
WINDOW CRIMPS WITH SURE GRIP WINDOW CRIMPS WITH SURE GRIP FASTER Install in only three quick steps. SAFER Stronger connections are more secure. SMARTER Eliminate the guesswork of installing pulling heads. WINDOW CRIMPS
SLIDE 2
SLIDE 3
REVOLUTIONARY DESIGN “Window” allows for positive visual inspection of wire insertion before and after crimping. Installer always knows if the crimp head is secure and ready for a safe pull.
WINDOW CRIMPS
™ WITH SURE GRIP
REVOLUTIONARY DESIGN “Window” allows for positive visual inspection of wire insertion before and after crimping. Installer always knows the crimp head is secure and ready for a safe pull.
SLIDE 4
WINDOW CRIMPS
™ WITH SURE GRIP
STRONGER AND MORE FLEXIBLE Works with aluminum or copper conductors. Delivers a smoother wire pull when installed in a graduated pattern. Guaranteed when installed by an iTOOLco certified installer. Fits 8 AWG through 1000 Kcmil.
SLIDE 5
VERSATILITY Works best with iTOOLco’s WTC1000 Crimper. Compatible with any 12 ton crimper.
WINDOW CRIMPS
™ WITH SURE GRIP
SLIDE 6
Crimp Window provides visual confirmation of a secured pulling head. Strong Steel Construction provides added durability. Internal Threads
- ffer more surface
Area for crimping. Positioning Guides clearly mark exactly where to crimp
WINDOW CRIMPS
™ WITH SURE GRIP
Vast Assortment of Available Sizes to accommodate any job.
SLIDE 7
WINDOW CRIMPS
™ WITH SURE GRIP
BECOME A CERTIFIED WINDOW CRIMP INSTALLER Save your contractors time and money with pre-installed pulling heads.
SLIDE 8
EASY THREE STEP INSTALLATION
- 1. Strip the wire to allow full insertion into the head.
- 2. Insert the bare wire into the head past the window.
- 3. Crimp with a 12 ton crimper.
WINDOW CRIMPS
™ WITH SURE GRIP
Step 1 Step 2 Step 3
