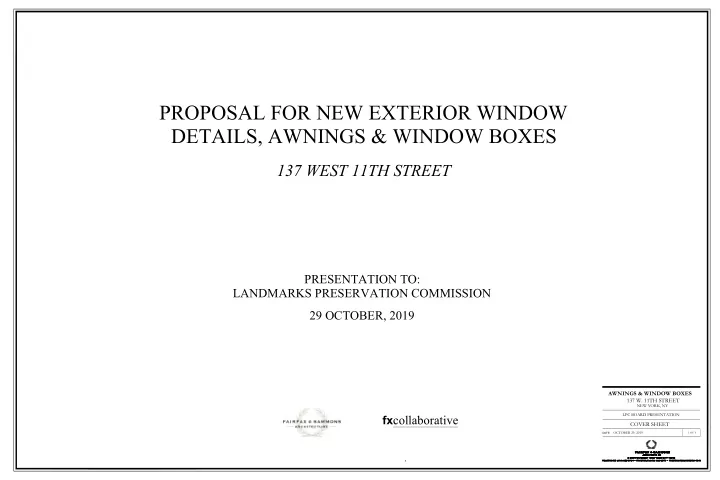

PROPOSAL FOR NEW EXTERIOR WINDOW DETAILS, AWNINGS & WINDOW BOXES 137 WEST 11TH STREET PRESENTATION TO: LANDMARKS PRESERVATION COMMISSION 29 OCTOBER, 2019 AWNINGS & WINDOW BOXES 137 W. 11TH STREET NEW YORK, NY LPC BOARD PRESENTATION
COVER SHEET
1
DATE:
OCTOBER 29, 2019
137 W. 11TH STREET
NEW YORK, NY
OF 5
LPC BOARD PRESENTATION
AWNINGS & WINDOW BOXES
3 BUILDING LOCATION
1" = 64'-0"
BUILDING LOCATION W 11TH STREET
SEVENTH AVENUE
SITE INFORMATION & PHOTOS
2
2 SITE PLAN
1/16"=1'-0"
SIDEWALK PLAN LOCATIONS OF PROPOSED WINDOW DETAILS/ BOXES WEST 11TH STREET 137 WEST 11TH STREET
A
A VIEW FROM SOUTHWEST
B
N O R T H W 12TH STREET
SIXTH AVENUE
22'-0" 70'-11"
G R E E N W I C H A V E N U E
W 11TH STREET THE GREENWICH LANE PROJECT
B VIEW FROM SOUTH C VIEW FROM SOUTHEAST
C
DATE:
OCTOBER 29, 2019
137 W. 11TH STREET
NEW YORK, NY
OF 5
LPC BOARD PRESENTATION
AWNINGS & WINDOW BOXES
SOUTH FACADE: EXTG. & PROPOSED
3
1 VIEW FROM SOUTHWEST: EXISTING 2 RENDERING FROM SOUTHWEST: PROPOSED 3 VIEW FROM SOUTH: EXISTING 4 RENDERING FROM SOUTH: PROPOSED 5 UPPER WINDOW RENDERING: PROPOSED
PREVIOUSLY APPROVED TERRACE AWNING: FABRIC CHANGING TO MATCH WINDOW AWNINGS; SUBJECT TO APPROVAL AT STAFF LEVEL NEW WINDOW DETAILS & BOXES AT FLOORS 2-4, SUBJECT TO APPROVAL BY BOARD VOTE NEW PAINT, LIGHT, HARDWARE AT FRONT DOOR; SUBJECT TO APPROVAL AT STAFF LEVEL NEW WINDOW DETAILS AT FLOORS 1-4; SUBJECT TO APPROVAL BY BOARD VOTE NEW WINDOW BOXES AT FLOORS 2-4; SUBJECT TO APPROVAL BY BOARD VOTE
6 FRONT DOOR
NEW PAINT, LIGHT AT FRONT DOOR; SUBJECT TO APPROVAL AT STAFF LEVEL
DATE:
OCTOBER 29, 2019
137 W. 11TH STREET
NEW YORK, NY
OF 5
LPC BOARD PRESENTATION
AWNINGS & WINDOW BOXES
NEW RETRACTABLE WINDOW AWNINGS AT FLOOR 1, PROJECTING 30 DEGREES; SUBJECT TO APPROVAL BY BOARD VOTE
PRECEDENTS
4
67 GANSEVOORT STREET 300 BLOCK - ELIZABETH STREET TOWNHOUSE 154 WEST 11TH STREET 155 WEST 12TH STREET
ATYPICAL LINTELS AWNINGS IN CLOSED AND OPEN POSITIONS BOXES AT SILL LEVEL BOXES BELOW SILL
DATE:
OCTOBER 29, 2019
137 W. 11TH STREET
NEW YORK, NY
OF 5
LPC BOARD PRESENTATION
AWNINGS & WINDOW BOXES
STUCCO LINTEL OVER HEADER COURSES PTD WOOD LINTELS JACK ARCH W/ STONE VOUSSOIRS FLUSH STONE LINTELS AT GROUND FLOOR PROUD STONE LINTELS ABOVE PTD WOOD LINTELS SOLDIER COURSE "STONE" LINTELS
154-158 WEST 11TH STREET 125-127 WEST 11TH STREET 33-37 GREENWICH AVENUE
STONE LINTELS
2 WINDOW DETAIL & WINDOW BOX PRECEDENT
ROUGH STONE LINTELS STONE/STUCCO LINTELS SOLDIER COURSE AWNINGS IN CLOSED & OPEN POSITIONS
108-112 WAVERLY PLACE
STONE & COPPER TRIM
HISTORIC DAVID ADLER HOUSE
1 PROPOSED WINDOWS AT FLOORS 2-4
1-1/2" = 1'-0"
SHOWS PROPOSED WINDOW DETAILS AND WINDOW BOXES PROPOSED WINDOW DETAILS AT FLOORS 2-4
3 MARKILUX SUNVAS #30915
COLOR FOR FABRIC ON FIRST FLOOR AWNINGS AND UPPER LEVEL WINDOW DETAILS
2 AWNING ATTACHMENT DTLS
TYPICAL ATTACHMENT DETAIL AT TOP OF WINDOW DETAILS & AWNINGS, OR SIMILAR
#14 X 1 1 2" HEX WASHER TEK SCREW IN STEEL WINDOW FRAME AT FLOORS 2-4, INTO STONE JOINT AS REQ'D AT FLOOR 1TYPICAL ATTACHMENT DETAIL AT SIDES OF AWNINGS & WINDOW DETAILS, OR SIMILAR
8 TYPICAL WINDOW BOX ATTACHMENT
3" = 1'-0" EXISTING MASONRY WALL NON-PERMANENT STEEL BOLT INTO MASONRY JOINT WINDOW BOXES ATTACHED TO MASONRY WALL ON METAL Z CLIPS PAINTED METAL WINDOW BOXES EXISTING SHUTTERS, TRACK, AND SILL
6 WINDOW BOX ATTACHMENT
3" = 1'-0" WINDOW BOXES CLIPPED & PINNED TO EXISTING METAL RAILING. NO NEW PENETRATIONS PAINTED METAL WINDOW BOXES EXISTING STEEL RAILING
WELDED MOUNTING TAB FOR 3 8 X 3" LAG INTO STEEL WINDOW FRAME AT FLOORS 2-4, AND INTO STONE JOINT AT FLOOR 1ATTACHMENT METHOD SIMILAR FOR WINDOW DETAILS AT UPPER FLOORS & FIRST FLOOR AWNINGS; FIRST FLOOR AWNINGS TO BE BOLTED INTO MASONRY JOINT, WINDOW DETAILS AT FLOORS 2-4 TO BE BOLTED INTO STEEL WINDOW FRAME RIGID FRAME BEHIND UPPER PORTION AS AT FIRST FLOOR AWNINGS LOOSE SKIRT/VALANCE AS AT FIRST FLOOR AWNINGS PAINTED METAL WINDOW BOXES; SEE DWG #4 FOR PAINT SPECIFICATION
4 BENJAMIN MOORE HALE NAVY
COLOR FOR PAINTED METAL WINDOW BOXES & FRONT DOOR
5 TYPICAL PLAN AT WINDOWS OF 2nd-4th FLOORS
1-1/2" = 1'-0" 1" SQUARE ALUMINUM TUBE FRAME BEHIND FABRIC, AT TOP AND AT SKIRT/VALANCE LEVELS ALUMINUM TUBE TO BE BOLTED TO EXISTING STEEL WINDOW FRAME EXISTING STEEL WINDOW FRAME TRACK FOR SHUTTERS SHUTTERS
4'-0" 4'-0" SIDES TO ALIGN WITH MASONRY OPENING 1018" 1'-0" 118" 112" 4" 13 4" 178" 1018" 1'-0" 118" 112" 4" 13 4" 178"
ATTACHMENTS & DETAILS
5
DATE:
OCTOBER 29, 2019
137 W. 11TH STREET
NEW YORK, NY
OF 5
LPC BOARD PRESENTATION
AWNINGS & WINDOW BOXES
1'-9 1
2"FLOORS 3 & 4 FLOORS 2
7 TYPICAL WINDOW DETAIL ATTACHMENT
3" = 1'-0"
FLOORS 2, 3 & 4
1" SQUARE ALUMINUM TUBE FOR RIGID UPPER SECTION FLAT VERTICAL FABRIC WINDOW DETAILS
5 5 7 5
DASHED LINE OF WINDOW BOXES BELOW
1'-0"
1" SQUARE ALUMINUM TUBE FOR RIGID UPPER SECTION; SPACER AND Z OR L BRACKET AS REQ'D TO BE BOLTED INTO
WINDOW FRAME
