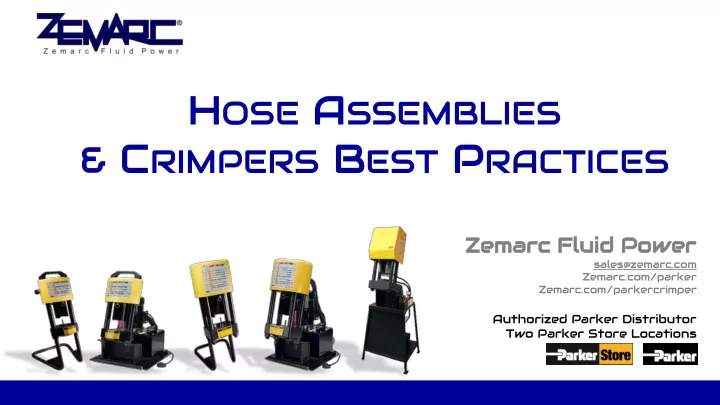

H OSE A SSEMBLIES & C RIMPERS B EST P RACTICES Zemarc rc Fluid d Power sales@zemarc.com Zemarc.com/parker Zemarc.com/parkercrimper Authorized Parker Distributor Two Parker Store Locations
A GENDA 1. Choosing the Right Product 2. Choosing the Right Crimper 3. Crimping Your Hose 4. Checking Your Work POWERFUL IDEAS START HERE Zemarc Fluid Power | www.zemarc.com/training
P OWERFUL I DEAS S TART H ERE 4 Locations 2 Parker Stores 2 Hydraulic Service Centers POWERFUL IDEAS START HERE Zemarc Fluid Power | www.zemarc.com/training
Z EMARC S ERVICES Hydraulic Parker Store Zemarc Services Service Center Repairs Custom Parts & Systems We Have Stock! Pump & Motor Repairs HPUs Hydraulic Hoses Cylinder Repairs Manifolds JIC 37° & SAE 45° Fittings HPU Repairs Hose & Tube Assemblies Seal-Lok Fittings Mobile & Industrial Valves Test Stands & Flow Benches Metric & Pipe Fittings Testing Autoclave Coning, Threading & Bending Flanges & SAE Straight Thread Automatic Lubricating Systems Quick Couplings & Swivels Flow/ Pressure Testing (up to 10K psi) Custom Part Manufacturing Brass Fittings & Valves Hydraulic Fluid Testing Predictive Maintenance Hydraulic Hoses Valves & More Predictive Maintenance Inspection ISO Interchange Available Condition Monitoring Solutions Authorized Service Center Parts Interchange SAME DAY! ISO Interchange available on hose, fittings, Complete valves, filters, & more. See online tools: zemarc.com/tools Hose Assembly Our experts are ready to assist you! Services www.zemarc.com/servicecenter www.zemarc.com/services www.zemarc.com/parkerstore Zemarc Fluid Power | www.zemarc.com/training POWERFUL IDEAS START HERE
P ARKER F ULL L INE D ISTRIBUTOR www.zemarc.com/parker Hydraulic & Pneumatic Hose & Fittings Filtration Filter Interchange Tool zemarc.com/filterinterchange Hose & Fitting Tools Process Control zemarc.com/fittingfinder & Instrumentation zemarc.com/hosefinder zemarc.com/crimpsource zemarc.com/safehose Hydraulic & Pneumatic Tools zemarc.com/qcinterchange zemarc.com/pumpcrossover zemarc.com/toolspec Zemarc.com/valvecrossover Hose, Tubing, & Fittings Pump & Motors | Cylinders | Valves Swivels, Valves, Adapters Accumulators | Cartridge Systems Brass Fittings & Valves Air Preparation (FRL) | Manifolds Quick Couplings Zemarc Fluid Power | www.zemarc.com/training POWERFUL IDEAS START HERE
T ELL US … How familiar are you with Crimpers? What brand of hose, fittings, and equipment do you currently use? POWERFUL IDEAS START HERE Zemarc Fluid Power | www.zemarc.com/training
LET’S GET STARTED Zemarc Fluid Power | www.zemarc.com/training POWERFUL IDEAS START HERE
1. C . CHOOSI OOSING NG THE RI RIGH GHT PRO PRODU DUCT Zemarc Fluid Power | www.zemarc.com/training POWERFUL IDEAS START HERE
STAMPED E D ENDS DELIVERY www.zemarc.com/wallchart Zemarc Fluid Power | www.zemarc.com/training POWERFUL IDEAS START HERE
P ARKER G LOBAL C ORE POWERFUL IDEAS START HERE Zemarc Fluid Power | www.zemarc.com/training
2. CH . CHOOS OOSING ING THE RI RIGH GHT CRI RIMPE MPER Zemarc Fluid Power | www.zemarc.com/training POWERFUL IDEAS START HERE
C HOOSING THE R IGHT C RIMPER KarryKrimp 2 Parkrimp 2 KarryKrimp Up to 1- 1/4” ID 2 wire Up to 1- 1/4” ID 2 wire Up to 2” ID 2 wire braided hose braided hose braided hose Up to 5/8” ID 4 wire Up to 1- 1/4” ID 4 wire Up to 2” ID 4/6 wire spiral hose spiral hose spiral hose Only steel fittings Up to 1” ID 6 wire spiral hose POWERFUL IDEAS START HERE Zemarc Fluid Power | www.zemarc.com/training
P ARKER K ARRY K RIMP Available as a fully assembled bench mount or as a portable unit Crimps hoses up to ¾”, 1” and some up to 1 ¼” depending on hose type Crimps steel and brass fittings, NOT stainless Capable of up to 200 crimps per day w/ 8 second cycle time (Benchmount) vs 30 second cycle time (Portable) Portable unit available w/ electric, air, or hand pump Zemarc Fluid Power | www.zemarc.com/training POWERFUL IDEAS START HERE
P ARKER K ARRY K RIMP 2 Available in Bench Mount or Portable unit (120 lbs) Crimps more hose types than KarryKrimp or MiniKrimp, including most hoses up to 1” and some to 1 ¼” Crimps steel, brass, and stainless More robust, slightly slower cycle times for Benchmount vs KarryKrimp but faster for portable Portable units available with electric, air, or hand pumps Zemarc Fluid Power | www.zemarc.com/training POWERFUL IDEAS START HERE
P ARKER P AR K RIMP 2 Crimps hoses up to 2” Floor/Bench Mount unit Crimps steel, brass, and stainless fittings Available in single phase or 3 phase models Zemarc Fluid Power | www.zemarc.com/training POWERFUL IDEAS START HERE
P ARKER M INI K RIMP Crimps most hoses up to ¾” and some up to 1” Available with air operated pump or manual hand pump Crimps steel and brass, NOT stainless fittings Lightweight, portable, can be bench/vise mounted or put on a collapsible stand Zemarc Fluid Power | www.zemarc.com/training POWERFUL IDEAS START HERE
3. CRI . CRIMPI MPING NG YO YOUR HOS R HOSE Zemarc Fluid Power | www.zemarc.com/training POWERFUL IDEAS START HERE
C RIMPING A H OSE Prep the crimper by choosing the die and tooling that corresponds to the hose type and size you are about to crimp. Zemarc Fluid Power | www.zemarc.com/training POWERFUL IDEAS START HERE
P REP THE H OSE Mark the hose with a line, using either an insertion depth block or the fitting to be crimped, to ensure the fitting is fully seated on the hose Recall when measuring assembly lengths INCLUDE the fittings Zemarc Fluid Power | www.zemarc.com/training POWERFUL IDEAS START HERE
S ELECTING Y OUR D IE Zemarc Fluid Power | www.zemarc.com/training POWERFUL IDEAS START HERE
C RIMPING Once fitting is fully seated on the hose and ready to be crimped 1. Insert hose from the bottom of the die. 2. Allow the entire fitting to pass the inside ridge of the die. 3. Seat the bottom of the fitting on the die ridge and hold there until fully crimped (make sure the fitting remains fully seated on the hose as well) Zemarc Fluid Power | www.zemarc.com/training POWERFUL IDEAS START HERE
C RIMPING 1. Depending on the crimper model, you will actuate the ram of the crimper with the joystick or button. 2. With the fitting properly seated in the die, actuate the crimper and allow it to fully extend. 3. Once fully extended it will start to build pressure (no need to exceed 4000psi when crimping) Zemarc Fluid Power | www.zemarc.com/training POWERFUL IDEAS START HERE
4. CH . CHECKING KING YO YOUR R WORK ORK Zemarc Fluid Power | www.zemarc.com/training POWERFUL IDEAS START HERE
C HECK Y OUR W ORK Reference the die Check reference selection chart or line from depth specs from Crimp block for proper Source to ensure insertion depth proper crimp Once crimp Note: It is diameter and recommended insertion depth is hoses be cleaned confirmed and hose before being is cleaned, now we installed can pressure test or install Zemarc Fluid Power | www.zemarc.com/training POWERFUL IDEAS START HERE
A CCESSORIES & U SEFUL L INKS Cutoff tools (saws and hand Die kits and Die Rings Insertion Depth Blocks tools) Fitting Push-On Stand Cleaning Kits Die Racks POWERFUL IDEAS START HERE Zemarc Fluid Power | www.zemarc.com/training
H OSE & F ITTING W EB T OOLS L INKS www.zemarc.com/crimpsource www.zemarc.com/hosefinder www.zemarc.com/fittingfinder POWERFUL IDEAS START HERE Zemarc Fluid Power | www.zemarc.com/training
W ANT A C RIMPER AT N O - CHARGE ? Current Stocking Promotion • Place stocking order • No Charge for your crimper Promo Code • POWERFULIDEAS POWERFUL IDEAS START HERE Zemarc Fluid Power | www.zemarc.com/training
I S YOUR OLD STOCK IN THE WAY ? Get rid of your old inventory Get product credit for competitive stock Get New Crimper Stock Get New Inventory Lift Program Switch Today! POWERFUL IDEAS START HERE Zemarc Fluid Power | www.zemarc.com/training
R ENTALS Short-term Starting at $250/ Week Easy with Zemarc Delivery No commitment Rep selects your dies Training Temporary locations Rep select your power supply Pick-up/ Ship Project-based POWERFUL IDEAS START HERE Zemarc Fluid Power | www.zemarc.com/training
O THER U SEFUL P RODUCTS POWERFUL IDEAS START HERE Zemarc Fluid Power | www.zemarc.com/training
Q UESTIONS ? Email: sales@zemarc.com Chat: zemarc.com/chat Call: 323-721-5598 Zemarc.com/fcg Zemarc.com/parkercrimper Zemarc.com/wallchart See more at www.zemarc.com Zemarc Fluid Power | www.zemarc.com/training
