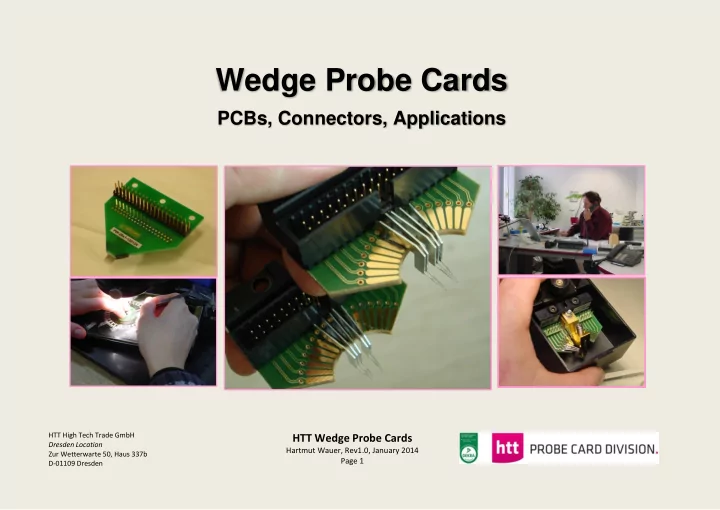

Wedge Probe Cards PCBs, Connectors, Applications HTT High Tech Trade GmbH HTT Wedge Probe Cards Dresden Location Hartmut Wauer, Rev1.0, January 2014 Zur Wetterwarte 50, Haus 337b Page 1 D-01109 Dresden Wedge Probe Cards made by HTT Probe Card

SLIDE 1

HTT High Tech Trade GmbH Dresden Location Zur Wetterwarte 50, Haus 337b D-01109 Dresden

HTT Wedge Probe Cards

Hartmut Wauer, Rev1.0, January 2014 Page 1

Wedge Probe Cards

PCBs, Connectors, Applications

SLIDE 2

HTT High Tech Trade GmbH Dresden Location Zur Wetterwarte 50, Haus 337b D-01109 Dresden

HTT Wedge Probe Cards

Hartmut Wauer, Rev1.0, January 2014 Page 2

Wedge Probe Cards made by HTT Probe Card Division

Wedge Probe Cards are defined as Probe Cards containing a Pin Count of less than 50 needles which can be mounted onto industry standard positioner arms. Currently, HTT provides the option to have the Wedge Probe Card mounted onto a HTT supplied 4.5” Probe Card Frame. Historically, Wedge Probe Cards were developed from the necessity to have more than a single probe mounted on a probe positioner arm. Additional advantages of Wedge Probe Cards:  Wedge Probe Cards manufactured with HTT stocked standard PCBs enable short delivery times  Connector types can be customized to match customer’s existing cables  High frequency (RF), low frequency (LF), and DC combinations can be accommodated on a single Wedge Probe Card  Tungsten and BeCu material option for DC needles; metal, ceramic and microstrip blades  combination of several Wedge Probe Cards on one Test Setup possible (same types or different types)  Possibility of single probing solution via integration of identical and/or different Wedge Probe Cards  Customization for applications and Wedge Probe Card PCB layouts can be completed quickly and are minimally priced See on the following pages HTT’s Standard Wedge PCB’s we have constantly in stock. The big image on the following pages placed on the left-hand side will show an application which is one possible configuration in Needle Count, Connector, holders as well as additional components mounted on the PCB. For any question feel free to call us directly! Hartmut Wauer Head of Development Probe Cards Division HTT High Tech Trade GmbH htt GROUP – Probe Card Division Zur Wetterwarte 50, Haus 337b 01109 Dresden

Tel. +49 (0)351 8888 713

HWauer@httgroup.eu www.httgroup.eu Falk Schoene Production Manager Probe Cards Division HTT High Tech Trade GmbH htt GROUP – Probe Card Division Zur Wetterwarte 50, Haus 337 b D-01109 Dresden

Tel. +49 (0)351-8903906

www.httgmbh.de FSchoene@httgmbh.de Eberhard Siml CEO HTT High Tech Trade GmbH htt GROUP Landsberger Str. 428 81241 Munich / Germany

Tel. +49 (0)89-54 67 85-14

esiml@httgroup.eu www.httgroup.eu

SLIDE 3

HTT High Tech Trade GmbH Dresden Location Zur Wetterwarte 50, Haus 337b D-01109 Dresden

HTT Wedge Probe Cards

Hartmut Wauer, Rev1.0, January 2014 Page 3

PCB „WEDGE3“

Blank PCB Top View Blank PCB Bottom View PCB Details Size (mm) 50 x 37 x 1,5 Drill diameter and distance (mm) 3 - 20 Aperture angle 120° Quadrant practicable

High Temperature ready
n request

Blade Needle ready yes Epoxy Needle ready yes Maximum Pin Count Connector 34 Maximum Needle Count Blade 17 HTT Wedge frame ready yes Suss/Cascade compatible yes IDC Connector ready yes SMX Connector ready yes Example of a DC application: 5 metal blade needles (BeCu), boxed IDC header, bracket and SMD components Remarks

SLIDE 4

HTT High Tech Trade GmbH Dresden Location Zur Wetterwarte 50, Haus 337b D-01109 Dresden

HTT Wedge Probe Cards

Hartmut Wauer, Rev1.0, January 2014 Page 4

PCB „WEDGE4“

Blank PCB Top View Blank PCB Bottom View PCB Details Size (mm) 55 x 48 x 1,5 Drill diameter and distance (mm) 3 - 20 Aperture angle 90° Quadrant practicable

High Temperature ready
n request

Blade Needle ready yes Epoxy Needle ready yes Maximum Pin Count Connector 40 Maximum Needle Count Blade 20/40 HTT Wedge frame ready yes Suss/Cascade compatible yes IDC Connector ready yes SMX Connector ready

Example of a DC application: 12 needles (tungsten): epoxy technology,

bracket, wire wrap connector, SMD components, 4.5” wedge frame and box Remarks

SLIDE 5

HTT High Tech Trade GmbH Dresden Location Zur Wetterwarte 50, Haus 337b D-01109 Dresden

HTT Wedge Probe Cards

Hartmut Wauer, Rev1.0, January 2014 Page 5

PCB „WEDGE7“

Blank PCB Top View Blank PCB Bottom View PCB Details Size (mm) 50 x 50 x 1,5 Drill diameter and distance (mm) 3 - 20 Aperture angle 85° Quadrant practicable yes High Temperature ready

n request

Blade Needle ready

Epoxy Needle ready

yes Maximum Pin Count Connector 40 Maximum Needle Count Blade

HTT Wedge frame ready

yes Suss/Cascade compatible yes IDC Connector ready yes SMX Connector ready

Example of a DC application: 22 needles (tungsten), epoxy technology,

wire wrap connector Remarks

SLIDE 6

HTT High Tech Trade GmbH Dresden Location Zur Wetterwarte 50, Haus 337b D-01109 Dresden

HTT Wedge Probe Cards

Hartmut Wauer, Rev1.0, January 2014 Page 6

PCB „WEDGE6“

Blank PCB Top View Blank PCB Bottom View PCB Details Size (mm) 50 x 39 x 1,5 Drill diameter and distance (mm) 3 - 20 Aperture angle

Quadrant practicable
High Temperature ready
n request

Blade Needle ready yes Epoxy Needle ready yes Maximum Pin Count Connector 40 Maximum Needle Count Blade 40 HTT Wedge frame ready yes Suss/Cascade compatible yes IDC Connector ready yes SMX Connector ready

Example of a DC application: 12 needles (BeCu ;epoxy technology), bracket, single row

wire wrap connector, ceramic carrier ring, and 4.5” wedge frame Remarks

SLIDE 7

HTT High Tech Trade GmbH Dresden Location Zur Wetterwarte 50, Haus 337b D-01109 Dresden

HTT Wedge Probe Cards

Hartmut Wauer, Rev1.0, January 2014 Page 7

PCB „WEDGE5“

Blank PCB Top View Blank PCB Bottom View PCB Details Size (mm) 50 x 30 x 1,5 Drill diameter and distance (mm) 3 - 5 Aperture angle

Quadrant practicable
High Temperature ready
n request

Example of a mixed RF/DC application: 40GHz IZI-Probe, 6needles (tungsten; metal

blade) and boxed IDC header Remarks Can be cut to length < 50 mm

SLIDE 8

HTT High Tech Trade GmbH Dresden Location Zur Wetterwarte 50, Haus 337b D-01109 Dresden

HTT Wedge Probe Cards

Hartmut Wauer, Rev1.0, January 2014 Page 8

PCB „WEDGE-PARALLEL“

Blank PCB Top View Blank PCB Bottom View PCB Details Size (mm) 50 x 40 x 1,5 Drill diameter and distance (mm) 3 – 10 Aperture angle 2 x 63° Quadrant practicable

High Temperature ready

200°C Blade Needle ready yes Epoxy Needle ready yes Maximum Pin Count Connector 34 Maximum Needle Count Blade 10 HTT Wedge frame ready yes Suss/Cascade compatible yes IDC Connector ready yes SMX Connector ready

Example of a DC application: Matching Pair left-right, needles (epoxy technology), boxed

IDC header, and bracket Remarks Matching pair left-right

SLIDE 9

HTT High Tech Trade GmbH Dresden Location Zur Wetterwarte 50, Haus 337b D-01109 Dresden

HTT Wedge Probe Cards

Hartmut Wauer, Rev1.0, January 2014 Page 9

PCB „URWEDGE“

Blank PCB Top View Blank PCB Bottom View PCB Details Size (mm) 50 x 37 x 1,5 Drill diameter and distance (mm) 3 - 20 Aperture angle 120° Quadrant practicable

High Temperature ready
n request

Blade Needle ready yes Epoxy Needle ready yes Maximum Pin Count Connector yes Maximum Needle Count Blade 20 HTT Wedge frame ready

Suss/Cascade compatible
IDC Connector ready

yes SMX Connector ready

Example of aDC application: Urwedge PCB holder, assembled on blank PCB,

Holder can be made on wire wrap connector Remarks request

SLIDE 10

HTT High Tech Trade GmbH Dresden Location Zur Wetterwarte 50, Haus 337b D-01109 Dresden

HTT Wedge Probe Cards

Hartmut Wauer, Rev1.0, January 2014 Page 10

PCB „Mini Wedge“

Blank PCB Top View Blank PCB Bottom View PCB Details Size (mm) 30 x 23 x 1,5 Drill diameter and distance (mm) 3 - 22 Aperture angle 90° Quadrant practicable yes High Temperature ready

n request

Blade Needle ready yes Epoxy Needle ready yes Maximum Pin Count Connector 22 Maximum Needle Count Blade 5 HTT Wedge frame ready

Suss/Cascade compatible
IDC Connector ready

yes SMX Connector ready

Example of a DC application: Mini Wedge Probe Card, bracket , 9 needles

(BeCu, epoxy technology) and wire wrap connector Remarks

SLIDE 11

HTT High Tech Trade GmbH Dresden Location Zur Wetterwarte 50, Haus 337b D-01109 Dresden

HTT Wedge Probe Cards

Hartmut Wauer, Rev1.0, January 2014 Page 11

PCB „DUAL WEDGE“

Blank PCB Top View Blank PCB Bottom View PCB Details Size (mm) 50 x 22 x 1,5 Drill diameter and distance (mm) 2,3 - 23 Aperture angle 120° Quadrant practicable

High Temperature ready
n request

Blade Needle ready yes Epoxy Needle ready yes Maximum Pin Count Connector 8 Maximum Needle Count Blade 8 HTT Wedge frame ready

Suss/Cascade compatible

yes IDC Connector ready yes SMX Connector ready

Example of a RF/DC application: 50GHz dual |Z|-probe, needles (epoxy technology) and

Remarks Assembly of additional wire wrap connector GND-Probes onto IZI Probes

SLIDE 12

HTT High Tech Trade GmbH Dresden Location Zur Wetterwarte 50, Haus 337b D-01109 Dresden

HTT Wedge Probe Cards

Hartmut Wauer, Rev1.0, January 2014 Page 12

PCB „WEDGE KELVIN“

Blank PCB Top View Blank PCB Bottom View PCB Details Size (mm) 50 x 37 x 1,5 Drill diameter and distance (mm) 3 - 20 Aperture angle 120° Quadrant practicable

High Temperature ready
n request

Blade Needle ready yes Epoxy Needle ready yes Maximum Pin Count Connector 34 Maximum Needle Count Blade 8 Micro Strip HTT Wedge frame ready yes Suss/Cascade compatible yes IDC Connector ready yes SMX Connector ready

Example of a power bypass DC Kelvin application: needles (microstrip; BeCu), and

Remarks Signal Trace splitted: F, S mounted power bypass components near the needle tip

SLIDE 13

HTT High Tech Trade GmbH Dresden Location Zur Wetterwarte 50, Haus 337b D-01109 Dresden

HTT Wedge Probe Cards

Hartmut Wauer, Rev1.0, January 2014 Page 13

PCB „LED Card“

Blank PCB Top View Blank PCB Bottom View PCB Details Size (mm) 50 x 80 x 3,2 Drill diameter and distance (mm) 3 - 20 Aperture angle 120° Quadrant practicable

High Temperature ready
n request

Blade Needle ready

Epoxy Needle ready

yes Maximum Pin Count Connector 34 Maximum Needle Count Blade HTT Wedge frame ready yes Suss/Cascade compatible yes IDC Connector ready yes SMX Connector ready

Example of a LED application:

Led Card with probe spider and EEPROM assembled Remarks

SLIDE 14

HTT High Tech Trade GmbH Dresden Location Zur Wetterwarte 50, Haus 337b D-01109 Dresden

HTT Wedge Probe Cards

Hartmut Wauer, Rev1.0, January 2014 Page 14

Wedge Probe Card Frame

Blank PCB Top View Blank PCB Bottom View Wedge Probe Card frame, shipment box PCB Details Size (mm) 114 (4,5“) x 185 x 3 Remarks Suitable for storage and shipment

f Wedge Probe Cards.

Can also be taken as Example of an application: mechanical adaptor for 4,5” Wedge Probe Card frame application on a 4,5” Probe Card fixture Probe Card fixtures.
