WASTE FROM DISASTER EVENTS JOHN YOUNG KERAMIDA, INC. WWW.KERAMIDA.COM I N D I A N A R E C YC L I N G C O A L I T I O N 2 0 1 8 C O N F E R E N C E Severe Damage To 2 Large Shopping Malls Hail Storm In Denver, Hurricane Maria In

slide-1
SLIDE 1

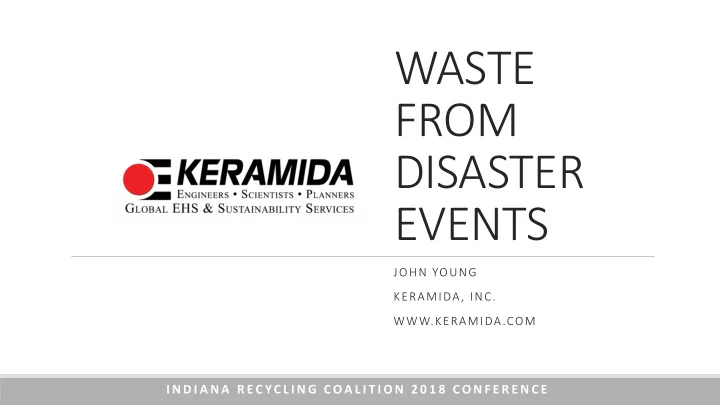

WASTE FROM DISASTER EVENTS

JOHN YOUNG KERAMIDA, INC. WWW.KERAMIDA.COM

I N D I A N A R E C YC L I N G C O A L I T I O N 2 0 1 8 C O N F E R E N C E

slide-2
SLIDE 2

ABSTRACT

  • Severe Damage To 2 Large Shopping Malls
  • Hail Storm In Denver, Hurricane Maria In Puerto Rico
  • Large Quantity Of Waste Generated
  • Not Recycled

These Storms Provide A Learning Experience And An Opportunity To Provide A Resilient Framework For Redevelopment After Natural Disasters And To Prevent Materials From Unnecessarily Entering Landfills In The Future.

slide-3
SLIDE 3

INTRODUCTION

Who Is Involved And What Are Their Roles: Simon Property Group And Keramida Climate Change Case Studies – Colorado, Puerto Rico Health Hazards Waste Prevention And Resilience

slide-4
SLIDE 4

WHO IS INVOLVED AND WHAT ARE THEIR ROLES?

slide-5
SLIDE 5

SIMON MALL PROPERTY GROUP

Premier Shopping, Dining, Entertainment And Mixed- Use Destinations More Than 325 Properties Across North America, Europe, And Asia

slide-6
SLIDE 6

/

KERAMIDA’S ROLE

Represent Simon

Represent

Perform Industrial Hygiene Services (Mold & Moisture Assessment, Asbestos and Lead Sampling)

Perform

Make Removal Recommendations

Make

Verify Final Removal Standards

Verify

Coordinate as Liaison to Insurance

Coordinate

Prepare Final Report Documents

Prepare

slide-7
SLIDE 7

CLIMATE CHANGE

slide-8
SLIDE 8

SIMON GROUP AND CLIMATE CHANGE

The Changing Climate Elevated Intensity Of Weather Events And Disasters Increase In Frequency Of Natural Disasters And Weather Events

slide-9
SLIDE 9

SIMON GROUP AND CLIMATE CHANGE

“decreased demand for retail space at certain of our properties” “indirect effects on our business by increasing the cost of insurance on favorable terms” “increasing the cost of energy and snow removal at our properties” Simon Mall Property Group, Annual Report 2017

slide-10
SLIDE 10

SIMON GROUP AND CLIMATE CHANGE

Direct Effect On Simon Properties (As Of May 2017) Colorado Mills Mall

  • Red – Reopened Businesses
  • Green – Closed Businesses
slide-11
SLIDE 11

SIMON GROUP AND CLIMATE CHANGE

Direct Effect on Simon Properties (as of Sept. 2017)

Plaza Carolina Mall, September 2017

Aerial View Of Plaza Carolina Mall Before Hurricane Maria Water And Property Damage After Hurricane Maria

slide-12
SLIDE 12

HEALTH HAZARDS FROM WASTE

ASBESTOS Reduced Respiratory Function Increased Resistance Of Blood Flow Through The Lungs Increases The Risk Of Lung Cancer, Asbestosis, And Mesothelioma

Crocidolite

slide-13
SLIDE 13

HEALTH HAZARDS FROM WASTE

MOLD Respiratory Illnesses: Asthma, COPD Headaches Aesthetically Unappealing

slide-14
SLIDE 14

CASE STUDIES

DE NV E R , CO LO R A DO - CO LO R A DO M I LLS M A LL SA N JUA N, P UE RTO R I CO - P LA Z A C A RO LI NA M A LL

slide-15
SLIDE 15

COLORADO MILLS MALL

LAKEWOOD (DENVER AREA), COLORADO

slide-16
SLIDE 16
slide-17
SLIDE 17

DENVER, COLORADO - HAILSTORM

  • May 2017, “Billion Dollar Storm”
  • Hailstorm  Torrential Rain  Heavy Winds
  • Golf-ball Sized Hail (1.68in, Average Size =

0.8in-1in)

  • 4-5 In. Of Rainfall And Then 4-6 In. Of

Snowmelt  Flash Flooding Problems

  • 2.3 BILLION In Damages
  • Cause Of A Hailstorm
  • Instability, High Dew Point, Strong Updraft
slide-18
SLIDE 18

DENVER, COLORADO – HAILSTORM

slide-19
SLIDE 19

DENVER, COLORADO – HAILSTORM

Colorado Mills Mall

Roof Damage From Hail Water And Mold Damage, Due To Water Entering From Hail Damage On Roof

Marked In History As The Most Expensive Hailstorm In Colorado

  • Approx. $2.3 Billion In Insured Losses For More Than

267,000 Claims

slide-20
SLIDE 20

COLORADO MILLS MALL

Mold Growth Along Walls

slide-21
SLIDE 21

COLORADO MILLS MALL

WATER DAMAGE

slide-22
SLIDE 22

PLAZA CAROLINA MALL

CAROLINA, PUERTO RICO

slide-23
SLIDE 23
slide-24
SLIDE 24
slide-25
SLIDE 25

PUERTO RICO – HURRICANE MARIA

September 2017 Category 4 Hurricane Worst Natural Disaster Ever Recorded For Puerto Rico

slide-26
SLIDE 26

PUERTO RICO – HURRICANE MARIA

PLAZA CAROLINA MALL

  • Located In Carolina, Puerto Rico
  • 2 Sizable Holes Where Majority Of

Water Entered, Causing Mold Damage

  • No Power, No HVAC
  • Reached 90%+ Humidity Inside Mall
  • Caused Rapid Mold Growth
  • Unknown $ Amount In Damages
slide-27
SLIDE 27

MOLD GROWTH AT PLAZA CAROLINA MALL

slide-28
SLIDE 28

PLAZA CAROLINA MALL

EXTREME MOLD DAMAGE

slide-29
SLIDE 29

PLAZA CAROLINA MALL

Major Structural Damage To Roof

slide-30
SLIDE 30

PLAZA CAROLINA MALL

slide-31
SLIDE 31

Waste

MOST PROMINENT MATERIALS IN WASTE STREAM: MERCHANDISE DRYWALL WOOD FLOORING PLYWOOD (BULKHEADS AND SUB-FLOORING SHELVING) CEILING TILE INSULATION

slide-32
SLIDE 32

SIMON GROUP AND WASTE

  • Addresses Waste In

2017 Sustainability Report

  • Recycling
  • Food Waste Diversion

Of Landfills

  • Construction Waste
  • No Specification On

New Properties Or Rebuilding Properties

slide-33
SLIDE 33

WASTE

Both Malls Dealt With

  • Mold, Unsalvageable Porous

Materials, And Asbestos

1

Majority Of Waste Not Recyclable

2

slide-34
SLIDE 34

GATHERED WASTE FROM COLORADO MILLS MALL

slide-35
SLIDE 35

WASTE

Colorado Mills Mall

  • Focused On Replacing Everything ASAP For Re-opening

Plaza Carolina Mall

  • Lag On Shipping Materials To The Island, Therefore Focused

On Keeping Materials Onsite And Salvaging Materials. Re- Use.

slide-36
SLIDE 36

WASTE

  • Mold Impacted Material
  • Visual Assessment
  • Moisture Meter
  • Porous Materials
  • Dry Wall, Carpet, Wood Flooring
  • Asbestos
  • Lead-Based Paint (Puerto Rico)
  • Merchandise

Moisture Meter Reading At Plaza Carolina Mall

slide-37
SLIDE 37

WASTE AT COLORADO MILLS

THROWN OUT MATERIALS FROM HAILSTORM DAMAGE

slide-38
SLIDE 38

WHERE DID THE WASTE GO?

Mold, Porous Materials, Asbestos

RCRA Subtitle D Landfills:

Non-Haz Industrial Waste Landfill Construction And Demolition Debris Landfill

Merchandise

Shredded And Burned (To Prevent Resale And Health Risk) Landfill

EPA: “Favors Source Reduction To Reduce Both The Volume And Toxicity Of Waste And To Increase The Useful Life Of Manufactured Products “

slide-39
SLIDE 39

WASTE AND PUERTO RICO

Dealt With The Issue Of Landfills Already At Full Capacity

1

Mostly Salvaged What Could Be Reused

  • Metal Frameworks
  • Plumbing Fixtures
  • Flooring That Only Needed To Be

Cleaned

2

Plaza Carolina Mall Waste

  • Approx. 275, 30 Yard Dumpsters
  • 1 Dumpster = 20’ Length, 8’

Width, 6’ Height

  • Approx. 10 Tons Per Dumpster

(Drywall, Carpet, Ceiling Tile)

3

slide-40
SLIDE 40

PREVENTION AND RESILIENCE

slide-41
SLIDE 41

RESILIENCE

“RESILIENCE WAS VIEWED AS THE ABILITY OF A SYSTEM TO PREPARE FOR THREATS, ABSORB IMPACTS, RECOVER AND ADAPT FOLLOWING PERSISTENT STRESS OR A DISRUPTIVE EVENT.”

“ R E S I L I E N C E A N D S U S T A I N A B I L I T Y : S I M I L A R I T I E S A N D D I F F E R E N C E S I N E N V I R O N M E N T A L M A N A G E M E N T A P P L I C A T I O N S ” . S C I E N C E O F T H E T O T A L E N V I R O N M E N T . M A R C H E S E D . , R E Y N O L D S E . , B A T E S M . , E T A L . F E B R U A R Y 2 0 1 8 .

slide-42
SLIDE 42

PREVENTION OF WASTE

  • Use Of Improved Building Materials
  • Eliminate Asbestos When Possible
  • Flooring
  • Avoid Carpet And Wood Flooring – Use Tiling,

Polished Concrete, Or Vinyl Flooring

  • Use Moisture-Resistant Wall Materials
  • Steel Studs And Beams; Cement Boards; Concrete

Block; Glass Block; Brick; Plaster

  • Use Moisture-Resistant Flooring Materials
  • Clay, Quarry, Ceramic Tiles; Concrete Materials
  • Plastic Lumber
  • Decay Resistant Subflooring (Redwood, Cedar,

Cypress, Oak)

  • Nonporous Stones And Waterproof Grout
slide-43
SLIDE 43

RESILIENCE

Resilient Infrastructure Implementation

  • Sturdier Roofs
  • Flood Resistant Design
  • Building With Materials That

Can Get Wet Or Easily Dry

01

Technology Choices, Availability, And Access

  • Hard vs. Soft Tech

Hazard ID, Social and Administrative

02

Connecting Short- And Long-term Actions

  • Long Term Sustainability

03

slide-44
SLIDE 44

THANK YOU!

K E R A M I D A I N C . W W W . K E R A M I D A . C O M
