Virtualization The concept of using less hardware for the same application 27-6-2018 info@iautomation.nl 1 What is it Virtualization is the concept of allowing software to use very powerful hardware. This is done IT environments because

slide-1
SLIDE 1

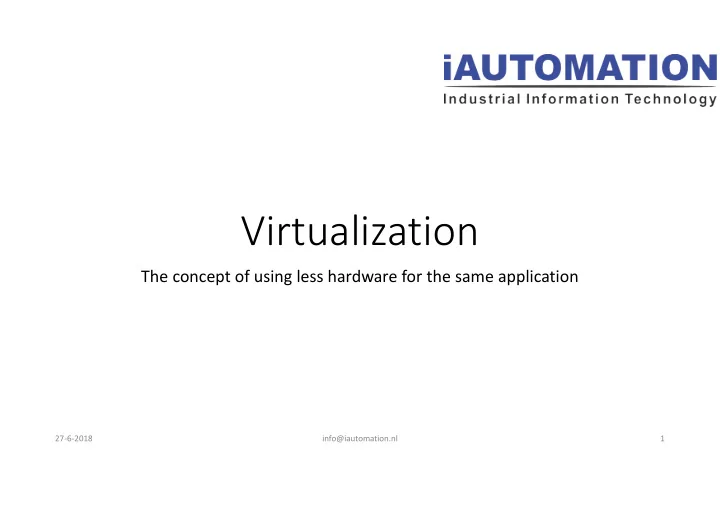

Virtualization

The concept of using less hardware for the same application

27-6-2018 info@iautomation.nl 1

slide-2
SLIDE 2

What is it IT environments Automation Benefits Concept High Availability Financials Hardware Software Project Example Other services

27-6-2018 info@iautomation.nl 2

Virtualization is the concept of allowing software to use very powerful hardware. This is done because hardware is almost never use up to 100% of its capabilities. In normal application the hardware would have a balance load of ~20%.

slide-3
SLIDE 3

What is it IT environments Automation Benefits Concept High Availability Financials Hardware Software Project Example Other services

27-6-2018 info@iautomation.nl 3

Virtualization is an accepted and commonly use principle in IT environments all over the world when it comes to corporate IT systems. Out of 1700 companies*

Source: ActualMedia Tech 2015 State of Virtualization and Storage Management — Survey Results

slide-4
SLIDE 4

What is it IT environments Automation Benefits Concept High Availability Financials Hardware Software Project Example Other services

27-6-2018

Within the process automation world, virtualization is still an emerging platform. Therefore it makes sense to work with consultants and engineers who understand IT concepts and have experience in that field of IT supply. But understanding the particular structures and key concepts of Process Automation is key for a project to succeed. In 2015 only 14% of all the virtualization system world wide was installed in a Process Automation environment

info@iautomation.nl 4

slide-5
SLIDE 5

What is it IT environments Automation Benefits Concept High Availability Financials Hardware Software Project Example Other services

27-6-2018 info@iautomation.nl 5

So why would you want to use virtualization in Process Automation environments.

  • Save money on hardware (10+ machines on 1 server)
  • Save energy (have only 2 power supplies instead of 1 per PC)
  • Fault Tolerance for all required PC’s is possible and flexible
  • Use X86 installed base on new, still in warranty, hardware
  • Easy centralized management of all systems (snapshots, backups, health monitoring)
slide-6
SLIDE 6

What is it IT environments Automation Benefits Concept High Availability Financials Hardware Software Project Example Other services

27-6-2018 info@iautomation.nl 6

iAutomation has done a number of virtualization projects in the process automation environment as well as IT environment. The main configurations we have very good experience with are the following:

Base Package 1 “Small” Base Package 2 “Medium” Base Package 3 “Redundant” 1x Dell or HP server  20 processor cores  VMware License  2,4 TB Datastore  RAID 5  160 GB RAM 2x Dell or HP Server  20 Processor cores  VMware License  Vcenter License  160 GB RAM 2x Dell or HP Server  20 Processor cores  VMware License

 Vcenter License

 VM Fault Tolerant  160 GB RAM 1x Netwerk core switch With 2 VLANs SAN  12 TB HDD  RAID 5 2x SAN  12 TB HDD  RAID 5 2x SAN core switch 2x plantbus switch – Multiple VLANs possible 2x management switch – 2 VLANs 2x SAN core switch

2x plantbus switch – Multiple VLANs possible 2x management switch – 2 VLANs

slide-7
SLIDE 7

What is it IT environments Automation Benefits Concept High Availability Financials Hardware Software Project Example Other services

27-6-2018 info@iautomation.nl 7

Because of the systems used, full redundancy of all of the virtual machines can be used within a virtualized environment. They onyl thing you need is a licence, shared data storage and en network connection.

slide-8
SLIDE 8

What is it IT environments Automation Benefits Concept High Availability Financials Hardware Software Project Example Other services

27-6-2018 info@iautomation.nl 8

One of the best reasons for introducing virtualization is cost saving. When implementing virtualization often one or two servers are bought to replace 25 to 50 physical computers. Therefore a lot of money could potentially be save on hardware cost. 62 server consolidation to 6 Virtualization servers

  • Example TCO reduction of 74% (390.000 EUR.)
  • Example TCO without operation is 79%
  • With a forecast first six month ROI of 289%
slide-9
SLIDE 9

What is it IT environments Automation Benefits Concept High Availability Financials Hardware Software Project Example Other services

27-6-2018 info@iautomation.nl 9

92 server consolidation to 8 Virtualization servers

  • Example TCO reduction of 65% (300.000 EUR.)
  • Example TCO without operation is 63%
  • With a forecast first six month ROI of 189%
slide-10
SLIDE 10

What is it IT environments Automation Benefits Concept High Availability Financials Hardware Software Project Example Other services

27-6-2018 info@iautomation.nl 10

At iAutomation we have a lot of very good contacts with the sales and support departments of our suppliers, this mean that we get the right amount of advice and project support to get the results we promise. We therefore advice the following hardware components.

Server Switches SAN

slide-11
SLIDE 11

What is it IT environments Automation Benefits Concept High Availability Financials Hardware Software Project Example Other services

27-6-2018 info@iautomation.nl 11

As we have an engineering department that is standardized on VMWare software, we would always suggest using VMWare. It is not only the the system we can very quickly and confidently make do what you want, we also get support from VMWare to make things work.

slide-12
SLIDE 12

What is it IT environments Automation Benefits Concept High Availability Financials Hardware Software Project Example Other services

27-6-2018 info@iautomation.nl 12

Sanquin, Amsterdam, the nethlands. Virtualization project. Virtualizing Windows 2000 production systems to replace legacy hardware.

slide-13
SLIDE 13

What is it IT environments Automation Benefits Concept High Availability Financials Hardware Software Project Example Other services

27-6-2018 info@iautomation.nl 13

Sanquin, Amsterdam, the nethlands. Virtualization project. Virtualizing Windows 2000 production systems to replace legacy hardware.

slide-14
SLIDE 14

What is it IT environments Automation Benefits Concept High Availability Financials Hardware Software Project Example Other services

27-6-2018 info@iautomation.nl 14

Sanquin, Amsterdam, the nethlands. Virtualization project. Virtualizing Windows 2000 production systems to replace legacy hardware.

Plantbus / Production network SAN Network VLAN: Management network / VLAN:Vmware client network

slide-15
SLIDE 15

What is it IT environments Automation Benefits Concept High Availability Financials Hardware Software Project Example Other services

27-6-2018 info@iautomation.nl 15

Akzo Nobel, Hengelo, the nethlands. Virtualization project. Virtualizing the new control system to save physical machine cost.

VLAN: Management network / VLAN:Vmware client network Plantbus / Production network

slide-16
SLIDE 16

What is it IT environments Automation Benefits Concept High Availability Financials Hardware Software Project Example Other services

27-6-2018 info@iautomation.nl 16

Design stage

  • Virtualizations Consultancy
  • Architecture design
  • Network layout
  • Cabinet design
  • Testing documentation

Construction Stage

  • Cabinet building
  • Parts procurement
  • Software installation
  • Platform configuration
  • Platform testing

Implementation stage

  • FAT [IQ]
  • Commissioning
  • SAT [OQ]

50% of project time 30% of project time 20% of project time

slide-17
SLIDE 17

What is it IT environments Automation Benefits Concept High Availability Financials Hardware Software Project Example Other services

27-6-2018 info@iautomation.nl 17

Other iAutomation services

  • 1. Process Automation
  • Turnkey projects
  • Upgrades and migrations
  • Software design, engineering and commissioning (S88)
  • Hardware design, engineering and commissioning
  • 2. Manufacturing Execution Systems
  • Turnkey projects
  • Quick scan
  • Implementation of iAutomation MES platform (S95)
  • Software design, engineering and commissioning (S95)
  • 3. Project Management
  • Contracted Project management (PRINCE2)
  • iAutomation turnkey project management
  • 4. Cyber Security
  • Quick scan
  • Full site analysis and mitigation (S99)
  • 5. Information Technology
  • Turnkey projects in Office IT, networks, security
  • Upgrade and migration projects
slide-18
SLIDE 18

What is it IT environments Automation Benefits Concept High Availability Financials Hardware Software Project Example Other services

27-6-2018 info@iautomation.nl 18

Thanks for your attention

If there are any questions, please feel free to ask us.

  • Ing. Dennis Hummel

Technical Director iAutomation B.V. dennis.hummel@iautomation.nl +31 638694228
