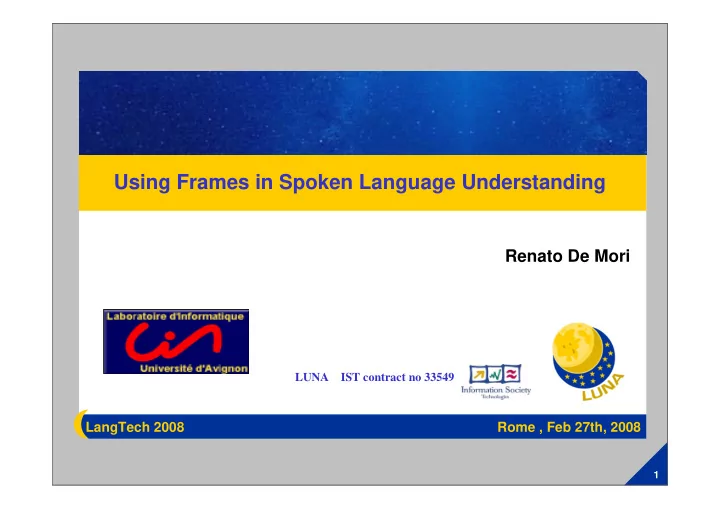

Using Frames in Spoken Language Understanding Renato De Mori LUNA - - PowerPoint PPT Presentation

LangTech2008

Rome , Feb 27th, 2008

1

LangTech 2008 Rome , Feb 27th, 2008

1

Renato De Mori

Using Frames in Spoken Language Understanding

LUNA IST contract no 33549

LangTech2008

Rome , Feb 27th, 2008

2

Summary

• THE LUNA EU PROJECT
• SIGN TO MEANING PROCESS
• WORDS TO CONCEPTS (SEMANTIC CONSTITUENTS)

TRANSLATION

• SEMANTIC COMPOSITION AND INFERENCE
• CONFIDENCE, CORPORA ANNOTATION AND LEARNING

LangTech2008

Rome , Feb 27th, 2008

3

LUNA Project goals spoken Language UNderstanding in multilinguAl communication systems Creation of a robust Spoken Language Understanding toolkit for multilingual automatic telephone services, to allow:

• Improving automation rates
• Shortening call times
• While maintaining high levels of customer satisfaction

LangTech2008

Rome , Feb 27th, 2008

4

Partners’ roles

research & development

Polish-Japanese Institute of Information Technology

• Project coordination, WP6 leader
• Language modeling and semantic

processing

• Polish language pack
• Integration with LOQ ASR and

VoxNauta

• WP2 leader
• Generation of semantic concept

tags

• Semantic composition
• Coupling of speech recognition and

SLU

• WP5 leader
• Corpora acquisition, annotation

and validation

• Evaluation
• WP4 leader
• Context-sensitive semantic

validation

• Semantic composition model
• Corpora acquisition and annotation
• Integration with FT platform
• WP3 leader
• Technical management
• Semantic composition model
• Semantic confidence measures
• WP1 leader
• Language and semantic modeling

for speech understanding

• Adaptive learning
• Real time spoken dialog prototype
• Corpora acquisition, annotation

and validation

• Contribution to Polish LM
• Corpora annotation
• Creation of a statistical model for

Polish language

• Semantic annotation tool for

Polish

LangTech2008

Rome , Feb 27th, 2008

5

Complexity, Functionality, Technology

Command And Control (e.g., Simple call Routing; VRCP; Voice dialing)

Simple ASR; isolated words, connected digits

Interaction Complexity

(human-machine)

Prompt Constrained Natural Language (e.g., Travel Reservations, Finance, Directory asst)

Larger vocabulary, Hand-built grammars

Free-form Natural Language Dialogue (Customer Care, Help Desks, E-Commerce)

Very large vocabulary, NL, DM, TTS

1990 2008

LangTech2008

Rome , Feb 27th, 2008

6

Scientific objectives

Semantics is the scientific study of the relations between signs or symbols and what they denote or mean (Woods, 1975, dictionary) Scientific objectives of LUNA:

• Meaning representation based on semantic construction theory

(from signal to semantic constituents, then construction of frames as cognitive structures) and its relation to languages.

• Meaning is expressed with a Meaning Representation Language

(MRL) which has its syntax (e.g. frame grammar) and semantic.

LangTech2008

Rome , Feb 27th, 2008

7

Some research topics

Consider and separate in-domain from out-of-domain information in a spoken message Consider and compare a unified approach (e.g. based on parsing) with a modular approach to process design. Consider interpretation of reference and negotiation in addition to negation and correction. Explore problem-solving tasks Consider semantic theories (e. g. Fillmore, Jackendoff) to build (partially) application independent knowledge representation with frames capable of representing functions and operators Consider summarization of dialog histories by clustering sequences

• f dialog features.

LangTech2008

Rome , Feb 27th, 2008

8

Scientific objectives

• In general, semantic specifications of a programming language are

defined in terms of the procedures a machine carries out to execute

• them. Signs are extracted from speech and used to provide values for

frame instances with procedures which are part of the interpretation process.

• Interpretation process decomposition and architectures are

considered in

• Robustness obtained by evaluation and possible integration of

different methods (SMT, CRF, ME, classifiers, parsers, SFSM, rules)

• Automatic learning, uniform annotation process (portability)

LangTech2008

Rome , Feb 27th, 2008

9

Technological objective

Main technological objectve of LUNA is to propose new methods, algorithms and tools for the fast development of robust SLU components for multilingual telephone services. Three levels are considered in the interpretation process. Process complexity may depend on the task. The first level includes the translation process from a lattice of words into a lattice of basic conceptual constituents. The second level performs the semantic composition operations defined on these basic constituents. At the third level the dialogue context is taken into account in the SLU strategy (context-sensitive validation).

LangTech2008

Rome , Feb 27th, 2008

10

LUNA – Project structure

LangTech2008

Rome , Feb 27th, 2008

11

WP2 module: Semantic constituents

nom-hotel {cap sud}

bien alors donc c’est d’accord j’en je voudrais réserver…

null {} response {oui} command-tache {reservation} temps-date {04/04}

• bjetBB

{hotel} temps-date {07/04}

…du quatre au sept avril dans cet hotel à le cap sud spoken sentence Attribute name

Attribute name Attribute value

Attribute value spoken sentence

LangTech2008

Rome , Feb 27th, 2008

12

Interpretation by semantic composition

LUNA SLU System Decision Module Confidence Evaluation Searchfor interpretation hypotheses Interpretation strategy Confidence knowledge Semantic composition knowledge Lattice of concept hypotheses Lattice of interpretations (to CWP4) Decision Module Confidence Evaluation Searchfor interpretation hypotheses Interpretation strategy Confidence knowledge Semantic composition knowledge (from C )

WP2

(to CWP4) with context information Decision Module Confidence Evaluation Searchfor interpretation hypotheses Interpretation strategy Confidence knowledge Semantic composition knowledge Lattice of concept hypotheses Lattice of interpretations (to CWP4) Decision Module Confidence Evaluation Searchfor interpretation hypotheses Interpretation strategy Confidence knowledge Semantic composition knowledge (from C )

WP2

(from C )

WP2

(to CWP4) with context information

LangTech2008

Rome , Feb 27th, 2008

13

WP3 - Semantic composition

LangTech2008

Rome , Feb 27th, 2008

14

WP3 - Semantic composition

Modular vs. unified approach Full parsing vs. shallow parsing and composition knowledge Confidence based on committee of classifiers ….. Active learning

LangTech2008

Rome , Feb 27th, 2008

15

Component overview

Decision Module Confidence Evaluation Context-Sensitive Scoring Dialogue Manager Lower-level Components On-line Learning Dynamic Diagnostic of SLU Performance Local and Global Context Context- sensitive Models Current User Behaviour Decision Module Confidence Evaluation Context-Sensitive Scoring Dialogue Manager Lower-level Components On-line Learning Dynamic Diagnostic of SLU Performance Local and Global Context Context- sensitive Models Current User Behaviour

LangTech2008

Rome , Feb 27th, 2008

16

Industry systems and applications

France Telecom

• System 3000
• System 1014
• Opinion analysis

Loquendo

• Dialogue platform
• language and conceptual models in new languages

Both interested in Polish as a new language

LangTech2008

Rome , Feb 27th, 2008

17

Data collection

In addition to FT application corpora for their services and the French MEDIA corpus, help desk applications are considered in Italian and Polish Data are acquired from real-life telephone help desks CSI Piemonte

• customer care and technical support to public administration

customers PJIIT, PAS (ASR, NLU)

• Warsaw public transportation help desk

LangTech2008

Rome , Feb 27th, 2008

18

THE SIGN TO MEANING PROCESS

LangTech2008

Rome , Feb 27th, 2008

19

Introduction

Epistemology, the science of knowledge, considers a datum as basic unit. Semantics deals with the organization of meanings and the relations between sensory signs or symbols and what they denote or mean. Computer epistemology deals with observable facts and their representation in a computer. Natural language interpretation by computers performs a conceptualization of the world using computational processes for composing a meaning representation structure from available signs and their features.

LangTech2008

Rome , Feb 27th, 2008

20

SLU and NLU

SLU and NLU share the goal and some types of signs of obtaining a conceptual representation of natural language sentences. Specific to SLU is the fact that

• signs to be used for interpretation are coded into signals with other

information such as speaker identity.

• spoken sentences often do not follow the grammar of a language;

they exhibit self corrections, hesitations, repetitions and other peculiar phenomena.

• SLU systems contain an ASR component and must be robust to

noise due to the spontaneous nature of spoken language, errors introduced by ASR and its difficulty in detecting sentence boundaries.

LangTech2008

Rome , Feb 27th, 2008

21

Meaning representation

Semantic theories have inspired the conception of Meaning Representation Languages (MRL). MRLs have a syntax and a semantic (Woods, 1975) and should, among other things: represent intension and extension, with defining and asserting properties, use quantifiers as higher operators, lambda abstraction And make it possible to perform inference Frame languages define computational structures (Kifer et al., JACM, 1995) and can be seen as cognitive structuring devices (Fillmore, 1968, 1985) in a semantic construction theory.

LangTech2008

Rome , Feb 27th, 2008

22

Frames as computational structures (intension)

{address loc [TOWN] ……attached procedures area [DEPARTMENT OR PROVINCE OR STATE ] ……attached procedures country [NATION ] ……attached procedures street [NUMBER AND NAME ] ……attached procedures zip [ORDINAL NUMBER ] ……attached procedures } A frame scheme with defining properties represents types of conceptual structures (intension) as well as instances of them (extension). Relations with signs can be established by attached procedures (S. Young et al., 1989).

LangTech2008

Rome , Feb 27th, 2008

23

Frame instances (extension)

A convenient way for asserting properties, and reasoning about semantic knowledge is to represent it as a set of logic formulas. A frame instance (extension) can be obtained from predicates that are related and composed into a computational structure. Frame schemata can be derived from knowledge obtained by applying semantic theories. Interesting theories can be found, for example in (Jackendoff, 1990, 2002) or in (Brackman 1978, reviewed by Woods 1985)

⎭ ⎬ ⎫ ⎩ ⎨ ⎧ ∧ ∧ ∧ ∧ ∧ ∧ ∃ ) 84000 , x ( zip ) Pascal avenue 1 , x ( street ) France , x ( country ) Vaucluse , x ( area ) Avignon , x ( loc ) address , x (

• f

_ ce tan ins ) x (

LangTech2008

Rome , Feb 27th, 2008

24

Frame instance

{a0001 instance_of address loc Avignon area Vaucluse country France street 1, avenue Pascal zip 84000 } Schemata contain collections of properties and values expressing

• relations. A property or a role are represented by a slot filled by a

value

LangTech2008

Rome , Feb 27th, 2008

25

Process overview

speech to conceptual structures and MRL speech Short Term Memory Long Term Memory : AM LM interpretation KSs dialogue learning signs words concept tags concept structures MRL description

An integrated solution: the blackboard architecture (Erman et al., ACM Comp. Surveys 1980)

LangTech2008

Rome , Feb 27th, 2008

26

Interpretation problem decomposition

Speech signs meaning 1-best, n-best, lattices Acoustic features words constituents structures features for interpretation

Problem reduction representation is context-sensitive Interpretation is a composite decision process. Many decompositions are possible involving a variety of methods and KSs, suggesting to consider a modular approach to process design. Robustness is obtained by evaluation and possible integration of different KSs and methods used for the same sub-task.

LangTech2008

Rome , Feb 27th, 2008

27

Levels of processes and application complexity

Translation from words to basic conceptual constituents Semantic composition on basic constituents Context-sensitive validation Combination of level processes may depend on the application

LangTech2008

Rome , Feb 27th, 2008

28

From signs to constituents

speech to MRL constituents speech AM LM trans KS signs words concept tags ASR AM LM word tag lattice lattice transl tr KS Hypothesize a lattice of concept tags for semantic constituents and compose them into structures. Detection vs. translation

LangTech2008

Rome , Feb 27th, 2008

29

WORDS TO CONCEPTS (SEMANTIC CONSTITUENTS) TRANSLATION

LangTech2008

Rome , Feb 27th, 2008

30

History

Systems developed in the seventies reviewed in (Klatt, 1977) and the eighties, early nineties (EVAR, SUNDIAL) mostly performed syntactic analysis on the best sequence of words hypothesized by an ASR system and used non probabilistic rules, semantic networks, pragmatic and semantic grammars for mapping syntactic structures into semantic ones expressed in logic form. In the nineties, the need emerged for testing SLU processes on large corpora that could also be used for automatically estimating some model parameters. Probabilistic finite-state interpretation models and grammars were also introduced for dealing with ambiguities introduced by model imprecision.

LangTech2008

Rome , Feb 27th, 2008

31

Probabilistic interpretation in the Chronous system

Org. else

Date

Dest.

The probability P(CW) is computed using Markov models Markov models as P(CW)=P(W|C)P(C) (Pieraccini et al., 1991, Pieraccini, E. Levin, E. Vidal, 1993).

LangTech2008

Rome , Feb 27th, 2008

32

Semantic Classification trees

City? from City? to City? Origin Dest.

yes no no no yes yes

(Kuhn and De Mori, 1995)

LangTech2008

Rome , Feb 27th, 2008

33

SEMANTIC GRAMMARS

LangTech2008

Rome , Feb 27th, 2008

34

Interpretation as a translation process

Interpretation of written text can be seen as a process that uses procedures for translating a sequence of words in natural language into a set of semantic hypotheses (just constituents or structures) described by a semantic language. W:[S[VP [V give, PR me] NP [ART a, N restaurant] PP[PREP near, NP [N Montparnasse, N station]]]] Γ:[Action REQUEST ([Thing RESTAURANT], [Path NEAR ([Place IN ([Thing MONTPARNASSE])])]] Interesting discussion in (Jackendoff, 1990) Each major syntactic constituent of a sentence maps into a conceptual constituent, but the inverse is not true.

LangTech2008

Rome , Feb 27th, 2008

35

Using grammars for NLU

Adding semantic building structures to cfg Categorial grammars (Lambek, 1958) Montague Grammars (Montague, 1974) Augmented Transition Network Grammars (Woods 1970) Semantic grammars for SLU (Woods, 1976) Tree Adjoining grammars (TAG) integrate syntax and logic form (LF) semantics. Links can be established between the two representations and operations carried out synchronously (Shabes and Joshi, 1990).

LangTech2008

Rome , Feb 27th, 2008

36

Robust parsing (early ATIS)

A robust fallback module has been incorporated in successive versions (Delphi Bates et al., 1994). The system developed at SRI consists of two semantic modules yoked together: a unification-grammar-based module called ”Gemini”, and the ”Template Matcher” which acts as a fallback if Gemini can't produce an acceptable database query (Appelt, 1996). When a sentence parser fails, constraints on the parser are relaxed to permit the recovery of parsable phrases and clauses (TINA Seneff, 90). Fragments are then fused together. Local parsing (Abney, 1991).

LangTech2008

Rome , Feb 27th, 2008

37

Stochastic semantic context-free grammars

The linguistic analyzer TINA, (MIT, Seneff, 1989), has a grammar written as a set of probabilistic context free rewrite rules with constraints. The grammar is converted automatically at run-time to a network form in which each node represents a syntactic or semantic category. The probabilities associated with rules are calculated from training data, and serve to constrain search during recognition (without them, all possible parses would have to be considered). History grammars (Black et al., 1993) Robust partial parser

LangTech2008

Rome , Feb 27th, 2008

38

Parsing with ATIS stochastic semantic gramamrs

show flight Show indicator Date Dest. Flight Indicator Dest. Indicator City Name Date Indicator Day

Please show me the flights Boston Monday to

• n

Non-terminal nodes Terminal nodes

show flight Show indicator Date Dest. Flight Indicator Dest. Indicator City Name Date Indicator Day

Please show me the flights Boston Monday to

• n

Non-terminal nodes Terminal nodes

LangTech2008

Rome , Feb 27th, 2008

39

Stochastic semantic context-free grammars The Hidden Understanding Model (HUM) system, developed at BBN, is based Hidden Markov Models (Miller et al., 1994). In the HUM system, after a parse tree is obtained, bigram probabilities of a partial path towards the root, given another partial path are used. Interpretation is guided by a strategy represented by a stochastic decision tree . The semantic language model employs tree structured meaning representations: concepts are represented as nodes in a tree, with sub-concepts represented as child nodes. Pr(M|W) = Pr(W|M)Pr(M)/Pr(W) M: meaning

LangTech2008

Rome , Feb 27th, 2008

40

Hidden vector state model

Each vector state is viewed as a hidden variable and represents the state of a push-down automaton. Such a vector is the result of pushing non-terminal symbols starting from the root symbol and ending with the pre-terminal symbol. Non-terminal symbols correspond to semantic compositions like FLIGHTS while pre- terminal symbols correspond to semantic constituents like CITY. (He and Young, 2006) An example of state vector representing a path for a composition to the start symbol S is:

⎥ ⎥ ⎥ ⎥ ⎦ ⎤ ⎢ ⎢ ⎢ ⎢ ⎣ ⎡ S FLIGHTS _ LOCATION _ FROM CITY

LangTech2008

Rome , Feb 27th, 2008

41

Microsoft stochastic grammar

Semantic structures are defined by schemata. Each schema is an

• bject (Y.Y. Wang, A. Acero, 2003).

Object structures are defined by an XML schema. Given a semantic schema, a semantic CFG is derived using templates. Details of the schemata are learned automatically. An entity is the basic component of a schema which defines relations among entities. An entity consists of a head, optional modifiers and optional properties defined recursively so that they finally incorporate a different sequence of schema slots. Each slot is bracketed by an optional pre-amble and post-amble which are

• riginally place holders.

LangTech2008

Rome , Feb 27th, 2008

42

Concurrent or sequential use of syntax and semantic knowledge

Semantic parsing is discussed in (Tait, 1983). A semantic first parser is described in (Lytinen, 1992). a race-based parser is described in (McRoy and Hirst, 1990). The Delphi system (Bobrow et al., 1990), contains a number of levels, namely, syntactic (using Definite Clause Grammar, DCG), general semantics, domain semantics and action. Rules transform syntactic into semantic representations Recent works introduce actions in parsers for generating predicate/argument hypotheses. Strategies for parsing actions are

• btained by automatic learning from annotated corpora (FrameNet,

VerbNet ….)

LangTech2008

Rome , Feb 27th, 2008

43

Predicate/argument structures and parsers

Recently, classifiers were proposed for detecting concepts and roles. Such detection process was integrated with a stochastic parser (e.g. Charniak 2001). A solution using this parser and tree-kernel based classifiers for predicate argument detection in SLU is proposed in (Moschitti et al. ASRU 2007). Other relevant contributions on stochastic semantic parsing can be found in (Goddeau and Zue. 1992, . Goodman. 1996,. Chelba and Jelinek, 2000,. Roark, 2002, Collins, 2003) Lattice-based parsers are reviewed in (Hall, 2005)

LangTech2008

Rome , Feb 27th, 2008

44

Semantic building actions in parsing

S NP [agent] VP[action] NP[theme] det N V det N the customer accepts the contract

Use tree kernel methods for learning argument matching (Moschitti, Raymond, Riccardi, ASRU 2007)

LangTech2008

Rome , Feb 27th, 2008

45

Important questions

There is no evidence yet that there is an approach that is superior to all others. Where are the signs? Are they only words? Many system architectures are ASR + NLU How effective is the use of syntactic structures with spoken language and ASR? How important are inference and composition? Relevant NLU literature exists on these topics. To what extent can they be used? PROPOSED SOLUTION : COMBINE DIFFERENT SHALLOW PARSING METHODS TO IMPROVE ROBUSTNESS

LangTech2008

Rome , Feb 27th, 2008

46

Generation of semantic constituent hypotheses

LangTech2008

Rome , Feb 27th, 2008

47

Finite-state conceptual language models

ASR algorithms compute probabilities of word hypotheses using finite state language models. It is important to perform interpretation from a lattice of scored words and to take, possibly redundant, word contexts into account (Drenth and Ruber, 1997, Nasr et al., 1999). Other interesting contributions are in (Prieto et al., 1993, Kawahara et al., 1999). Finite state approximations of context-free or context-sensitive grammars (Pereira, 1990, reviewed in Erdogan, 2005), Finite state parser (TAG) with application semantics (Rambow et al. 2002).

LangTech2008

Rome , Feb 27th, 2008

48

Conceptual Language Models

C L M 0 C L M 1 C L M j … … … … … … … … … … … … .. C L M J

This architecture is used also for separating in domain from out domain message segments (Damnati, 2007) and for spoken opinion analysis (Camelin et al., 2006). The whole ASR knowledge models in this way a relation between signal features and meaning.

LangTech2008

Rome , Feb 27th, 2008

49

Hypothesis generation from lattices

An initial ASR activity generates a word graph (WG) of scored word hypotheses with a generic LM. The network is composed with WG resulting in the assignment of semantic tags to paths in WG SWG=OUTPROJ(SEMG) (Special issue Speech Communication, 3 2006, Béchet et al., Furui)

⎟ ⎠ ⎞ ⎜ ⎝ ⎛ =

=

U

• C

c c

CLM WG SEMG

LangTech2008

Rome , Feb 27th, 2008

50

NL - MRL translation

In (Papineni et al. , 1998) statistical translation models are used to translate a source sentence S into a target, artificial language T by maximizing the following probability : Pr(T|S) = Pr(S|T)P(T) Pr(S) The central task in training is to determine correlations between group of words in one language and groups of words in the

• ther. The source channel fails in capturing such correlations, so

a direct model has been built to directly compute the posterior probability P(T|S). Intresting solutions also in (Macherey et al., 2001, Sudoh and Tsukada, 2005 for attribute/value pairs, LUNA)

LangTech2008

Rome , Feb 27th, 2008

51

CRF

⎟ ⎠ ⎞ ⎜ ⎝ ⎛ =

∑∑

∈ − C c k i i k k

i x y y f x Z x y p ) , , , ( exp ) ( 1 ) | (

1

λ

∑ ∑∑

⎟ ⎠ ⎞ ⎜ ⎝ ⎛ =

∈ − y C c k i i k k

i x y y f x Z ) , , , ( exp ) (

1

λ

⎪ ⎩ ⎪ ⎨ ⎧ = =

− −

• therwise

to} | {arrive contain ... and . if 1 ) , , , (

1 1 i i i i i k

x x CITY ARRIVE y i x y y f

Possibility of having features from long-term dependences Results for LUNA from Riccardi, Raymond, Ney, Hann

LangTech2008

Rome , Feb 27th, 2008

52

Method comparison and combination

• Results on the French MEDIA corpus, LUNA project, NLU RWTH

Aachen results

• Approaches:

– Linear chain CRF – FST – SVM – Log-linear on positional level – MT – SVM with tree kernel Comparison Incremental oracle performance

Raymond C., Riccardi G. “Generative and Discriminative Algorithms for Spoken Language Understanding”, Proc. INTERSPEECH, Antwerp, 2007. Moschitti A., Riccardi G., Raymond C. “Spoken language understanding with kernels for syntactic/ semantic structures”, Proc. IEEE ASRU, Kyoto, 2007.

LangTech2008

Rome , Feb 27th, 2008

53

Sequential approach with 1-best ASR

Comparison of interpretation results obtained in the MEDIA corpus 1 best ASR output concept error rate (CER) Conditional Random Fields 25.2 % Finite State Transducers 29.5 % Support Vector Machines 29.6 % CER close to 20 when N-best concepts (N<10) are obtained with

• FSMs. Possiiblity of further imprevement by combination

with CRFs and using dialog constraints

LangTech2008

Rome , Feb 27th, 2008

54

Demo

LUNAVIZ

LangTech2008

Rome , Feb 27th, 2008

55

SEMANTIC COMPOSITION AND INFERENCE

LangTech2008

Rome , Feb 27th, 2008

56

Frame structures and slot chains

Instances of semantic structures are represented by slot chains with facets (Koler, Pfeiffer, 1998)

[ ] ( )

[ ]

) v ( r G r F

xkh xk x jk j

[ ] ( )

[ ]

) v ( r G r F

xkh xk x jk j

( ) ( )

( )

{ }

xkh x x j jk xkh j xkh j

v , G ) G , F ( r / v , F v , F σ ∧ = σ

LangTech2008

Rome , Feb 27th, 2008

57

Composition

j

Γ

: REQUEST.[agent(speaker), recipient (system), theme (KNOW

[theme ITEM [theme (LODGING [])])]

x

G

: LODGING[ldg_structure (HOTEL[]), ldg_room (ROOM[]),

ldg_lux (good)] Speaker(user)

∧

chambre-standing[bon]

⊃

LODGING [ldg_structure (HOTEL[]), ldg_room (ROOM[]), ldg_lux (good)] Obtained by inference after constituent detection

LangTech2008

Rome , Feb 27th, 2008

58

Support for Composition

REQUEST.[agent(speaker), recipient (system), theme (KNOW [theme ITEM [theme (LODGING [ldg_structure (HOTEL[]), ldg_room (ROOM[]), ldg_lux (good)])])] Composition is performed if there is a support in the data for their relation Relation support have general word patterns (e.g. specificarion, inclusion…) which are often independent from the application domain

( ) [ ]

x j G

, R sup Γ

( )

( )

[ ]

{ }

x j

G sup , sup R sup Γ

LangTech2008

Rome , Feb 27th, 2008

59

Demo

FRIZ

LangTech2008

Rome , Feb 27th, 2008

60

Simple frame probabilistic model

S F [R1 ……. Rn] roles predictor frame [C1 ……. Cn] chunks

∏ = ∏ ≈ ≈ ∏ ≈ =

−

) R C ( P ) R C ( P ) FS R ( P ) RFS C ( P ) F R R ( P ) FS R ( P ) RFS C ( P ) FS R ( P ) S F ( P ) S ( P ) S , F , R , C ( P

i i 1 i i

In (Thompson et al., 2003 ) it is suggested that a frame F is instantiated by a predictor word S and roles R are related to phrases C. Probability model with Markov assumption

LangTech2008

Rome , Feb 27th, 2008

61

Logic based approaches to interpretation

Logic based approaches to NLU were proposed for representing semantic knowledge and performing inference on it. In (Norvig, 1987) inferences are considered for asserting implicit meaning of a sentence or implicit connections between sentences. In (Palmer, 1983), it is suggested to detect relationships between semantic roles by inference. In (Koller and Pfeffer, 1998) is noticed that one of the limits of the expressive power of frames is the inability to represent and reason about uncertain and noisy information. Probability distributions were introduced in slot facets to represent constraints on possible role

• values. An algorithm was proposed for obtaining a Bayesian Network

(BN) from a list of dependences between frame slots.

LangTech2008

Rome , Feb 27th, 2008

62

Probabilistic frame based systems

In probabilistic frame-based systems, (Koller 1998 ) a frame slot S of a frame F is associated a facet Q with value Z: Q(F,S,Y). A probability model is part of a facet as it represents a restriction on the values Y. It is possible to have a probability model for a slot value which depends on a slot chain. It is also possible to inherit probability models from classes to subclasses, to use probability models in multiple instances and to have probability distributions representing structural uncertainty about a set

• f entities.

LangTech2008

Rome , Feb 27th, 2008

63

Dependency graph with cycles

Acoustic_evidence support concept filled-slot If the dependence graph has cycles, then possible worlds can be

• considered. The computation of probabilities of possible worlds is

discussed in (Nilsson, 1986). A general method for computing probabilities of possible worlds based on Markov logic networks (MLN) is proposed in (Richardson, 2006).

k

Y →

k

W →

k

Y →

k

W →

k

C →

k , j , i

γ

l

Y →

l

W →

l

C →

l , j , i

γ

m

Y →

m

W →

m

C →

m , j , i

γ

→

LangTech2008

Rome , Feb 27th, 2008

64

Probabilistic models of relational data

Probability of relational data can be estimated in various ways, depending on the data available and on the complexity of the domain. For simple domains it is possible to use a naïve Bayes approach. Otherwise, it is possible to use the disjunctive interaction model (Pearl, 1988), or relational Markov networks (RMN) (Taskar, 2002) Methods for probabilistic logic learning are reviewed in (De Raedt, 2003).

LangTech2008

Rome , Feb 27th, 2008

65

OTHER MODULAR SYSTEMS

LangTech2008

Rome , Feb 27th, 2008

66

Combinations of approaches NLU

Rule-based approaches to interpretation suffer from their brittleness and the significant cost of authoring and maintaining complex rule sets. Data-driven approaches are robust. However, the reliance on domain- specific data is also one of the significant bottlenecks of data-driven approaches. Combining different approaches makes it possible to get the best out of

• them. Simple grammars are used for detecting possible clauses, then

classification-based parsing completes the analysis with inference (Kasper and Hovy, 1990). Shallow semantic parsing was proposed by (Gildea and Jurafsky, 2002, Hacioglu and Ward, 2003, ;Pradhan et al. 2004)]

LangTech2008

Rome , Feb 27th, 2008

67

Microsoft SLU

In (Wang et al., 2002), stochastic semantic grammars are combined with classifiers for recognizing concepts. their combination with ROVER (the hypothesis which gets the majority of votes wins). SVM alone resulted to be the best even if ROVER is applied. Important improvement was found by replacing certain words with their semantic categories found by the parser. Concepts detected in this way are used to filter the rules of the semantic grammar applied to find slot fillers

LangTech2008

Rome , Feb 27th, 2008

68

Colorado

A parser based on tagging actions producing non-overlapping shallow tree structures is proposed in (Hacioglu, K. (2004) , at lexical, syntactic and semantic levels to represent the language. The goal is to improve the portability of semantic processing to

• ther applications, domains and languages.

The new structure is complex enough to capture crucial (non- exclusive) semantic knowledge for intended applications and simple enough to allow flat, easier and fast annotation.

LangTech2008

Rome , Feb 27th, 2008

69

ATT

The use of just a grammar is not sufficient, (Bangalore et al.,) because recognition needs to be more robust to extragrammaticality and language variation in user’s utterances and the interpretation needs to be more robust to speech recognition errors. For this reason, a class-based trigram LM is built with in-domain data. In order to improve recognition rates, sentences are generated with the grammar to provide data for training the classifiers. In (Shapire et al. 2005), authors explore the use of human-crafted knowledge to compensate for the lack of data in building robust classifiers.

LangTech2008

Rome , Feb 27th, 2008

70

IBM

In (Sarikaya et al, 2004), a system is proposed which generates an N-best (N=34) list of word hypotheses with a dialogue state dependent trigram LM and rescores them with two semantic models. 1 An Embedded context-free semantic Grammar (EG) is defined for each of 17 concepts and performs concept spotting by searching for phrase patterns corresponding to concepts. 2 A second LM, called Maximum Entropy (ME) LM (MELM), computes probabilities of a word, given the history, using a ME model.

LangTech2008

Rome , Feb 27th, 2008

71

SPEECH ACTS

LangTech2008

Rome , Feb 27th, 2008

72

Speech acts

Negotiation dialogues are characterized by a hierarchy of illocutory (speech) acts (Chang, 2004). They are discourse actions identified by verbs, other lexical units

• r implied by other concepts expressed in a sentence.

These speech acts (SA) determine the sentence type. Various attempts have been made to identify SAs which are domain independent. A possible taxonomy of them is formulated in the Dialogue Act Markup in Several Layers (DAMSL).

LangTech2008

Rome , Feb 27th, 2008

73

Speech acts

In (Cohen and Perrault, 1979), a notation of formulating dialogue acts as plan operators is proposed. A negotiation dialogue follows a partially ordered plan represented by a Hierarchy of Tasks (HT) (Sacerdoti, ijcai75). Each task is characterized by a SA whose effect is the instantiation, modification or finalization of conceptual structures required for performing transactions. HT is a generative structure of possible sequences of SAs characterizing the sentences of a dialogue with which a system and a user negotiate for defining a possible transaction.

LangTech2008

Rome , Feb 27th, 2008

74

Speech acts

The main purpose of a service is to satisfy a user goal. If a service can satisfy many goals, it has to hypothesize/identify actual user goals and, for each goal consider a mean to achieve it. Such a mean can be a plan whose actions are executed following a policy and have the objective of gathering all the necessary details for specifying an instance of a goal which corresponds to a user intention . In the considered applicarions the goals are performing transactions and the dialogue involves negotiations represented by non-linear, partially ordered hierarchies of tasks whose possible sequences can be generated by rules

LangTech2008

Rome , Feb 27th, 2008

75

Negotiation dialogues

N_Dialogue := Open - Negotiation - Commit - Close Negociation := Formulation (Formulation | Repair)* Formulation := (Assert |Request | Propose) (Assert | Request |Propose)* Request := (Know | Reserve | Confirm) (Know | Reserve | Confirm)* Repair := (Repeat + Hold + Correct)* (Repeat + Hold Correct + Reject) Commit := Accept

∨

⊕

LangTech2008

Rome , Feb 27th, 2008

76

PROPOSED APPROACH

Compose semantic structures headed by speech acts Use these structures for composing/modifying instances of transaction models based on understanding actions Use transaction model instances for deciding system actions Use instances of speech acts and their roles for obtaining summaries

• f dialogue histories and their probabilities. They will be used by

the Dialogue Manager (POMDP ASRU 2007)

LangTech2008

Rome , Feb 27th, 2008

77

Speech and dialogue acts (history)

A speech act is a dialogue fact expressing an action. Speech acts and other dialog facts to be used in reasoning activities have to be hypothesized from discourse analysis.

• Semantic classification trees [Mast et. al ’96], (Wiebe at al., 1997)
• Decision trees [Stolcke et. al ’98, Ang et. al ’05],
• HMMs [Stolcke et. al ’98],
• Classification trees (Tanigaki and Sagisaka, 1999),
• Neural networks [Stolcke et. al ’98, Wang et. al ’99]
• Fuzzy fragment-class Markov models [Wu et. al ’02]
• Maximum entropy models [Stolcke et. al ’98, Ang et. al ’05]
• Bayesian belief networks (Bilmes et al., 2005),
• Bayesian belief model (BBM) (Li and Chou, 2002)

LangTech2008

Rome , Feb 27th, 2008

78

Dialogue event tagging

In (Zimmermann et al., 2005) prosodic features (pause durations) are used in addition to word dependent events. A Hidden-Event Language Model (HELM) is used in a process

• f simultaneous segmentation and classification.

After each word, the HE-LM predicts either a non-boundary event

• r the boundary event corresponding to any of the DA types under

consideration Mapping words into actions (Potamianos et al., 1999, Meng et al., 1999). Latent Semantic Analysis is proposed in (Bellegarda, 2002, Zhang and Rudnicky, 2002)

LangTech2008

Rome , Feb 27th, 2008

79

Sentence boundary detection

Using prosody (Shriberg rt al., 2000) Approaches to boundary detection have used finite-state sequence modeling approaches, including Hidden Markov Models (HMM) and Conditional Random Fields (CRF) (Roark et al. 2006) Sentences are often short, providing relatively impoverished state sequence information. A Maximum Entropy (MaxEnt) model that did not use state sequence information, was able to outperform an HMM by including additional rich information. Features from (Charniak, 2000) parser were used.

LangTech2008

Rome , Feb 27th, 2008

80

Sentence classification

Call routing is an important and practical example of spoken message categorization. In applications of this type, the dialog act expressed by one or more sentences is classified to generate a semantic primitive action belonging to a well defined set.

• Connectionist models (Gorin et al. 1995)
• SVD (Chu-Carroll and Carpenter, 1999)
• Latent Semantic Analysis (LSA) (Bellegarda 2002)
• SVM, cosine similarity metric (used in IR) and Beta-classifier

(IBM, 2005, 2006)

• Cluster of sentences is proposed in (He and Young, 2006)

LangTech2008

Rome , Feb 27th, 2008

81

FT/LIA System 3000

word lattice concept lattice interpretation lattice dialog state lattice

Γk is a composition Béchet et al. ICASSP 2007

LangTech2008

Rome , Feb 27th, 2008

82

CONFIDENCE AND LEARNING

LangTech2008

Rome , Feb 27th, 2008

83

unsupervised semantic role labelling

Interpretation modules have parameters estimated by automatic learning (Chronus, Chanel, HUM and successor systems ) Semantic annotation is time consuming. The process should be semi-automatic starting with bootstrapping (e.g., Hindle and Rooth, 1993; Yarowsky, 1995; Jones et al., 1999) Initially make only the role assignments that are unambiguous according to a verb lexicon ((Kate and Mooney, 2007). A probability model is created based on the currently annotated semantic roles. When unlabeled test examples are also available during training, a transductive framework for learning can further improve the performance on the test examples

LangTech2008

Rome , Feb 27th, 2008

84

Active Learning

Hakkani-Tür, Riccardi Gorin, 2002)

LangTech2008

Rome , Feb 27th, 2008

85

Certainty-Based Active Learning for SLU

LangTech2008

Rome , Feb 27th, 2008

86

Sequential decision using different features sets

DU1 RU1 DU2 P(Γ|F1) high P(G|F1) low validated corrected

• thers

P(G|F2) low Confidence is used to define reliability situations based on which dialogue actions can be decided.

LangTech2008

Rome , Feb 27th, 2008

87

Confidence

Evaluate confidence of components and compositions represents the confidence indicators or a function of them. Notice that it is difficult to compare competing interpretation hypotheses based on the probability where Y is a time sequence of acoustic features, because different semantic constituents may have been hypothesized on different time segments

• f stream Y.

) ( P

conf

Φ Γ

conf

Φ

) Y ( P Γ

LangTech2008

Rome , Feb 27th, 2008

88

Confidence measures

Two basic steps: 1) generate as many features as possible based on the speech recognition and/or natural language understanding process and 2) Estimate correctness probabilities with these features, using a combination model.

LangTech2008

Rome , Feb 27th, 2008

89

Features for confidence

Many features are based on empirical considerations: semantic weights assigned to words, uncovered word percentage, gap number, slot number, word, word-pair and word-triplet

• ccurrence counts,

LangTech2008

Rome , Feb 27th, 2008

90

Features for confidence

Word counts in an N-best list, lattice density, phone perplexity, language model back-off behaviour, and posterior probabilities Measures related to the fact that sentences that are grammatically correct and free of recognition errors tend to be easier to parse and the corresponding scores in the parse tree are higher than those of the ungrammatical sentences containing errors generated by the speech recognizer (IBM).

LangTech2008

Rome , Feb 27th, 2008

91

Other features for confidence

In (Lieb, 2005), during slot-value pair extraction, semantic tree node confidences are translated into corresponding slot and value confidences, using a rule-based policy. In (Higashinaka et al., 2006) it is proposed to incorporate discourse features into the confidence scoring of intention recognition results. Lin and Wang (2001) propose a concept-based probabilistic verification model, which exploits concept N-grams. A confidence model is a kind of a classifier that scores or classifies words/concepts based on training data (Hazen, 2002)

LangTech2008

Rome , Feb 27th, 2008

92

Other features for confidence

Use of pragmatic analysis to score concepts uttered by the user (Ammicht et al., 2001). When an already recognized concept seems to have been implicitly confirmed, the confidence of that concept is augmented. Hirschberg et al. (2004) introduce a number of prosodic features, such as F0, the length of a pause preceding the turn, and the speaking rate. Combining Confidence Scores with Contextual Features (Purver et al. 2006)

LangTech2008

Rome , Feb 27th, 2008

93

Define confidence-related situations

Consensus among classifiers and SFST is used to produce confidence indicators in a sequential interpretation strategy (Raymond et al. 2005, 2007). Classifiers used are SCT, SVM,

• adaboost. Committee-Based Active Learning uses multiple

classifiers to select samples (Seung et al. 1992)

FSM SVM adaboost SCT

Fusion strategy

LangTech2008

Rome , Feb 27th, 2008

94

Committee-Based Active Learning

Call classification (Tur, Schapire, and Hakkani- Tür, 2003)

LangTech2008

Rome , Feb 27th, 2008

95

Unsupervised Learning

(Tur and Hakkani-Tür, Riccardi and Hakkani-Tür, 2003)

LangTech2008

Rome , Feb 27th, 2008

96

Co-Training

Assume there are multiple views for classification

• 1. Train multiple models using each view
• 2. Classify unlabeled data
• 3. Enlarge training set of the other using each classifier’s

predictions

• 4. Goto Step 1

LangTech2008

Rome , Feb 27th, 2008

97

Combining Active and Unsupervised Learning

Train a classifier using initial training data While (labelers/data available) do Select k samples for labeling using active learning Label and add these selected ones to the training data and retrain Exploit the unselected data using unsupervised learning Update the pool.

LangTech2008

Rome , Feb 27th, 2008

98

Adaptive Learning in Practice

(Riccardi et al, 2005)

LangTech2008

Rome , Feb 27th, 2008

99

Solutions for applications

The simple use of semantic constituents is sufficient for applications such as call routing, utterance classification with a mapping to disjoint categories and perhaps to speech-to-speech translation and speech information retrieval. Semantic composition is useful for applications like spoken opinion analysis, call routing with utterance characterization (finer-grain comprehension), question/answering, inquiry qualification. A broad context is taken into account for context-sensitive validation in complex spoken dialog applications and inquiry qualification considering an utterance as a set of sub-utterances and the interpretation of one sub-utterance being context-sensitive to the

• thers.

LangTech2008

Rome , Feb 27th, 2008

10

Conclusions

A modular SLU architecture can exploit the benefits of combined use of CRFs, classifiers and stochastic FSMs, which are approximations of more complex grammars. Grammars should perhaps be used in conjunction with processes having inference capabilities. Recent results and applications of probabilistic logic appear interesting, but its effective use for SLU still has to be demonstrated. Annotating corpora for these tasks is time consuming suggesting that it is suitable to use a combination of knowledge acquired by a machine learning procedures and human knowledge.

LangTech2008

Rome , Feb 27th, 2008

10 1

Conclusions

Robustness, incremental learning, portability are important and open issues. SLU is not only used in human-machine dialogs. Other applications are for opinion analysis, indexing, summarization, retrieval. When SLU is used in dialog, interpretation strategies should provide hypotheses with confidence indicators, taking into account dialogue context, communication principles, types of actions and goals, types of sources.

LangTech2008

Rome , Feb 27th, 2008

10 2

THANK YOU
