Unlikely Intersections and Portraits of Dynamical Semigroups Talia Blum Colby Kelln Henry Talbott February 1, 2020 Nebraska Conference for Undergraduate Women in Math Talia Blum, Colby Kelln, Henry Talbott 1 / 20 February 1, 2020 1 / 20


slide-1
SLIDE 1

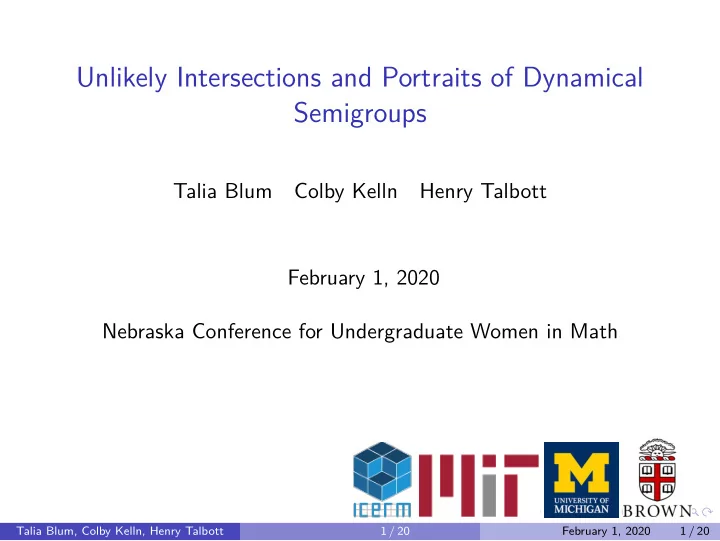

Unlikely Intersections and Portraits of Dynamical Semigroups

Talia Blum Colby Kelln Henry Talbott February 1, 2020 Nebraska Conference for Undergraduate Women in Math

Talia Blum, Colby Kelln, Henry Talbott 1 / 20 February 1, 2020 1 / 20

slide-2
SLIDE 2

Classical dynamics

Definition A dynamical system is a rational function f ∈ C(x) together with a set S ⊆ C such that f : S → S. Definition The orbit of a point x0 under f is Of (x0) = {x0, f (x0), f (f (x0)), · · · }. f (x) = x2

Talia Blum, Colby Kelln, Henry Talbott 2 / 20 February 1, 2020 2 / 20

slide-3
SLIDE 3

Classical dynamics

Definition A dynamical system is a rational function f ∈ C(x) together with a set S ⊆ C such that f : S → S. Definition The orbit of a point x0 under f is Of (x0) = {x0, f (x0), f (f (x0)), · · · }. f (x) = x2 Question (Central question) Let f , g ∈ C[x]. Are there points x0 with finite multi-orbits, Of ,g(x0) = {x0, f (x0), g(x0), f (g(x0)), · · · }?

Talia Blum, Colby Kelln, Henry Talbott 2 / 20 February 1, 2020 2 / 20

slide-4
SLIDE 4

Beyond classical dynamics

Classical dynamics f (x) = x2 Generalized dynamics f (x) = x2 g(x) = x2 − 2

Talia Blum, Colby Kelln, Henry Talbott 3 / 20 February 1, 2020 3 / 20

slide-5
SLIDE 5

Realization spaces of portraits

Portrait f (x0) = x2 . . . f (x3) = x3 such that f has degree 2 Realization space (x0, x1, x2, x3) = (0, 1, t, t2 − t + 1) f (x) =

1 t2−t x2 − 1 t2−t x

Talia Blum, Colby Kelln, Henry Talbott 4 / 20 February 1, 2020 4 / 20

slide-6
SLIDE 6

Realization spaces of portraits

Portrait f (x0) = x2 g(x0) = x0 . . . . . . f (x3) = x3 g(x3) = x1 such that f , g have degree 2 Intersection possibilities

Talia Blum, Colby Kelln, Henry Talbott 5 / 20 February 1, 2020 5 / 20

slide-7
SLIDE 7

Dimension counting heuristic

Expected dimension heuristic For a portrait’s system of equations, #(variables) − #(equations) − 2 symmetries of C = expected dimension. Quadratic example + 6 coefficient variables + 4 point variables − 8 equations − 2 symmetries of C = 0 dim realization space expected

Talia Blum, Colby Kelln, Henry Talbott 6 / 20 February 1, 2020 6 / 20

slide-8
SLIDE 8

Data collection

Two quadratics acting on four points Dimension #(Portraits)

  • 1

206 560 1 14 Two cubics acting on six points Dimension #(Portraits)1

  • 1

52,238 1,251,585 1 1,009 2 16

1for the computed 1,304,848 out of 1,350,742 data points Talia Blum, Colby Kelln, Henry Talbott 7 / 20 February 1, 2020 7 / 20

slide-9
SLIDE 9

1-dimensional: 2 quadratics on 4 points

Talia Blum, Colby Kelln, Henry Talbott 8 / 20 February 1, 2020 8 / 20

slide-10
SLIDE 10

Portraits with only two images

Quadratic:

Talia Blum, Colby Kelln, Henry Talbott 9 / 20 February 1, 2020 9 / 20

slide-11
SLIDE 11

Portraits with only two images

Quadratic: Cubic:

Talia Blum, Colby Kelln, Henry Talbott 9 / 20 February 1, 2020 9 / 20

slide-12
SLIDE 12

Classification by number of images

Question Is there a relationship between the number of images and dimension of realization space?

Two quadratics acting on four points: Dim #Images of (f,g)

  • 1

(2, 2), (2, 3), (2, 4), (3, 3), (3, 4), (4, 4) (2, 3), (3, 3), (3, 4), (4, 4) 1 (2, 2), (3, 3) Two cubics acting on six points: Dim #Images of (f,g)

  • 1

(2, 2), (2, 3), (2, 4), (2, 5), (2, 6), (3, 3), (3, 4), (3, 5), (3, 6), (4, 4), (4, 5), (4, 6), (5, 5), (5, 6), (6, 6) (2, 3), (2, 4), (2, 5), (2, 6), (3, 3), (3, 4), (3, 5), (3, 6), (4, 4), (4, 5), (4, 6), (5, 5), (5, 6), (6, 6) 1 (2, 6), (3, 3), (3, 4), (3, 5), (3, 6), (4, 4), (4, 5), (4, 6), (6, 6) 2 (2, 2)

Talia Blum, Colby Kelln, Henry Talbott 10 / 20 February 1, 2020 10 / 20

slide-13
SLIDE 13

Classification of two-image portraits

Theorem Given a portrait of degree d on 2d points, if each polynomial has two images, then the realization space has dimension d − 1 or is empty.

Talia Blum, Colby Kelln, Henry Talbott 11 / 20 February 1, 2020 11 / 20

slide-14
SLIDE 14

More data

Two quadratics acting on four points Dimension #(Portraits)

  • 1

206 560 1 14 Two quadratics acting on five points Dimension #(Portraits)

  • 1

16590 246 1 3

Talia Blum, Colby Kelln, Henry Talbott 12 / 20 February 1, 2020 12 / 20

slide-15
SLIDE 15

1-dimensional: 2 quadratics on 5 points

Talia Blum, Colby Kelln, Henry Talbott 13 / 20 February 1, 2020 13 / 20

slide-16
SLIDE 16

1-dimensional: 2 quadratics on 5 points

Talia Blum, Colby Kelln, Henry Talbott 14 / 20 February 1, 2020 14 / 20

slide-17
SLIDE 17

Adding points that preserve dimension

Talia Blum, Colby Kelln, Henry Talbott 15 / 20 February 1, 2020 15 / 20

slide-18
SLIDE 18

Sufficient condition for building large portraits

Talia Blum, Colby Kelln, Henry Talbott 16 / 20 February 1, 2020 16 / 20

slide-19
SLIDE 19

Large portraits of maximal dimension

Theorem Let f ∈ C(x), and let S be a set such that f (S) ⊂ S and for y ∈ f (S), f −1(y) ⊂ S. If there exists a degree 1 rational function ℓ(x) such that f ◦ ℓ = f , then (ℓ ◦ f )(S) ⊆ S.

Talia Blum, Colby Kelln, Henry Talbott 17 / 20 February 1, 2020 17 / 20

slide-20
SLIDE 20

Many functions

28 quadratics acting on four points!

Talia Blum, Colby Kelln, Henry Talbott 18 / 20 February 1, 2020 18 / 20

slide-21
SLIDE 21

Future work

If the realization space is... finite:

Derive a sharp bound for #(realizations) Examine which number fields realizations belong to

positive-dimensional:

Assess geometric properties of realization space

empty:

Find combinatorial properties of portraits that guarantee empty realization space

Talia Blum, Colby Kelln, Henry Talbott 19 / 20 February 1, 2020 19 / 20

slide-22
SLIDE 22

Acknowledgements

Mentors: Trevor Hyde, John Doyle, Max Weinreich Summer@ICERM organizers: John Doyle, Ben Hutz, Bianca Thompson, Adam Towsley ICERM NSF2, NSA NCUWM Organizers

2Grant No. DMS-1439786 Talia Blum, Colby Kelln, Henry Talbott 20 / 20 February 1, 2020 20 / 20
