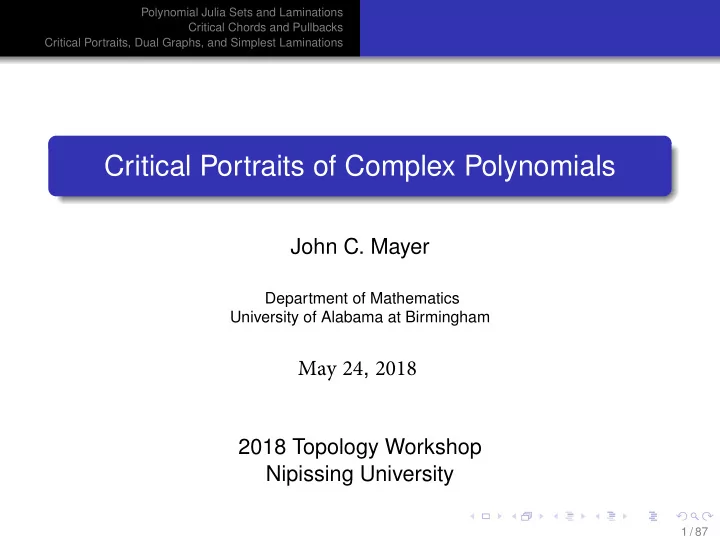

Critical Portraits of Complex Polynomials

John C. Mayer

Department of Mathematics University of Alabama at Birmingham

May 24, 2018 2018 Topology Workshop Nipissing University

1 / 87

slide-2
SLIDE 2

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Coworkers

PhD Dissertation (2015): On the Simplest Lamination of a Given Identity Return Triangle Brandon L. Barry UG Posters: (2017) Critical Portraits and Weakly BiColored Trees (2018) Ambiguous or Non-Generic Critical Portraits of Complex Polynomials David J. George and Simon D. Harris MS Thesis (2017): Exponential Laminations Patrick B. Hartley

Work in Progress

2 / 87

slide-3
SLIDE 3

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Outline

1

Polynomial Julia Sets and Laminations

2

Critical Chords and Pullbacks

3

Critical Portraits, Dual Graphs, and Simplest Laminations

3 / 87

slide-4
SLIDE 4

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Outline

1

Polynomial Julia Sets and Laminations

2

Critical Chords and Pullbacks

3

Critical Portraits, Dual Graphs, and Simplest Laminations

4 / 87

slide-5
SLIDE 5

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Outline

1

Polynomial Julia Sets and Laminations

2

Critical Chords and Pullbacks

3

Critical Portraits, Dual Graphs, and Simplest Laminations

5 / 87

slide-6
SLIDE 6

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Complex Polynomials

Polynomial P : C → C of degree d ≥ 2: P(z) = adzd + ad−1zd−1 + · · · + a1z + a0 Compactify C to C∞. For P, ∞ is attracting fixed point: for z ∈ C with |z| sufficiently large, limn→∞ Pn(z) = ∞. Basin of attraction of ∞: B∞ := {z ∈ C | lim

n→∞ Pn(z) = ∞}

B∞ is an open set.

6 / 87

slide-7
SLIDE 7

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Julia and Fatou Sets

Definitions: Julia set J(P) := boundary of B∞. Fatou set F(P) := C∞ \ J(P). Filled Julia set K(P) := C∞ \ B∞. Fun Facts: J(P) is nonempty, compact, and perfect. K(P) does not separate C. Attracting orbits are in Fatou set. Repelling orbits are in Julia set. We will assume J(P) is connected (a continuum: compact, connected metric space).

7 / 87

slide-8
SLIDE 8

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Basillica z → z2 − 1

Julia set pictures by Fractalstream

8 / 87

slide-9
SLIDE 9

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Douady Rabbit z → z2 + (−0.12 + 0.78i)

9 / 87

slide-10
SLIDE 10

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Twisted Rabbit z → z2 + (0.057 + 0.713i)

10 / 87

slide-11
SLIDE 11

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Airplane z → z2 − 1.75

11 / 87

slide-12
SLIDE 12

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Minnie Mouse z → z3 + (0.545 + 0.539i)

12 / 87

slide-13
SLIDE 13

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Helicopter z → z3 + (−0.2634 − 1.2594i)

13 / 87

slide-14
SLIDE 14

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Scorpion/Scepter z → z3 + 3(0.785415i)z2

14 / 87

slide-15
SLIDE 15

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Butterfly z → z3 + 3(−0.5)z2 + (0.75 + 0.661438i)

15 / 87

slide-16
SLIDE 16

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Ninja Throwing Star z → z3 + (0.20257 + 1.095i)

16 / 87

slide-17
SLIDE 17

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

The Simplest Julia Set – the Unit Circle ∂D

P(z) = z2 re2πi t → r 2e2πi 2t

The complement C∞ \ D of the closed unit disk is the basin of attraction, B∞, of infinity.

17 / 87

slide-18
SLIDE 18

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Dynamics on the Unit Circle

Consider P(z) = zd on the unit circle ∂D. z = re2πt → r de2πi(dt) − → Angle 2πt → 2π(dt). Measure angles in revolutions: Points on ∂D are coordinatized by [0, 1). σd : t → dt (mod 1) on ∂D . Example d = 2:

18 / 87

slide-19
SLIDE 19

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Bottcher’s Theorem

D∞ D∞ B∞ B∞

✲

z→zd

❄

φ

❄

φ

✲

P

19 / 87

slide-20
SLIDE 20

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

External Rays P(z) = z2 + (−0.12 + 0.78i)

1/7 2/7 4/7

20 / 87

slide-21
SLIDE 21

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

External Rays − → Laminations

Laminations were introduced by William Thurston as a way

  • f encoding connected polynomial Julia sets.

Coincident external rays Rabbit triangle

1/7 2/7 4/7 21 / 87

slide-22
SLIDE 22

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

The Rabbit Lamination

The rabbit Julia set The rabbit lamination

1/7 2/7 4/7

Hyperbolic lamination pictures courtesy of Logan Hoehn

22 / 87

slide-23
SLIDE 23

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Laminations of the Unit Disk D

Definition A lamination L is a collections of chords of D, which we call leaves, with the property that any two leaves meet, if at all, in a point of ∂D, and such that L has the property that L∗ := ∂D ∪ {∪L} is a closed subset of D. We allow degenerate leaves – points of ∂D. Note that L∗ is a continuum: compact, connected metric space.

23 / 87

slide-24
SLIDE 24

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Extending σd to Leaves

If ℓ ∈ L is a leaf, we write ℓ = ab, where a and b are the endpoints of ℓ in ∂D. We define σd(ℓ) to be the chord σd(a)σd(b). The length of a chord is the length of the shorter arc of the circle subtended. If it happens that σd(a) = σd(b), then σd(ℓ) is a point, called a critical value of L, and we say ℓ is a critical leaf.

24 / 87

slide-25
SLIDE 25

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Making the Lamination dynamic!

Definition (Sibling Invariant Lamination) A lamination L is said to be sibling d-invariant provided that:

1

(Forward Invariant) For every ℓ ∈ L, σd(ℓ) ∈ L.

2

(Backward Invariant) For every non-degenerate ℓ′ ∈ L, there is a leaf ℓ ∈ L such that σd(ℓ) = ℓ′.

3

(Sibling Invariant) For every ℓ1 ∈ L with σd(ℓ1) = ℓ′, a non-degenerate leaf, there is a full sibling collection of pairwise disjoint leaves {ℓ1, ℓ2, . . . , ℓd} ⊂ L such that σd(ℓi) = ℓ′. Conditions (1), (2) and (3) allow generating a sibling invariant lamination from a finite amount of initial data.

25 / 87

slide-26
SLIDE 26

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

σ2 Binary Coordinates Location dynamically defined. 1

00 01 10 11

000 001 010 111 110 011 100 101

0000 0001

26 / 87

slide-27
SLIDE 27

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

σ2 Binary Coordinates and Rabbit

In binary coordinates, σ2 is the “forgetful” shift. The overline means the coordinates repeat.

27 / 87

slide-28
SLIDE 28

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Generating a Lamination from Finite Initial Data

Definition (Pullback Scheme) A pullback scheme for σd is a collection of d branches τ1, τ2, . . . , τd of the inverse of σd whose ranges partition ∂D.

001 010 100

Data: Forward invariant lamination.

28 / 87

slide-29
SLIDE 29

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Pullback Scheme

Definition (Guiding Critical Chords) The generating data of a pullback scheme are a forward invariant periodic collection of leaves and a collection of d interior disjoint guiding critical chords.

001 010 100 001 010 100 1010

Data: Forward invariant lamination. Guiding critical chord(s).

29 / 87

slide-30
SLIDE 30

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Pullback Sequence

001 010 100

30 / 87

slide-31
SLIDE 31

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Pullback Sequence

001 010 100 001 010 100 1010 1100 0001

31 / 87

slide-32
SLIDE 32

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Pullback Sequence

32 / 87

slide-33
SLIDE 33

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Pullback Sequence

33 / 87

slide-34
SLIDE 34

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Pullback Sequence

34 / 87

slide-35
SLIDE 35

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Pullback Sequence

35 / 87

slide-36
SLIDE 36

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Importance of Guiding Crital Chord

36 / 87

slide-37
SLIDE 37

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Ambiguity

37 / 87

slide-38
SLIDE 38

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Quadratic Lamination and Julia Set

Rabbit Lamination Rabbit Julia Set Quotient space in plane = ⇒ homeomorphic to rabbit Julia set. Semiconjugate dynamics

38 / 87

slide-39
SLIDE 39

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Lamination Data for Rabbit Lamination

The critical chord and one endpoint determine the lamination.

001 010 100 1010

The rabbit triangle’s vertices are the only periodic orbit that stays in the left half. The fixed point 0 is the only periodic orbit that stays in the right half.

39 / 87

slide-40
SLIDE 40

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Critical Portrait − → Dual Graph

Abstract from the Lamination Data just the critical chord. Bicolored Critical Portrait Bicolored Dual Graph

P F

P F

40 / 87

slide-41
SLIDE 41

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Cast of Characters

Julia Set Lamination Lamination Data → →

001 010 100 1010

→ →

P F

→

P F

Critical Portrait Bicolored Tree

41 / 87

slide-42
SLIDE 42

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Cast of Characters

Julia Set Lamination Lamination Data ↔ ↔

001 010 100 1010

↔ →

P F

↔

P F

Critical Portrait Bicolored Tree

42 / 87

slide-43
SLIDE 43

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

The Simplest Lamination

Definition For given lamination data for σd consisting of a collection of periodic polygons and guiding critical chords, we call a pull-back lamination whose Fatou domains (1) are bordered by sides of the given polygons, and (2) contain the guiding critical chords, a simplest lamination for the given data. There is no claim that a simplest lamination is unique, though that would be a desireable consequence of a good definition. See Brandon Barry’s dissertation:

  • Theorem. For σ3, there is always a simplest lamination.

43 / 87

slide-44
SLIDE 44

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

σ3 and Ternary Coordinates

Ternary coordinates correspond to shift σ3.

44 / 87

slide-45
SLIDE 45

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Critical Chords, Critical Sectors, and Fixed Points

Example for σ3 (angle-tripling):

P F 1 P

45 / 87

slide-46
SLIDE 46

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Weakly Bicolored Trees

Theorem: Critical portraits correspond dually to weakly bicolored trees. [George, Harris] Definition A tree is said to be weakly bicolored provided it satisfies the following conditions:

1

Each of two vertex colors (say, red and blue) is used at least once.

2

One vertex color, say blue, can be adjacent to itself.

3

One vertex color, say red, cannot be adjacent to itself. Problem: How many different weakly bicolored trees are there, up to orientation-preserving planar isomorphism, with n vertices?

46 / 87

slide-47
SLIDE 47

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Weakly Bicolored Trees

Below are the three possible weakly bicolored trees on three vertices up to orientation-preserving planar isomorphism:

F P F F P F P F P

Graphs corresponding dually to critical portraits are always trees. Critical portraits that produce equivalent laminations are rotations of each other.

47 / 87

slide-48
SLIDE 48

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Role Reversal: P-F-F

Bicolored Tree Critical Portrait Lamination Data

F P F →

1 P F F

→ → → → Lamination Julia Set

48 / 87

slide-49
SLIDE 49

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Role Reversal: P-F-F

Bicolored Tree Critical Portrait Lamination Data

F P F →

1 P F F

→

001 010 100 1010 2010 1

→ → → Lamination Julia Set

49 / 87

slide-50
SLIDE 50

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

First two Pullbacks of Triangle

50 / 87

slide-51
SLIDE 51

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

First two Pullbacks of Triangle

51 / 87

slide-52
SLIDE 52

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Role Reversal: P-F-F

Bicolored Tree Critical Portrait Lamination Data

F P F →

1 P F F

→

001 010 100 1010 2010 1

→ → → Lamination Julia Set

52 / 87

slide-53
SLIDE 53

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Ternary Checkerboard

53 / 87

slide-54
SLIDE 54

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Verifying Angles

54 / 87

slide-55
SLIDE 55

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Verifying Angles

55 / 87

slide-56
SLIDE 56

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Role Reversal: P-F-P

Bicolored Tree Critical Portrait Lamination Data

P F P →

P P F

→

P P F 1 12 21

→ → → Lamination Julia Set

56 / 87

slide-57
SLIDE 57

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Pullback Sequence

21 12 10 1 112 57 / 87

slide-58
SLIDE 58

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Pullback Sequence

21 12 10 1 112 58 / 87

slide-59
SLIDE 59

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Pullback Sequence

59 / 87

slide-60
SLIDE 60

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Pullback Sequence

60 / 87

slide-61
SLIDE 61

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Pullback Sequence

61 / 87

slide-62
SLIDE 62

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Pullback Sequence

62 / 87

slide-63
SLIDE 63

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Pullback Sequence

Scorpion Lamination Scorpion Julia set

63 / 87

slide-64
SLIDE 64

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Role Reversal: P-F-P

Bicolored Tree Critical Portrait Lamination Data

P F P →

P P F

→

P P F 1 12 21

→ → → Lamination Julia Set

64 / 87

slide-65
SLIDE 65

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Finding the Diamond

Can we find a cubic polynomial and a resulting Julia set incorporating the diamond?

1 01 10 02 20

65 / 87

slide-66
SLIDE 66

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Finding the Diamond

The lamination data is enough to find the diamond Julia set among a parameterized family of cubic polynomials: z → z3 + 3az2 + b, for (a, b) ∈ C2. Two period 2 Fatou domains − → Two period 2 critical points − → 0 and −2a − → Two simultaneous equations in parameters a and b − → Multiple specific parameters (a, b): set a to -0.5. set b to 0.75 + 0.661438i. set a to -0.5. set b to 0.75 - 0.661438i. set a to 0.5. set b to -0.75 + 0.661438i. set a to 0.5. set b to -0.75 - 0.661438i.

66 / 87

slide-67
SLIDE 67

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Finding the Diamond

The lamination data is enough to find the diamond Julia set among a parameterized family of cubic polynomials: z → z3 + 3az2 + b, for (a, b) ∈ C2. Two period 2 Fatou domains − → Two period 2 critical points − → 0 and −2a − → Two simultaneous equations in parameters a and b − → Multiple specific parameters (a, b): set a to -0.5. set b to 0.75 + 0.661438i. set a to -0.5. set b to 0.75 - 0.661438i. set a to 0.5. set b to -0.75 + 0.661438i. set a to 0.5. set b to -0.75 - 0.661438i.

67 / 87

slide-68
SLIDE 68

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Role Reversal: F-P-F (Diamond)

Bicolored Tree Critical Portrait Lamination Data

F P F→

P F 1 F

→

1 01 10 02 20

→ → → Lamination Julia Set

68 / 87

slide-69
SLIDE 69

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Role Reversal: F-P-F (Diamond)

Bicolored Tree Critical Portrait Lamination Data

F P F→

P F 1 F

→

1 01 10 02 20

→ → → Lamination Julia Set (Butterfly)

69 / 87

slide-70
SLIDE 70

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Role Reversal: F-P-F (Diamond)

Bicolored Tree Critical Portrait Lamination Data

F P F→

P F 1 F

→

1 01 10 02 20

→ → → Lamination Julia Set (Butterfly)

70 / 87

slide-71
SLIDE 71

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Periodic Lamination Data

120 212 122 201 221 012

What about guiding critical chords? cf: Brandon Barry

71 / 87

slide-72
SLIDE 72

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Periodic Lamination Data

201 120 212 122 221 012 1

Consider fixed points and chord closest to critical length.

72 / 87

slide-73
SLIDE 73

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Role Reversal: ?-?-?

Bicolored Tree Critical Portrait Periodic Lamination Data →

? F 1 ?

→

201 120 212 122 221 012 1

→ → → Lamination Julia Set

73 / 87

slide-74
SLIDE 74

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Role Reversal: F-F-? or F-?-F

Bicolored Tree Critical Portrait Periodic Lamination Data

F P F

→

P F F 1

→

201 120 212 122 221 012 1

→ → → Lamination Julia Set

74 / 87

slide-75
SLIDE 75

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Role Reversal: F-F-P

Bicolored Tree Critical Portrait Lamination Data

F P F

→

P F F 1

→

120 212 122 201 221 012 0201 2201

→ → → Lamination Julia Set

75 / 87

slide-76
SLIDE 76

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Pulling back longest leaf

120 212 0201 2201 122 201 M m M' M''

G

0122 1122 020

76 / 87

slide-77
SLIDE 77

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Role Reversal: F-F-P

Bicolored Tree Critical Portrait Lamination Data

F P F

→

P F F 1

→

120 212 122 201 221 012 0201 2201

→ → → Lamination Helicopter Julia Set

77 / 87

slide-78
SLIDE 78

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Periodic Forcing

120 212 122 201 221 012 0201 2201 1 12 21

A major goal is to understand periodic forcing for degree d ≥ 3.

78 / 87

slide-79
SLIDE 79

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Some Problems

1

What role is played by periodic forcing in determining the simplest lamination from given periodic data.

2

Does each initial lamination data set (periodic polygons and critical chords) correspond to some complex polynomial?

3

How many weakly bicolored trees are there for a given degree (number of vertices)?

79 / 87

slide-80
SLIDE 80

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Meta-Problems

1

Are laminations useful in understanding polynomial dynamics?

Wandering branch points exist for polynomial Julia sets of degree 3. [Blokh and Oversteegen] There are two distinct kinds of branch points that first return without rotation for polynomial Julia sets of degree 3. [Barry and M.]

2

Are laminations applicable outside polynomial dynamics?

Julia sets of the exponential family Eλ(z) = λez can be described by laminations of the half-plane. [Hartley and M.]

80 / 87

slide-81
SLIDE 81

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Meta-Problems

1

Are laminations useful in understanding polynomial dynamics?

Wandering branch points exist for polynomial Julia sets of degree 3. [Blokh and Oversteegen] There are two distinct kinds of branch points that first return without rotation for polynomial Julia sets of degree 3. [Barry and M.]

2

Are laminations applicable outside polynomial dynamics?

Julia sets of the exponential family Eλ(z) = λez can be described by laminations of the half-plane. [Hartley and M.]

81 / 87

slide-82
SLIDE 82

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Meta-Problems

1

Are laminations useful in understanding polynomial dynamics?

Wandering branch points exist for polynomial Julia sets of degree 3. [Blokh and Oversteegen] There are two distinct kinds of branch points that first return without rotation for polynomial Julia sets of degree 3. [Barry and M.]

2

Are laminations applicable outside polynomial dynamics?

Julia sets of the exponential family Eλ(z) = λez can be described by laminations of the half-plane. [Hartley and M.]

82 / 87

slide-83
SLIDE 83

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Meta-Problems

1

Are laminations useful in understanding polynomial dynamics?

Wandering branch points exist for polynomial Julia sets of degree 3. [Blokh and Oversteegen] There are two distinct kinds of branch points that first return without rotation for polynomial Julia sets of degree 3. [Barry and M.]

2

Are laminations applicable outside polynomial dynamics?

Julia sets of the exponential family Eλ(z) = λez can be described by laminations of the half-plane. [Hartley and M.]

83 / 87

slide-84
SLIDE 84

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Meta-Problems

1

Are laminations useful in understanding polynomial dynamics?

Wandering branch points exist for polynomial Julia sets of degree 3. [Blokh and Oversteegen] There are two distinct kinds of branch points that first return without rotation for polynomial Julia sets of degree 3. [Barry and M.]

2

Are laminations applicable outside polynomial dynamics?

Julia sets of the exponential family Eλ(z) = λez can be described by laminations of the half-plane. [Hartley and M.]

84 / 87

slide-85
SLIDE 85

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Preview of David George’s talk

Correspondence between generic critical portraits and bicolored trees. Non-generic critical portraits, all-critical polygons, and tricolored trees. Orbits under σd commute with rotation by a fixed point. The pullback step under σd commutes with rotation by a fixed point. Dynamical equivalence of pullback laminations.

THANKS!

85 / 87

slide-86
SLIDE 86

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Rotation by a Fixed Point: F-F-P − → P-F-F

F P F

Bicolored Tree Helicopter Julia Set

86 / 87

slide-87
SLIDE 87

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Rotation by a Fixed Point: F-F-P − → P-F-F

F P F

Rotated Bicolored Tree Rotated Helicopter

87 / 87

slide-88
SLIDE 88

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Role Reversal: F-P-F

Bicolored Tree Critical Portrait Lamination Data

F P F→

P F 1 F

→

1 02 20

→ → → Lamination Julia Set

88 / 87

slide-89
SLIDE 89

Polynomial Julia Sets and Laminations Critical Chords and Pullbacks Critical Portraits, Dual Graphs, and Simplest Laminations

Exponential Laminations

Julia set of Eλ(z) = λez, λ = 3 + π Half-plane lamination Laminations can be adapted to the Exponential family of functions using a half-plane model. Cf: Hartley

89 / 87
