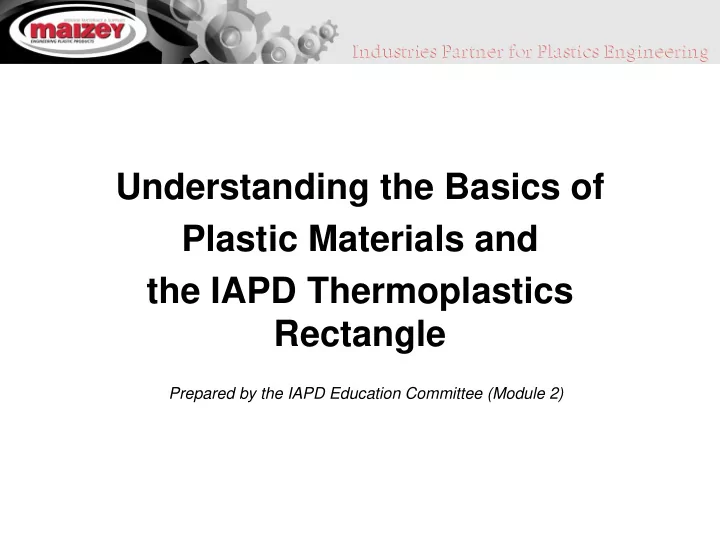

Understanding the Basics of Plastic Materials and the IAPD Thermoplastics Rectangle

Prepared by the IAPD Education Committee (Module 2)

slide-2
SLIDE 2

IMIDE MATERIALS

Key Characteristics: Very High Cost Per Pound Excellent Properties Above 400°F Excellent Electrical Properties Excellent Dimensional Stability Low Coefficient of Friction Materials: PI PAI PBI

IAPD THERMOPLASTICS RECTANGLE

AMORPHOUS HIGH PERFORMANCE PLASTICS

Key Characteristics High Cost High Temperature High Strength & Good Stiffness Good Chemical Resistance Transparency Hot W ater & Steam Resistance Materials: Polysulfone Polyetherimide Polyethersulfone Polyarylsulfone

SEMI-CRYSTALLINE HIGH PERFORMACE PLASTICS

Key Characteristics: High Cost High Temperature High Strength Good Electrical Properties Outstanding Chemical Resistance Low Coefficient of Friction Good Toughness Materials: PVDF PTFE ECTFE FEP PFA PPS PEEK

AMORPHOUS ENGINEERING PLASTICS

Key Characteristics: Moderate Cost Moderate Temperature Resistance Moderate Strength Good Impact Resistance Translucency Good Dimensional Stability Good Optical Qualities Materials: Polycarbonate Modified PPO Modified PPE Thermoplastic Urethane

SEMI-CRYSTALLINE ENGINEERING PLASTICS

Key Characteristics: Moderate Cost Moderate Temperature Resistance Moderate Strength Good Chemical Resistance Good Bearing and W ear Properties Low Coefficient of Friction Difficult to Bond Materials: Nylon Acetal PET PBT UHMW -PE

SEMI-CRYSTALLINE COMMODITY PLASTICS

Key Characteristics: Low Cost Low Temperature Resistance Low Strength Excellent Chemical Resistance Low Coefficient of Friction Near Zero Moisture Absorption Very Good Electrical Properties Good Toughness Materials: Polyethylene Polypropylene Polymetnylpentene(TPX)

AMORPHOUS COMMODITY PLASTICS

Key Characteristics: Low Cost Low Temperature Resistance] Low Strength Good Dimensional Stability Bond Well Typically Transparent Materials: Acrylic Polystyrene ABS PVC PETG CAB

SEMI-CRYSTALLINE PLASTICS AMORPHOUS PLASTICS

AMORPHOUS PLASTICS KEY CHARACTERISTICS: Soften Over a Broad Range Of Temperatures Easy to Thermoform Tend to Be Transparent Bond W ell Using Adhesives and Solvents Prone To Stress Cracking Poor Fatigue Resistance Stuctural Applications Only (Not for Bearing & W ear) SEMI-CRYSTALLINE PLASTICS KEY CHARACTERISTICS: Sharp Melting Point Difficult to Thermoform Tend to Be Opaque Difficult To Bond Using Adhesives and Solvents Good Resistance To Stress Cracking Good Fatigue Resistance Good For Bearing and W ear, As W ell As Structural Applications

slide-3
SLIDE 3

Definitions

  • Thermoplastic
  • Thermoset
slide-4
SLIDE 4

Types of Thermoplastics

  • Imidized materials
  • Amorphous plastics

– High performance – Engineering – Commodity

  • Semi-crystalline plastics

– High performance – Engineering – Commodity

slide-5
SLIDE 5

Amorphous vs. Crystalline Thermoplastics

  • Amorphous (a-morphous = without shape) - The polymer chains

are in random arrangement. Molecular structure is incapable of forming regular order (crystallizing) with molecules or portions of molecules regularly stacked in crystal-like fashion. Molecular arrangement is randomly twisted, kinked and coiled.

  • Crystalline - The polymer chains form a regular pattern.

Molecular structure forms regular order (crystals) with molecules

  • r portions of molecules regularly stacked in crystal-like fashion.

Molecular arrangement is arranged in an ordered fashion.

slide-6
SLIDE 6

Amorphous Commodity Thermoplastics

Key Characteristics

  • Low cost, temperature resistance and strength
  • Good dimensional stability
  • Bonds well
  • Typically, but not always, transparent
slide-7
SLIDE 7

Amorphous Commodity Thermoplastics

Materials

  • Acrylic (PMMA)
  • Polystyrene (PS)
  • Acrylonitrile - Butadiene - Styrene (ABS)
  • Polyvinyl Chloride (PVC)
  • Polyethylene Terepthalate Glycol (PETG)
  • Cellulose Acetate Butyrate (CAB)
slide-8
SLIDE 8

Amorphous Engineering Thermoplastics

Key Characteristics

  • Moderate cost
  • Moderate temperature resistance
  • Moderate strength
  • Good to excellent impact resistance
  • Good dimensional stability

Not true in all cases:

  • Translucency
slide-9
SLIDE 9

Amorphous Engineering Thermoplastics

Materials

  • Polycarbonate (PC)
  • Polyphenylene Oxide (Modified PPO)
  • Polyphenylene Ether (Modified PPE)
  • Thermoplastic Urethane (TPU)
slide-10
SLIDE 10

Amorphous High Performance Thermoplastics

Key Characteristics

  • High cost
  • High temperature
  • High strength and good stiffness
  • Good chemical resistance
  • Transparency
  • Hot water and steam resistance
slide-11
SLIDE 11

Amorphous High Performance Thermoplastics

Materials

  • Polysulfone (PS)
  • Polyetherimide (PEI)
  • Polyethersulfone (PES)
  • Polyarylsulfone (PAS)
slide-12
SLIDE 12

Semi-Crystalline Commodity Thermoplastics

Key Characteristics

  • Low cost, temperature resistance and strength
  • Excellent chemical resistance
  • Low COF
  • Near zero moisture absorption
  • Very good electrical properties
  • Good toughness
slide-13
SLIDE 13

Semi-Crystalline Commodity Thermoplastics

Materials

  • Polyethylene (PE)

– High Density Polyethylene (HDPE) – Low Density Polyethylene (LDPE)

  • Polypropylene (PP)
  • Polymethylpentene (PMP)
slide-14
SLIDE 14

Semi-Crystalline Engineering Thermoplastics

Key Characteristics

  • Moderate cost, temperature resistance and strength
  • Good chemical resistance
  • Good bearing and wear properties
  • Low COF
  • Difficult to bond
slide-15
SLIDE 15

Semi-Crystalline Engineering Thermoplastics

Materials

  • Nylon (PA)
  • Acetal (POM)
  • Polyethylene Terepthalate (PET)
  • Polybutylene Terepthalate (PBT)
  • Ultra High Molecular Weight Polyethylene (UHMW-PE)
slide-16
SLIDE 16

Semi-Crystalline High Performance Thermoplastics

Key Characteristics

  • Temperature resistance
  • Good electrical properties and toughness
  • Outstanding chemical resistance
  • Low coefficient of friction (COF)
  • High cost
slide-17
SLIDE 17

Semi-Crystalline High Performance Thermoplastics

Materials

  • Polyvinylidene Fluoride (PVDF)
  • Polytetra Fluoroethylene (PTFE)
  • Ethylene-chlorotrifluoroethylene (ECTFE)
  • Fluorinated Ethylene Propylene (FEP)
  • Polychlorotrifluoroethylene (PCTFE)
  • Perfluoroalkoxy (PFA)
  • Polyphenylene Sulfide (PPS)
  • Polyetheretherketone (PEEK)
slide-18
SLIDE 18

Imidized Materials

Key Characteristics

  • Very high cost per pound
  • Excellent properties above 204°C/400°F
  • Excellent electrical properties
  • Excellent dimensional stability
  • Low coefficient of friction (COF)
  • Very low thermal expansion
  • Good wear characteristics
slide-19
SLIDE 19

Imidized Materials

Materials

  • Polyimide (PI)
  • Polyamide-imide (PAI)
  • Polybenzimidazole (PBI)
slide-20
SLIDE 20

IMIDE MATERIALS

Key Characteristics: Very High Cost Per Pound Excellent Properties Above 400°F Excellent Electrical Properties Excellent Dimensional Stability Low Coefficient of Friction Materials: PI PAI PBI

IAPD THERMOPLASTICS RECTANGLE

AMORPHOUS HIGH PERFORMANCE PLASTICS

Key Characteristics High Cost High Temperature High Strength & Good Stiffness Good Chemical Resistance Transparency Hot W ater & Steam Resistance Materials: Polysulfone Polyetherimide Polyethersulfone Polyarylsulfone

SEMI-CRYSTALLINE HIGH PERFORMACE PLASTICS

Key Characteristics: High Cost High Temperature High Strength Good Electrical Properties Outstanding Chemical Resistance Low Coefficient of Friction Good Toughness Materials: PVDF PTFE ECTFE FEP PFA PPS PEEK

AMORPHOUS ENGINEERING PLASTICS

Key Characteristics: Moderate Cost Moderate Temperature Resistance Moderate Strength Good Impact Resistance Translucency Good Dimensional Stability Good Optical Qualities Materials: Polycarbonate Modified PPO Modified PPE Thermoplastic Urethane

SEMI-CRYSTALLINE ENGINEERING PLASTICS

Key Characteristics: Moderate Cost Moderate Temperature Resistance Moderate Strength Good Chemical Resistance Good Bearing and W ear Properties Low Coefficient of Friction Difficult to Bond Materials: Nylon Acetal PET PBT UHMW -PE

SEMI-CRYSTALLINE COMMODITY PLASTICS

Key Characteristics: Low Cost Low Temperature Resistance Low Strength Excellent Chemical Resistance Low Coefficient of Friction Near Zero Moisture Absorption Very Good Electrical Properties Good Toughness Materials: Polyethylene Polypropylene Polymetnylpentene(TPX)

AMORPHOUS COMMODITY PLASTICS

Key Characteristics: Low Cost Low Temperature Resistance] Low Strength Good Dimensional Stability Bond Well Typically Transparent Materials: Acrylic Polystyrene ABS PVC PETG CAB

SEMI-CRYSTALLINE PLASTICS AMORPHOUS PLASTICS

AMORPHOUS PLASTICS KEY CHARACTERISTICS: Soften Over a Broad Range Of Temperatures Easy to Thermoform Tend to Be Transparent Bond W ell Using Adhesives and Solvents Prone To Stress Cracking Poor Fatigue Resistance Stuctural Applications Only (Not for Bearing & W ear) SEMI-CRYSTALLINE PLASTICS KEY CHARACTERISTICS: Sharp Melting Point Difficult to Thermoform Tend to Be Opaque Difficult To Bond Using Adhesives and Solvents Good Resistance To Stress Cracking Good Fatigue Resistance Good For Bearing and W ear, As W ell As Structural Applications
