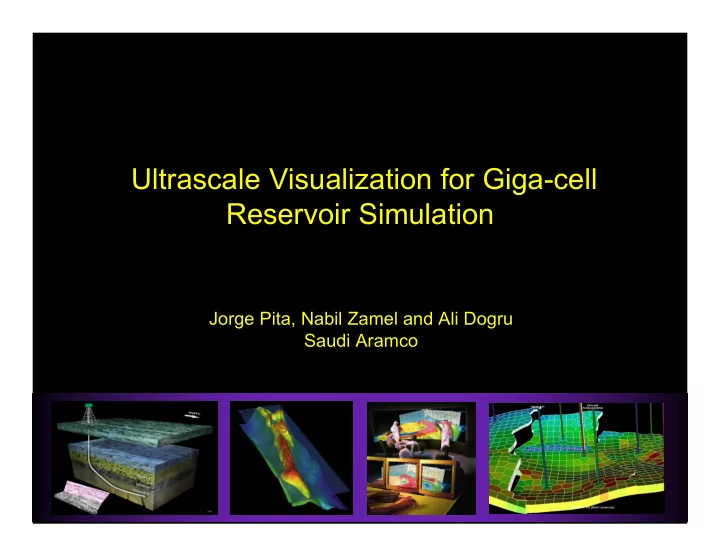

Ultrascale Visualization for Giga-cell Reservoir Simulation

Jorge Pita, Nabil Zamel and Ali Dogru Saudi Aramco

Page Page 2 2

Ultravis08

Outline

• Why giga-cell reservoir simulation ?
• Visualization challenges / solutions
• Future directions

Page Page 3 3

Ultravis08

Why Giga-cell Simulation ?

• To obtain more accurate results
• To pursue high-definition in both geological detail

and fluid characterization

• To simulate giant oil reservoirs

…BUT can we manage/visualize the output ???

Page Page 4 4

Ultravis08

Reservoir Simulation Practice (1990-2005)

…BUT, for many reservoirs, 10 million cells is not enough

Page Page 5 5

Ultravis08

Coarse vs. fine-grid models

48-million-cell model vs. 192-million-cell model Water breakthrough mis-predicted by coarse model Fine-grid model agreed with field results

Page Page 6 6

Ultravis08

Why Giga-cell Reservoir Simulation?

Full-field model (with just 51 layers)

 250 meters grid resolution 29 million cells  83 meters grid resolution 258 million cells  25 meters grid resolution (seismic bin) 2.9 billion cells  12.5 meters grid resolution (full seismic) 11.5 billion cells

Page Page 7 7

Ultravis08

Molar Balance Equations:

i j ij P j j rj j i

q z P Kk t N +

• =
• =

) ( .

1

• µ
• i

g g i

• p

i i

y S x S V N n

• +

= =

One material conservation equation for each component: Volume balance equation:

n n n

• g

g w w

• +

+ = 1

Highlights of the Mathematical Model

Page Page 8 8

Ultravis08

Thermodynamic Phase Equilibrium:

) ln( ln(

)

=

• i

L i i G i

x y F

• Natural Logarithm of the Fugacity Coefficient is given by:
• =

P

dP P RT V ) 1 ( ln

Page Page 9 9

Ultravis08

VisIt Software on Supercomputers (1)

Visualizing 1-billion-cell model on Altix 3400 (27 cpu) Lawrence Livermore’s VisIt software (MPI-based) Client-server model for delivering results to engineer

Page Page 10 10

Ultravis08

VisIt Software on Supercomputers (2)

Visualizing 16-billion-cell model on Altix 4700 (128 cpu) Lawrence Livermore’s VisIt software (MPI-based) Data load time: 1 minute; rotation/zoom = 5 seconds

Page Page 11 11

Ultravis08

Octreemizer with dual-GPU display

2.4-billion cell model on dual-GPU Workstation Fraunhofer’s Octreemizer visualization software (LOD-based) Interactive visualization at the engineer’s desktop

Page Page 12 12

Ultravis08

Giga-cell Simulation Via Adaptive Multi-level Methods

IBM Blue-Gene/P: Interactive giga-cell simulation ?

Page Page 13 13

Ultravis08

Remote Visualization Austin-Dhahran

8000 miles distance from Texas to Saudi Arabia LLNL VisIt software running on TACC Ranger Virtual-GL + VNC remote visualization Ranger is a 62,000-core Sun Constellation system

Page Page 14 14

Ultravis08

Remote Visualization Austin-Dhahran

Refresh rates are acceptable even on Windows XP laptop

Page Page 15 15

Ultravis08

Future Directions

• Multi-modal “visualization” for giga-cell models
• See-touch-hear the data
• “Talking” simulator
