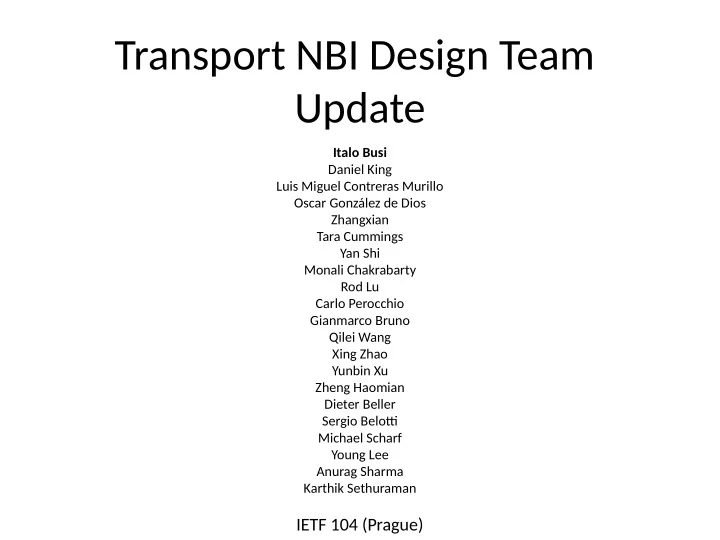

Transport NBI Design Team Update

Italo Busi Daniel King Luis Miguel Contreras Murillo Oscar González de Dios Zhangxian Tara Cummings Yan Shi Monali Chakrabarty Rod Lu Carlo Perocchio Gianmarco Bruno Qilei Wang Xing Zhao Yunbin Xu Zheng Haomian Dieter Beller Sergio Belottj Michael Scharf Young Lee Anurag Sharma Karthik Sethuraman

IETF 104 (Prague)

SLIDE 2

Transport NBI DT

Design Team’s Goals and Deliverables:

– Develop use cases and gap analysis

Identjfy a set of technologies use cases and providing a gap analysis against

existjng models

– Identjfy missing models or capability – Coordinate requirements with appropriate WGs

Including TEAS, RTGWG and CCAMP itself

– Providing guidelines in terms of how all the related models can be used in a step-wise manner

Using a couple of well identjfjed transport network use cases
Working methods

– Mailing lists & Conference calls – GitHub: htups://github.com/danielkinguk/transport-nbi

IETF 104 (Prague)

SLIDE 3

Applicability Statement Updates

Major updates since IETF 103

– Agreed defjnitjon of “Domain” – Further describes the control of access links which support difgerent technology confjguratjon (e.g., STM-64, 10GE or OTU2) depending on the type of service – Completed Ethernet service and topology descriptjon – Updated “Protectjon and Restoratjon Confjguratjon” sectjon – Improved overall readability – drafu-ietg-ccamp-transport-nbi-app-statement-05

IETF 104 (Prague)

SLIDE 4

Reference Network

R4 S1 S2 S3 S31 S4 S5 S32 S33 S6 S7 S8 Network domain 1 S11 S12 S13 S15 S14 S16 S17 S18 S19 S20 S21 Network domain 2 R1 R2 R3 R7 R8 R9 Network domain 3 S34 R5 R6

10GE, STM-64 and OTU2 STM-64 and OTU2 10GE STM-64

SLIDE 5

Control Hiearchy

MDSC PNC1 PNC2 PNC3 Network Domain 1 Network domain 3 Network Domain 2 CMI MPI1 MPI2 MPI3 Scope of the drafu

SLIDE 6

OTN and ETH TE Topology Abstractjon

PNC 3 white topology (OTN)

S31 S32 S33 S34

AN2 PNC 2 black topology (OTN) AN1 PNC1 black topology (OTN) PNC 3 white topology (ETH)

S31 S33

AN2 PNC 2 black topology (ETH) AN1 PNC1 black topology (ETH)

SLIDE 7

PNC1 black topology (OTN&ETH) PNC 2 black topology (OTN&ETH) PNC 3 white topology (OTN&ETH) PNC 3 white topology (OTN)

S31 S32 S33 S34

AN2 PNC 2 black topology (OTN) AN1 PNC1 black topology (OTN) AN1 AN2

S32 S33 S34 S31

TE Tunnel Setup

MDSC Internal Topology (OTN&ETH)

SLIDE 8

PNC1 black topology (OTN&ETH) PNC 2 black topology (OTN&ETH) PNC 3 white topology (OTN&ETH) PNC 3 white topology (OTN)

S31 S32 S33 S34

AN2 PNC 2 black topology (OTN) AN1 PNC1 black topology (OTN) AN1 AN2

S32 S33 S34 S31

Transparent Client Setup (STM-64 PL)

MDSC Internal Topology (OTN&ETH)

STM-64 STM-64

SLIDE 9

PNC1 black topology (OTN&ETH) PNC 2 black topology (OTN&ETH) PNC 3 white topology (OTN&ETH) PNC 3 white topology (OTN)

S31 S32 S33 S34

AN2 PNC 2 black topology (OTN) AN1 PNC1 black topology (OTN) AN1 AN2

S32 S33 S34 S31

ETH Client Setup (EPL/EVPL)

MDSC Internal Topology (OTN&ETH)

EPL: port-classifjcatjon EVPL: vlan-classifjcatjon ETH ETH

SLIDE 10

Applicability Statement Updates

JSON code folded using the method described in:

htups://tools.ietg.org/html/drafu-ietg-netmod-artwork-folding

– Appendix A. Validatjng a JSON fragment against a YANG Model

A.1 Manipulatjon of JSON fragments
A.2 Comments in JSON fragments
A.3 Validatjon of JSON fragments: DSDL-based approach
A.4 Validatjon of JSON fragments: why not using a XSD-based approach

– Appendix B. Detailed JSON Examples

B.1 JSON Examples for Topology Abstractjon
B.1.1 JSON Code: mpi1-otn-topology.json
B.2 JSON Examples for Service Confjguratjon
B.2.1 JSON Code: mpi1-odu2-service-confjg.json
B.2.2 JSON Code: mpi1-odu2-tunnel-confjg.json
B.2.3 JSON Code: mpi1-epl-service-confjg.json

IETF 104 (Prague)

SLIDE 11

Next Steps

Document has a number of enhancements queued

– htups://github.com/danielkinguk/transport-nbi/issues – Editors, authors and contributors need to agree which are useful, nice to have, unnecessary

Face-to-face DT meetjng planned during IETF 104

– Review open issues and enhancements – Wednesday 13:30-15:00 (Karlin 1/2)

Submit for Last Call in June

IETF 104 (Prague)
