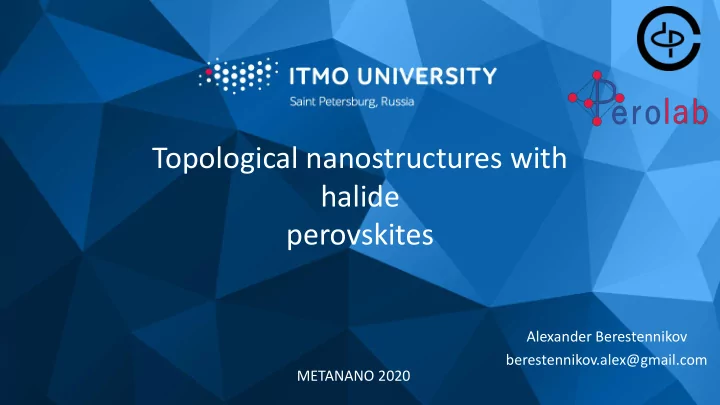

Topological nanostructures with halide perovskites Alexander Berestennikov berestennikov.alex@gmail.com METANANO 2020 Halide perovskites Simple fabrication Easy processing High refractive index (n = 2-3) Chemically


slide-1
SLIDE 1

Topological nanostructures with halide perovskites

Alexander Berestennikov berestennikov.alex@gmail.com METANANO 2020

slide-2
SLIDE 2

Halide perovskites

  • Simple fabrication
  • Easy processing
  • High refractive index (n = 2-3)
  • Chemically tunable bandgap
  • Strong optical nonlinear

response

  • High defect tolerance

2

slide-3
SLIDE 3

Topology and topological insulators

Hasan, Kane. Rev. Mod. Phys. 82, 3045 (2010)

The concept of topological insulators

slide-4
SLIDE 4

Photonic crystals

Periodically stacking materials with different dielectric

  • r magnetic properties to the

“infinite” structure

Joannopoulos, J. D., Johnson, S. G., Winn, J. N. & Meade, R. D., Photonic Crystals: Molding the Flow of Light, 2nd ed. (Princeton University Press, Princeton , 2008)

slide-5
SLIDE 5

Topological models

  • Su-Schrieffer-Heeger

model 1 2 4 5 6 7

Energy spectrum Field distribution for the edge mode Experimental observation: [1] N. Malkova, et al. Optics Letters, vol. 34, 1633 (2009). [2] Sinev, et al. Nanoscale 7, 11904 (2015). [3] Blanco-Redondo, et al. Phys. Rev. Lett. 116, 163901 (2016).

Realized in electronic, photonic, plasmonic, polaritonic and mechanical systems

Su, Schrieffer, Heeger. Physical Review Letters, 42 (25), P. 1698–1701 (1979)

slide-6
SLIDE 6

Topological hybrid silicon microlasers

Non-Hermitian variant of the paradigmatic Su-Schrieffer-Heeger (SSH) model The coupling profile is precisely controlled by the separations between adjacent rings

Han Zhao et al., Nat. Comm. 9, 981 (2018)

slide-7
SLIDE 7

708 нм Q = 22 705 нм Q = 21 Thickness: 70 nm +20nm layer (n=2.5) 13 ячеек 701 нм Q = 30

Silicon Kagome lattice with perovskite QDs

slide-8
SLIDE 8

645 nm 635 nm 625 nm 620 nm 615 nm

Darkfield scattering

550 600 650 700 750 800

  • 50

50 100 150 200 250 300

102 d1-2 big triangle 102 d1-2 center 102 d1-2 corner

slide-9
SLIDE 9

Thank you for your attention!

physics.itmo.ru
