Tomographic Imaging with Light and Sound Finnish Inverse Problems Summer School, Helsinki, June 3, 2019 Tanja Tarvainen, Computational Physics and Inverse Problems Group, Department of Applied Physics UEF // University of Eastern Finland This is

slide-1

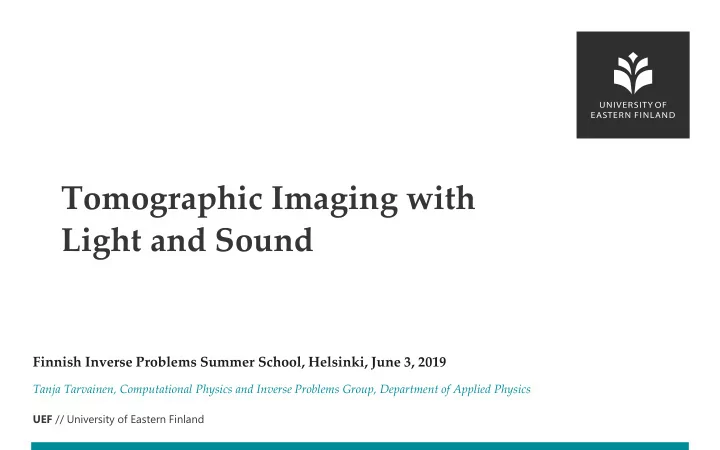

SLIDE 1

UEF // University of Eastern Finland

Finnish Inverse Problems Summer School, Helsinki, June 3, 2019

Tanja Tarvainen, Computational Physics and Inverse Problems Group, Department of Applied Physics

Tomographic Imaging with Light and Sound

slide-2
SLIDE 2

UEF // University of Eastern Finland

This is joint work with

3.6.2019 Tomographic imaging with light and sound / Tanja Tarvainen 2

Aki Pulkkinen, Senior Researcher Ultrasound physics and therapy Acousto-optic interaction Aleksi Leino, postdoc Light transport simulations Meghdoot Mozumder, postdoc Diffuse optical tomography Jenni Tick, PhD student Photoacoustic tomography Jarkko Leskinen, postdoc Ultrasonic and optical instrumentation Eero Koponen, PhD student Synthetic schlieren tomography Niko Hänninen, PhD student Quantitative photoacoustic tomography Teemu Sahlström, PhD student Photoacoustic tomography

slide-3
SLIDE 3

UEF // University of Eastern Finland

Optical imaging – Why the interest?

Early breast cancer imaging

  • In 1929 it was suggested that visible light could be used to detect

breast lesions

  • M. Cutler: "Transillumination of the breast", 1929
  • The method didn’t work

3.6.2019 Tomographic imaging with light and sound / Tanja Tarvainen 3

slide-4
SLIDE 4

UEF // University of Eastern Finland

Light has some properties which make it very appealing for biomedical studies

  • Capability of optical methods to

provide information on the internal properties of tissues based on endogenous (e.g. haemoglobin) or exogenous (e.g. dyes) contrast

  • Instrumentation is relatively simple

and low-cost

  • Non-ionizing

3.6.2019 Tomographic imaging with light and sound / Tanja Tarvainen 4

Absorption coefficients of major chromophores in tissues (T. Näsi Multimodal applications of functional near-infrared spectroscopy, PhD thesis, Aalto University, 2013).

slide-5
SLIDE 5

UEF // University of Eastern Finland

  • Various visible and near-infrared light based measurement and

monitoring methods have been developed since 1930s

  • Pulse oximetry, NIR spectroscopy, ...

3.6.2019 Tomographic imaging with light and sound / Tanja Tarvainen 5

Image from Wikimedia Commons, the free media repository.

slide-6
SLIDE 6

UEF // University of Eastern Finland

Diffuse optical tomography 1990-

  • Imaging through human body using

visible and near-infrared light

  • Reconstructing distributions of light

absorbers

3.6.2019 Tomographic imaging with light and sound / Tanja Tarvainen 6

slide-7
SLIDE 7

UEF // University of Eastern Finland

  • Light is guided into the

target from various direction

  • Amount of scattered and

transmitted light is measured

  • An image is reconstructed

from the measurements

3.6.2019 Tomographic imaging with light and sound / Tanja Tarvainen 7

slide-8
SLIDE 8

UEF // University of Eastern Finland 3.6.2019 Tomographic imaging with light and sound / Tanja Tarvainen 8

Diffusion approximation

  • Describes light propagation in highly

scattering medium

  • Diffuse model
  • Easy to solve using numerical

methods

slide-9
SLIDE 9

UEF // University of Eastern Finland 3.6.2019 Tomographic imaging with light and sound / Tanja Tarvainen 9

Image reconstruction in the framework of inverse problems

  • Solve the optical parameters which minimise functional

using methods of computational inverse problems

  • The minimisation problem is solved using optimization methods
  • The governing (partial) differential equation needs to be solved

using numerical methods

  • Both can be difficult tasks
slide-10
SLIDE 10

UEF // University of Eastern Finland

  • S. Arridge and M.

Schweiger: Inverse Methods for Optical Tomography, 1993

  • S. Arridge et al: A finite

element approach for modelling photon transport in tissue, 1993

  • Etc.

3.6.2019 Tomographic imaging with light and sound / Tanja Tarvainen 10

slide-11
SLIDE 11

UEF // University of Eastern Finland

However…

  • Diffuse optical tomography can only produce blurred (i.e. diffuse)

images

3.6.2019 Tomographic imaging with light and sound / Tanja Tarvainen 11

slide-12
SLIDE 12

UEF // University of Eastern Finland

Imaging using coupled physics 2000-

  • Utilise coupled physics to combine the benefits of different

imaging modalities

  • Photoacoustics, acousto-optics, ultrasound modulated diffuse
  • ptical tomography, thermoacoustics, etc.

3.6.2019 Tomographic imaging with light and sound / Tanja Tarvainen 12

slide-13
SLIDE 13

UEF // University of Eastern Finland

Photoacoustic imaging

First experiments

  • Photoacoustic effect was first reported

by Alexander Graham Bell in 1880

  • Generated audio waves using chopped

sunlight

  • A.G. Bell, On the production and

Reproduction of Sound by Light, American Journal of Science, 20:305, 1880

  • A.G. Bell, The Production of Sound by

Radiant Energy, Science, 2(48):242-253, 1881

3.6.2019 Tomographic imaging with light and sound / Tanja Tarvainen 13

A.G. Bell, On the production and Reproduction

  • f Sound by Light, American Journal of Science,

20:305, 1880

slide-14
SLIDE 14

UEF // University of Eastern Finland

Photoacoustic effect 1. Tissue is illuminated by a short pulse (ns scale) of light 2. As light propagates within the tissue, it is absorbed by chromophores (light absorbing molecules)

3.6.2019 Tomographic imaging with light and sound / Tanja Tarvainen 14

slide-15
SLIDE 15

UEF // University of Eastern Finland

3. The absorbed energy causes pressure rise 4. This pressure increase propagates though the tissue as an acoustic wave and can be detected on the surface of the tissue using ultrasound sensors

3.6.2019 Tomographic imaging with light and sound / Tanja Tarvainen 15

slide-16
SLIDE 16

UEF // University of Eastern Finland

Photoacoustic imaging

  • Reconstruct the initial pressure (or absorbed
  • ptical energy density) from the photoacoustic

signal measured at the surface of the tissue

3.6.2019 Tomographic imaging with light and sound / Tanja Tarvainen 16

slide-17
SLIDE 17

UEF // University of Eastern Finland

  • Photoacoustic imaging combines the benefits of optical and

acoustic methods

  • Contrast though optical absorption

– Tissue chromophores: oxygenated and deoxygenated haemoglobin, water, lipids, melanin – Contrast agents

  • Resolution by ultrasound

– Low scattering in soft biological tissue

3.6.2019 Tomographic imaging with light and sound / Tanja Tarvainen 17

J Laufer at al, Journal of Biomedical Optics, 2012

slide-18
SLIDE 18

UEF // University of Eastern Finland 3.6.2019 Tomographic imaging with light and sound / Tanja Tarvainen 18

Inverse problem in Bayesian framework

  • Model all parameters as random variables
  • The solution of the inverse problem (posterior probability

density) is given by the Bayes’ formula

slide-19
SLIDE 19

UEF // University of Eastern Finland 3.6.2019 Tomographic imaging with light and sound / Tanja Tarvainen 19

slide-20
SLIDE 20

UEF // University of Eastern Finland 3.6.2019 Tomographic imaging with light and sound / Tanja Tarvainen 20

slide-21
SLIDE 21

UEF // University of Eastern Finland 3.6.2019 Tomographic imaging with light and sound / Tanja Tarvainen 21

slide-22
SLIDE 22

UEF // University of Eastern Finland 3.6.2019 Tomographic imaging with light and sound / Tanja Tarvainen 22

slide-23
SLIDE 23

UEF // University of Eastern Finland 3.6.2019 Tomographic imaging with light and sound / Tanja Tarvainen 23

slide-24
SLIDE 24

UEF // University of Eastern Finland 3.6.2019 Tomographic imaging with light and sound / Tanja Tarvainen 24

slide-25
SLIDE 25

UEF // University of Eastern Finland 3.6.2019 Tomographic imaging with light and sound / Tanja Tarvainen 25

slide-26
SLIDE 26

UEF // University of Eastern Finland

Quantitative photoacoustic tomography

  • Estimate the distribution of the optical parameters

from photoacoustic images

3.6.2019 Tomographic imaging with light and sound / Tanja Tarvainen 26

slide-27
SLIDE 27

UEF // University of Eastern Finland 3.6.2019 Tomographic imaging with light and sound / Tanja Tarvainen 27

slide-28
SLIDE 28

UEF // University of Eastern Finland 3.6.2019 Tomographic imaging with light and sound / Tanja Tarvainen 28

Radiative transfer equation

  • Describes propagation of radiation in the presence of

scattering particles

slide-29
SLIDE 29

UEF // University of Eastern Finland 3.6.2019 Tomographic imaging with light and sound / Tanja Tarvainen 29

  • Is used to model light

transport in astrophysics, atmosphere,

  • ceanography, biomedical

studies

  • Analytical solutions are

limited to few geometries

  • Computationally

expensive and challenging

slide-30
SLIDE 30

UEF // University of Eastern Finland 3.6.2019 Tomographic imaging with light and sound / Tanja Tarvainen 30

  • Estimate optical parameters x from absorbed optical energy

density H

  • Forward model: radiative transfer equation or diffusion

approximation

  • Maximum a posteriori estimate

Optical inverse problem of QPAT

slide-31
SLIDE 31

UEF // University of Eastern Finland 3.6.2019 Tomographic imaging with light and sound / Tanja Tarvainen 31

slide-32
SLIDE 32

UEF // University of Eastern Finland

  • Example from a simulation study

3.6.2019 Tomographic imaging with light and sound / Tanja Tarvainen 32

slide-33
SLIDE 33

UEF // University of Eastern Finland 3.6.2019 Tomographic imaging with light and sound / Tanja Tarvainen 33

For more information

  • Computational physics and inverse problems research group:

www.uef.fi/inverse

  • Biomedical Optical Imaging and Ultrasound Laboratory:

www.uef.fi/opus

  • Open source Monte Carlo code and Matlab interface –ValoMC:

https://inverselight.github.io/ValoMC/

slide-34
SLIDE 34

Thank you!
