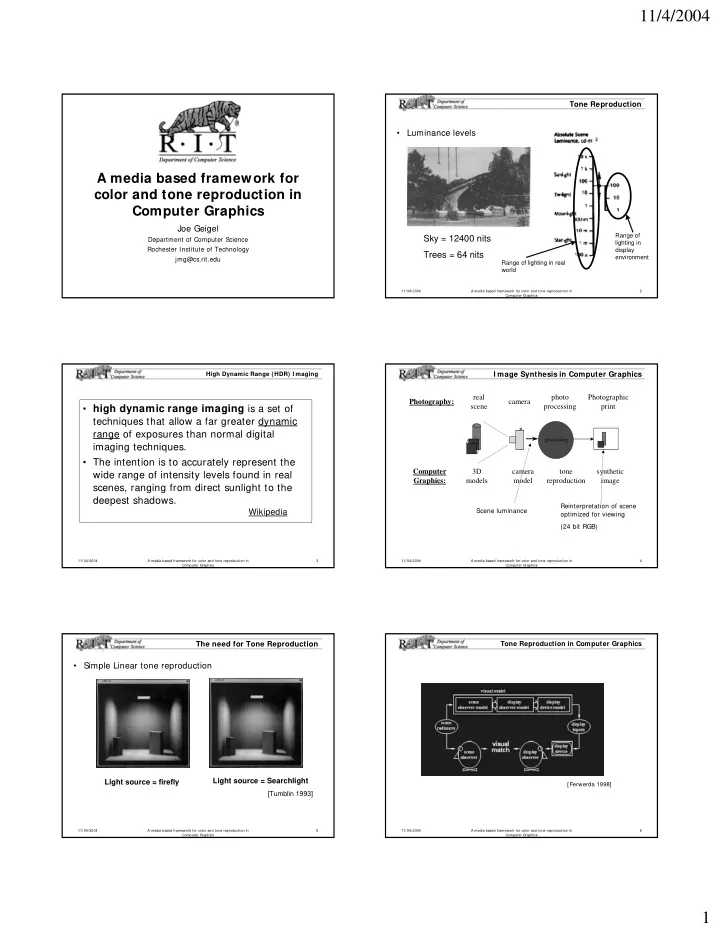

A media based framework for color and tone reproduction in Computer Graphics

Joe Geigel

Department of Computer Science Rochester Institute of Technology jmg@cs.rit.edu

11/ 04/2004 A media based framework for color and tone reproduction in Computer Graphics 2

Tone Reproduction

• Luminance levels

Sky = 12400 nits Trees = 64 nits

Range of lighting in real world Range of lighting in display environment

11/ 04/2004 A media based framework for color and tone reproduction in Computer Graphics 3

High Dynamic Range (HDR) I maging

• high dynamic range imaging is a set of

techniques that allow a far greater dynamic range of exposures than normal digital imaging techniques.

• The intention is to accurately represent the

wide range of intensity levels found in real scenes, ranging from direct sunlight to the deepest shadows.

Wikipedia

11/ 04/2004 A media based framework for color and tone reproduction in Computer Graphics 4

I mage Synthesis in Computer Graphics camera synthetic image camera model

processing

photo processing tone reproduction real scene 3D models Photographic print Photography: Computer Graphics:

Reinterpretation of scene

• ptimized for viewing

(24 bit RGB) Scene luminance

11/ 04/2004 A media based framework for color and tone reproduction in Computer Graphics 5

• Simple Linear tone reproduction

Light source = firefly Light source = Searchlight

[Tumblin 1993]

The need for Tone Reproduction

11/ 04/2004 A media based framework for color and tone reproduction in Computer Graphics 6

Tone Reproduction in Computer Graphics

[Ferwerda 1998]

11/4/2004 2

11/ 04/2004 A media based framework for color and tone reproduction in Computer Graphics 7

Approaches to Tone Reproduction in CG

• Perceptual Based Operators

– Based on Perceptual Studies and Models of Human Perception – Goal: Tone Mapping to reproduce how humans perceive scene

• Media Based Operator

– Observation 1: Tone Reproduction problem is not unique to CG

• Over a century of advanced study
• Scientists and artists have devised processes and techniques
• Techniques optimized for particular display devices

– Observation 2: We may not always want what we see!

• Artistic photography (Ansel Adams)
• Compositing with content on existing media
• Parameter space of practioners

– Our Goal:

• Achieve tone reproduction via simulation of existing processes
• Perception not ignored, rather already considered

11/ 04/2004 A media based framework for color and tone reproduction in Computer Graphics 8

Media Based Tone Reproduction As viewed

• n a

given piece of media Simulated response of that media

11/ 04/2004 A media based framework for color and tone reproduction in Computer Graphics 9

Media Based Tone Reproduction

• Simulation

– Model and simulate response of light entering the system

• Capture (Camera)
• Media Response

– Brightness – Spectral – Acuity – Noise / Grain

• Media Presentation
• Color Management

– Definition: A system for ensuring that colors remain the same regardless of the device or medium used to display the colors. – Model the device on which the image will be displayed

• Brightness Capabilities
• Color Gamut
• Viewing Environment

11/ 04/2004 A media based framework for color and tone reproduction in Computer Graphics 10

color management simulation Media Based Tone Reproduction Framework

Camera Media Presentation Device

Image Appearance

HDR Image Output device

11/ 04/2004 A media based framework for color and tone reproduction in Computer Graphics 11

Example: Print Photography

• Follow the path of light from scene to photo to viewer!

scene camera film enlarger print viewer

Radiance / luminance exposure Radiance / luminance exposure

11/ 04/2004 A media based framework for color and tone reproduction in Computer Graphics 12

Example: Print Photography

• Print photography process

Camera Film

Process Process Negative

Print Paper Printer

Optics Photographic Material Processed Photographic Material

11/4/2004 3

11/ 04/2004 A media based framework for color and tone reproduction in Computer Graphics 13

Photographic Units

exposure

E = It

I = Illuminance (lux) t = time (sec) E = exposure (lux-sec) density

D = log (O)

O = opacity = 1 / T T = transmission = It / Io It = transmitted light Io = incident light

defines the amount of light hitting the photographic material at each point A logarithmic means for describing transparency or reflectance once the material is developed

11/ 04/2004 A media based framework for color and tone reproduction in Computer Graphics 14

color management simulation Media Based Tone Reproduction Framework

Camera Media Presentation

Device Image Appearance

HDR Image Output device

11/ 04/2004 A media based framework for color and tone reproduction in Computer Graphics 15

set by photographer

Camera Model

Scene luminance to exposure

time shutter eff. flare scene from luminance

4 2

) cos 4 ( ) ( t I n L x Exposure

f

η θ π τ + = ′

Lens transmittance

Aperture / f-stop

11/ 04/2004 A media based framework for color and tone reproduction in Computer Graphics 16

color management simulation Media Based Tone Reproduction Framework

Camera Media Presentation

Device Image Appearance

HDR Image Output device

11/ 04/2004 A media based framework for color and tone reproduction in Computer Graphics 17

Photographic Response: Brightness

• A typical brightness response / characteristic curve

Log Exposure D e n s i t y

I II III IV I - toe II - straight line section III - shoulder IV - area of solarization

γ

gamma - slope of region

• II. gives contrast range

speed - indicates sensitivity to light S

11/ 04/2004 A media based framework for color and tone reproduction in Computer Graphics 18

Photographic Response: Brightness

Original 100 Speed Film 400 Speed Film 800 Speed Film Original Low Contrast Medium Contrast High Contrast

Effects of speed Effects of gamma

11/4/2004 4

11/ 04/2004 A media based framework for color and tone reproduction in Computer Graphics 19

Photographic Response: Spectral

100 200

panchromatic

100

300 400 500 600

blue sensitive

11/ 04/2004 A media based framework for color and tone reproduction in Computer Graphics 20

Photographic Response: Acuity

modulation transfer function point spread function

20 40 60 80 100 40 80 120 spatial freq. (cycles/mm) (%)

11/ 04/2004 A media based framework for color and tone reproduction in Computer Graphics 21

Photographic Response: Grain Graininess increases with magnification No magnification 2X zoom 4X zoom

11/ 04/2004 A media based framework for color and tone reproduction in Computer Graphics 22

Modeling Photographic Response

exposure density conversion

expose spectral sensitivity resolution density response granularity convert to transmission/ reflection input image

negative

• r

print

11/ 04/2004 A media based framework for color and tone reproduction in Computer Graphics 23

Color Photography

11/ 04/2004 A media based framework for color and tone reproduction in Computer Graphics 24

color management simulation Media Based Tone Reproduction Framework

Camera Media Presentation

Device Image Appearance

HDR Image Output device

11/4/2004 5

11/ 04/2004 A media based framework for color and tone reproduction in Computer Graphics 25

Photography: Presentation

• Photographic Model provides:

– Reflective densities for each emulsion layer – Spectral qualities of dyes on each layer

• Image isn’t viewed unless illuminated

– Illuminant

• Brightness
• Spectral Qualities

– Viewing Environment

• Brightness
• Spectral Qualities
• After presentation, we have specification of

– Image as viewed by a given light in a given environment – Must drive display device to match perceptual response

11/ 04/2004 A media based framework for color and tone reproduction in Computer Graphics 26

color management simulation Media Based Tone Reproduction Framework

Camera Media Presentation

Device Image Appearance

HDR Image Output device

11/ 04/2004 A media based framework for color and tone reproduction in Computer Graphics 27

Device Modeling

• Device Characterization and Calibration

– Non-linear response (gamma) – Device independent color specification – Gamut mapping

11/ 04/2004 A media based framework for color and tone reproduction in Computer Graphics 28

color management simulation Media Based Tone Reproduction Framework

Camera Media Presentation Device

Image Appearance

HDR Image Output device

11/ 04/2004 A media based framework for color and tone reproduction in Computer Graphics 29

Viewing Environment

• Viewing environment can affect image perception
• Adaptation
• The process by which the visual mechanism adjusts to the

conditions under which the eyes are exposed to radiant energy.

– General brightness adaptation

• Adjustments in response to the overall level of stimulus exposed

– Lateral brightness adaptation

• Adjustments in response due to stimulus in adjacent areas of the

retina

– Chromatic adaptation

• Adjustments in response to the average chromaticity in the

stimulus.

11/ 04/2004 A media based framework for color and tone reproduction in Computer Graphics 30

General Brightness Adaptation

• Note also…differences in acuity

[Ferwerda 1996]

11/4/2004 6

11/ 04/2004 A media based framework for color and tone reproduction in Computer Graphics 31

Lateral Brightness / Chromatic Adaptation Chromatic Adaptation Applet Lateral Brightness (Surround Effect)

11/ 04/2004 A media based framework for color and tone reproduction in Computer Graphics 32

Color and I mage Appearance Models

• Color Appearance Models

– Used to predict color appearance – Accounts for changes in viewing enviornment

• Color of illuminant
• Illumination level
• Surround luminance
• Image Appearance Models

– Incorporates spatial and temporal properties of human vision. – iCAM (Munsell Color Science Lab)

11/ 04/2004 A media based framework for color and tone reproduction in Computer Graphics 33

color management simulation Media Based Tone Reproduction Framework

Camera Media Presentation Device

Image Appearance

HDR Image Output device

11/ 04/2004 A media based framework for color and tone reproduction in Computer Graphics 34

Other Applications: High Dynamic Range I magery [Debevec 2001]

11/ 04/2004 A media based framework for color and tone reproduction in Computer Graphics 35

Traditional and Digital Photography camera

processing

photo processing real scene Photographic print Traditional Photography:

Reinterpretation of scene optimized for viewing

camera Processing performed by camera real scene Digital image Digital Photography:

11/ 04/2004 A media based framework for color and tone reproduction in Computer Graphics 36

HDR in Computer Graphics [Ward 2001]

11/4/2004 7

11/ 04/2004 A media based framework for color and tone reproduction in Computer Graphics 37

Rethinking Digital Photography

processing

Digital Photography:

Reinterpretation of scene

• ptimized for viewing

(24 bit RGB) Scene luminance

HDR Photography: camera Processing performed by camera real scene Digital image camera Processing performed as post process real scene Digital image

11/ 04/2004 A media based framework for color and tone reproduction in Computer Graphics 38

Other Application: Film Archiving

• Goal: Present films as they were originally shown

color management simulation

Camera Media Presentation Device

Image Appearance

HDR Image Output device

11/ 04/2004 A media based framework for color and tone reproduction in Computer Graphics 39

Conclusion

• Framework for Tone / Color Reproduction

– Based on Simulation of Media Response – Include Color Management

• Applications

– Computer Generated Images – High Dynamic Range Images – Presentation of Archival Images
