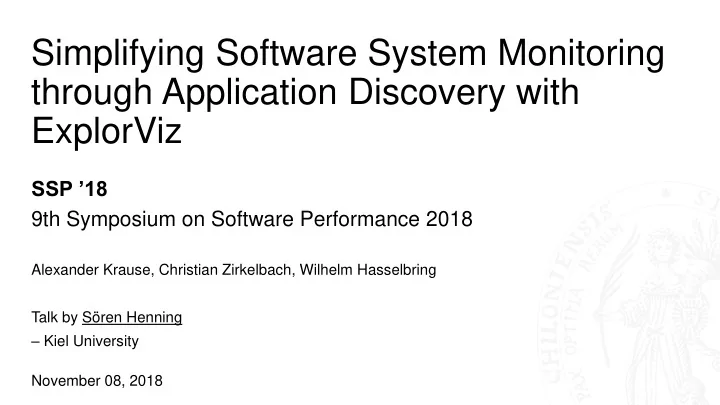

Simplifying Software System Monitoring through Application Discovery with ExplorViz SSP 18 9th Symposium on Software Performance 2018 Alexander Krause, Christian Zirkelbach, Wilhelm Hasselbring Talk by Sren Henning Kiel University

slide-1
SLIDE 1

Simplifying Software System Monitoring through Application Discovery with ExplorViz

SSP ’18 9th Symposium on Software Performance 2018

Alexander Krause, Christian Zirkelbach, Wilhelm Hasselbring Talk by Sören Henning – Kiel University November 08, 2018

slide-2
SLIDE 2

ExplorViz in a Nutshell

Live trace visualization of large software landscapes for comprehension of systems and applications [1] Selected Challenges

  • Finding abstractions to understand huge landscapes but also application-

level details

  • Live visualization of thousands or even millions of traces

2

slide-3
SLIDE 3

The ExplorViz Method

3

slide-4
SLIDE 4

Let’s start to visualize

4

slide-5
SLIDE 5

Let’s start to visualize

5

slide-6
SLIDE 6

Let’s start to visualize

6

slide-7
SLIDE 7

Let’s start to visualize

7

slide-8
SLIDE 8

Let’s start to visualize

8

slide-9
SLIDE 9

Let’s start to visualize … with

9

ADAMMS (Application Discovery and Monitoring Management System)

slide-10
SLIDE 10

Design – Application Discovery

10 OSJPL – Operating System Java Process List

slide-11
SLIDE 11

Design – Application Discovery

11 OSJPL – Operating System Java Process List

slide-12
SLIDE 12

Kill process Insert identifier Insert Monitoring Run exec cmd Get new OSJPL Find process Update model

Design – Monitoring Management

12 ADAMMS Monitoring Instruction Internal model OSJPL

slide-13
SLIDE 13

Kill process Insert identifier Insert Monitoring Run exec cmd Get new OSJPL Find process Update model

Design – Monitoring Management

13 ADAMMS Monitoring Instruction Internal model OSJPL

slide-14
SLIDE 14

Kill process Insert identifier Insert Monitoring Run exec cmd Get new OSJPL Find process Update model

Design – Monitoring Management

14 ADAMMS Monitoring Instruction Internal model OSJPL

slide-15
SLIDE 15

Implementation – Software Stack

15

Frontend Agent Backend

Client Client

Cytoscape.js

HTTP (REST) 1..* HTTP (REST) 1..*

slide-16
SLIDE 16

Implementation – Overview Page

16

slide-17
SLIDE 17

Implementation – Process Page

17

slide-18
SLIDE 18

First Pilot Study

18

Usability Evaluation Results & Discussion Setup

Goals

  • Overall usability regarding setup and
  • peration
slide-19
SLIDE 19

First Pilot Study

19

Usability Evaluation Results & Discussion Setup

Goals

  • Overall usability regarding setup and
  • peration

Experiment

  • Proband solved tasks
  • Conductor notated issues
  • Pluralistic walkthrough [2]
slide-20
SLIDE 20

First Pilot Study

20

Usability Evaluation Results & Discussion Setup

Goals

  • Overall usability regarding setup and
  • peration

Experiment

  • Proband solved tasks
  • Conductor notated issues
  • Pluralistic walkthrough [2]

Structural Interview

  • Perceived usability
  • Enhancements
slide-21
SLIDE 21

First Pilot Study

21

Software Landscape

  • 8 running applications
  • Tomcat with JPetStore 6
  • kiekerSampleApplication1

1 https://github.com/czirkelbach/kiekerSampleApplication

Usability Evaluation Results & Discussion Setup

slide-22
SLIDE 22

First Pilot Study

22

Software Landscape

  • 9 running applications
  • Tomcat with JPetStore 6
  • kiekerSampleApplication1

1 https://github.com/czirkelbach/kiekerSampleApplication

Usability Evaluation Results & Discussion Setup

slide-23
SLIDE 23

First Pilot Study

23

Learnability

  • Setup requirements are manageable
  • Monitoring Management is easily accessible…
  • … but requires knowledge about program

internals

Usability Evaluation Results & Discussion Setup Efficiency

  • Faster execution of repeating tasks

Memorability

  • Workflow seemed to be memorable …
  • … but casual users might show another

result

Low error rate

  • System helped to resolve errors during
  • peration…
  • … but did not prevent flaws

Satisfaction

  • Graph design is pleasant to use
  • Management dialogs require more work

[3]

slide-24
SLIDE 24

Conclusions & Future Work

24 More research required

  • Wider range of probands

Observations indicate good usability (Simple) Monitoring Management works

  • Prevent errors
  • Provide templates
  • Refactor GUI forms

Application Discovery method works

  • JDK 9 usage?
  • Cryptic execution

commands?

slide-25
SLIDE 25

Live Demo

25

slide-26
SLIDE 26

References

26 [2]

  • J. Nielsen. „Usability Inspection Methods.“

In: Proceedings of the Conference on Human Factors in Computing Systems (CHI ’94) . [1]

  • F. Fittkau, A. Krause, and W. Hasselbring. “Software landscape and

application visualization for system comprehension with ExplorViz.” In: Information and Software Technology (2016). http://dx.doi.org/10.1016/j.infsof.2016.07.004 [3]

  • A. Holzinger. “Usability Engineering Methods for Software Developers.“

Communications of the ACM 48.1 (Jan. 2005), pages 71–74
