Latam Energy Development, Inc. Stay Close To The Source THE OFFSHORE Drilling Solution ATLANTIC 7 RIG brings energy to the world as a global provider of offshore drilling services to the petroleum industry. www.rigatlantic7.com Technical

slide-1

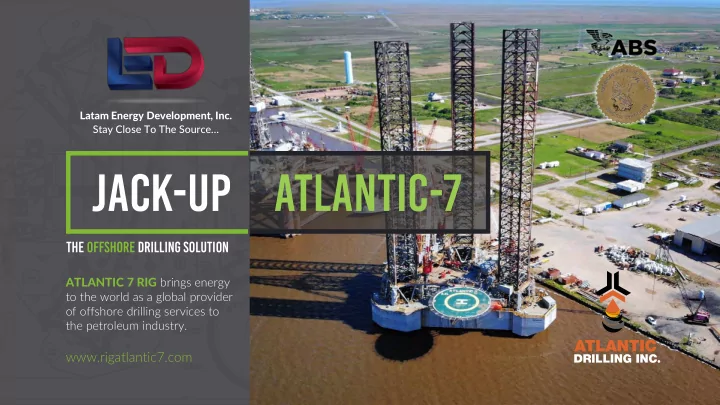

SLIDE 1

ATLANTIC 7 RIG brings energy to the world as a global provider

  • f offshore drilling services to

the petroleum industry.

www.rigatlantic7.com

THE OFFSHORE Drilling Solution

Latam Energy Development, Inc. Stay Close To The Source…

slide-2
SLIDE 2

Technical Information

General Information Technical Specifications Drilling Equipment Vessel Photographic Record

slide-3
SLIDE 3

GENERAL Information

Flag: Liberian Name: ATLANTIC 7 (Ex - ENSCO 69) Design: Marathon LeTourneau Class 84 Jack up Builder: Marathon LeTourneau, Shipyard Vicksburg, Mississippi, USA Upgrade: 2018 (Overhaul)

  • GENERAL CONTACT INFORMACION

Latam Energy Development Inc. Cell: 1-713-771-1853 Email: info@latamenergydevelopment.com

Status: Active, ABS Class Certification Class Number: 7609673 IMO Number: 8753639 ABS Class Notations: A1, Mobile Offshore Drilling Unit (MODU) Last Inspection (ABS): January 2019

  • FELIX SANCHEZ

Drilling Engineer Cell: 1-832-720-3287 Email: fsanchez@latamenergydevelopment.com CONTACT

www.rigatlantic7.com

slide-4
SLIDE 4

Technical SPECIFICATIONS

MAIN DIMENSIONS

  • Length: 247 ft -7 in; Breadth: 227 ft -5 in; Depth: 26 ft
  • Legs: 3 x 410 ft Square Truss
  • Leg Spacing: Longitudinal leg centers 129 ft; transverse leg centers 142 ft
  • Spud cans: 46 ft diameter x 24 ft high
  • Cantilever: Slot dimensions 41 ft x 50 ft
  • Helideck: S-61; diameter 70 ft

OPERATIONAL PARAMETERS

  • Water Depth: 300 ft (17 ft - 300 ft)
  • Maximun Drilling Depth: 20.000 ft with 5 in DP
  • Available length below hull including 5 ft margin Air Gap: 80 ft
  • Transit Speed: 5 knots
  • Survival Conditions – Criteria Design; wind: 100 Knots; waves period: 13 sec; wave height: 44 ft
  • Jacking and skidding system: Marathon LeTourneau AC electric rack and pinion, 90 ft/HR

www.rigatlantic7.com

slide-5
SLIDE 5

DRILLING EQUIPMENT

Derrick: Dreco 170 ft x 30 ft x 30 ft x 1.500.000 lbs. Cantilever Load: 1.310.000 lbs. Drawworks: 1320 x UE 2000HP National Oilwell; wire 1 ½”. Electric brake: model 7838 Baylor Rotary Table: model C-375 National Oilwell 37 ½", driven by 1 D79 EMD motor Top Drive: model TDS-4H Varco BJ 650 TON, with Pipe Handler model PH-85 Travelling: Continental Emsco 760H 650 TON Crown Block: National OilWell 760FA Mud Pumps: 2 National Oilwell modelo 12-P-160 Triplex - 5000 psi. Stand pipe 5 in x 5000 psi Main Power: 3 EMD 16-645-E8 Engines 6600 HP, generators AB20-N6 x 1,575 kW 600 V Emergency Power: 1 Cat 3412-TA 719 HP Diesel engine Cementing Unit: 2 electric triplex pumps. 15000 psi, 14 BPM

www.rigatlantic7.com

slide-6
SLIDE 6

DRILLING EQUIPMENT

Control System: air/electric powered Choke and Kill Manifold: 3-1/16" x 10000 psi x 2 HCR & 2 manual CAPACITIES:

  • Liquid Mud: 1605 bbls
  • Bulk Mud / Cement: 6240 cu.ft
  • Sacks: 2500 sacks
  • Drill Water: 10540 bbls
  • Potable Water: 1294 bbls
  • Fuel Oil: 4727 bbls
  • Base Oil: 563 bbls
  • Preload Tanks (include combination tanks): 15542 kips

Mud Equipment: Mud cleaner (4) MI Swaco; Desilter (1) Mi Swaco; Degaser, Rig Vaccum MI Swaco.

www.rigatlantic7.com

slide-7
SLIDE 7

VESSEL

ACCOMMODATIONS

  • 88 berths; main offices, auxiliary offices; mess and galley, meeting room; recreation room and gym, medical
  • ffice with observation room and bedroom with eight beds for quarantine cases
  • Watermaker: model NH75463+APC, FCI
  • Sewage Treatment: model RF 4000-M; Red Fox

SECURITY SYSTEMS

  • Communication and Navigation System GMDSS
  • Smoke and Heat detection System
  • CO2 Extinguishing System; Water Extinguishing System with Raw Water System.; Portable extinguishing

equipment

  • Toxic Gas (H2S) and Combustible Gas (CH4) Detection System
  • General Alarm System
  • Emergency Shutdown System
  • CCTV System
  • One Lifeboat (63 Man Cap.), two survival capsules (28 Man Cap. each), four Liferafts (25 Man Cap. each)

CRANES

  • Model PC-120AS Marathon Letorneau; Boom: 2 @ 120’ Max. load 90000 lbs
  • Model PC-120AS Marathon Letorneau; Boom: 1 @ 100’ Max. load 90000 lbs

www.rigatlantic7.com

slide-8
SLIDE 8

photographic record

www.rigatlantic7.com

slide-9
SLIDE 9

ATLANTIC 7

The Offshore Drilling Solution

slide-10
SLIDE 10

Port, STB Side

www.rigatlantic7.com The Offshore Drilling Solution

slide-11
SLIDE 11

Derrick, Drilling Floor

Top Drive TDS-4HS

slide-12
SLIDE 12

Draw-works1320-UE, Drilling Control Panel Choke Manifold, Remote Control Panel

slide-13
SLIDE 13

Mud Pumps Triplex 12-P-160 Preload Centrifugal Pumps Mix Centrifugal Pumps

slide-14
SLIDE 14

KoomEy Unit, Shale Shakers

slide-15
SLIDE 15

lifeboats

slide-16
SLIDE 16

cRANES

slide-17
SLIDE 17

Navigation System Main Deck Control Panel

slide-18
SLIDE 18

Main diesel Motors, Backup Generator Water Treatment Plant

slide-19
SLIDE 19

SCR, MCC

slide-20
SLIDE 20

cementing unit

slide-21
SLIDE 21

www.rigatlantic7.com

Accommodation

1

slide-22
SLIDE 22

www.rigatlantic7.com

2

Accommodation

slide-23
SLIDE 23

www.rigatlantic7.com

3

Accommodation

slide-24
SLIDE 24

www.rigatlantic7.com

Contact us

Ph: +1 (713) 771.1853 Email: info@rigatlantic7.com

www.latamenergydevelopment.com

Email: info@latamenergydevelopment.com
