Future Plans for Offshore Drilling Offshore China 24 May 2012 - - PowerPoint PPT Presentation

Future Plans for Offshore Drilling Offshore China 24 May 2012 Important information THIS PRESENTATION AND ITS ENCLOSURES AND APPENDICES (HEREINAFTER JOINTLY REFERRED TO AS THE PRESENTATION) HAVE BEEN PREPARED BY SEVAN DRILLING ASA


slide-1
SLIDE 1

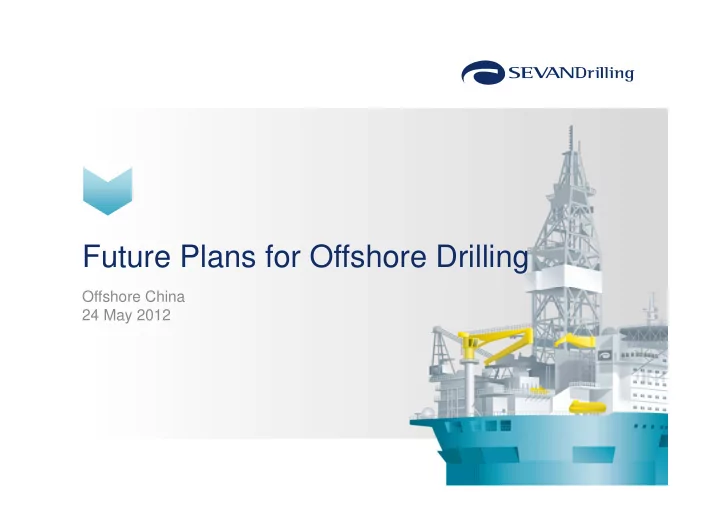

Offshore China 24 May 2012

Future Plans for Offshore Drilling

slide-2
SLIDE 2

Important information

THIS PRESENTATION AND ITS ENCLOSURES AND APPENDICES (HEREINAFTER JOINTLY REFERRED TO AS THE “PRESENTATION”) HAVE BEEN PREPARED BY SEVAN DRILLING ASA (”SEVAN DRILLING” OR THE ”COMPANY”) EXCLUSIVELY FOR INFORMATION PURPOSES. THIS PRESENTATION HAS NOT BEEN REVIEWED OR REGISTERED WITH ANY PUBLIC AUTHORITY OR STOCK EXCHANGE. RECIPIENTS OF THIS PRESENTATION MAY NOT REPRODUCE, REDISTRIBUTE OR PASS ON, IN WHOLE OR IN PART, THE PRESENTATION TO ANY OTHER PERSON. THE CONTENTS OF THIS PRESENTATION ARE NOT TO BE CONSTRUED AS LEGAL, BUSINESS, INVESTMENT OR TAX ADVICE. EACH RECIPIENT SHOULD CONSULT WITH ITS OWN LEGAL, BUSINESS, INVESTMENT AND TAX ADVISER AS TO LEGAL, BUSINESS, INVESTMENT AND TAX ADVICE. THERE MAY HAVE BEEN CHANGES IN MATTERS WICH AFFECT THE COMPANY SUBSEQUENT TO THE DATE OF THIS PRESENTATION. NEITHER THE ISSUE NOR DELIVERY OF THIS PRESENTATION SHALL UNDER ANY CIRCUMSTANCE CREATE ANY IMPLICATION THAT THE INFORMATION CONTAINED HEREIN IS CORRECT AS OF ANY TIME SUBSEQUENT TO THE DATE HEREOF OR THAT THE AFFAIRS OF THE COMPANY HAVE NOT SINCE CHANGED, AND THE COMPANY DOES NOT INTEND, AND DOES NOT ASSUME ANY OBLIGATION, TO UPDATE OR CORRECT ANY INFORMATION INCLUDED IN THIS PRESENTATION. THIS PRESENTATION INCLUDES AND IS BASED ON, AMONG OTHER THINGS, FORWARD-LOOKING INFORMATION AND STATEMENTS. SUCH FORWARD-LOOKING INFORMATION AND STATEMENTS ARE BASED ON THE CURRENT EXPECTATIONS, ESTIMATES AND PROJECTIONS OF SEVAN OR ASSUMPTIONS BASED ON INFORMATION AVAILABLE TO THE COMPANY. SUCH FORWARD-LOOKING INFORMATION AND STATEMENTS REFLECT CURRENT VIEWS WITH RESPECT TO FUTURE EVENTS AND ARE SUBJECT TO RISKS, UNCERTAINTIES AND ASSUMPTIONS. SEVAN CANNOT GIVE ANY ASSURANCE AS TO THE CORRECTNESS OF SUCH INFORMATION AND STATEMENTS. AN INVESTMENT IN THE COMPANY INVOLVES RISK, AND SEVERAL FACTORS COULD CAUSE THE ACTUAL RESULTS, PERFORMANCE OR ACHIEVEMENTS OF THE COMPANY TO BE MATERIALLY DIFFERENT FROM ANY FUTURE RESULTS, PERFORMANCE OR ACHIEVEMENTS THAT MAY BE EXPRESSED OR IMPLIED BY STATEMENTS AND INFORMATION IN THIS PRESENTATION, INCLUDING, AMONG OTHERS, RISKS OR UNCERTAINTIES ASSOCIATED WITH THE COMPANY’S BUSINESS, SEGMENTS, DEVELOPMENT, GROWTH MANAGEMENT, FINANCING, MARKET ACCEPTANCE AND RELATIONS WITH CUSTOMERS, AND, MORE GENERALLY, GENERAL ECONOMIC AND BUSINESS CONDITIONS, CHANGES IN DOMESTIC AND FOREIGN LAWS AND REGULATIONS, TAXES, CHANGES IN COMPETITION AND PRICING ENVIRONMENTS, FLUCTUATIONS IN CURRENCY EXCHANGE RATES AND INTEREST RATES AND OTHER FACTORS. SHOULD ONE OR MORE OF THESE RISKS OR UNCERTAINTIES MATERIALISE, OR SHOULD UNDERLYING ASSUMPTIONS PROVE INCORRECT, ACTUAL RESULTS MAY VARY MATERIALLY FROM THOSE DESCRIBED IN THIS DOCUMENT. THE COMPANY DOES NOT INTEND, AND DOES NOT ASSUME ANY OBLIGATION, TO UPDATE OR CORRECT THE INFORMATION INCLUDED IN THIS PRESENTATION. THIS PRESENTATION IS SUBJECT TO NORWEGIAN LAW, AND ANY DISPUTE ARISING IN RESPECT OF THIS PRESENTATION IS SUBJECT TO THE EXCLUSIVE JURISDICTION OF NORWEGIAN COURTS.

2

slide-3
SLIDE 3

Market fundamentals

01

3

slide-4
SLIDE 4

4

Key Take away Messages

  • Future supply of oil and gas will be adequate to meet demand – just

Demand driven by non-OECD Growth

All potential sources of supply must be exploited

  • Deep and Ultra-Deep Water are key to supply
  • Half of demand for Deep Water drilling rigs will be for

development drilling −

Development drilling will require mobile units

More specialization in rig designs

  • Costs are very critical in this business

Low cost, efficient service is an advantage

slide-5
SLIDE 5

5

Liquids Supply/Demand Balance

  • Demand growth projections vary

from 0.7% to 1.0% per annum through 2035

  • Supply growth requires new

deepwater projects as well as

  • nshore unconventional resources
  • By 2035 over 33% of the projected
  • il supply is currently not on

production and substantial part is yet to be found

  • Production will struggle to keep up

with demand and only in the “high supply” and “low demand” case will there be an oversupply

  • A strong base for oil price and

service demands

20 40 60 80 100 120 2005 2010 2015 2020 2025 2030 2035 2040 Deepwater non- producing Offshore shelf non-producing Offshore producing Unconventional Iraq Onshore conventional (excl Iraq) Million boe/d

Supply 0.8% (CAGR) Population growth 0.9% Demand outlook current policies 1.0%

Demand

IEA 2011 New Policies Scenario IEA 2011 Current Policies Scenario EIA 2011 BP 2011 adj*

slide-6
SLIDE 6

6

10 20 30 40 50 60 70 80 90 2005 2010 2015 2020 2025 2030 2035 2040 Deepwater non-producing Offshore shelf non-producing Offshore producing Shale/Unconv . . Onshore conventional

Gas Supply/Demand Balance

  • Demand growth projections vary

from 1.6% to 2.1% per annum through 2035

  • Supply growth depends on new

deepwater projects as well as

  • nshore unconventional resources
  • By 2035 over 33% of the projected
  • il supply is currently not on

production and substantial part is yet to be found

  • Gas markets are more regional

where US has large domestic unconventional resources, Asia will rely on imports

  • As with liquids, this provides a

strong base for oil price and service demands

Million boe/d

Supply 1.6% (CAGR) Population growth 0.9% Demand outlook current policies 1.6-2.1%

Demand

IEA 2011 New Policies Scenario IEA 2011 Current Policies Scenario EIA 2011 BP 2011 adj*

(includes NGLs)

slide-7
SLIDE 7

7

Global discoveries

Source: Rystad Energy UCube

Global discoveries by water depth

Million boe/decade

Discoveries of oil and gas deeper than 400 ft

Million boe/decade

(much unconventional from 2000s)

slide-8
SLIDE 8

8

Most deepwater discoveries still not developed

Start-up of oil and gas disc. deeper than 400 ft by current status

Million boe/decade

Discoveries of oil and gas deeper than 400 ft by current status

Million boe/decade

55% of discovered resources not yet put in production – a significant backlog of deepwater discoveries to be developed Resources found, but not yet developed

Source: Rystad Energy UCube

slide-9
SLIDE 9

9

  • 142 Bboe of deepwater resources have

been found and developed globally.

  • 50% has been produced
  • 174 Bboe have been found but have not

yet been developed.

  • Deepwater development backlog amounts

to 55% of volume discovered so far

  • Another 590 Bboe of resources are

expected to be discovered.

  • 90% higher than what has already been

discovered

  • Overall, based purely on resource

numbers, less than 15% of the global deepwater drilling effort that is due to happen in the past and future, has already taken place

Summary of global deepwater drivers – stage set for growth

*Water depths 400-5000 feet

**Water depths exceeding 5000 feet

Global oil and gas deepwater resource inventory

  • 3

7 52 107

  • 72

59 122 484

  • 75

67 174 591 831

Produced Developed Discovered Yet to find Current inventory

Ultra deepwater* Deepwater**

  • Exploration wells
  • Development wells
  • Infill wells
  • Intervention
appraisal

GLOBAL INVENTORY ACTIVITY billion boe

Source: Rystad Energy UCube

slide-10
SLIDE 10

Future implications 02

10

slide-11
SLIDE 11

11

2007 2009 2011 2013 2015 2017 2019

  • The number of exploration

and appraisal wells is expected to rise by 50% within 2020

  • Discovered resource

volumes are become increasingly drilling intensive

  • Petrobras’ subsalt drilling

requires much more rig capacity per well,

  • Leading to a step increase

in rig demand while number of wells are fairly flat from 2008 to 2013.

Deepwater exploration drilling requirements

*Includes appraisal drilling

2007 2009 2011 2013 2015 2017 2019

Source: Rystad Energy UCube

Global floating rig exploration* drilling demand by asset/license states

By number of wells By number of rigs

slide-12
SLIDE 12

12

Future Implications

  • Half of future demand for mobile units will be for

Development Drilling

  • Do we need the same rig designs for development drilling

and exploration?

  • Yes, but ……

ease of mobility not a driver for development drilling

ease of holding station and movements is a driver

manage pressure operations more likely

costs are a significant driver in developments

  • Door is open now for more specialized rig designs and
  • perations
slide-13
SLIDE 13

The Sevan design 03

13

slide-14
SLIDE 14

14

Unique and Cost Efficient Design

  • Delivered from COSCO end 2009
  • In operation for Petrobras under a six

year contract

  • 98 % uptime in Q4 2011
  • Over one year without LTI
  • Delivered from COSCO February 2012
  • Will operate for Petrobras under a six

year contract – start-up in Q2 2012

  • COSCO has excellent safety record, over

5 Million Man-hours with no LTI

  • Contract with COSCO for two new rigs
  • f Sevan 650 design
  • Turnkey contract
  • Delivery in Q4 2013 and Q2 2014
  • Options on two additional rigs (5 & 6)

Sevan Driller Sevan Brasil 2 x UDW new build rigs

slide-15
SLIDE 15

15

Why is it round?

  • Based on a circular design concept

− First developed as an FPSO − 3 FPSO’s − 2 Drilling Rigs (Driller and Brasil) − 1 FPSO under construction (ENI for Goliath Field)

  • Significant storage capacity

− On the main deck − Below main deck – either bulk or liquids

  • No appreciable pitch or roll

− Heave compensation − Design changes

  • Transit speed 6 knots fully loaded
  • Easier to keep on station
slide-16
SLIDE 16

16

Length between pp (= Breadth) 75 m Transit Draft -Operating draft- Max draft 10m- 12,5m - 15 m Variable Deck Load >15 000 metric tonnes Accommodation 150 beds Offshore cranes 2x100 metric tonnes Main hook load, static 907 metric tonnes (1000 short t tonnes) Heave compensated hook/top drive 453 metric tonnes (1000 kips) BOP Cameron 18 ¾ --15.000 psi BOP Safety 5 Rams – 2 Annulars Riser Length Up to 10.000 ft Riser tensioning capacity Stroke 50 ft - 1 450 mt (3,200 kips) at mid stroke Set back capacity for tubulars 40.000 ft Set back capacity, load 986 Metric tonnes Drilling Equipment Top Drive System DP system DP 3 Propulsion-Power 8 x thruster – 3.7 kW each

Main particulars

slide-17
SLIDE 17

17

slide-18
SLIDE 18

18

Additional rigs under construction

  • Firm turnkey construction contracts

for two UDW − COSCO shipyard − Delivery in Q4 2013 and Q2 2014

  • Both rigs are on schedule for

delivery according to plan

  • Options for another two UDW new

build rigs − Expire December 10 2012

  • Drilling control system
  • Derrick
  • Pipehandling
  • Cranes
  • BOP
  • Control system
  • Marine riser system
  • Dynamic

positioning systems

  • Diesel engines
  • Thrusters
  • Drilling mud

pumps

  • Electrical
  • Automation
  • Telecom systems
slide-19
SLIDE 19

19

Sevan Drilling

  • Low cost efficient design for

exploration and development drilling

High deck loads

Stable motion characteristics

  • In operation now offshore Brazil with

two rigs and another two on order − Delivery in 4Q 2013 and 2Q 2014

  • Designed to operate in deep and

ultra-deep water areas outside of the North Atlantic and North Sea

  • A stable work platform for long term
  • perations
slide-20
SLIDE 20

20

Key Take away Messages

  • Future supply of oil and gas will be adequate to meet demand – just

Demand driven by non-OECD Growth

All potential sources of supply must be exploited

  • Deep and Ultra-Deep Water are key to supply
  • Half of demand for Deep Water drilling rigs will be for

development drilling −

Development drilling will require mobile units

More specialization in rig designs

  • Costs are very critical in this business

Low cost, efficient service is an advantage

slide-21
SLIDE 21

The pure-play ultra deepwater drilling company.
