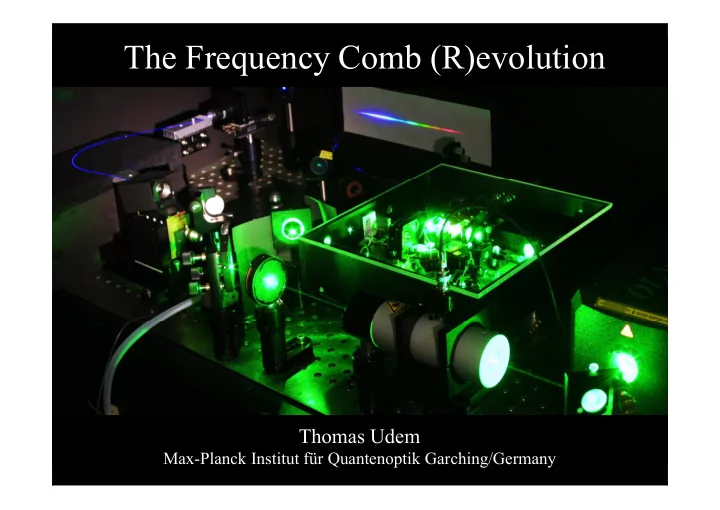

The Frequency Comb (R)evolution

Thomas Udem

Max-Planck Institut für Quantenoptik Garching/Germany

2

• The History of the Comb
• Derivation of the Comb
• Self-Referencing

3

4

Mode Locked Laser as a Comb Generator Mode Locked Laser as a Comb Generator

• N = 105 … 106 modes phase synchronized
• spectral width = 1/ = 100 THz
• pulse repetition rate T -1 = 100 MHz … 1 GHz

Typical Ti:sapphire Kerr-lens mode locked laser:

• pulse duration = 10 fs

5

The History of the Comb The History of the Comb

The First Continuous Wave Laser The First Continuous Wave Laser

6

William Bennett and Ali Javan with the first continuous wave laser 1961

7

Coherent Waves with Frequencies? Coherent Waves with Frequencies?

Scully, Zubairy - Quantum Optics

8

Laser Beat Notes Laser Beat Notes

9

Laser Beat Notes Laser Beat Notes

10

Increasing the Measureable Frequency Difference Increasing the Measureable Frequency Difference direct measurement of optical beat frequencies is limited by the detector bandwidth to a few 100 GHz with some tricks to a few THz.

11

12

Stanford Mode Locked Laser 1978 Stanford Mode Locked Laser 1978

J.Eckstein E.Weber A.Ferguson T.W.Hänsch J.Goldsmith

Carrier envelope offset phase and frequency described in detail in Jim Eckstein‘s Thesis Stanford 1978

13

Frequency Differences and „Absolute“ Frequencies Frequency Differences and „Absolute“ Frequencies

890 GHz

Harmonic Frequency Chains Harmonic Frequency Chains

14

Boulder Novosibirsk

15

Harmonic Frequency Chains Harmonic Frequency Chains

16

How to Improve the Optical Counter How to Improve the Optical Counter

Kourogi Type Frequency Comb Generator Kourogi Type Frequency Comb Generator

17

18

Kourogi‘s Comb Generator in our Lab Kourogi‘s Comb Generator in our Lab

• Opt. Lett. 23, 1387 (1998)

19

Optical Interval Dividers Optical Interval Dividers

Optical Interval Divider (Differential Gear)

f 1 f 3 f 2 f 1 f 3 f 2

T.W.Hänsch in “The Hydrogen Atom” G.F.Bassani, M.Inguscio, T.W.Hänsch eds, Springer 1989

20

Optical Counter Optical Counter

21

Phase Noise Phase Noise

22

Phase Noise: Why the Comb shouldn‘t work Phase Noise: Why the Comb shouldn‘t work

23

Phase Noise: Why the Comb shouldn‘t work Phase Noise: Why the Comb shouldn‘t work

24

Phase Noise Phase Noise

• Th. Udem, lab book 1994

Phase Locked Loop Phase Locked Loop

25

26

Testing the Mode Spacing Constancy Testing the Mode Spacing Constancy

27

Testing the Mode Spacing Constancy Testing the Mode Spacing Constancy

28

Derivation of the Comb Derivation of the Comb

(from the pulse train)

29

Mode Locked Laser Mode Locked Laser 1m = m1r 1n = n1r + 1CE with 1CE < 1r

30

Mode Locked Laser Mode Locked Laser

E(t) = A(t) ei1ct

1m = m1r + 1C

I (1)

1 1c

= Am eim1rti1ct

m

31

Spectrum of N+1 Pulses Spectrum of N+1 Pulses

(shift theorem)

32

Spectrum of N+1 Pulses Spectrum of N+1 Pulses

33

Fourier limited Line Width of the Modes Fourier limited Line Width of the Modes

34

Line Width of real Lasers Line Width of real Lasers

35

Resolving the Modes of the Comb Resolving the Modes of the Comb

36

Self-Referencing Self-Referencing

37

How to Measure the Comb Offset How to Measure the Comb Offset Measure any frequency difference between different harmonics of the same laser (or comb).

Carrier-Envelope Phase Carrier-Envelope Phase

39

The first self-referenced Frequency Comb

3.5f -4f self-referencing (N=7, M=8)

40

Generating an Octave Spanning Comb Generating an Octave Spanning Comb

Photonic crystal fiber: William Wadsworth Jonathan Knight Tim Birks Phillip Russell

• U. of Bath England

note: if the action of the fiber is the same for all the pulses the field stays stricly

• periodic. This property is the only one

necessary to derive 1n= n1r+ 1CE

41

A much more compact Device

f -2f self-referencing (N=1, M=2)

42

Compact Ringlaser Compact Ringlaser

• wedge and EOM for slow and fast 1CE control.
• translation stage and PZT for slow and fast 1r control.

43

Simplest way of Self Referencing: M=2 N=1 Simplest way of Self Referencing: M=2 N=1

It is simple to detect 1CE of an octave wide frequency comb:

1CE = 2(n1r + 1CE ) – (2n1r + 1CE )

• J. Reichert et al., PRL 84, 3232 (2000)

44

Fiberlaser Fiberlaser

• pump power controls 1CE
• fiber stretcher for 1r control

Fixpoint Concept I Fixpoint Concept I

• Cavity length L „elastic tape“ : (n1r + 1CE) (1 + L/ L)

fixpoint at 1= 0

Fixpoint Concept II Fixpoint Concept II

• Pump power „accordion“ : m1r (1+) + 1C

fixpoint at m = 0 (1= 1C) Fixpoint important for locking and noise compensation! Better to enumerate mode number m from fixpoint.

47

Controlling the Frequency Comb Controlling the Frequency Comb 1n = n1r + 1CE

depends on the pump power depends on the cavity length

we can measure an and control

1r = 2/ T an

and 1CE = 7/ T

48

Optical Frequency Counter Optical Frequency Counter 1n = n1r + 1CE

locked to a Cs atomic clock every mode can be used for

• ptical frequency measurement

a million stabilized lasers in a single beam!

49

Frequency Conversions with the Comb Frequency Conversions with the Comb

radio frequency

• r
• ptical frequency

radio frequency

• r
• ptical frequency
• ptical frequencies

locked to a Cs clock

radio frequency optical frequency

Science 293, 825 (2001)

countable clock output locked to a stable laser locked to

• ptical frequency radio frequency
• ptical frequency optical frequency

measure another laser locked to a stable laser locked to

50
