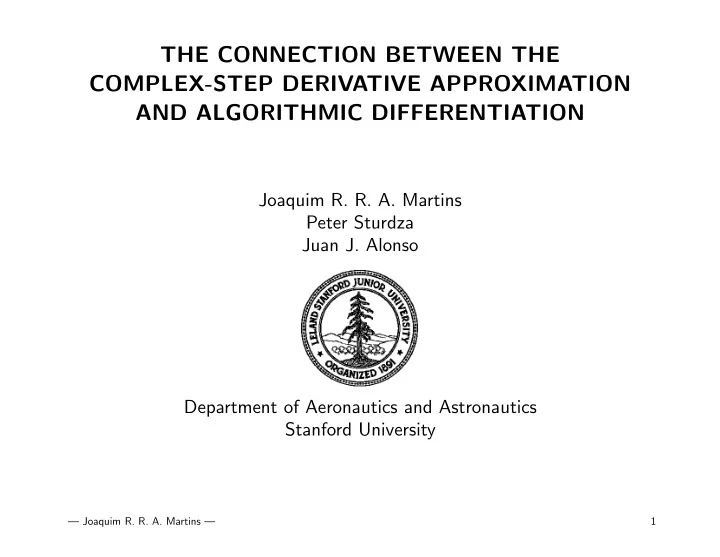

THE CONNECTION BETWEEN THE COMPLEX-STEP DERIVATIVE APPROXIMATION AND ALGORITHMIC DIFFERENTIATION

Joaquim R. R. A. Martins Peter Sturdza Juan J. Alonso Department of Aeronautics and Astronautics Stanford University

— Joaquim R. R. A. Martins — 1

Outline

• Background on sensitivity analysis
• Complex-step derivative approximation basics
• Improvements and the connection to algorithmic differentiation
• Implementations of the complex-step method (Fortran, C/C++)
• Results

– 2D Flow Solver (Fortran) – 3D High-Fidelity Aero-Structural Analysis (Fortran) – Supersonic Viscous/Inviscid Solver (Fortran, C++, Python)

• Conclusions

— Joaquim R. R. A. Martins — 2

Sensitivity Analysis

• Motivation:

– Gradient-based optimization requires accurate sensitivity information.

• Typical approaches:

– Finite-Difference: easy to implement, but lacks robustness and accuracy. – Algorithmic/Automatic/Computational Differentiation: accurate, ease of implementation varies. – Analytic Methods: efficient and accurate, but long development and implementation times.

• Complex-Step Method: accurate and robust; easy to implement and

maintain.

— Joaquim R. R. A. Martins — 3

Finite-Difference Derivative Approximations

From Taylor series expansion.

• Forward-difference:

f ′(x) ≈ f(x + h) − f(x) h + O(h)

• Central-difference:

f ′(x) ≈ f(x + h) − f(x − h) 2h + O(h2) Any finite-difference formula subject to subtractive cancellation.

— Joaquim R. R. A. Martins — 4

Complex-Step Derivative Approximation

If the function f(x) is analytic, it can be expanded as a Taylor series with a complex step, ih: f(x + ih) = f(x) + ihf ′(x) − h2f ′′(x) 2! − ih3f ′′′(x) 3! + . . . ⇒ f ′(x) = Im [f(x + ih)] h + h2f ′′′(x) 3! + . . . ⇒ f ′(x) ≈ Im [f(x + ih)] h No subtraction!

— Joaquim R. R. A. Martins — 5

Why Improve the Complex-Step Method?

• Improvements necessary because,

arcsin(z) = −i log

• iz +
• 1 − z2
• ,

may yield a zero derivative...

• How? If z = x + ih, where x = O(1) and h = O(10−20) then in the

addition, iz + z = (x − h) + i (x + h) h vanishes when using finite precision arithmetic.

• Would like to keep the real and imaginary parts separate.

— Joaquim R. R. A. Martins — 6

Alternative Definition for “sin”

• Complex definition of sine also problematic,

sin(z) = eiz − e−iz 2i .

• Complex trigonometric relation gives better alternative:

sin(x + ih) = sin(x) cosh(h) + i cos(x) sinh(h).

• Note that for small h this simplifies to,

sin(x + ih) ≈ sin(x) + ih cos(x).

— Joaquim R. R. A. Martins — 7

Alternative Definition for “arcsin”

• From the standard complex definition,

arcsin(z) = −i log

• iz +
• 1 − z2
• .
• Need real and imaginary parts calculated separately.
• Linearize in h about h = 0,

arcsin(x + ih) ≡ arcsin(x) + i h √ 1 − x2.

— Joaquim R. R. A. Martins — 8

The Connection

• The new function definitions in these examples can be generalized:

f(x + ih) ≡ f(x) + ih∂f(x) ∂x .

• The real part is the real function and the imaginary part is the derivative

multiplied by h.

• Defining functions this way, the complex-step method is the same as

algorithmic differentiation.

• For small enough step, using finite precision arithmetic, the complex-step

method is the same as algorithmic differentiation.

— Joaquim R. R. A. Martins — 9

Algorithmic Differentiation vs. Complex Step

Look at a simple operation, e.g. f = x1x2, Algorithmic Complex-Step ∆x1 = 1 h1 = 10−20 ∆x2 = 0 h2 = 0 f = x1x2 f = (x1 + ih1)(x2 + ih2) ∆f = x1∆x2 + x2∆x1 f = x1x2−h1h2 + i(x1h2 + x2h1) d f/dx1 = ∆f d f/dx1 = Im f/h Complex-step method computes one extra term.

• Other functions are similar:

– Superfluous calculations are made. – For h ≤ x × 10−20 they vanish but still affect speed.

— Joaquim R. R. A. Martins — 10

Previously Unresolved Issues

Large body of research on algorithmic differentiation can now be applied to the complex-step method:

• Singularities: non-analytic points
• if statements: piecewise function definitions
• Convergence for iterative solvers
• Other issues addressed by the algorithmic differentiation community

— Joaquim R. R. A. Martins — 11

Automatic Differentiation Implementations

• Algorithmic Differentiation

– Source transformation (ADIFOR, ADIC): resulting code is unmaintainable. – Derived datatype and operator overloading (ADOL-F, ADOL-C): far fewer changes are necessary in source code, requires object-oriented language.

• Complex Step:

– Even fewer changes are required. – Resulting code is maintainable. – Can be easily implemented in any programming language that supports complex arithmetic.

— Joaquim R. R. A. Martins — 12

Fortran Implementation

• complexify.f90:

a module that defines additional functions and

• perators for complex arguments.
• Complexify.py: Python script that makes necessary changes to source

code, e.g., type declarations.

• New improvements:

– Script is more versatile: ∗ Compatible with many more platforms and compilers. ∗ Supports MPI based parallel implementations. ∗ Resolves some of the input and output issues. – Some of the function definitions were improved: tangent, inverse and hyperbolic trigonometric functions.

— Joaquim R. R. A. Martins — 13

C/C++ Implementations

• complexify.h:

defines additional functions and operators for the complex-step method.

• derivify.h:

simple algorithmic differentiation. Defines a new type which contains the value and its derivative.

• Compared run time with real-valued code:

– Complexified version: ≈ ×3 – Algorithmic differentiation version: ≈ ×2

— Joaquim R. R. A. Martins — 14

2D Flow Solver: FLO82

RAE 2822 Airfoil α = 3.0o, M∞ = 0.70

1.20 0.80 0.40 0.00

• 0.40
• 0.80
• 1.20
• 1.60
• 2.00

Cp

+ + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + ++++++++++++++ + + +++++++++++++++++++ + + + + + + + + +

— Joaquim R. R. A. Martins — 15

Convergence of CD and ∂CD/∂M∞

50 100 150 200 250 300 350 400 450 500 10

−15

10

−10

10

−5

10 Iterations Relative Error, ε CD ∂ CD / ∂ M∞

Imaginary part converges at similar rate but lagged.

— Joaquim R. R. A. Martins — 16

Sensitivity Estimate vs. Step Size

10

−30

10

−20

10

−10

10

−15

10

−10

10

−5

10 Relative Error, ε Step Size, h Complex−Step Finite−difference

Complex-step is accurate from h = 10−10 to h = 10−321.

— Joaquim R. R. A. Martins — 17

3D Aero-Structural Design Optimization Framework

• Aerodynamics: SYN107-MB, a parallel,

multiblock Euler flow solver.

• Structures: detailed finite element model

with plates and trusses.

• Coupling: high-fidelity, consistent and

conservative.

• Geometry: centralized database for

exchanges (jig shape, pressure distributions, displacements.)

• Coupled-adjoint sensitivity analysis

— Joaquim R. R. A. Martins — 18

Aero-Structural Model and Solution

— Joaquim R. R. A. Martins — 19

Wing Structural Model Detail

— Joaquim R. R. A. Martins — 20

Convergence of CD and ∂CD/∂b1

100 200 300 400 500 600 700 800 10

−8

10

−6

10

−4

10

−2

10 Iterations Reference Error, ε CD ∂ CD / ∂ b1

— Joaquim R. R. A. Martins — 21

Sensitivity Estimate vs. Step Size

10

−15

10

−10

10

−5

10

−6

10

−5

10

−4

10

−3

10

−2

10

−1

10 Relative Error, ε Step Size, h Complex−Step Finite−difference

Finite-difference is practically useless.

— Joaquim R. R. A. Martins — 22

Sensitivity of CD to Hicks-Henne Functions

2 4 6 8 10 12 14 16 18 −0.05 0.05 0.1 0.15 ∂ CD / ∂ bi Shape variable, i Complex−Step, h = 1×10−20 Finite−Difference, h = 1×10−2

Much effort expended for a finite-difference result this reasonable.

— Joaquim R. R. A. Martins — 23

Supersonic Viscous/Inviscid Solver

Tool for preliminary design of natural laminar flow supersonic aircraft

• Transition prediction
• Viscous and inviscid drag
• Design optimization

– Wing planform and airfoil design – Wing-Body intersection design

— Joaquim R. R. A. Martins — 24

Supersonic Viscous/Inviscid Solver

• Python wrapper defines geometry
• CH GRID automatic grid generator

– Wing only or wing-body – Complexified with our script

• CFL3D calculates Euler solution

– Version 6 includes complex-step – New improvements incorporated

• C++ post-processor for the . . .
• Quasi-3D boundary-layer solver

– Laminar and turbulent – Transition prediction – C++ algorithmic differentiation

• Python wrapper collects data and

computes structural constraints

— Joaquim R. R. A. Martins — 25

Sensitivity Estimate vs. Step Size

10

−20

10

−15

10

−10

10

−5

10 10

−8

10

−6

10

−4

10

−2

10 10

2

Step Size, h Relative Error, ε Finite Difference Complex−Step

Finite-differences truly useless.

— Joaquim R. R. A. Martins — 26

Laminar Skin Friction CD

22.495 22.5 22.505 4.3728 4.3729 4.373 4.3731 4.3732 4.3733 4.3734 4.3735 4.3736 x 10

−4

Root Chord (ft) Cdf Function Evaluations Complex−Step Slope

— Joaquim R. R. A. Martins — 27

Skin Friction CD with Transition

22.495 22.5 22.505 3.0222 3.0222 3.0222 3.0222 3.0222 3.0223 3.0223 x 10

−3

Root Chord (ft) Cdf Function Evaluations Complex−Step Slope

— Joaquim R. R. A. Martins — 28

Conclusions

• Presented improvements to the complex-step method.

– Fixes to subtle problems with some complex function definitions – Simple method for defining any new function desired

• Bridged complex-step and algorithmic differentiation theories.

– Allows application of prior research to complex-step.

• Applied method to two large three-dimensional analyses.

– Automatic implementation in Fortran – Easy to implement in nearly all engineering programming languages

• Infinitely better than finite difference

– Effective in computationally noisy or poorly converged analyses – Excellent for validation of more sophisticated gradient calculations

• Tools available at: http://aero-comlab.stanford.edu/jmartins/
