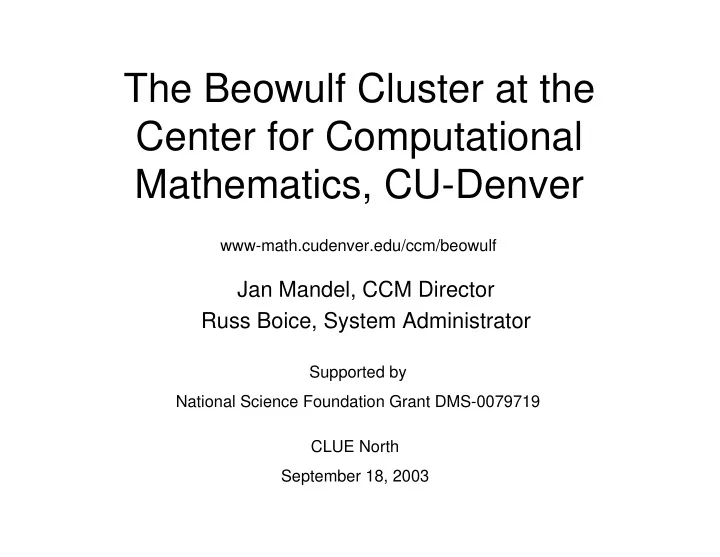

The Beowulf Cluster at the Center for Computational Mathematics, CU-Denver

Jan Mandel, CCM Director Russ Boice, System Administrator

CLUE North September 18, 2003 Supported by National Science Foundation Grant DMS-0079719 www-math.cudenver.edu/ccm/beowulf

Overview

• Why a Beowulf cluster?
• Parallel programming
• Some really big clusters
• Design constraints and objectives
• System hardware and software
• System administration
• Development tools
• The burn-in experience
• Lessons learned

Why a Beowulf Cluster?

• Parallel supercomputer on the cheap
• Take advantage of bulk datacenter pricing
• Open source software tools available
• Uniform system administration
• Looks like one computer from the outside
• Better than a network of workstation

Why parallel programming

• Speed: Divide problem into parts that can run on

different CPUs

– Communication between the parts is necessary, and – the art of efficient parallel programming is to minimize the communication

• Memory: On a cluster, the memory needed for

the problem is distributed between the nodes

• But parallel programming is hard!

Numerical parallel programming software layers

Interconnect hardware drivers (ethernet, SCI, Myrinet…) Message passing libraries (MPI, PVM) Shared memory (hardware, virtual) Distributed parallel object libraries (PetSC, HYPRE,…) OpenMP High Performance Fortran (HPF)

Top 500 list

• Maintained by www.top500.org
• Speed measured in floating point
• perations per second (FLOPs)
• LINPACK benchmark = solving dense

square linear systems of algebraic equations by Gaussian elimination www.netlib.org

• Published twice a year at the International

Supercomputing Conference

Source: Jack Dongarra http://www.cs.utk.edu/~dongarra/esc.pdf

Source: Jack Dongarra http://www.cs.utk.edu/~dongarra/esc.pdf

Source: www.top500.org

Design objectives and constraints

• Budget $200,000, including 3 year warranty
• Maximize computing power in GFLOPs
• Maximize communication speed
• Maximize memory per node
• Run standard MPI codes
• Nodes useful as computers in themselves
• Use existing application software licenses
• Run existing software, porting, development
• Remote control of everything, including power
• System administration over low bandwidth links

Basic choices

• Linux, because

– It is free and we have been using it on the whole network already for years – Cluster software runs on Linux – Our applications run on Linux

• Thick nodes, with disks and complete Linux,

because

– Nodes need to be useful for classical computations – Local disks are faster than over network – Tested Scyld (global process space across the cluster), which did not work well at the time – At least we know how to make them run

Interconnects available in early 2001

• 100Mb/s ethernet: slow, high latency
• 1Gb/s ethernet: expensive (fibre only), high latency
• Myrinet: nominal 2Gb/s duplex, star topology, needs

expensive switch

• SCI (Dolphin): nominal 10Gb/s, actual 1.6Gb/s duplex,

torus topology, no switch, best latency and best price per node. Also promised serial consoles and remote power cycling of individual nodes.

• Dolphin and Myrinet avoid TCP/IP stack
• Speed limited by the PCI bus - 64bit 66MHz required to

get fast communication

• Decision: SCI Dolphin Wulfkit with Scali cluster software

x86 CPUs available in early 2001

• Intel PIII: 1GHz, cca 0.8 GFLOPs

– Dual CPUs = best GFLOPs/$ – 64bit 66MHz PCI bus available on server class motherboards – 1U 2CPU possible – Cheap DRAM

• Intel P4 1.5GHz

– SSE2 = double precision floating point vector processor – Theoretically fast, but no experience with SSE2 at the time – No 64bit 66MHz PCI bus, no dual processors – Rambus memory only, expensive

• AMD Athlon

– Not available with dual processors – No experience in house

• Decision: Dual PIII, server class motherboard, 1U

Disks available in early 2001

• ATA100

– Internal only, 2 devices/bus, no RAID – Simple drives, less expensive

• Ultra160 SCSI

– Internal/external, RAID – 16bit bus, up to 160MB/s – Up to 16 devices/channel – More intelligence on drive, more expensive – Disk operation interleaving – High-end server class motherboards have SCSI

• Decision: Ultra160 SCSI

Remote console management

• Goal: manage the cluster from off campus
• Considered KVM switches
• Solutions exist to convert KVM to a graphics session, but

– Required a windoze client – And lots of bandwith, even DSL may not be enough (bad experience with sluggish VNC even over 10Mb/s) – Would the client run through a firewall?

• All we wanted was to convert KVM to a telnet session

when the display is in green screen text mode – when we are up and run X we do not need a console … but found no such gadget on the market

• Decision: console through serial port and reverse telnet

via terminal servers

Purchasing

• Bids at internet prices + few % for integration,

delivery, installation, tech support, and 3 year warranty

• Vendor acts as a single point for all warranties

and tech support (usual in the cluster business)

• Worked out detailed specs with vendors

– DCG, became ATIPA in the process – Paralogic – Finally bought from Western Scientific

The Beowulf Cluster at CCM

Cluster hardware

• 36 nodes (Master + 35 slaves)

– Dual PIII-933MHz, 2GB memory – Slaves have 18GB IBM Ultrastar Ultra160 SCSI disk, floppy

• Master node

– mirrored 36GB IBM Ultrastar Ultra160 SCSI disk, CDROM – External enclosure 8*160GB Seagate Barracuda Ultra160 SCSI, PCI RAID card with dual SCSI channels, mirrored & striped – Dual gigabit fiber ethernet – VXA 30 AIT tape library

• SCI Dolphin interconnect
• Cluster infrastructure

– 100Mb/s switch with gigabit fiber uplink to master – 4 APC UPS 2200 with temperature sensors and ethernet – 3 Perle IOLAN+ terminal servers for the serial consoles – 10Mb/s hub for the utility subnet (UPS, terminal servers)

Performance

• CPU theoretical ~60 GFLOPs
• Actual 38 GFLOPs LINPACK benchmark
• Disk array: 4 striped disks@40MB/s on

160MB/s channel=160MB/s theoretical, 100MB/s actual disk array bandwidth

• SCI interconnect: 10Gb/s between cards,

card to node 528MB/s theoretical (PCI), 220MB/s actual bandwidth, <5µs latency

SCI

Master

Node 1 Node 10 Node 20 Node 30 Node 35

100Mb/s Switch

36 Nodes 2 CPU 2GB RAM Each

Three Terminal Controllers RS 232 100 MB Ethernet

SCI Cable Interconnect

Fiber Gaga bit to Internet

Fiber Giga Bit Link 10 MB Hub

UPS Power UPS Power UPS Power UPS Power

To Four 30 Amp 115 VAC Circuits

• ther

To Internet

1 3 5 4 2 M 13 15 17 16 14 12 25 27 29 28 26 24 31 33 35 34 32 30 19 21 23 22 20 18 7 9 11 10 8 6

SCI Dolphin interconnect topology 6 x 6 2D torus

Eight 160 GB SCSI Drives

(with RAID leaves 698 GB actual capacity)

Master node Two VXA Tape Drives With 30 Tape Auto Load Library

(Recording Rate: 4000 kB/s) (70 GB Typical Compressed Capacity Per Tape)

18 GB Internal SCSI Drives Node 1 Node 2 Node 3 Node 35

Mass storage

Two 160MB/s SCSI Channels One SCSI Channel Internal 36GB mirrored drives on 160MB/s SCSI

WARNING

EXPLICIT PICTURES OF BIG HARD DRIVES NEXT

The master

The master node

The slaves

The slave nodes

The back

SCI Dolphin cables Keyboard, monitor, and mouse plugged into a slave node Serial console cables Ethernet cables

The uninterruptible power supplies (UPS), utility hub, two UPS network interface boxes, and temperature sensor on top

Disk array 8*160GB Tape library An extra fan to blow in the beast’s face

The beast eats lots of power

Perfectly useless doors that came with the beast but just inhibit air

• flow. Note the

shiny surface of the left door, holes only on the sides.

Ethernet switch Terminal servers for serial consoles

The disk array and the tape library

The 10Gb/s SCI Dolphin cables are a bit too long.

Office power strips were commandeered to distribute the load between the

• utlets on the

uninterruptible power supplies to avoid tripping the circuits breakers.

The backplane in gory detail

Cluster software

• Redhat Linux 7.2
• Scali cluster software

– SCI Dolphin accessible through MPI library only – Management tools, Portable Batch System (PBS)

• Portland group compilers

– C, C++, Fortran 90 – High Performance Fortran (HPF) is the easiest way to program the cluster

• Totalview debugger by Etnus

– Switch between group of processes in an MPI job, control all processes at once – Alternative: one gdb per process in an xterm window…

Networking

• All slaves and one master fiber interface run a local

network with NAT

• Master is the gateway, only node visible from the outside
• Disk array on master shared by NFS with slaves
• Utility hub (power supplies, serial consoles) is accessible

from the outside

• Master runs ntp server – important to keep time in sync
• All other protocols pass through master to the outside
• FlexLM license server for apps is outside of cluster

System administration

• All slave nodes kept in sync

– Moving files etc done by Scali commands (basically just loops over the nodes) – Slave disks are cloned (boot Linux, run dd on the raw device) when a disk is replaced

• Software on master and nodes kept in

sync by duplicating /opt

• Few custom cron scripts

System administration cron scripts

• From cron on another box, log periodically into

UPSes and turn everything off if room temperature is too high

• Check periodically if Dolphin cards work and

take nodes that failed offline so that PBS will not assign jobs to them

• Export status report to the web
• Start and stop PBS queues from cron depending
• n if jobs are waiting; the built-in scheduler is not

smart enough and cannot be changed easily

Common libraries and application software

• Optimized BLAS (Basic Linear Algebra

Subroutines)

• Parallel distributed object libraries:

– PetSC (Argonne National Lab) – HYPRE (Lawrence Livermore Nat. Lab.)

• Matlab

– Single processor only

The burn-in: Software

• Vendor technicians struggled with serial consoles
• SCI drivers conflict with RAID drivers on master, Scali

developers had to compile custom kernel.

• Scali management tools never fully worked.
• Arkeia tape library software never worked.
• The PBS (batch system) did not work properly
• Etc… it took about 8 months and upgrade to Redhat 7.2

and new Scali 4.0 for things to start working reasonably well.

• The PGI compilers, the Totalview debugger, the Scali

SCI drivers, and Redhat version never worked together well: everybody supports fully only the previous version of the other people’s software!

The burn-in: Power and heat

• Too few UPSes, vendor had to buy 2 more
• Did not have enough power outlets, had to steal power

from all over the floor

• The UPSes did not support automatic shutoff at high

temperature as promised, had to buy network boxes for all UPSes and write a shutoff script

• Running the benchmark overheated 1U slave nodes
• Vendor replaced front plates and added internal fans
• Running the benchmark for few minutes tripped the

circuit breakers on the UPSes

• Redistributed the load between outlets on the UPSes

using office power strips

• After running the benchmark for few hours the machine

room air-conditioning compressor failed

• After 6 months finally the benchmark goes through!

The burn-in: Disks, CPUs, and motherboards

• When all nodes are opened, at least one of them

would not work again

• A node disk, motherboard, or Dolphin card
• ccasionally dies (less often now)
• Probably caused by more heat in the 1U

enclosures, master had no problems

Cluster use

• Numerical mathematics: research of iterative solvers for

large scale systems of equations, eigenvalue solvers

• Discrete mathematics: search for graphs with special

properties

• Massive experiments: run large number of copies of the

same code on different data (also for tables and graphs)

• Computational chemistry: runs existing codes for

molecular simulation

• Student training

Node usage

• Master: compilation, light load only
• Node1 and node2: interactive work,

debugging

• Nodes 3 to 36: jobs submitted through

PBS (Portable Batch System) only

– each job gets assigned full nodes to run on

• No enforcement, relies on user

cooperation

Lessons learned

• You get what you pay for
• Refuse any hardware not supported by the

stock kernel right out of the CD

• Air must stream through the nodes like in

a jet engine, anything less will overheat

• Using the cluster is hard
• Avoid inconveniencing users

What we would buy now

• Dual P4, of course
• Memory depending on usage; we would go for

2GB or 4GB so that the nodes are useful as computers on their own in what we do

• Interconnect by twisted pair gigabit

– Motherboards now have dual gigabit ports – Switches are reasonably priced – Reasonably fast – High latency, but well written parallel programs do not use that much communication – One port for MPI subnet, one for all else, esp. NFS

• Make sure of good air flow: 2U or blower fans

What we would buy now (cont.)

• Use ATA disks, they are now fast enough and

much cheaper than SCSI

• Networked power strips to powercycle over the

network each node individually

• Basic KVM but no remote consoles – if you have

a problem that requires console, you probably have to go in the machine room anyway

• A cheap slow huge disk array offsite at a friendly

machine room for disk to disk backups, no tape library, just one tape drive on master for system
